Teradek RT MDR.S Receiver

MDR.S is Teradek’s ultra-compact 3-axis lens control receiver with Bluetooth, FHSS wireless, and camera run/stop support. Ideal for drones, gimbals, and lightweight builds, it delivers precision control and remote configuration via the RT app.

1-3 werkdagen
  • €952,21 (excl. btw)
    €1.152,17 incl. btw
  • - 0%

The Teradek MDR.S is a compact, ultra-lightweight 3-axis lens control receiver designed for professional filmmakers who demand precision, portability, and reliability. Weighing just 2.4 oz and 30% smaller than its predecessor MDR.X, the MDR.S integrates seamlessly into any camera, drone, or gimbal setup without adding bulk. It supports up to three daisy-chained motors for focus, iris, and zoom control, and features FHSS wireless technology to eliminate interference, delivering a robust signal with up to 1.524 meters line-of-sight range. The onboard OLED display offers intuitive menu navigation, while the customizable external antenna enhances connectivity. With integrated Bluetooth, users can remotely configure lens maps and settings via the Teradek RT iOS app. The MDR.S also includes camera run/stop functionality for RED, ARRI, Sony, and LANC-compatible cameras, and supports lens data overlays on SmallHD monitors. Built from milled aluminum and engineered for durability, it operates in extreme temperatures and mounts easily via a ¼-20 thread. Compatible with Teradek RT controllers (CTRL.1, CTRL.3, CTRL.5) and motors (MOTR.S, MOTR.X, MK3.1), the MDR.S is the heart of Teradek’s wireless lens control ecosystem.

Physical Attributes

  • Dimensions: 2.3”W × 1.7”D × 0.9”H (57.9 × 42 × 24 mm)
  • Weight: 2.4 oz (68 g) without antenna, 2.54 oz (72 g) with antenna
  • Construction: Milled Aluminum 6061-T6 chassis
  • Mounting: 1 × ¼-20 thread

Environmental

  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Storage Temperature: -40°F to 185°F (-40°C to 85°C)

Wireless & Network

  • Wireless Protocol: Teradek RT FHSS (2.4 GHz)
  • Bluetooth: 2.4 GHz
  • Wireless Range: Up to 5000 ft (1500 m) line-of-sight (FCC mode), up to 500 ft (150 m) indoors
  • Latency: 2 ms

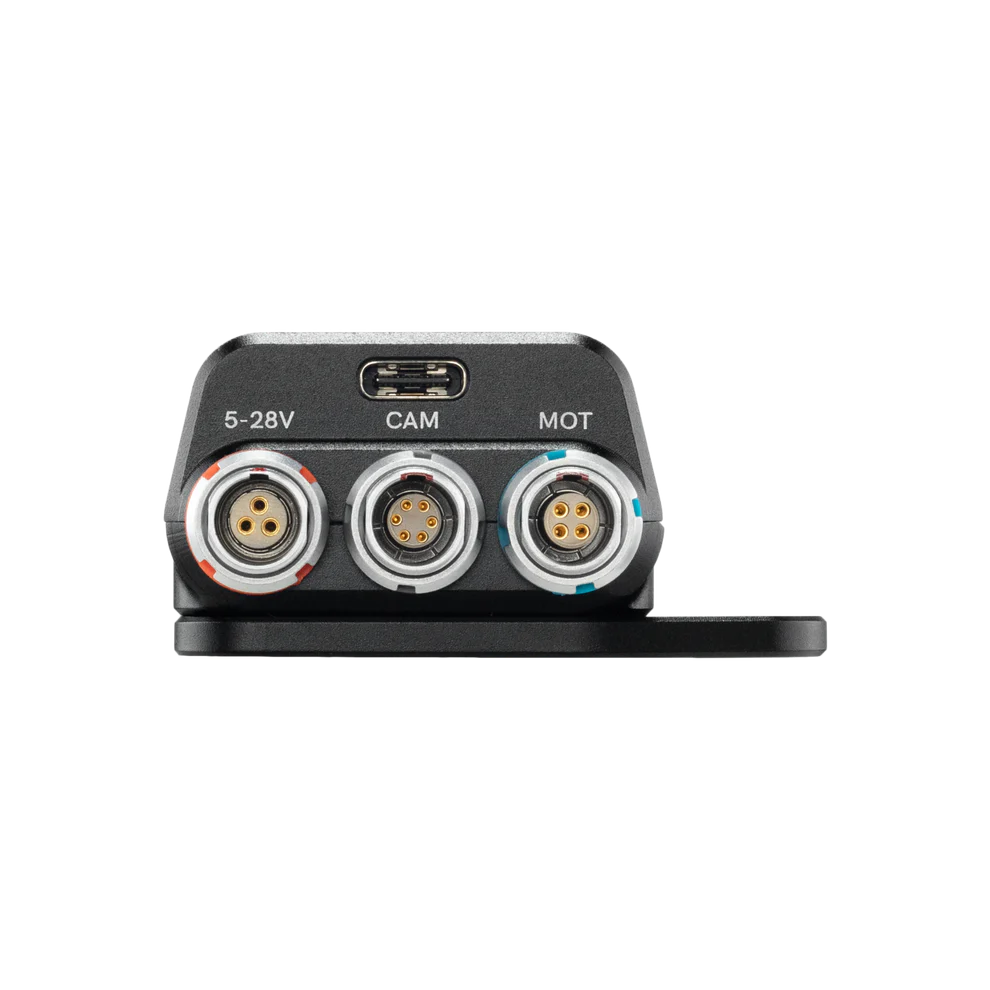

Connectors

  • Power Input: 3-pin LEMO 0B (5–28V DC)
  • Camera Input (CAM): 6-pin LEMO 0B, RS-232 for RED control, programmable line driver for select cameras
  • Motor Inputs: 4-pin LEMO 0B
  • USB-C: For firmware upgrades

Interfaces

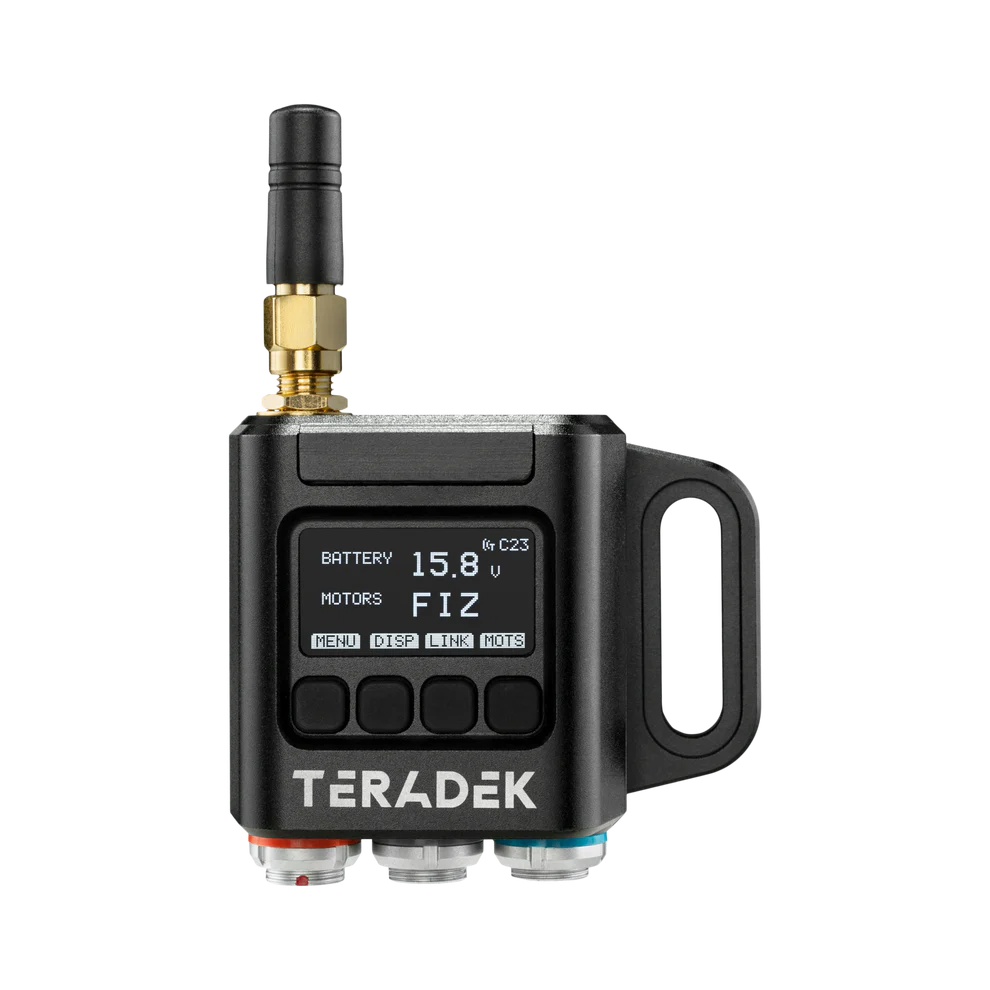

  • Front Panel: OLED screen with menu system and button navigation
  • Camera Control: RED DSMC2, EF/AF Focus/Iris, Shutter, ISO
  • Button Features: Magnification, Edge, Focus Assist
  • Desktop Apps: Teradek RT Manager, RT Firmware Configuration App
  • Bluetooth Compatibility: CTRL.1, CTRL.3, RT App

Camera Run/Stop Support

  • Compatible Cameras: RED (Epic, Scarlet, Weapon, Raven), ARRI (Alexa, Amira), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500, Sony FS7)

RT Accessory Support

  • Motors: MOTR.X, MOTR.S, MK3.1
  • Controllers: CTRL.1, CTRL.3, MK3.1
  • Other: Thumbwheel, Latitude Receivers, TOF.1

1 x MDR.S

1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable

1 x Teradek RT Power 3 pin - P Tap Cable

1 x Antenna Straight WiFi 2.4GHz 28.4mm length 0.56db rp-sma

1 x MDR.S Bracket

1 x Screw Socket Head Black M2 x 6mm

1 x Screw Socket Cap 1/4-20 x 3/8in
