Libec H45

Integreer een vloeiende kop in uw statiefconfiguratie met verschillende aanpassingsfuncties met behulp van deze H45 75 mm bal- en platte videokop met panhandgreep van Libec.

Levertijd opvraagbaar
  • €1.609,00 (excl. btw)
    €1.946,89 incl. btw
  • - 0%

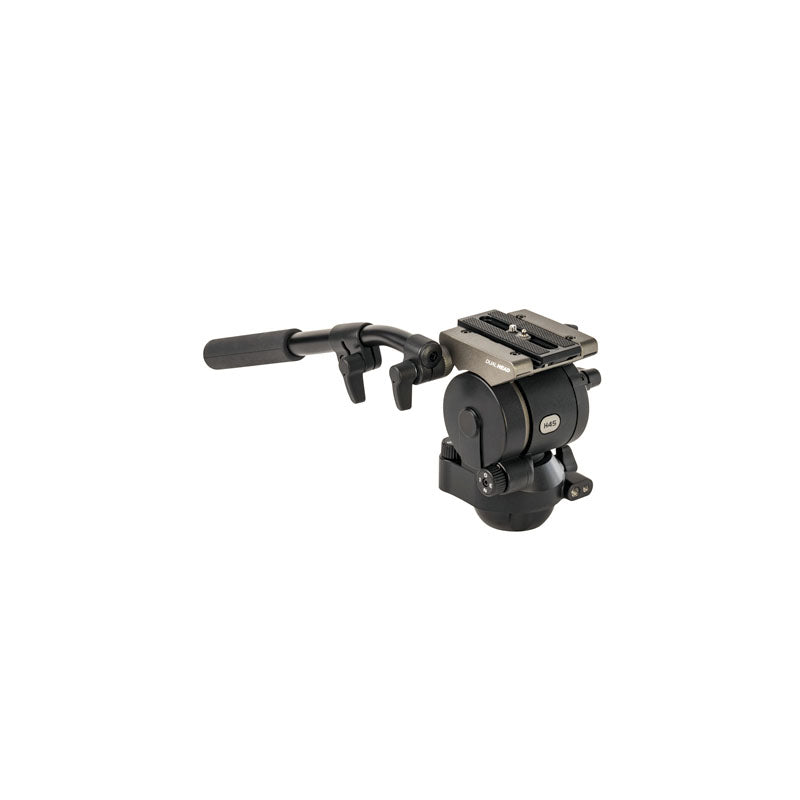

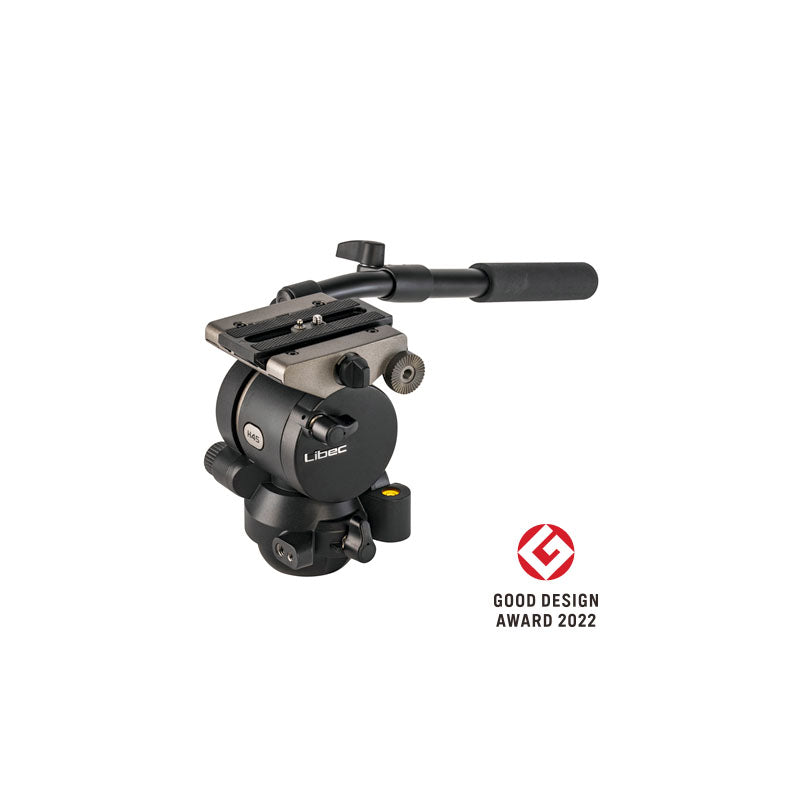

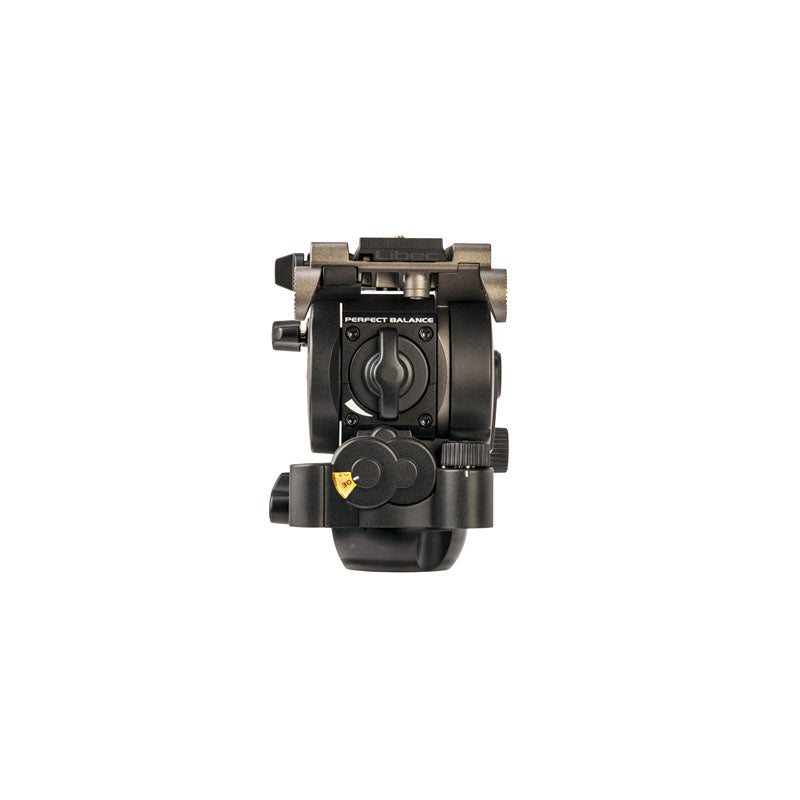

Integrate a fluid head into your tripod configuration with various adjustment features using this H45 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H45 head has a load capacity of 26.5 lb and an adjustable counterbalance range of 9.9 to 23.1 lb.

Your camera is secured via a 1/4"-20 screw and locating pin, and additional 3/8"-16 and 1/4"-20 screws are included for further attachments. The head also comes with a long sliding plate with one 3/8"-16 screw and one 1/4"-20 screw. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H45 is compatible with Manfrotto or Sachtler heads.

Specifications
Counterbalance range 4.5 to 10.5kg / 9.9 to 23.1lb (C.G.100mm)
Payload 12kg / 26.5lb
Counterbalance Perfect Balance
Continuous Counterbalance with Illuminated Meter
Pan drag mode Free plus 3 steps
Tilt drag mode Free plus 3 steps
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -40°C to +60°C / -40°F to +140°F
Bubble level Illuminated
Camera plate Sliding plate compatible
with Manfrotto and Sachtler heads
Sliding range +/-30mm / 1.2"

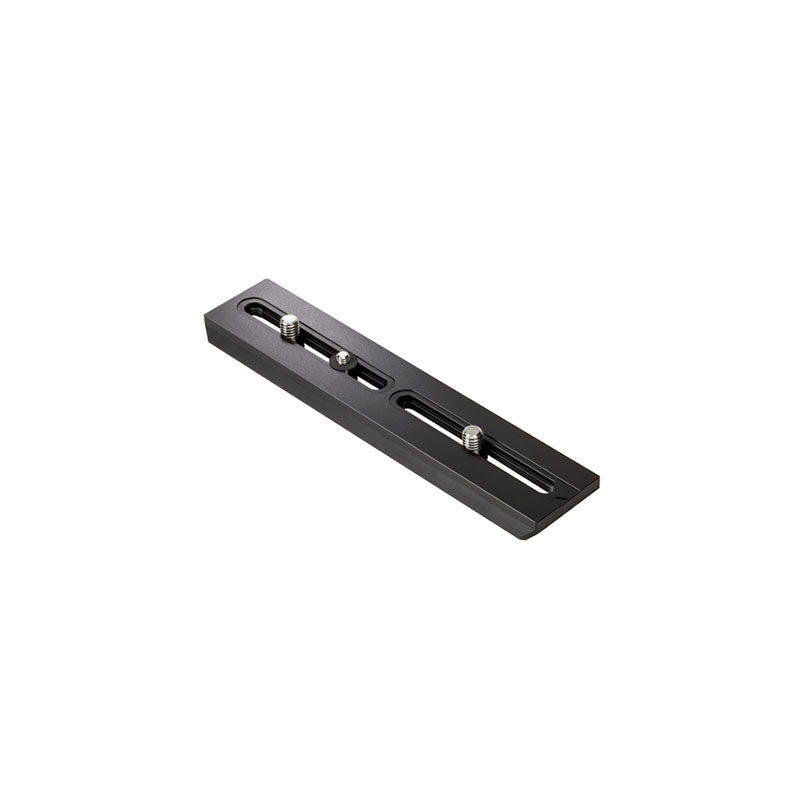

Long sliding plate Included
Head base 75mm ball / Flat base
Plate attachment 1/4" screw with video pin
Accessory attachments 1/4" and 3/8" screw holes
Spare screw 1/4" and 3/8" screws
Weight 2.8kg / 6.2lb
H45 Counterbalance chart
*When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees.
