High‑density 100‑gigabit IP capture and playback card with eight Ultra HD channels, PTP sync, full SMPTE 2110 support and professional codec compatibility. Built for large‑scale, mission‑critical broadcast and IP‑native production systems.
DeckLink IP 100G is built for high‑end broadcast environments that require extreme bandwidth, uncompromised image quality and scalable SMPTE 2110 IP workflows. It delivers eight channels of simultaneous Ultra HD capture and playback over dual 100‑gigabit QSFP28 optical interfaces, providing both the speed and redundancy necessary for mission‑critical media infrastructures. This high‑capacity architecture allows large‑scale systems such as real‑time graphics engines, virtual production stages, automated ingest servers, multi‑stream playout platforms and AI‑accelerated processing nodes to move massive volumes of uncompressed video with consistent low latency and exceptional reliability.
The card supports all SD, HD and Ultra HD formats up to 2160p60, making it suitable for both modern UHD pipelines and mixed‑format broadcast environments. With full SMPTE 2110 compatibility, it transports uncompressed video, synchronized audio and ancillary data as independent streams, enabling precise timing, flexible routing and clean isolation between media components. Its PTP‑based timing ensures frame‑accurate alignment across distributed systems, which is essential for multi‑camera production, remote integration and large facility synchronization.
DeckLink IP 100G supports a wide range of professional codecs including Apple ProRes, DNxHD, DNxHR, AVC‑Intra, XDCAM, DPX, AVCHD, Digital SLR formats and uncompressed 8‑bit, 10‑bit 4:2:2 and 10‑bit 4:4:4 video. This makes the card suitable for editorial pipelines, finishing workstations, cloud‑connected processing and multi‑format broadcast schedules. Its hardware and firmware are optimized for high‑pressure studio environments, ensuring stable operation even under sustained high‑data‑rate load conditions.
With a PCIe Gen 4 x8 interface, DeckLink IP 100G integrates into professional macOS, Windows and Linux systems capable of supporting the card’s extreme throughput requirements. Included software tools such as DaVinci Resolve, Media Express, Disk Speed Test, LiveKey and Desktop Video Utility allow users to configure, test and operate high‑bandwidth IP workflows immediately after installation. DeckLink IP 100G stands as a powerful and future‑ready IP media card designed for facilities that require top‑tier performance, full redundancy and the flexibility of a completely IP‑native production environment.

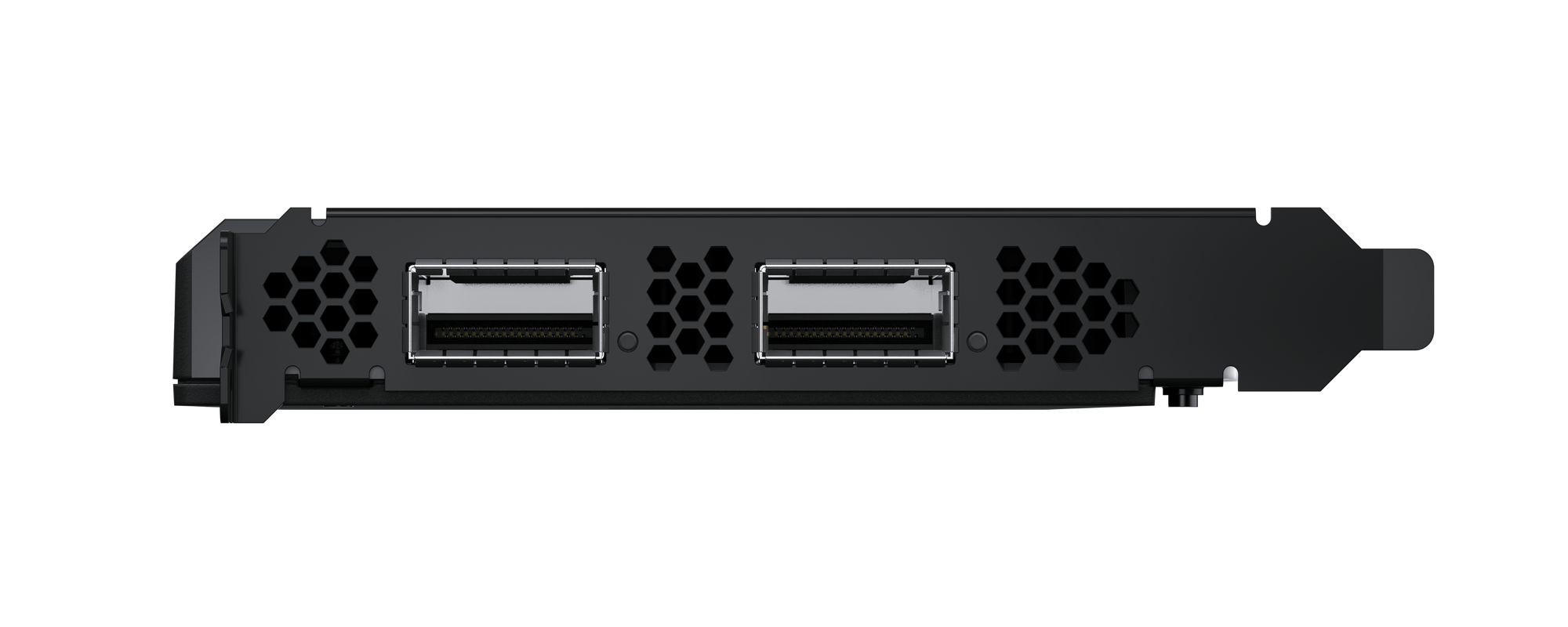

2 x 100Gb/s QSFP28 connectors.
PCI Express 8 lane generation 4, compatible with 8 and 16 lane PCI Express slots.

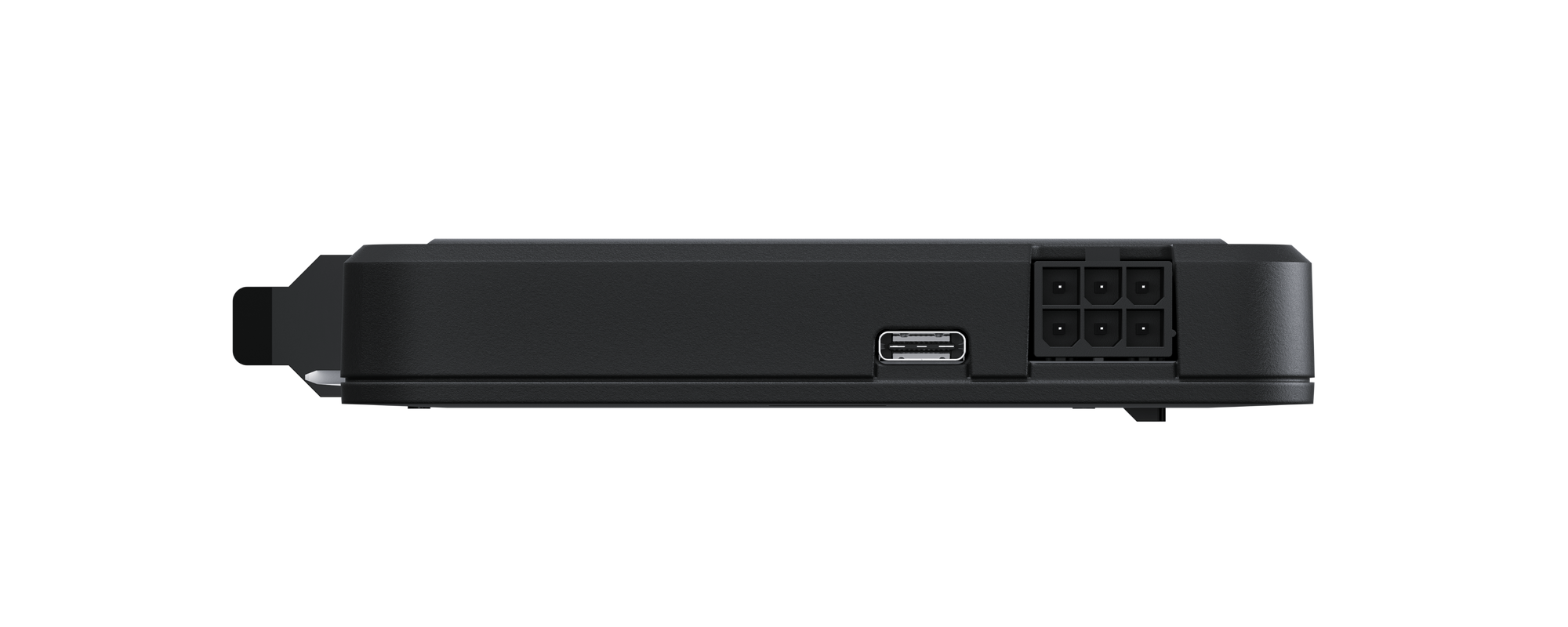

6-pin 2x3 auxiliary power connector.
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Firmware built into software driver. Loaded at system start or via updater software.
PCI Express 8 lane generation 4, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Requires connection to computer power supply via 2x3 auxiliary power connector. Please check the Support pages to see the full system requirements.
DaVinci Resolve
Fusion
Final Cut Pro
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Avid Pro Tools
Steinberg Cubase
Autodesk Flame
Adobe Photoshop
Other supported applications include: Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, Zoom.
These are third party applications and support may vary, check with your software vendor.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Television standard sample rate of 48 kHz at 24‑bit.
10-bit YUV 4:2:2: in all modes.
REC 601, REC 709, REC 2020.
HDR static metadata packing, HLG and PQ transfer characteristics.
IGMP v2/v3
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Receiver class TBC
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS-SD
v1.1.2
Natural Grouping
Receiver capabilities
Hardware based real time.
DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 10, 64-bit.
Windows 11.
Linux
TBC
5° to 50° C (41° to 122° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non‑condensing
DeckLink IP 100G
Welcome wallet with QR code for software download
3 Year Limited Manufacturer’s Warranty.
DeckLink IP 100G
Welcome wallet with QR code for software download
