Blackmagic Cloud Store Ultra 48TB
Blackmagic Cloud Store Ultra 48TB
Blackmagic Cloud Store Ultra 48TB
Blackmagic Cloud Store Ultra 48TB
Blackmagic Cloud Store Ultra 48TB
Blackmagic Cloud Store Ultra 48TB
BlackMagic Design
DWCLDG/CLDULT048

Blackmagic Cloud Store Ultra 48TB

High‑performance 100G flash storage designed for real time broadcast, enabling simultaneous recording, editing and global collaboration without compromise.

Levertijd opvraagbaar
  • €13.525,00 (excl. btw)
    €16.365,25 incl. btw
  • - 0%

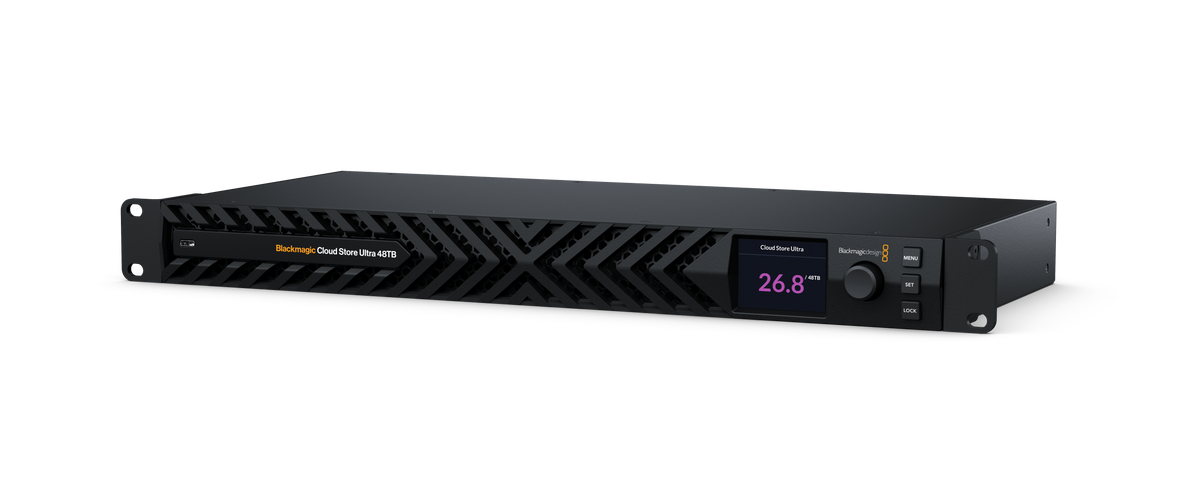

This ultra‑high performance network storage system is designed for demanding broadcast, live production and post‑production environments where speed, reliability and collaboration are essential. Built around a powerful flash‑based architecture, it allows large teams to record and edit media at the same time without contention, even when working with high resolution formats and multiple streams. The compact 1RU design makes it suitable for technical racks in studios, OB vehicles and central machine rooms.

At the heart of the system is a parallel flash memory core using twelve M.2 NVMe modules. This design delivers extremely high throughput and very low latency, allowing dozens of users to access large media files simultaneously. The storage is configured by default for maximum performance using RAID 0, but it can be reformatted to RAID 5 when data protection is required. In RAID 5 mode, parity is distributed across the flash modules, enabling recovery in the event of a module failure while maintaining strong performance.

Connectivity is optimized for modern IP infrastructures. Two independent 100G Ethernet ports provide massive bandwidth and can be configured with separate IP addresses for load balancing or redundancy when used with managed switches. This makes it possible to record and edit at the same time without either workflow affecting the other. A dedicated 1G management port and USB‑C interface are included for configuration, monitoring and software updates.

Deep integration with Blackmagic Cloud enables fast global collaboration. Media and DaVinci Resolve proxy files can be synchronized between locations within seconds, allowing remote editing teams to begin work almost immediately after recording starts. A built‑in HDMI monitoring output provides a real time visual overview of storage usage, bandwidth, connected users, synchronization status and system health.

Reliability is ensured through server‑style front‑to‑rear cooling with four quiet fans and dual redundant power supplies. This design delivers stable thermal performance and continuous operation in mission‑critical broadcast environments.

Verwachtte levertijd: Juli 2026

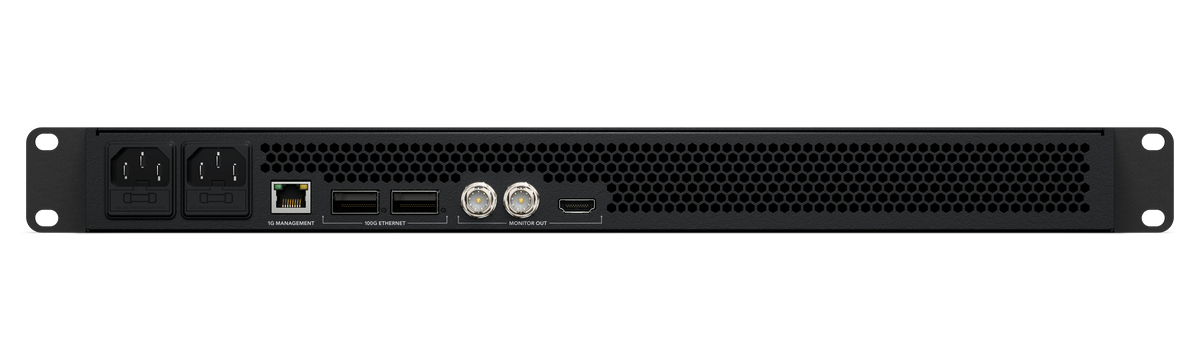

Connections

1G Management

1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.

SDI Monitor Outputs

2

HDMI Monitor Outputs

1

SDI Rates

1.5G, 3G.

Computer Interface

1 x USB-C for Cloud Store Setup utility and software updates.

Power

2 x IEC C14 power inputs.

Blackmagic Cloud Store Ultra 48TB

File Sharing Protocol

Protocol

NFS

SMB

Computer Connections

200 max.

Cloud Synchronization

Amazon Web Services

Amazon Web Services S3 sync.

Storage

Storage Type

M.2 NVMe SSD

Total Capacity

48TB

Displays

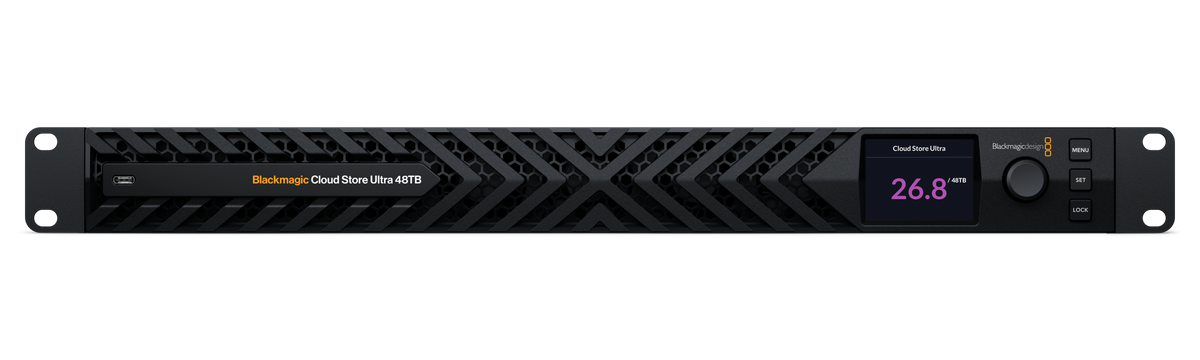

Front Panel Display

Built in 2.2 inch LCD for settings plus storage name, capacity and use.

Monitor Out Displays

Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

SDI Monitor Out Standards

1080p50, 1080p59.94, 1080p60

HDMI Monitor Out Standards

1080p50, 1080p59.94, 1080p60

Control

Built in Control Panel

3 buttons, 2.2 inch color display and spin knob for menu settings.

External Control

USB-C or Ethernet for configuration and software updates.

Software

Software Included

Blackmagic Cloud Setup Utility

Blackmagic Proxy Generator Lite

Internal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 11

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Inputs

2 x IEC C14 sockets.

Power Usage

TBC

Physical Installation

Physical Installation

1 rack unit.

Physical Specifications

Blackmagic Cloud Store Ultra 48TB

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Blackmagic Cloud Store Ultra 48TB

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • Blackmagic Cloud Store Ultra 48TB
  • Welcome wallet with QR code for software download
