Blackmagic ATEM Monitoring Rack Panel 40

A high‑density rack‑mount monitoring and control panel that restores full front‑panel operation and local SDI and HDMI monitoring for large IP‑based ATEM live production systems.

Levertijd opvraagbaar
  • €1.429,00 (excl. btw)
    €1.729,09 incl. btw
  • - 0%

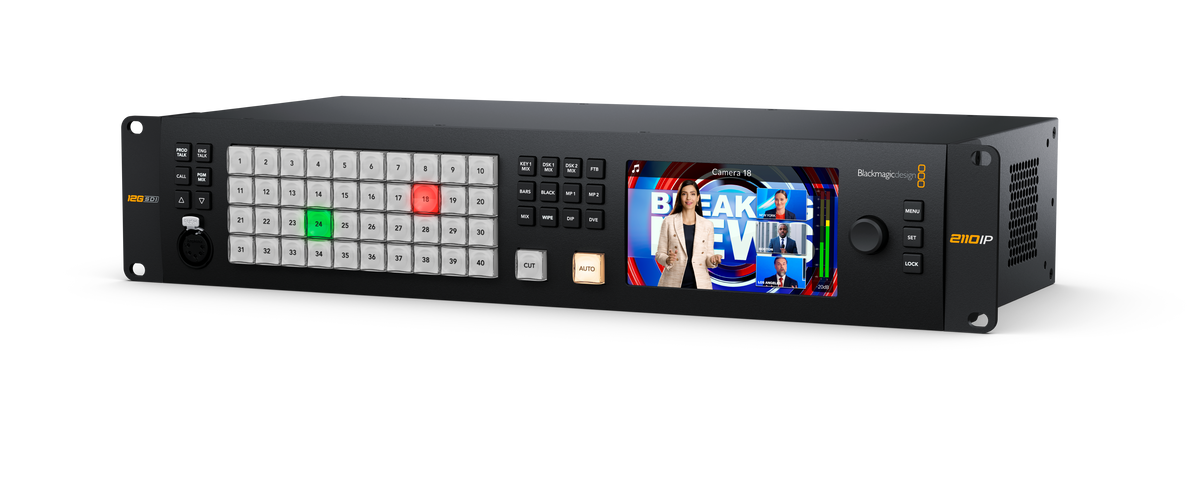

This rack‑mount monitoring and control panel is designed for large‑scale ATEM Constellation IP environments where hands‑on operation and local confidence monitoring are essential. It combines the functionality of a professional SMPTE 2110 monitoring converter with an expanded front‑panel control surface, making it ideal for multi‑M/E productions that require fast access to sources during setup, rehearsals and engineering workflows.

The unit converts SMPTE 2110 IP video directly to 12G‑SDI and HDMI, allowing connection to broadcast monitors without additional converters. Dual 10G Ethernet connections provide full SMPTE 2022‑7 seamless protection switching, ensuring uninterrupted monitoring even if one network path fails. A dedicated NMOS control port allows clean integration into IP routing systems, enabling operators to subscribe to and manage IP sources efficiently within complex broadcast infrastructures.

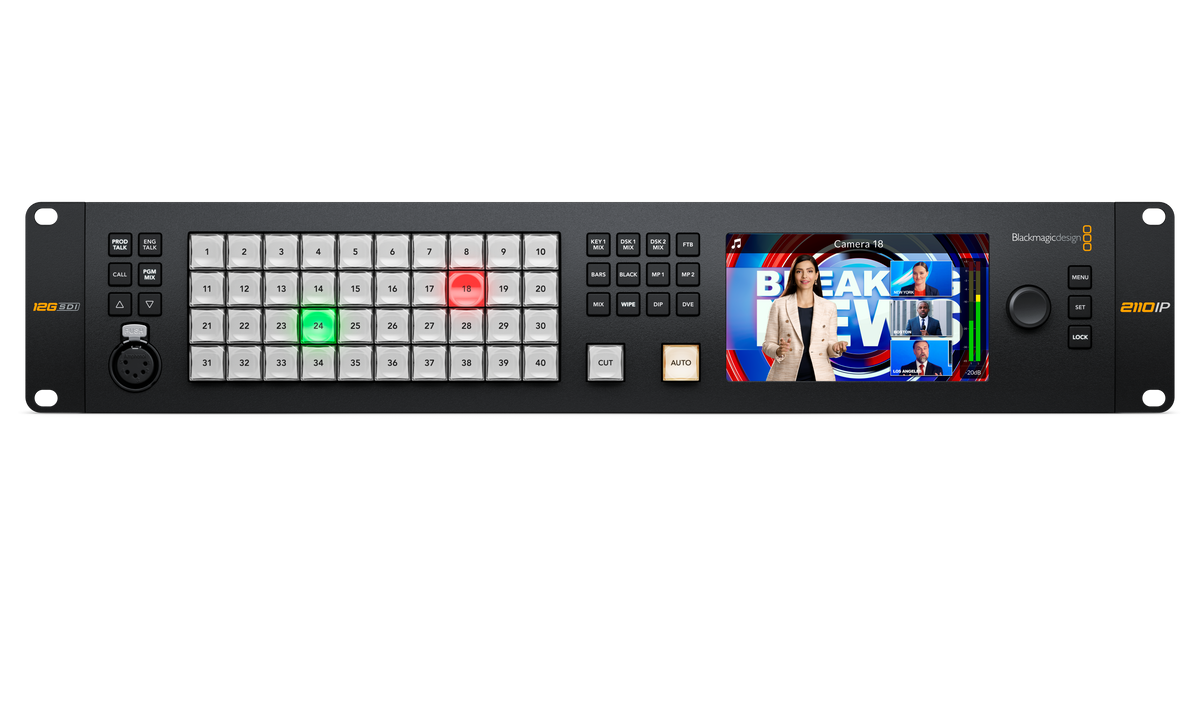

The front panel mirrors the layout of larger ATEM Constellation SDI models and provides a wide array of premium broadcast‑grade buttons. With an expanded control surface, operators can access a greater number of sources directly from the rack, which is particularly valuable in 4 M/E productions with many inputs. A built‑in LCD screen offers real‑time video preview, audio meters and system status information, giving immediate visual feedback without relying on external monitoring systems.

For production communication, the panel includes a five‑pin broadcast headset connector on the front, enabling direct talkback integration. This supports efficient coordination between technical staff, directors and camera operators during live events. The hardware is engineered for continuous operation in professional racks, featuring front‑to‑rear airflow and dual redundant AC power supplies to meet broadcast reliability requirements.

This solution is particularly well suited to large studios, OB trucks and control rooms using ATEM Constellation IP switchers. It restores the tactile control and monitoring capabilities traditionally found on SDI‑based systems, while fully embracing modern IP workflows and redundancy standards.

Verwachtte levertijd: Juli 2026

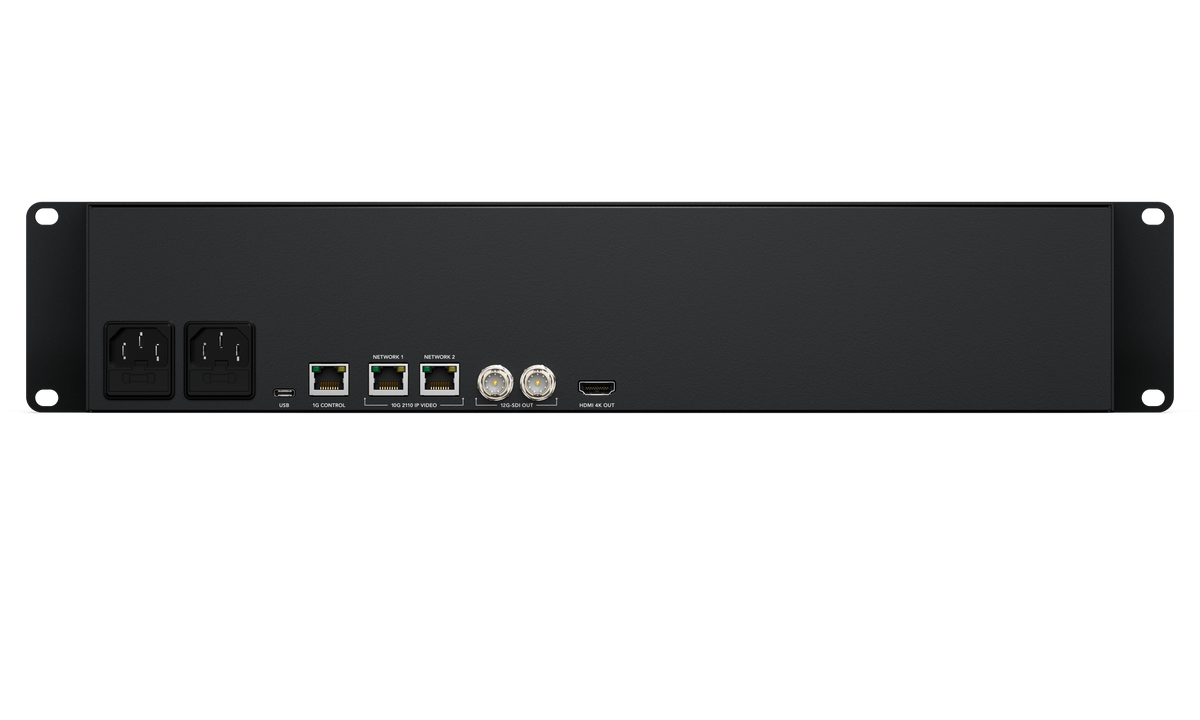

Connections

10G 2110 IP Networks

2 x 10G RJ45 connections.

Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.

10G Control Network

1 x 1G RJ45 for connection to switcher and NMOS control.

Total Video Inputs

1

Total Video Outputs

3

SDI Video Outputs

2

SDI Rates

1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Inputs

1

SDI Audio Outputs

16 Ch embedded audio on all SDI outputs.

HDMI Audio Outputs

8 Ch embedded audio on HDMI output.

SDI Program Outputs

2

SDI Preview Outputs

2

SDI Multi View Outputs

2

HDMI Multi View Outputs

1

Talkback

1 x 5-pin XLR Talkback.

Computer Interface

1 x USB-C for setup utility and software updates.

Power

2 x IEC C14 power inputs.

ATEM Monitoring Rack Panel 40

Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

SMPTE Compliance

SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7

Video Sampling

4:2:2

Color Precision

10-bit.

SDI Color Space

Rec. 709, Rec. 2020

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Product Specifics

Talkback Support

Yes

Control

Front panel emergency switching, software or optional hardware panel.

Display

Front panel

Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Software

Control Panel Included

ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.

Software Updates

Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 10 and 11.
Windows 11 for ARM

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Input

2 x IEC C14 sockets.

Power Usage

TBC

Physical Installation

Physical Installation

2 rack units.

Physical Specifications

ATEM Monitoring Rack Panel 40

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

ATEM Monitoring Rack Panel 40

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • ATEM Monitoring Rack Panel 40
  • Welcome wallet with QR code for software download
