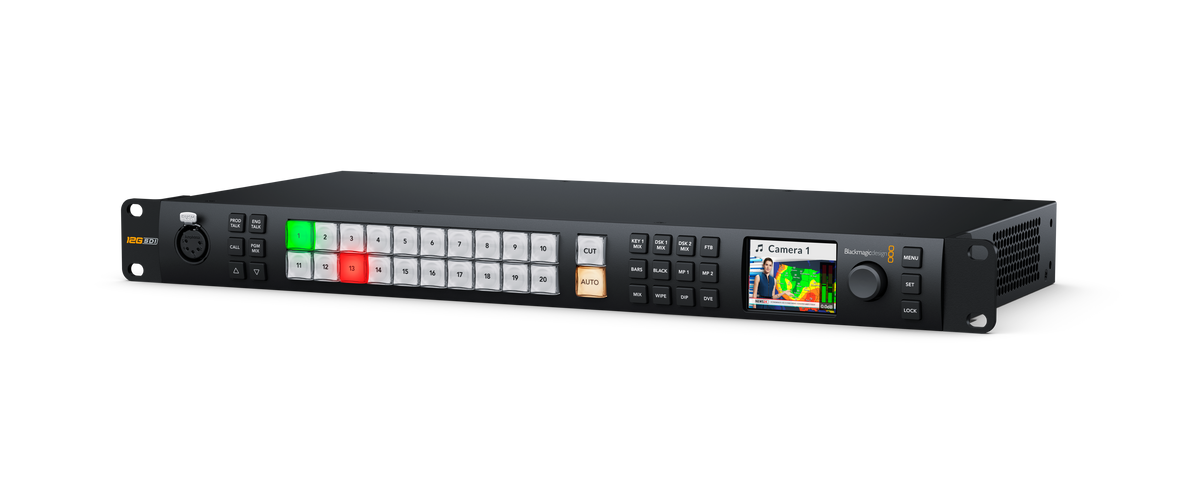

Blackmagic ATEM Monitoring Rack Panel 20

A rack‑mount monitoring and control solution that restores front‑panel operation to IP‑based ATEM systems while delivering local SDI and HDMI confidence monitoring.

Levertijd opvraagbaar
  • €899,00 (excl. btw)
    €1.087,79 incl. btw
  • - 0%
This rack‑mount panel is designed to complement ATEM Constellation IP live production switchers by combining monitoring conversion and essential front‑panel control in a single, compact unit. It addresses the needs of broadcast environments where IP‑native switchers rely on front‑to‑back cooling and therefore lack traditional front‑panel controls. By adding this device to the rack, operators regain immediate access to monitoring and basic switcher operation without compromising airflow or system reliability.

The unit integrates a professional monitoring converter that transforms SMPTE 2110 IP video into both 12G‑SDI and HDMI outputs. This allows direct connection to local monitors for confidence viewing, engineering setup or troubleshooting. Dual 10G Ethernet connections provide full SMPTE 2022‑7 redundancy, ensuring seamless protection switching and uninterrupted monitoring even if one network path fails. A dedicated NMOS Ethernet port enables clean integration into IP routing environments and simplifies source management within larger SMPTE 2110 systems.

In addition to monitoring, the front panel replicates the control layout found on traditional ATEM Constellation SDI models. Premium broadcast‑grade buttons allow direct source selection and basic switcher interaction, making the panel particularly useful during setup, rehearsals or technical line‑up. A built‑in LCD provides real time visual feedback, including video preview and audio level meters, giving operators immediate confirmation of signal presence and quality.

For professional communication workflows, a five‑pin broadcast headset connector is included on the front panel. This enables direct talkback integration, supporting coordination between operators, directors and camera crews without the need for external interfaces. Reliability is further enhanced by dual redundant AC power supplies, making the unit suitable for mission‑critical broadcast and live production installations.

Designed specifically for rack environments, this solution restores hands‑on control and local monitoring to IP‑centric ATEM systems while maintaining a clean, modular infrastructure. It is an ideal companion for large studios, OB vehicles and technical racks where quick access, redundancy and clear monitoring are essential.
Verwachtte levertijd: Juli 2026

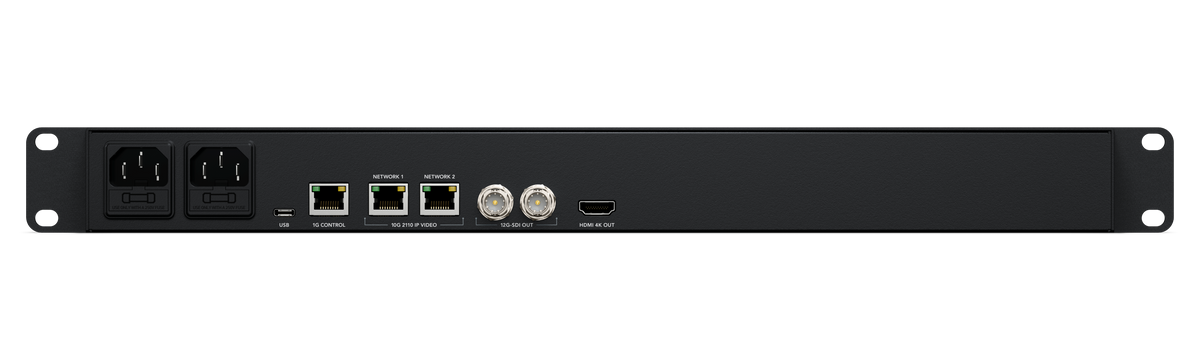

Connections

10G 2110 IP Networks

2 x 10G RJ45 connections.

Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.

10G Control Network

1 x 1G RJ45 for connection to switcher and NMOS control.

Total Video Inputs

1

Total Video Outputs

3

SDI Video Outputs

2

SDI Rates

1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Inputs

1

SDI Audio Outputs

16 Ch embedded audio on all SDI outputs.

HDMI Audio Outputs

8 Ch embedded audio on HDMI output.

SDI Program Outputs

2

SDI Preview Outputs

2

SDI Multi View Outputs

2

HDMI Multi View Outputs

1

Talkback

1 x 5-pin XLR Talkback.

Computer Interface

1 x USB-C for setup utility and software updates.

Power

2 x IEC C14 power inputs.

ATEM Monitoring Rack Panel 20

Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

SMPTE Compliance

SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7

Video Sampling

4:2:2

Color Precision

10-bit.

SDI Color Space

Rec. 709, Rec. 2020

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Product Specifics

Talkback Support

Yes

Control

Front panel emergency switching, software or optional hardware panel.

Display

Front panel

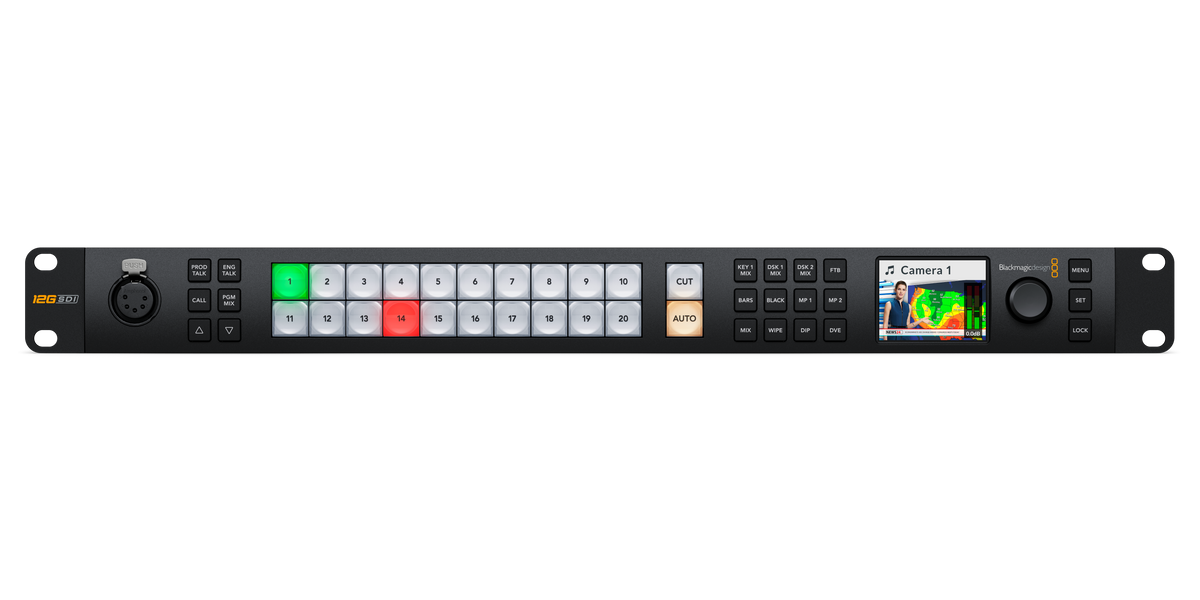

Built in HD LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Software

Control Panel Included

ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.

Software Updates

Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 10 and 11.
Windows 11 for ARM

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Supply

2 x IEC C14 sockets.

Power Usage

TBC

Physical Installation

Physical Installation

1 rack unit.

Physical Specifications

ATEM Monitoring Rack Panel 20

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

ATEM Monitoring Rack Panel 20

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • ATEM Monitoring Rack Panel 20
  • Welcome wallet with QR code for software download
