A powerful IP‑native broadcast switcher engineered for large live productions, delivering massive capacity, full SMPTE‑2110 redundancy and the complete creative feature set expected in modern high‑end control rooms.
16 x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
8 x Ultra HD
2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.
2 x RJ45 Ethernet for 2110 PTP clock.
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.
1 x 6.35 mm headphone jack.
64
52
48
1 x 6.35 mm headphone jack.
1 x Speaker
On all 64 inputs
1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.)
1 x built-in speaker.
Any of the 48 outputs.
Any of the 48 outputs.
Rear USB-C supports 720p or 1080p at PGM frame.
2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Yes
Rear USB-C supports USB 3.0 for external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.
Front USB-C supports USB 2.0 for updates and setup only.
2 x IEC C14 power inputs.
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
4:2:2
10-bit.
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS-SD
v1.1.2
Natural Grouping
Receiver capabilities
16
4
16
2
Yes
Yes
20
4 Stinger, 4 DVE.
28
21
2
4
2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
64
Red for program and green for preview indication.
Yes
4 x 16 Multiview pattern options for up to 64 total views.
Select HD or Ultra HD.
4
Fill and key for each media player.
64
4
3200 frames
1600 frames
400 frames
PNG, TGA, BMP, GIF, JPEG and TIFF.
TGA Sequence.
WAV, MP3 and AIFF.
Minimum monitor resolution of 1366 x 768.

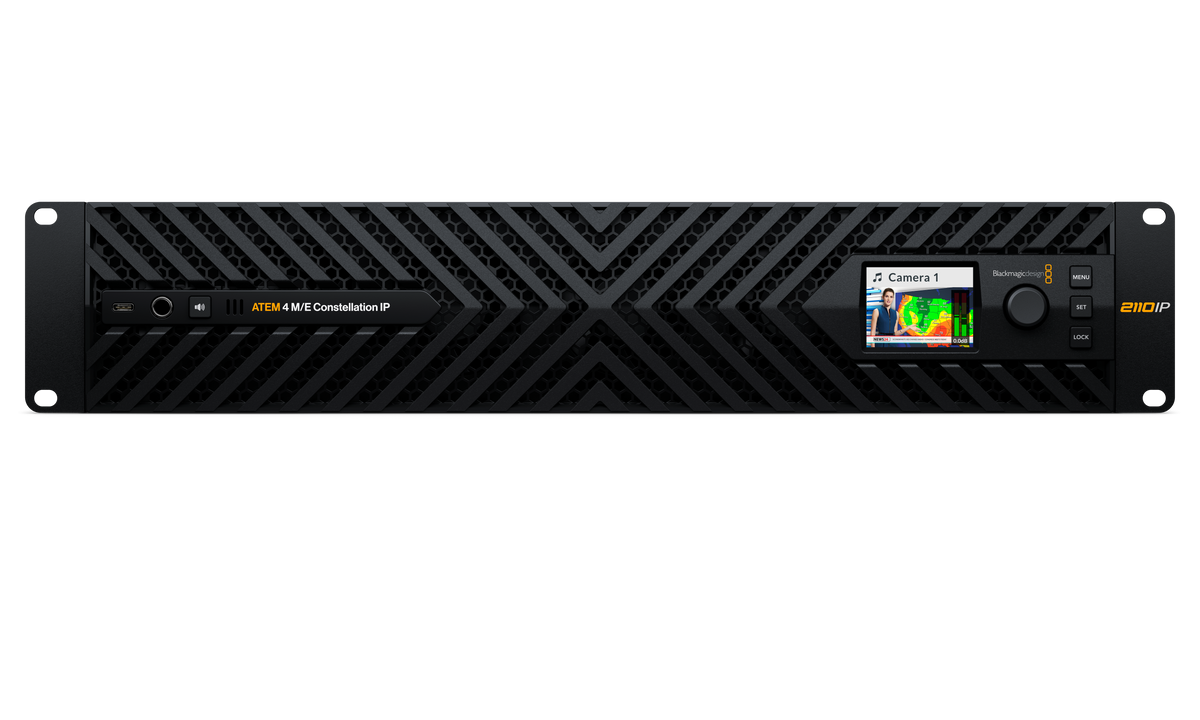

Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
TBC
132 Channel mixer.
Level and Peak metering.
6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
None
ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 10 and 11.
Windows 11 for ARM
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
2 x IEC C14 sockets.
TBC
3 rack units.
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
ATEM 4 M/E Constellation IP Plus
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
