Blackmagic ATEM 4 M/E Constellation IP

A flagship IP‑native live production switcher built for large‑scale broadcast environments, combining SMPTE‑2110 redundancy, massive input capacity and the full creative power of advanced ATEM multi‑M/E workflows.

Levertijd opvraagbaar
  • €7.155,00 (excl. btw)
    €8.657,55 incl. btw
  • - 0%
This high end live production system is engineered specifically for broadcasters moving to IP‑based infrastructures without compromising on reliability or creative flexibility. Built around a fully native SMPTE‑2110 architecture, it allows seamless integration of modern IP video alongside traditional workflows through expandable connectivity. All video connections are fully redundant and compliant with SMPTE‑2022‑7, ensuring continuous operation even in demanding live environments. Each input includes a dedicated standards converter and re‑synchroniser, automatically correcting non‑standard sources and PTP timing issues to maintain rock solid switching performance.

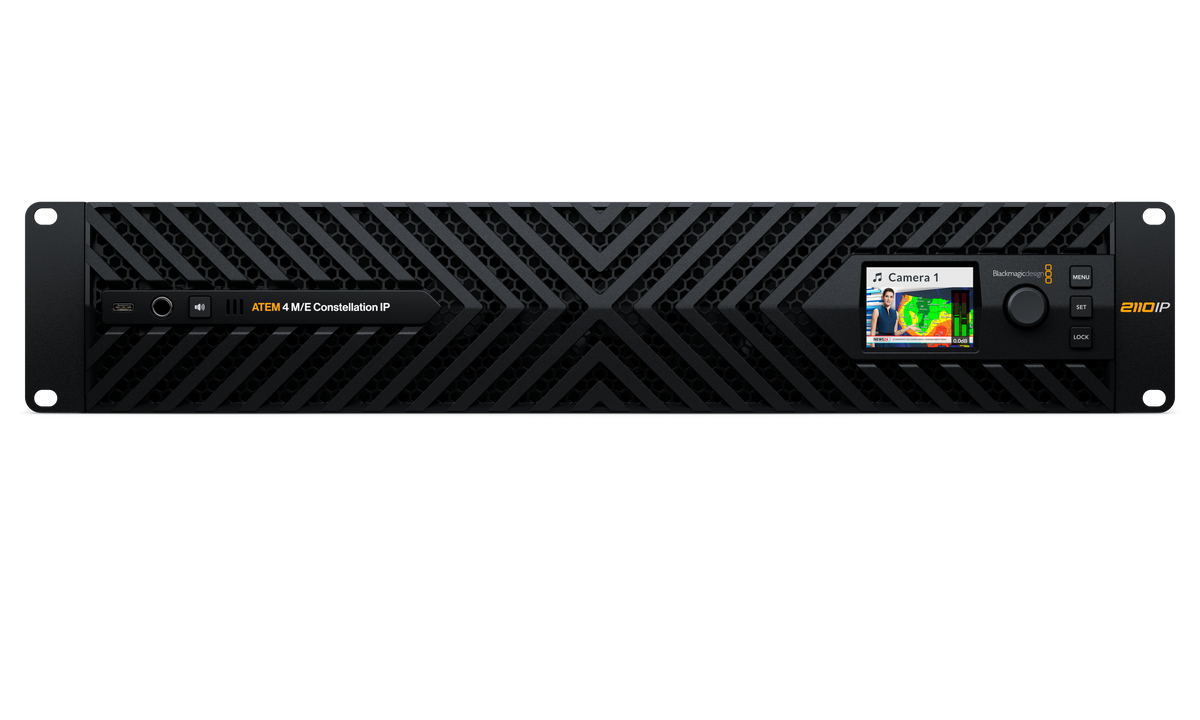

The advanced hardware design reflects its broadcast focus. Front‑to‑back airflow with four ultra‑quiet cooling fans ensures stable operation in dense equipment racks, while dual redundant power supplies increase system resilience. A built‑in front panel LCD provides system status and configuration access, complemented by an integrated speaker and headphone output for local monitoring. Front and rear USB‑C connections support software updates, configuration and direct control using the ATEM Software Control application.

At its core, the platform delivers the full creative toolset expected from a top tier multi‑M/E switcher. Four independent mix effects engines support complex productions with layered transitions and simultaneous outputs. Sixteen advanced keyers enable professional chroma, luma and linear keying, while two SuperSource processors provide multi‑layer compositing with a total of twelve DVEs available for picture in picture, animated transitions and dynamic layouts. Multiple independent multi‑views allow operators to monitor large numbers of sources with complete flexibility.

Designed to scale with modern IP facilities, the system offers native high bandwidth Ethernet connectivity for uncompressed video transport. The standard configuration provides thirty‑two fully standards converted IP inputs and twenty‑four outputs, making it ideal for large live productions, studios and OB environments. Control, PTP reference and management networks are fully separated, supporting robust NMOS‑based workflows and precise timing across the entire production chain.

This switcher represents a future‑proof foundation for high end live production, delivering the reliability of traditional broadcast systems with the flexibility and scalability of SMPTE‑2110 IP technology.
Verwachtte levertijd: Juni 2026

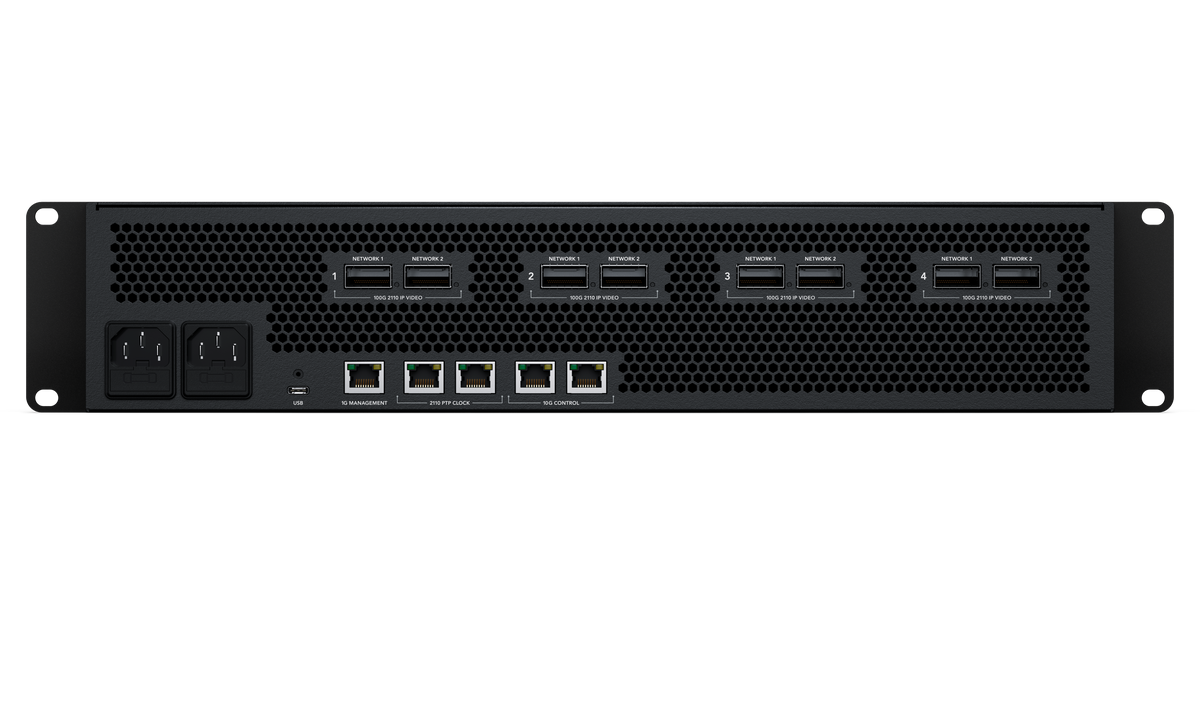

Connections

100G 2110 IP Networks

8 x 100G QSFP28 connections.

Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.

Senders and Receivers per 100G Pair

8 x Ultra HD

10G Control Network

2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.

Reference Network

2 x RJ45 Ethernet for 2110 PTP clock.

1G Management

1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.

Analog Audio Outputs

1 x 6.35 mm headphone jack.

Total Video Inputs

32

Total Video Outputs

28

Total Aux Outputs

24

Total Audio Outputs

1 x 6.35 mm headphone jack.

1 x Speaker

Frame Rate and Format Converters

On all 32 inputs

Extra Audio Outputs

1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.)

1 x built-in speaker.

SDI Program Outputs

Any of the 24 outputs.

SDI Preview Outputs

Any of the 24 outputs.

Webcam Output

Rear USB-C supports 720p or 1080p at PGM frame.

Control Panel Connection

2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.

Internal Timecode Generator

Yes

Computer Interface

Rear USB-C supports USB 3.0 for external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.

Front USB-C supports USB 2.0 for updates and setup only.

Power

2 x IEC C14 power inputs.

ATEM 4 M/E Constellation IP

Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

SMPTE Compliance

SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7

Video Sampling

4:2:2

Color Precision

10-bit.

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Product Specifics

Upstream Keyers

16

Downstream Keyers

4

Advanced Chroma Keyers

16

SuperSource

2

Talkback Support

Yes

Mix Minus Support

Yes

Linear/Luma Keyers

20

Transition Keyer (Stinger/DVE)

4 Stinger, 4 DVE.

Total Number of Layers

28

Pattern Generators

21

Color Generators

2

DVEs

4

Control

2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.

Routable Windows

64

Tally

Red for program and green for preview indication.

Windows Source Labels

Yes

Multi View Monitoring

Multi View Monitoring

4 x 16 Multi View pattern options for up to 64 total views.

Multi View Video Standard

Select HD or Ultra HD.

Media Player

Media Players

4

Channels

Fill and key for each media player.

Media Pool Still Image Capacity

64

Media Pool Clip Capacity

4

Media Player Clip Length in 720 HD

3200 frames

Media Player Clip Length in 1080 HD

1600 frames

Media Player Clip Length in Ultra HD

400 frames

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format

TGA Sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Display

Interface

Minimum monitor resolution of 1366 x 768.

Front panel

Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.

Processing

Processing Delay

TBC

Audio Mixer

68 Channel mixer.

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Down Conversion

None

Control

Front panel

Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.

Software

Control Panel Included

ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.

Software Updates

Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 10 and 11.
Windows 11 for ARM

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Inputs

2 x IEC C14 sockets.

Power Usage

TBC

Physical Specifications

ATEM 4 M/E Constellation IP

Physical Installation

Physical Installation

2 rack units.

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

ATEM 4 M/E Constellation IP

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • ATEM 4 M/E Constellation IP
  • Welcome wallet with QR code for software download
