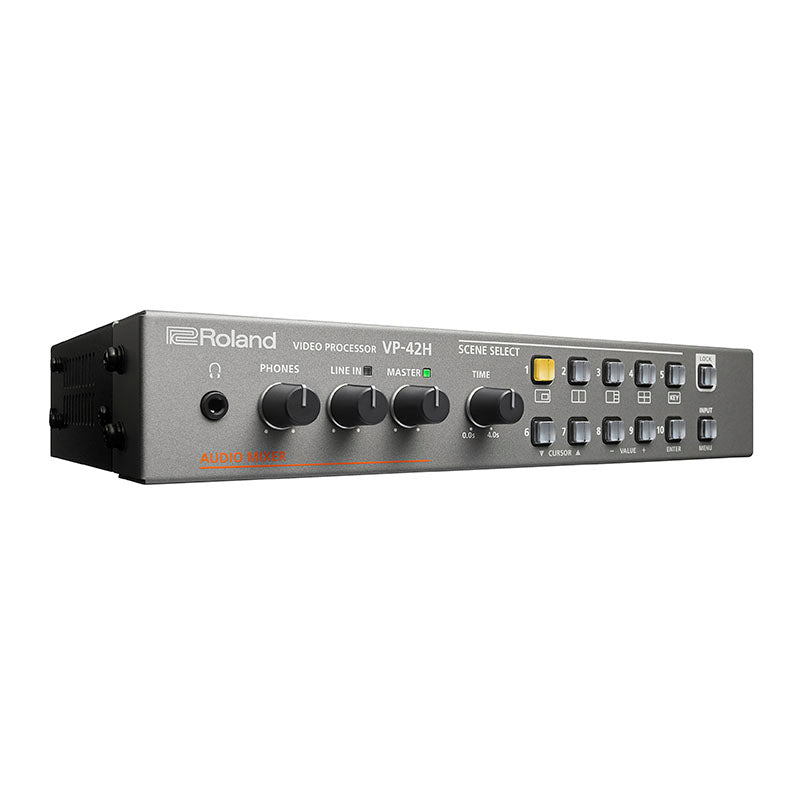

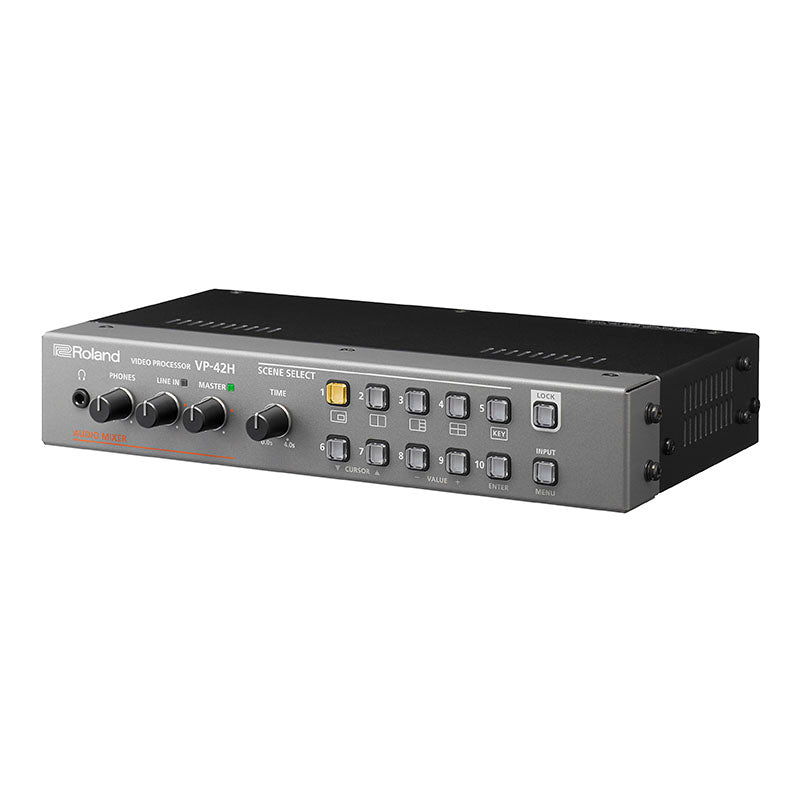

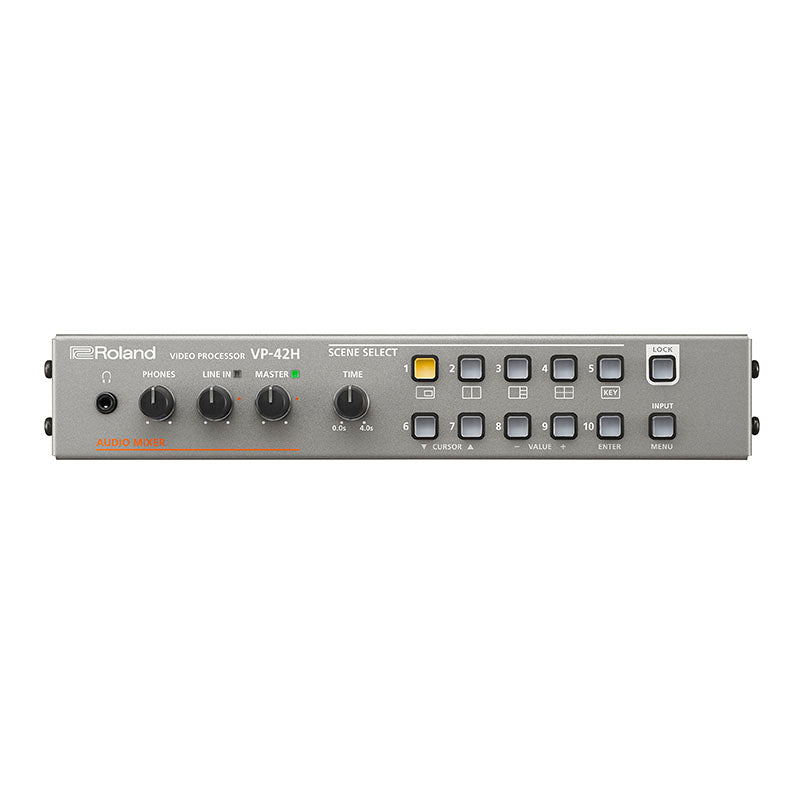

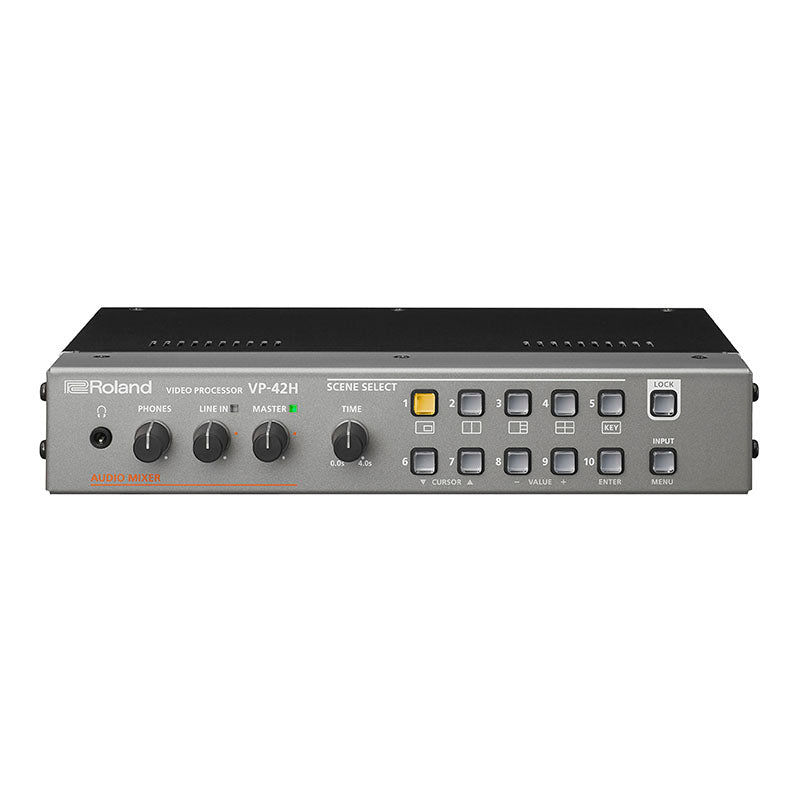

The Roland VP-42H is a sophisticated video processor designed to layer and arrange multiple video sources onto a single screen with dynamic transitions, making it perfect for engaging presentations, digital signage, and meeting applications. This versatile processor supports up to four HDMI video sources, allowing for seamless integration and switching between different resolutions simultaneously. The VP-42H features Motion Scene Switching, which enables fluid transitions between complex screen sets by automatically moving and resizing windows to their new positions. The built-in keyer function allows for overlays and advanced compositions, enhancing the visual impact of your content. With simple setup and remote switching capabilities via browser-based network control, the VP-42H streamlines workflow and ensures ease of use. The VP-42H also includes flexible audio management, with stereo RCA outputs for de-embedding audio from connected HDMI sources and outputting it to other devices such as speakers and mixers. The internal audio mixer allows for precise level adjustments for each source, and external audio can be embedded into the HDMI output signal. The VP-42H is an essential tool for any professional video setup, offering maximum visual impact with minimal effort.
- Video
- Processing
- 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
- Input Connectors
- HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported
- Output Connectors
- HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported
- Formats
- 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
- Composition
- Layer: 4 (Picture in Picture x 4)
*Layer 1 is Picture in Picture with Keyer.
- Transition
- Black-insert, Mix, Cut, Motion
- Still Image
- Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
- Audio
- Sample Rate
- 48 kHz, 24 bits
- Input Connectors
- HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type
- Output Connectors
- HDMI: HDMI type A x 2 *2 Output is the same audio.
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini type
- Input Level
- AUDIO INPUT: -10 dBu (Maximum: +8 dBu)
- Input Impedance
- AUDIO INPUT: 15 k ohms
- Output Level
- AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms)
- Output Impedance
- AUDIO OUTPUT: 1 k ohm
PHONES : 10 ohms
- Formats
- HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
- Processing
- Mixer: 4 ch (Delay: Maximum 250 ms)
- Others

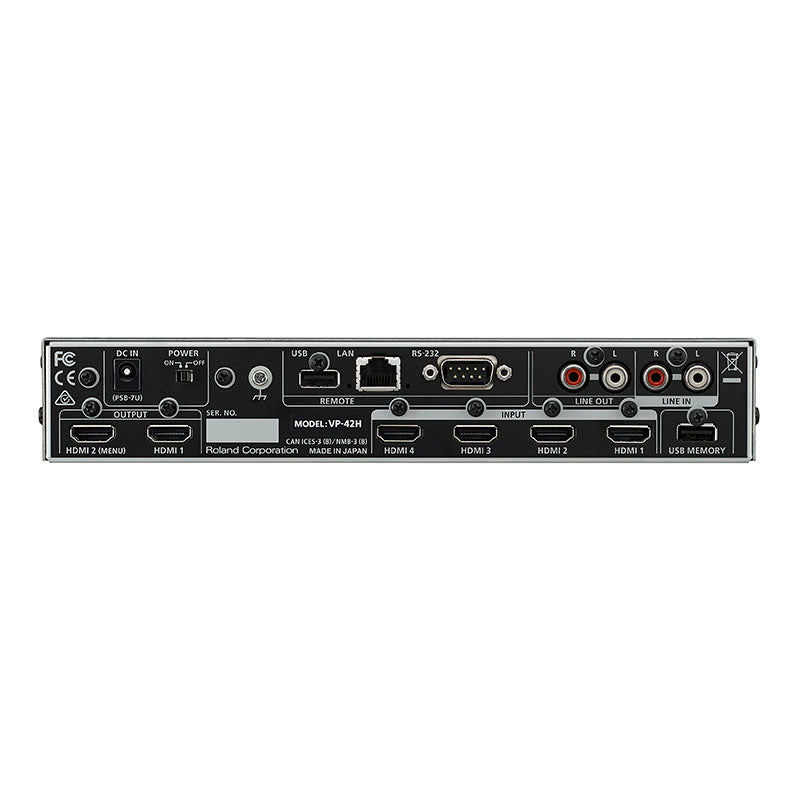

- External Connectors
- * REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
* USB MEMORY: USB A type x 1 (Use for USB Memory)
- Functions
- Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator
- Power Supply
- AC Adaptor
- Current Draw
- 2.1 A
- Power Consumption
- 25 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions
- 242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches
- Weight
- 1.2 kg
2 lbs 11 oz
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rubber feet (4 pcs.)

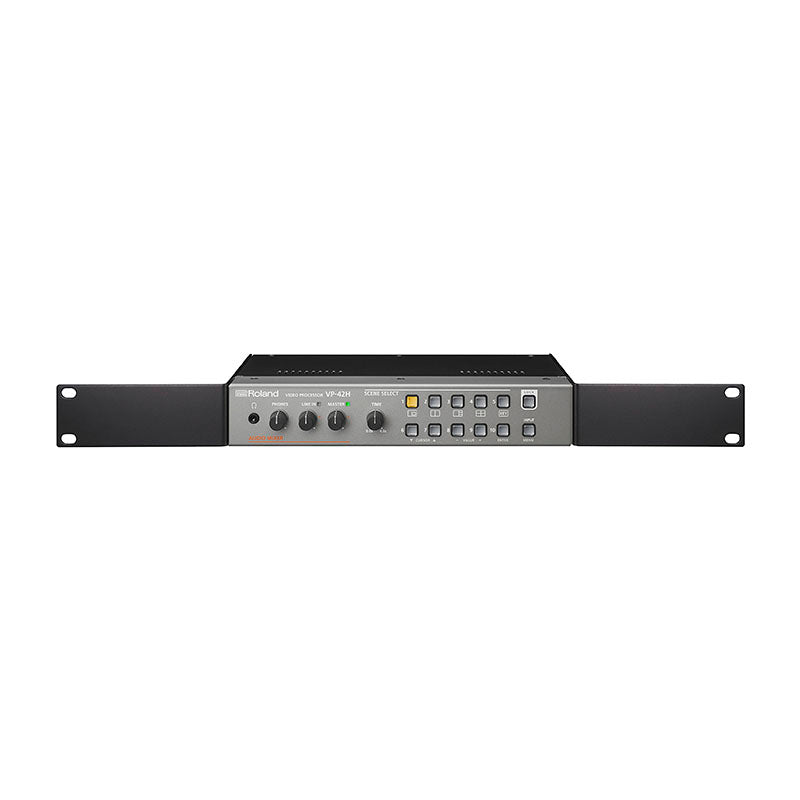

Rack mount angle set
