Blackmagic URSA Cine EVF
Precision monitoring for high‑end cinema work with exceptional clarity and control.
Video Inputs
USB-C
This advanced electronic viewfinder is engineered to deliver a highly accurate monitoring solution for demanding digital film productions. Designed to integrate seamlessly with compatible cinema systems, it enhances both outdoor and handheld shooting by providing a bright and detailed display that maintains clarity even in challenging environments. Its refined optical assembly, consisting of a four‑element glass diopter, ensures exceptional focus accuracy while offering a wide adjustment range that accommodates a variety of viewing preferences. This allows operators to achieve precise critical focus and maintain visual consistency throughout dynamic shooting conditions.
The display features a full high definition OLED panel with a resolution of 1920 by 1080 and over six million dots. This combination delivers rich contrast, deep blacks and vibrant color rendition, enabling cinematographers to evaluate exposure and composition with confidence. The viewfinder supports frame rates up to sixty frames per second, making it suitable for both standard and high frame rate workflows. Its integrated overlay processing system offers essential visual tools and status information, with controls conveniently located on the top of the unit for immediate access.

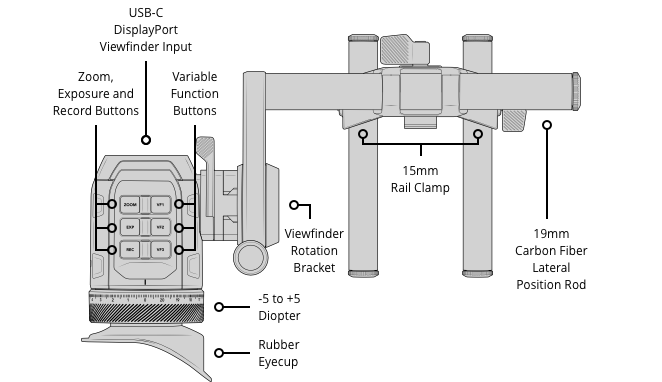

A thoughtfully engineered eyepiece allows vertical tilt and extension, accommodating both left and right eye use. This flexibility is especially valuable during physically demanding shoots when operators need to reposition quickly without compromising viewing comfort. The presence of a built‑in tally indicator assists in coordinated productions where clear communication between crew and operator is essential. For expanded mounting versatility, the viewfinder includes a fully adjustable bracket system with carbon fibre rods and multiple extension options, allowing precise placement whether used directly on the camera or mounted to a dolly or geared head.
Setup is streamlined through a single USB‑C cable that handles video transmission, power delivery and camera control simultaneously. This minimizes cabling complexity and ensures a secure, reliable connection. Metadata communication over USB enables camera settings and status information to be displayed directly within the viewfinder, enhancing situational awareness during production.
Connections
Power Input
USB-C
Data Input / Output
USB-C
Computer Interface
USB-C for software updates.
Features
Display Resolution
Full 1920 x 1080.
6.22 Million dots
Display Type
OLED
Frame Rates
Up to 60fps
Focus
4 Element diopter.
Diopter Range
-5 to +5
Controls
Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Overlays
Built in overlay display processor and top mounted buttons.
Eyepiece
Can be tilted vertically and extended for left or right eye use.
Tally
LED tally light.
Mounting Options
Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Metadata Support
Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Powered over USB‑C.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (‑4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic URSA Cine EVF
Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
Blackmagic URSA Cine EVF Bracket rod mount
Blackmagic URSA Cine EVF Extension
2 short carbon fibre 15mm rods
1 x long USB viewfinder cable. Right angle to straight
1 x short USB viewfinder cable. Right angle to straight
1 x short USB viewfinder cable. Right angle to right angle
Rubber eyecup
Fabric eye chamois
Blackmagic Sticker
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
