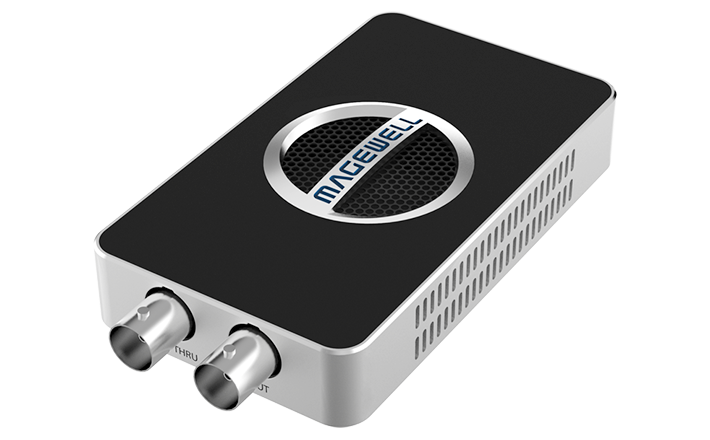

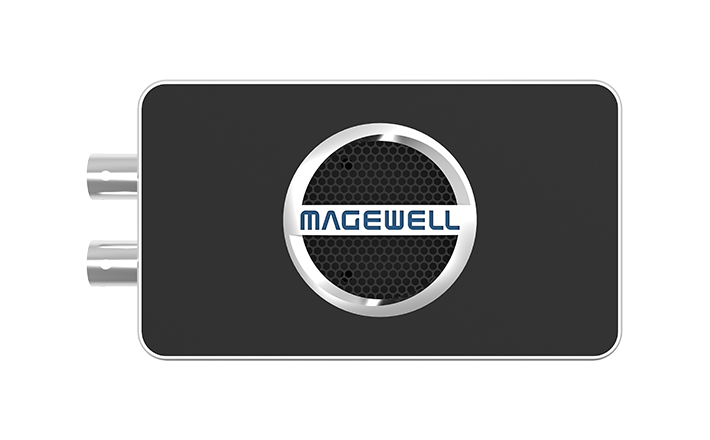

De Magewell USB Capture SDI 4K Plus is een geavanceerde capture device die naadloos SDI-signalen met een resolutie tot 4096x2160 pixels kan vastleggen en doorlussen. Deze plug-and-play oplossing ondersteunt SD/HD/3G/2K/6G SDI + embedded audio en biedt een 3.5mm audio jack voor zowel Line In als Line Out.
Dankzij de USB 3.0 interface is het apparaat compatibel met Windows, Mac, Linux en Chrome OS. Het ondersteunt capture resoluties tot 3840x2160 bij 30fps of 1920x1080 bij 90fps, waardoor het ideaal is voor video conferencing, streaming en meer. De Magewell USB Capture SDI 4K Plus wordt geleverd met software zoals USB Capture Utility en Capture Express, en is compatibel met populaire applicaties zoals Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio en XSplit.
Met functies zoals automatische detectie van het ingangssignaal, integratie van een USB audio kaart en een LED statusindicator, biedt deze capture device een betrouwbare en veelzijdige oplossing voor al uw video capture behoeften
Input Features
- Max input & loop through video at 6G 4K (4096×2160 30fps 4:2:2 10-bit)
- Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit
- Up to 8-channel embedded audio

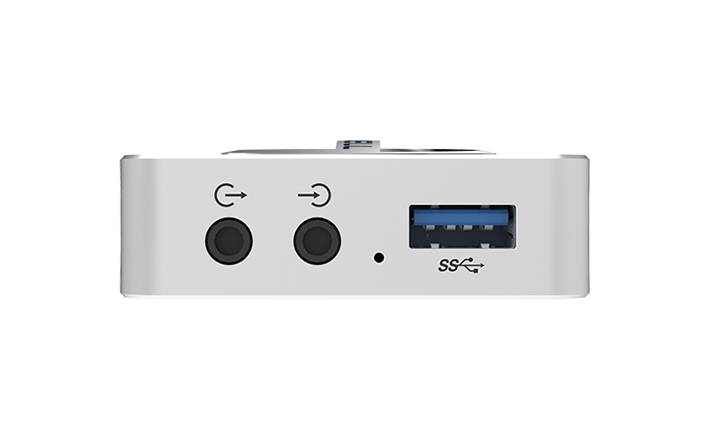

- Input analog audio via 3.5mm line in

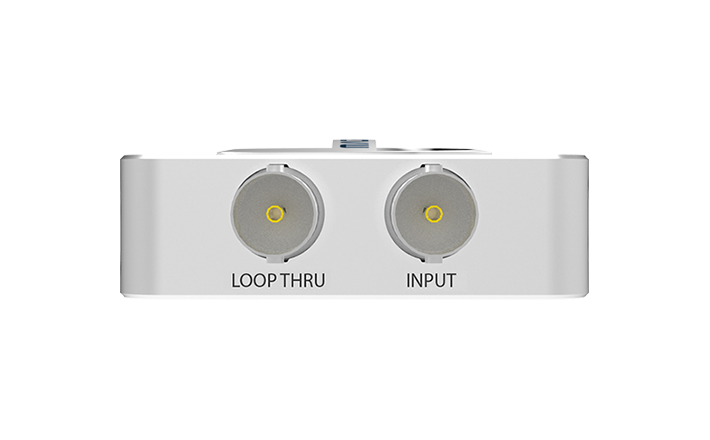

- SD/HD/3G/6G-SDI BNC input & loop through
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G 4k(ST 2081) standard
- Input SDI signals transmitted up to 75m for 6G-SDI signal
Process and Capture Features
- Video processing pipelines with ~640Mpixels/s processing bandwidth
- Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30
- 2560x1440p60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90
- 720x576p25
- 720x480p30
- Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
- Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
- Output audio of SDI signal via 3.5 mm line out
- Up to 2 audio channels at 48KHz
Included Software
- USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
- macOS AVCaptureSession/AudioUnit
Output Interface
- USB 3.0
- compatible with USB 2.0
- compatible with USB 3.1 Gen 1
Compatible Software
- Zoom Rooms
- Microsoft Teams
- Skype for Business
- Google Hangouts
- GoToMeeting
- Gstreamer
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS
- Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9/macOS 10.12 and above
- Chrome OS
LED Indicator
- Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor
- 4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm)
Accessories
Power Consumption
- 5V max current: ~0.86 A
- max power consumption: ~ 4.3 W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: -20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
Magewell USB Capture SDI 4K Plus
USB 3.0 Cable
