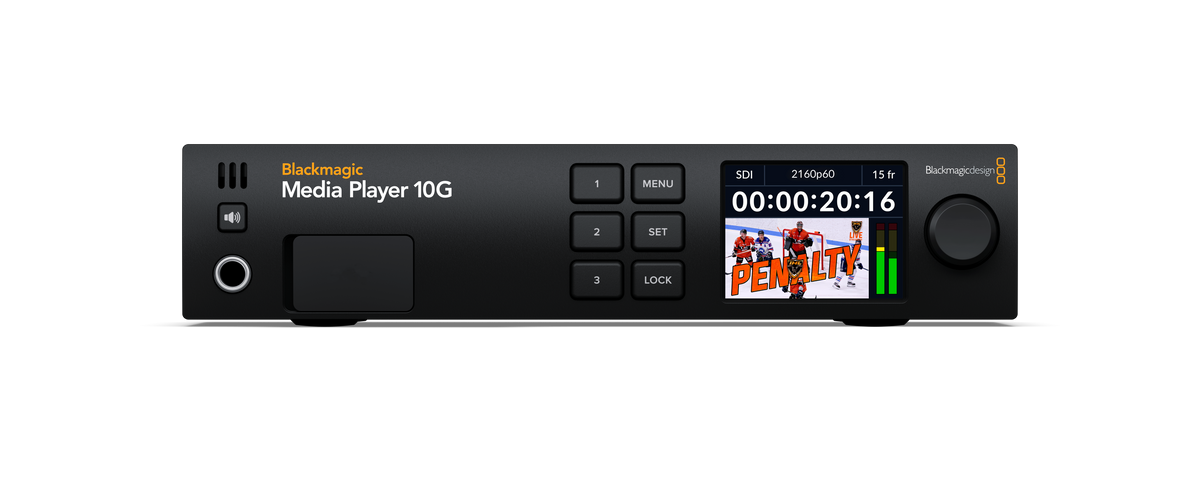

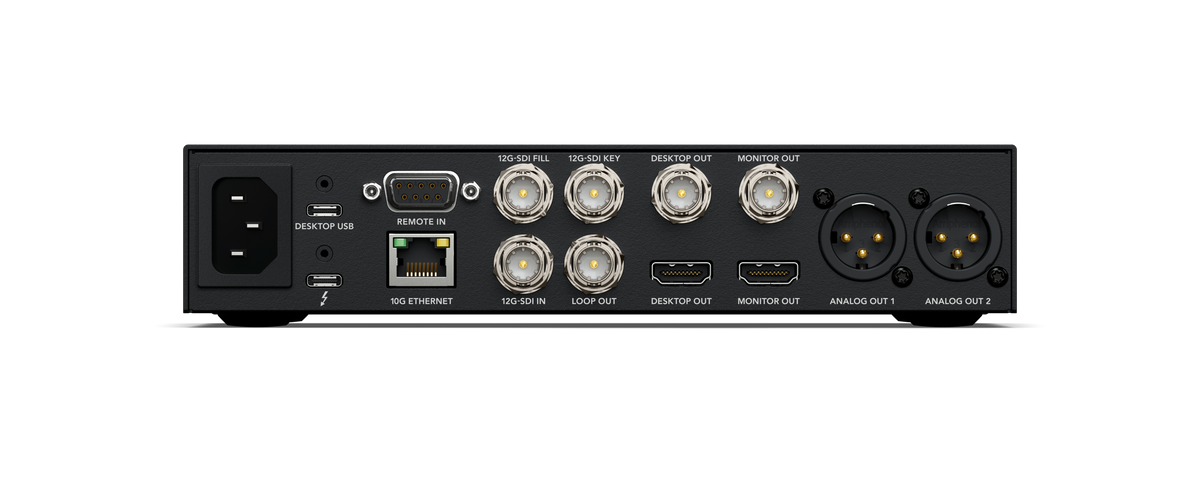

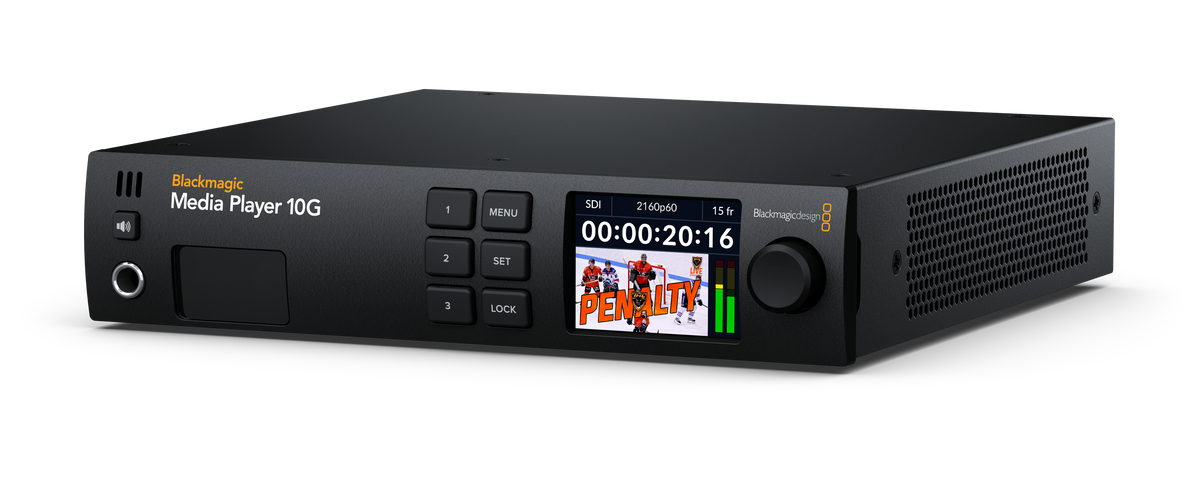

High performance Thunderbolt media player with dual 12G SDI fill and key outputs, 12G SDI capture, 10G Ethernet and SDI/HDMI monitoring. Ideal for live production, graphics playout, replay and high bandwidth broadcast workflows.
Blackmagic Media Player 10G is an advanced, high performance capture and playback interface designed for professional broadcast, live production and post production environments. Engineered to integrate seamlessly with Thunderbolt workstations, it combines dual 12G SDI fill and key outputs, a 12G SDI capture input and dedicated loop, monitoring and extended desktop SDI outputs. This makes it a powerful real time playout engine for live switchers, master control rooms, broadcast graphics pipelines and replay systems that require absolute reliability and accuracy.
With its built in 10G Ethernet interface, the Media Player 10G allows direct high speed access to network storage, enabling smooth playback of high bandwidth files including 10 bit and 12 bit high dynamic range formats without stressing local system resources. This also allows DaVinci Resolve to operate as a full media player and replay platform, delivering ultra fast clip browsing, instant stinger insertion and precise fill and key playback for live production environments. Integrated HDMI extended desktop and monitoring outputs give producers and operators flexible options for previewing timelines, browsing media pools or feeding confidence monitors.
The device provides embedded audio across both SDI and HDMI paths, along with professional balanced analog XLR outputs and a dedicated headphone jack for direct monitoring. RS 422 deck control enables machine accurate ingest or automated playout, making it suitable for command driven broadcast workflows. The Thunderbolt 3 connection simplifies system configuration by carrying data, video, audio and computer power over a single cable, enabling clutter free setups even in mobile production systems.
With support for a wide spectrum of industry formats such as ProRes, DNxHR, DNxHD, DPX, HEVC, AVC Intra, XDCAM and uncompressed 8 bit, 10 bit and 12 bit video, the Media Player 10G integrates effortlessly into editorial, finishing, graphics and automation environments. Its multi rate 12G SDI outputs support HD, Ultra HD and full 2160p video up to 60 fps, maintaining pristine fidelity for live broadcast, sports replay, studio production and digital signage applications. Combining professional connectivity, high speed networking, extended desktop features and a powerful Thunderbolt interface, Blackmagic Media Player 10G is an exceptional playout and capture solution for modern high resolution production ecosystems.
1
1
1
1
1
1
270Mb, 1.5G, 3G, 6G, 12G.
1
1
2 channels of professional balanced analog audio with 3-pin XLR connectors.
1 x 6.35 mm headphone jack.
16 Channels embedded in HD and Ultra HD.
16 Channels embedded in HD and Ultra HD.
8 Channels embedded in HD and Ultra HD.
1 x Sony™ compatible RS-422 deck control input port.
1 x USB‑C 3.1 Gen 1 (up to 5 Gb/s).
1 x Thunderbolt™ 3 (Mac OS, Windows and Linux)
1 x USB‑C for keyboard, mouse and other USB devices
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
DaVinci Resolve
Fusion
Final Cut Pro
Adobe Premiere
Adobe After Effects
Avid Media Composer
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
SMPTE 259M, SMPTE 292M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1.
RP 188/SMPTE 12M-2 and closed captioning.
SDI video connections are switchable between HD and Ultra HD
Television standard sample rate of 48 kHz and 24-bit.
4:2:2, 4:4:4
8, 10, 12-bit RGB 4:4:4 in modes up to 2160p30 and8, 10-bit YUV 4:2:2 in all modes.
REC 601, REC 709 and REC 2020
HDR static metadata packing, HLG and PQ transfer characteristics.
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Television standard sample rate of 48 kHz and 24-bit.
4:4:4, 4:2:2 and 4:2:0
8, 10 and 12-bit
REC 601, REC 709 and REC 2020
HDR static metadata packing, HLG and PQ transfer characteristics.
HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
HDMI video connections are switchable between HD and Ultra HD.
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), Ay10 (10 bit YUVA), R12B, R12L (12 bit RGB).
6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
RS-422 deck control input for remote control of software. Also supports Advanced Media Protocol.
Half rack unit width, 1 rack unit height.
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 10, 64-bit.
Windows 11.
Linux
1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.
85.2 W
5° to 40° C (41° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
Blackmagic Media Player 10G
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
Blackmagic Media Player 10G
Welcome wallet with QR code for software download
