Aanbieding
  • Blackmagic SmartView Duo
    BlackMagic Design
    HDL-SMTVDUO2

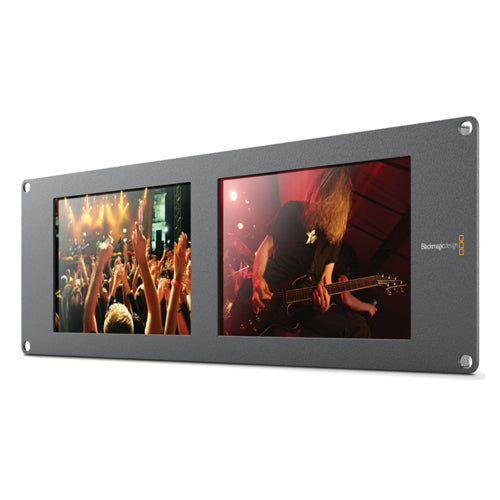

    Blackmagic SmartView Duo

    De Blackmagic Design Smartview Duo LCD screen bevat twee onafhankelijke 8 inch LCD schermen en hanteert SD, HD en 3Gb/s SDI video standards.

    1-3 werkdagen
    • €447,00 (excl. btw)
      €540,87 incl. btw
    • €509,00
    • - 12%
    Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!

    Connections

    SDI Video Input

    Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.

    Multi Rate Support

    Auto detection of 2K, HD or standard definition inputs.

    Updates and Configuration

    Via USB 2.0 high speed (480 Mb/s)

    Ethernet

    10/100 BaseT with loop through.

    Tally

    9-pin D connector

    SmartView Duo

    Standards

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.

    SDI Color Space

    REC 601, REC 709

    SDI Auto Switching

    Automatically selects between SD, HD and 3 Gb/s SDI.

    Video Sampling

    4:2:2 and 4:4:4

    SDI Format Support

    525i59.94 NTSC, 625i50 PAL
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    2K Format Support

    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

    Software

    Internal Software Upgrade

    Via included firmware updater software.

    SmartView Utility Software

    Via USB or Ethernet.

    Operating Systems

    Mac icon

    Mac 10.15 Catalina,
    Mac 11.1 Big Sur or later.

    Windows Icon

    Windows 10, 64-bit.

    Display

    Display Element

    TFT Active Matrix LCD.

    Display Resolution

    800 x 480 pixels

    Response

    < 15 ms

    Contrast Ratio

    Typically 500:1

    Color Depth

    16.7 Million Colors.

    Display Orientation

    Displays can rotate upside down for optimum viewing angle.

    Power Requirements

    Power Supply

    12V universal power supply included with international socket adapters for all countries.

    Power Consumption

    < 20 Watts

    Operational Voltage Range

    12V - 15V

    Physical Specifications

    SmartView Duo

    Environmental Specifications

    Operating Temperature

    0° to 40° C (32° to 104° F)

    Storage Temperature

    -20° to 45° C (-4° to 113° F)

    Relative Humidity

    0% to 90% non-condensing

    • SmartView Duo
    • Power Supply
    • Welcome wallet with QR code for software download
