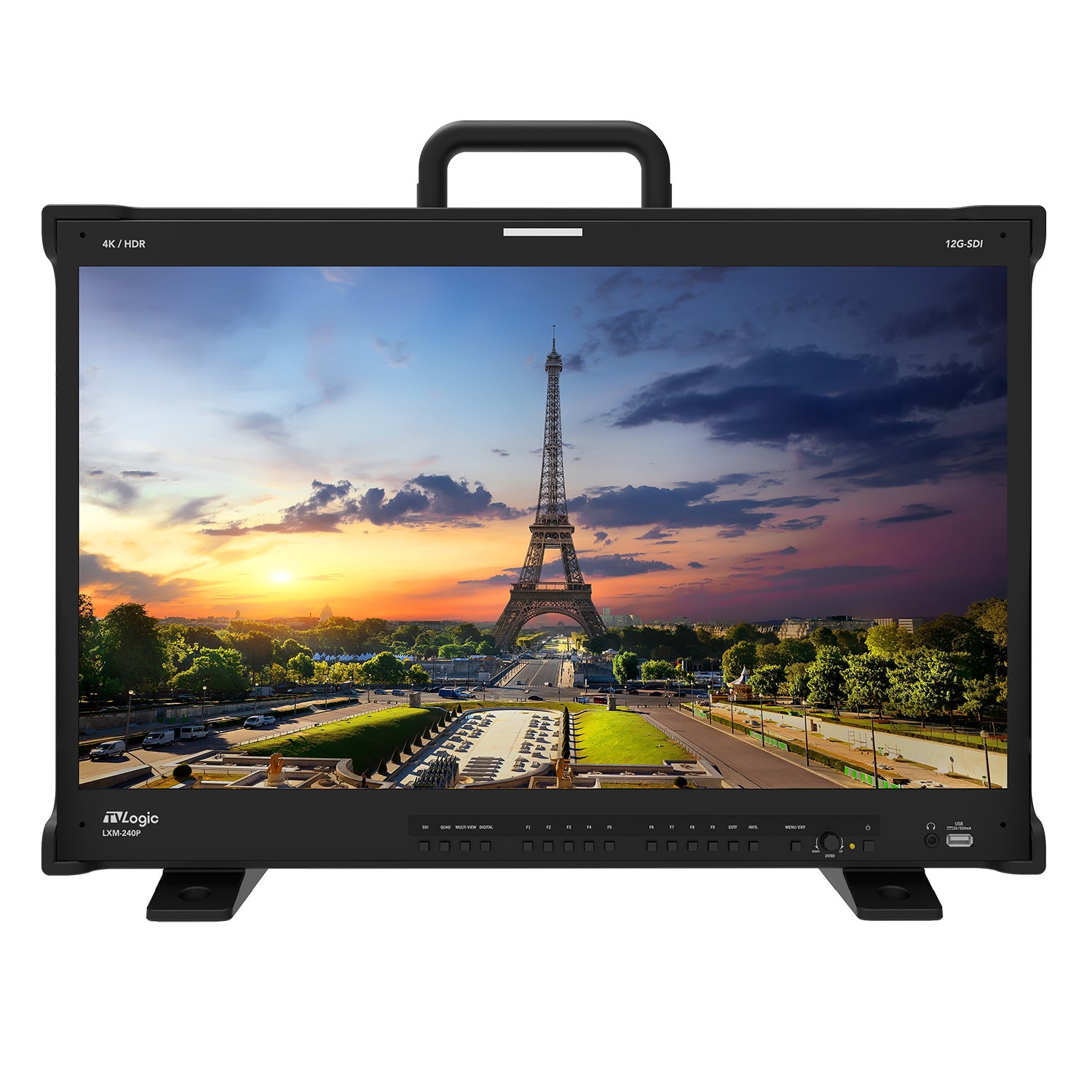

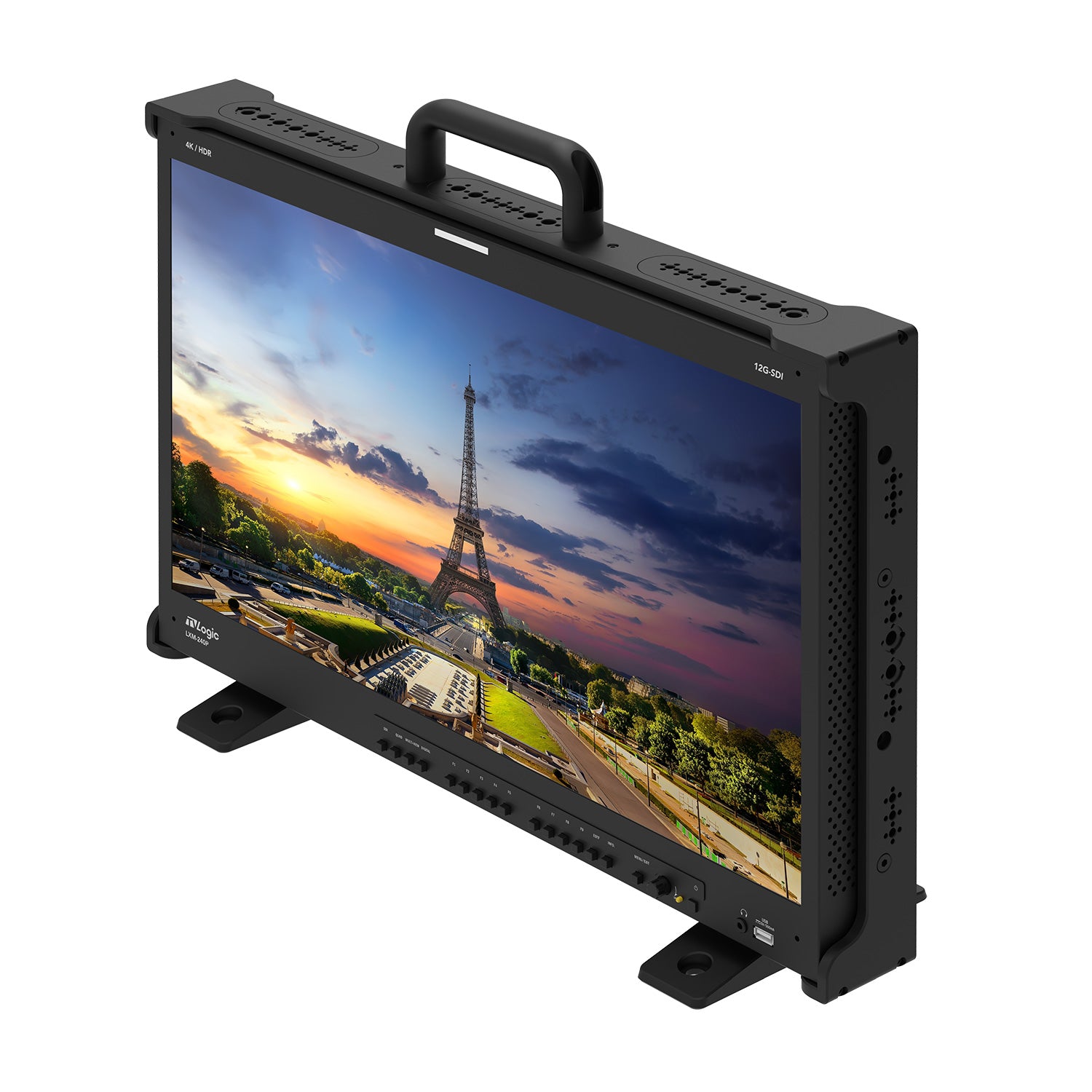

TVLogic LXM-240P-FM 24” 4K/UHD monitor

24" UHD monitor with 12G-SDI, HDMI 2.0, and SFP inputs—ideal for high-end broadcast and post-production workflows.

1-3 werkdagen
  • €8.999,00 (excl. btw)
    €10.888,79 incl. btw
  • - 0%
▼
  • Default Title

The TVLogic LXM-240P-FM is a high-performance 24-inch UHD monitor engineered for precision-critical environments in broadcast, post-production, and live production workflows. Featuring a native resolution of 3840 x 2160 in a 16:9 aspect ratio, this monitor delivers ultra-sharp imagery with a pixel pitch of 0.035(H) x 0.1065(V) mm and a color depth of 1.07 billion colors, ensuring exceptional clarity and color fidelity. It is equipped with a robust array of professional-grade inputs and outputs, including four 12G-SDI inputs and outputs, HDMI 2.0, dual SFP inputs for fiber connectivity, and a reference sync input for seamless integration into complex video systems. The LXM-240P-FM also includes a processed monitor output, making it ideal for signal routing and monitoring in demanding production setups. Built with reliability and versatility in mind, this monitor is the perfect solution for professionals who require uncompromising image quality and connectivity.

Product highlights:

• HDR EOTF (PQ, HLG)

• HDR vs SDR Comparison Display

• Custom 3D LUT Import by USB Flash Drive

• Quad-View, Picture-by-Picture Display

• Various Conversion Output

• Quad Link 12G Input to Single Link 12G or 3G Output

• Auto Detection of SDI Payload ID

• Waveform (YCbCr, RGB) / Vector Scope / Histogram

• Audio Level Meter / Phase Meter / Loudness(LKFS) Meter

• Image Capture & Overlay

• Closed Caption (CC-608, CC-708, OP47)

• Timecode Display

• Marker

• Focus Assist

• Blue/Mono Only

• H Flip, V Flip

• Scan / User Aspect

• Dynamic UMD / Tally



LCD Panel

Size: 23.8”

Resolution: 3840 x 2160 (16:9)

Pixel Pitch: 0.137(H) x 0.137(V) mm

Color Depth: 1.07B Colors (10 bit)

Viewing Angle: 178°(H) / 178°(V)

Brightness: 1000cd/m2 / 1000 nits

Contrast Ratio: 1000 : 1

Display Area: 527.0 (H) x 296.5 (V) mm

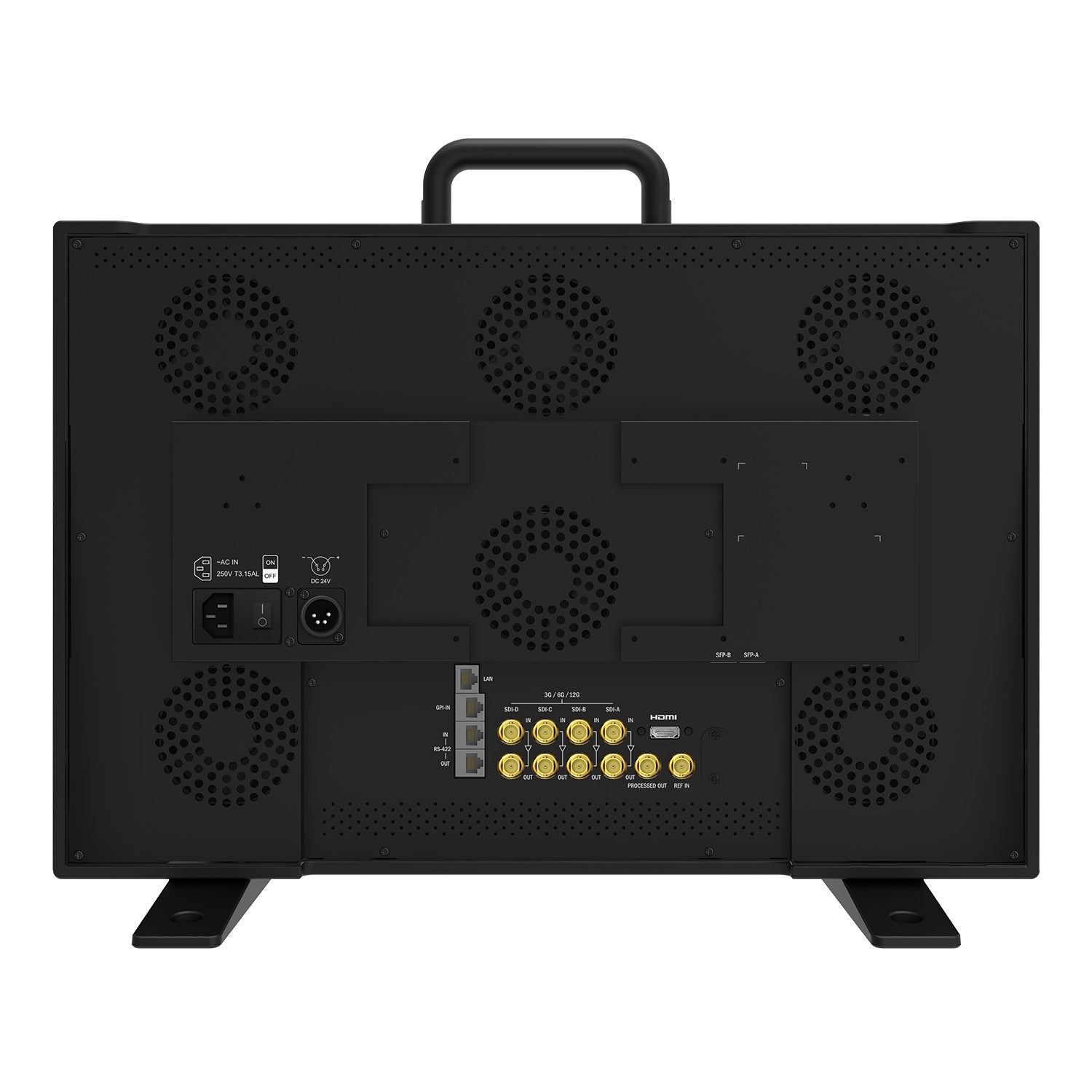

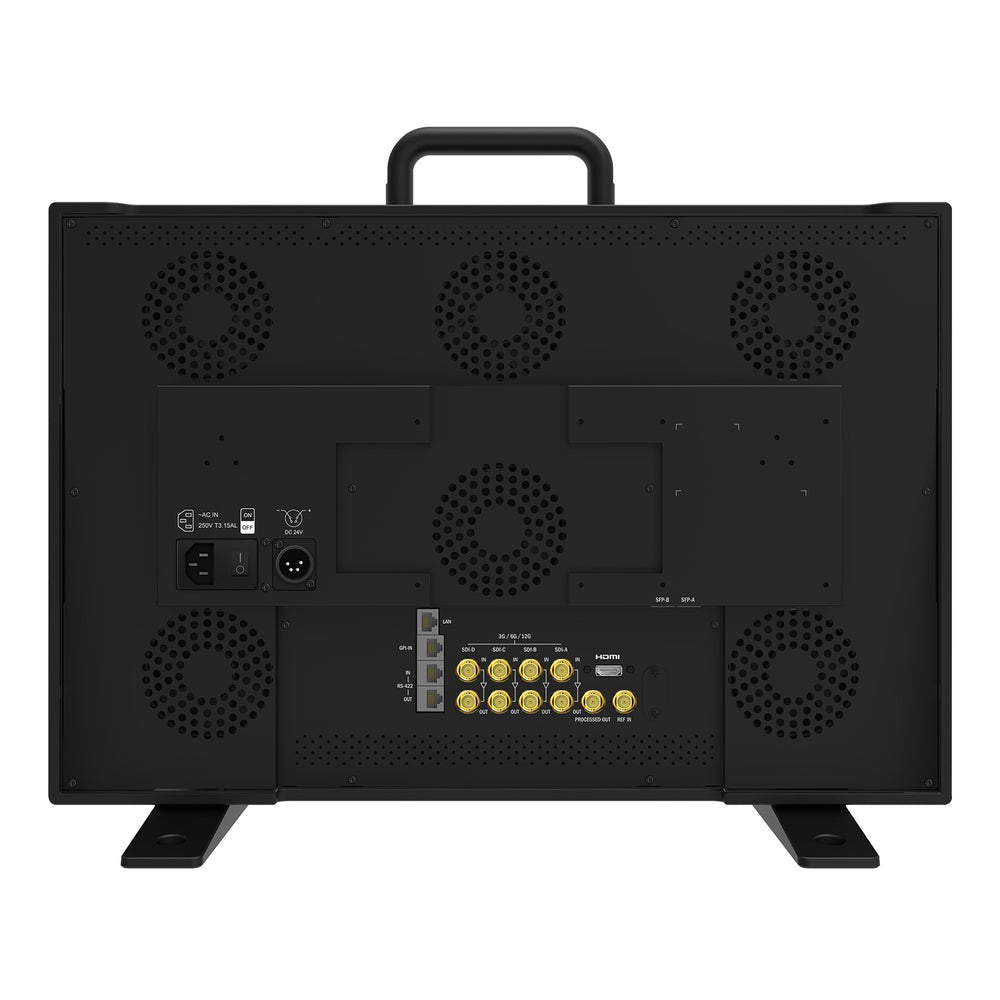

Input

4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Input

1 x HDMI: HDMI 2.0 Input

2 x SFP: SFP A/B Channel Input

1 x BNC: Reference Input



Output

4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Output

1 x BNC: Processed Output

AC Power Cable DC Power Adaptor Table Stand
