De Blackmagic Design Video Assist 4K is een recorder en monitor met SDI en HDMI ingang. Een Full-HD lcd-scherm voor zeer scherpe beelden op de set.

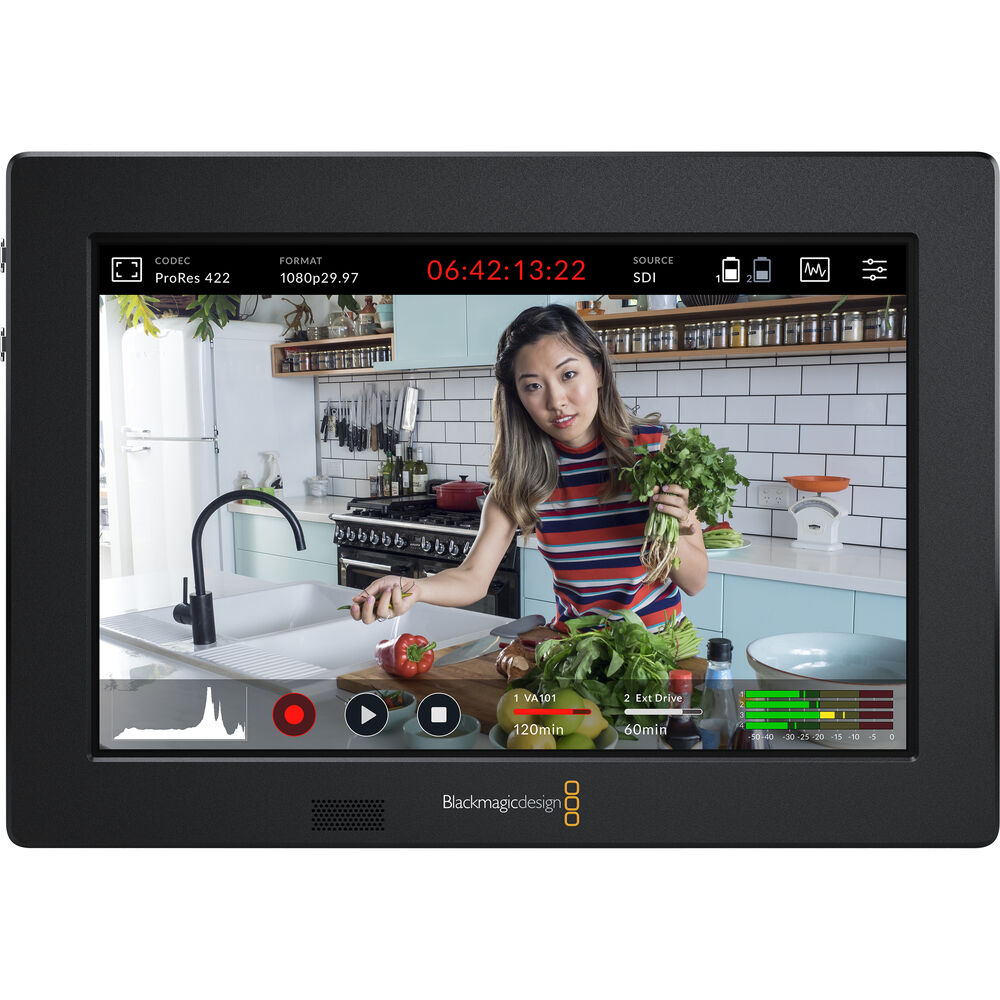

Blackmagic Video Assist 7” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 7” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 7” 3G really is 4 products in one!
1
1
270Mb, 1.5G, 3G
1
1
2 x balanced mini XLR with phantom power
1 x 3.5mm headphone jack.
Mono
7 inch 1920 x 1200.
310nits
16 channels embedded via SDI
16 channels embedded via SDI
8 channels embedded via HDMI
8 channels embedded via HDMI
1 x 2.5mm LANC for Record Start and Stop.
Dual UHS-I SD slots.
SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
HD RP188
Television standard sample rate of 48 kHz and 24-bit.
4:2:2 YUV
10-bit
REC 601, REC 709
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
10-bit
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
2 x UHS-I SD for HD recording.
SDXC UHS-I and SDHC UHS-I SD cards.
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
LANC, SDI and HDMI start/stop, timecode run.
Blackmagic OS
Waveform, RGB Parade, Vector, Histogram.
Scopes with picture in picture or picture overlay and opacity control.
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
1 x External 12V power supply.
Compatible with Sony NP-F style batteries.
(batteries not included)
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
