TVLogic LXM-240U 24” 4K/UHD monitor

23.8" UHD monitor with 12G-SDI, HDMI 2.0, and SFP inputs—built for precision in broadcast and post-production environments.

1-3 werkdagen
  • €7.875,00 (excl. btw)
    €9.528,75 incl. btw
  • - 0%

The TVLogic LXM-240U is a professional-grade 23.8-inch UHD monitor designed for high-end broadcast, production, and post workflows that demand uncompromising image fidelity and robust connectivity. With a native resolution of 3840 x 2160 in a 16:9 aspect ratio and a pixel pitch of 0.137(H) x 0.137(V) mm, it delivers razor-sharp visuals and precise color reproduction across a wide color depth of 1.07 billion colors. Engineered for seamless integration into complex video environments, the LXM-240U features four 12G-SDI inputs and outputs, HDMI 2.0, dual SFP inputs for fiber connectivity, and a reference sync input. It also includes a processed monitor output, making it ideal for signal routing and live monitoring. Whether in a control room, on set, or in post-production, the LXM-240U offers the performance and flexibility professionals rely on for critical visual tasks.

Product Highlights:

• HDR EOTF (PQ, HLG)

• HDR vs SDR Comparison Display

• Custom 3D LUT Import by USB Flash Drive

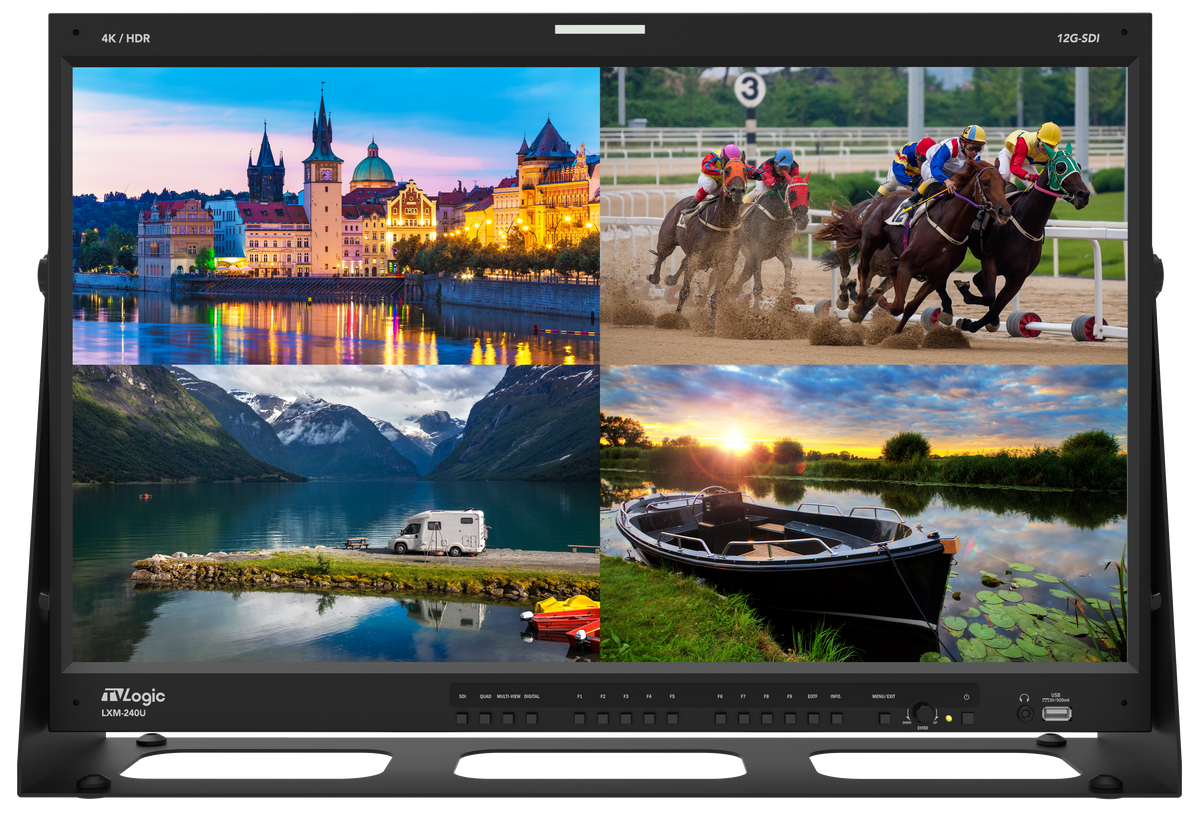

• Quad-View, Picture-by-Picture Display

• Various Conversion Output

• Quad Link 12G Input to Single Link 12G or 3G Output

• Auto Detection of SDI Payload ID

• Waveform (YCbCr, RGB) / Vector Scope / Histogram

• Audio Level Meter / Phase Meter / Loudness(LKFS) Meter

• Image Capture & Overlay

• Closed Caption (CC-608, CC-708, OP47)

• Timecode Display

• Marker

• Focus Assist

• Blue/Mono Only

• H Flip, V Flip

• Scan / User Aspect

• Dynamic UMD / Tally



LCD Panel

Size: 23.8”

Resolution: 3840 x 2160 (16:9)

Pixel Pitch: 0.137(H) x 0.137(V) mm

Color Depth: 1.07B Colors (10 bit)

Viewing Angle: 178°(H) / 178°(V)

Brightness: 500cd/m2 / 500 nits

Contrast Ratio: 1200 : 1

Display Area: 527.0 (H) x 296.5 (V) mm

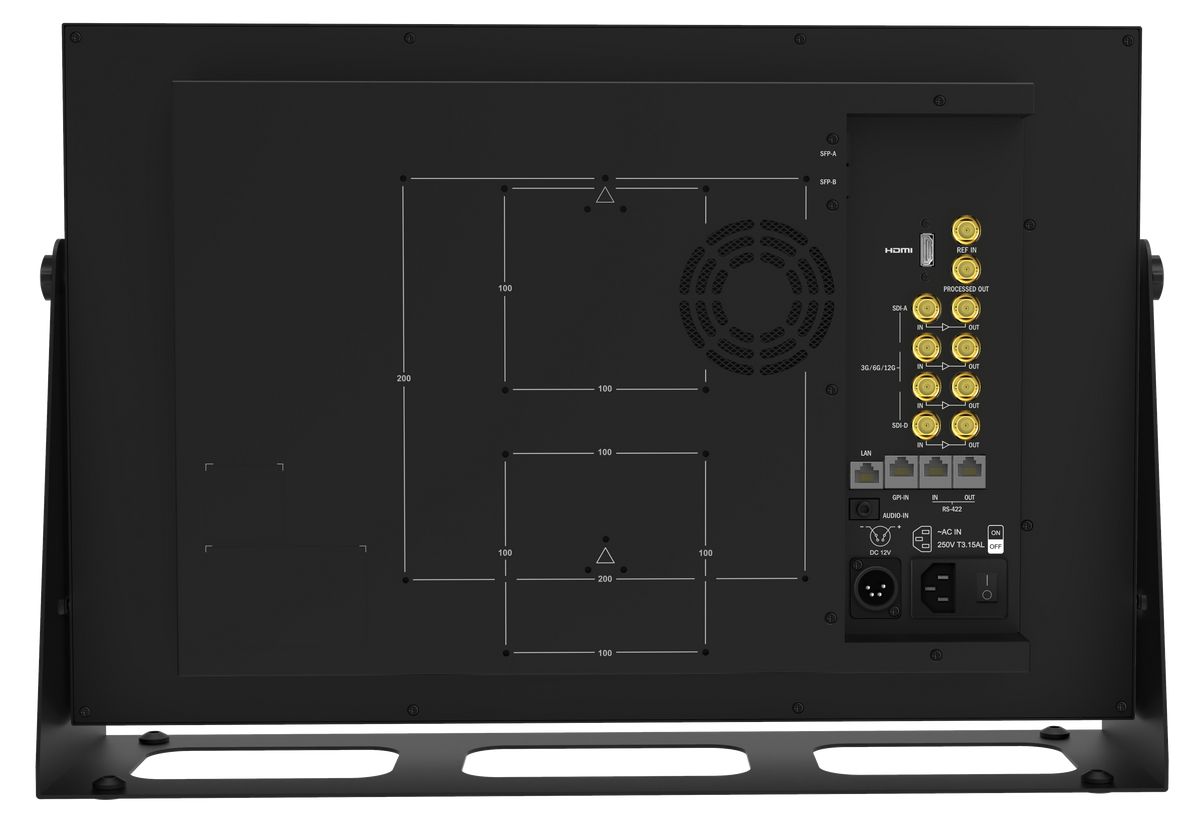

Input

4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Input

1 x HDMI: HDMI 2.0 Input

2 x SFP: SFP A/B Channel Input

1 x BNC: Reference Input



Output

4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Output

1 x BNC: Processed Output

AC Power Cable DC Power Adaptor Table Stand
