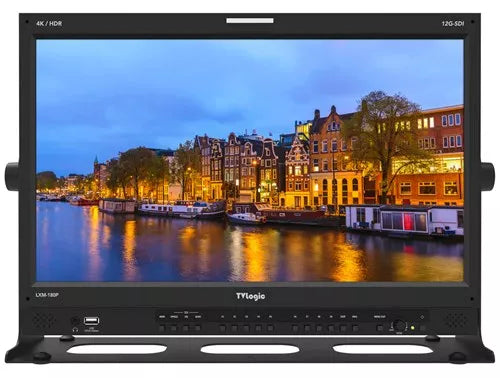

TVLogic LXM-180P 18.4” 4K/UHD monitor

9" Full HD 3G-SDI monitor with advanced analysis tools—ideal for compact broadcast and field setups requiring precision and portability.

1-3 werkdagen
  • €8.395,00 (excl. btw)
    €10.157,95 incl. btw
  • - 0%

The TVLogic LXM-180P is an advanced 18.4-inch UHD 4K monitor engineered for professional broadcast and production environments that demand uncompromising image accuracy and signal flexibility. With a native resolution of 3840x2160 and a brightness of 1000 nits, it delivers stunning clarity and high dynamic range performance. The monitor supports a wide array of inputs including Quad 12G-SDI, HDMI 2.0, and dual SFP, with versatile output options including processed and converted SDI signals. It features HDR vs SDR comparison, custom 3D LUT import via USB, and quad-view or picture-by-picture display modes for flexible monitoring. Built-in tools such as waveform, vectorscope, histogram, audio level and loudness meters, timecode display, closed caption decoding, and focus assist make it a powerful all-in-one solution. With its robust design and cutting-edge software, the LXM-180P is ideal for color-critical workflows, live production, and high-end post environments.

Size 9"

Resolution 1920 x 1080 (16:9)

Pixel Pitch 0.1035mm

Color Depth 16.7M Colors

Viewing Angle (Typ.) 176°(H) / 176°(V)

Luminance (Max.) 400nits

Contrast Ratio 750:1

Display Area 198(H) x 111(V) mm

Audio In Embedded Audio / Analog stereo

(Phone Jack)

Audio Out Analog stereo (Phone Jack) /

Internal Speaker (Mixed Mono)

Power DC 12V / 24V

Power Consumption

(Approx.)

DC 24 Watts (Max. 2A)

Operating Temperature 0°C to 45°C (32°F to 113°F )

Storage Temperature -20°C to 60°C (-4°F to 140°F )



Input

2 x BNC SDI A/B Channel Input

1 x HDMI HDMI Input



Output

1 x BNC SDI A/B Selectable Output



Input Signal

Analog CVBS (SDI B Channel)

3G-SDI 2.970Gb/s

HD-SDI 1.485Gb/s

SD-SDI 270Mb/s

HDMI

(PC & HDMI mode) 1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50)

AC Power Cable DC Power Adaptor Table Stand
