TVLogic
TVL-F-10A

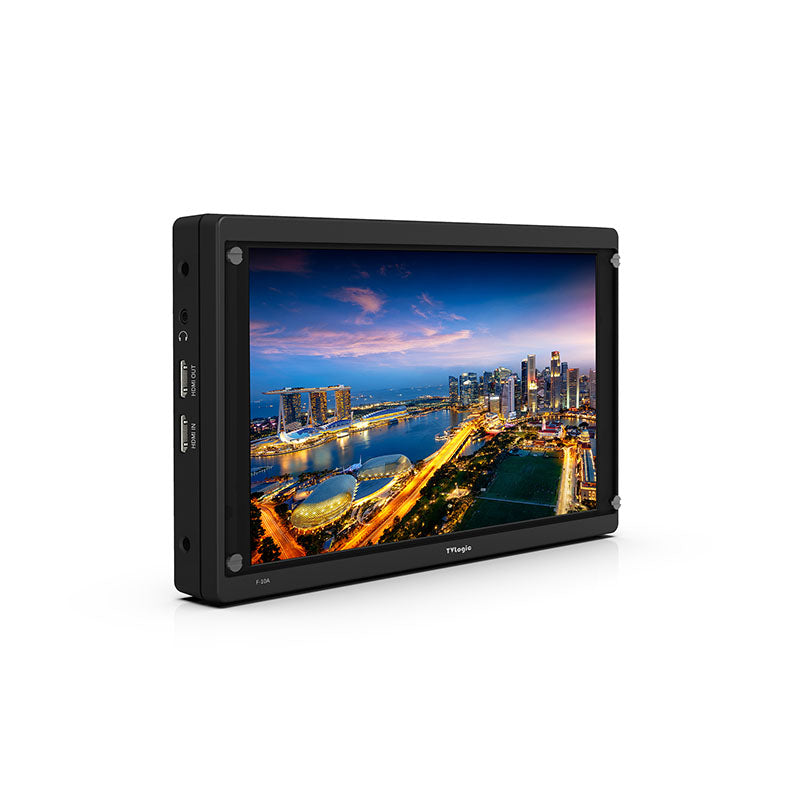

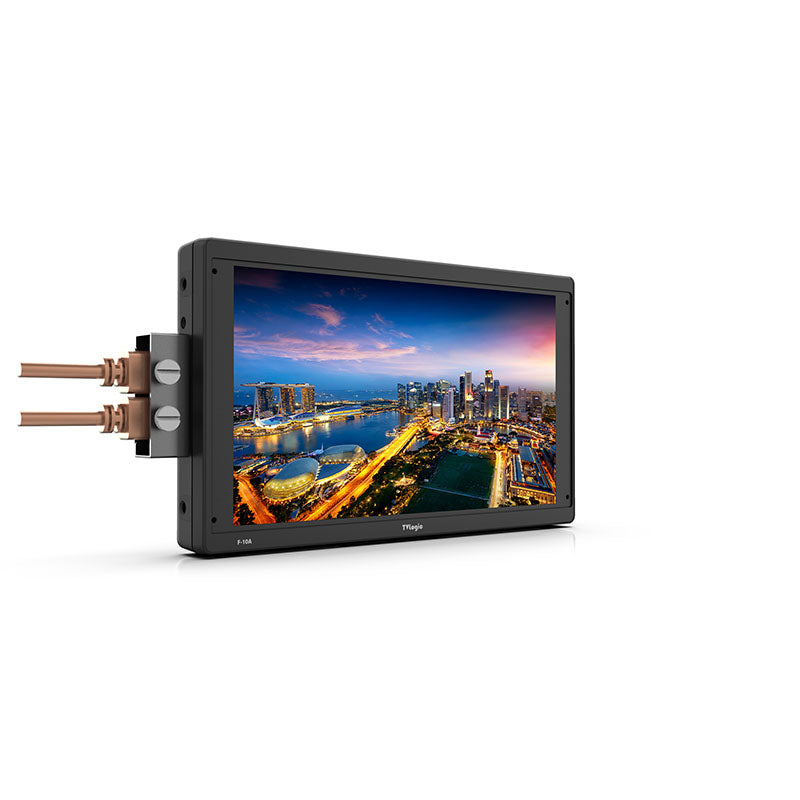

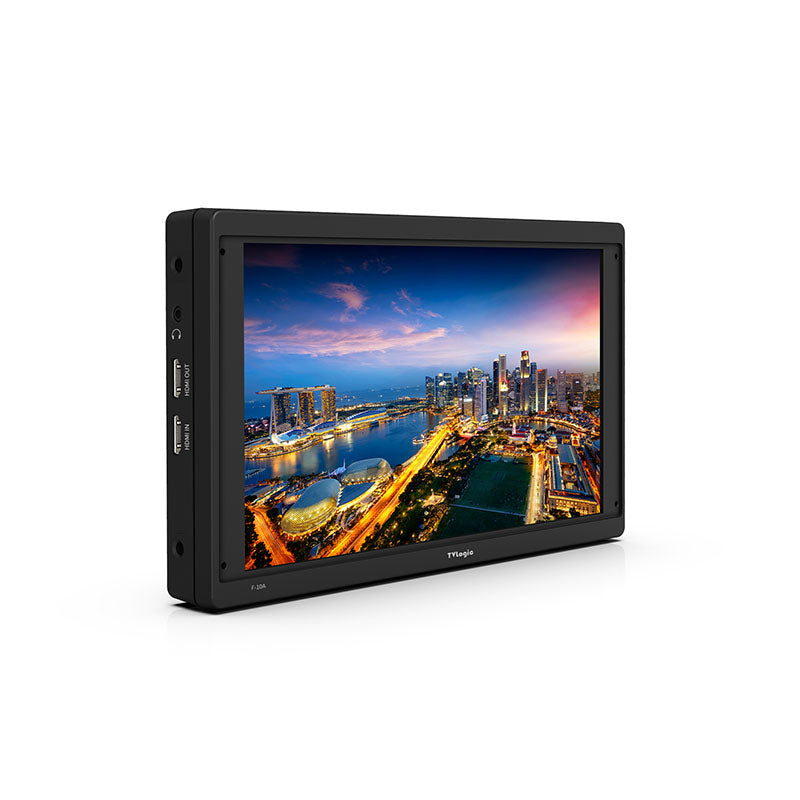

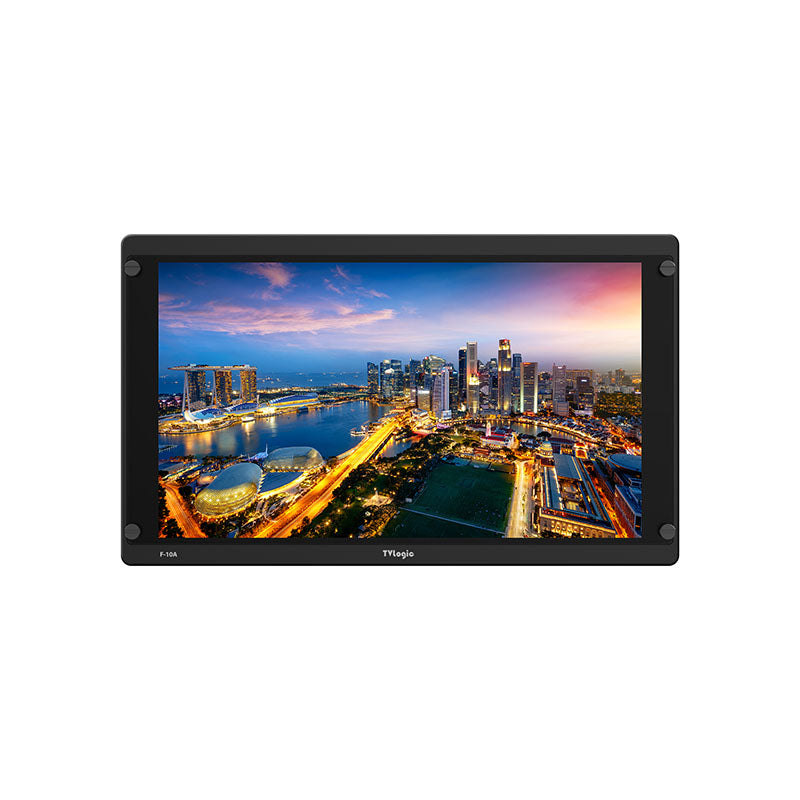

TVLogic F-10A
De 10" F-10A HDMI/SDI HDR Field Monitor is zeer geschikt voor werk in het veld, op een camera of in een studio.
The 10" F-10A HDMI/SDI HDR Field Monitor is well suited for work in the field, on a camera, or in a studio. The slim IPS panel features a 1920 x 1080 resolution with 160° viewing angle. The F-10A features a sharp image, new touch preset buttons on the front of the monitor, and added automatic H/V flip functionality.
The F-10A supports 3G-SDI as well as HDMI, and it can cross-convert between SDI and HDMI. The 300 cd/m² brightness and 1000:1 contrast ratio provide a bright clear image viewable in daylight without a hood. The screen displays HDR imagery and supports HLG, PQ, and SLOG3 modes. It features a top-mounted menu, assignable functions buttons, and a selection knob, leaving the front of the screen uncluttered.
The built-in on-screen menu display allows you to select and adjust the monitor's controls and on-screen markers, load and save 3D LUTs, and select from SDR to HDR. Separately available battery plates can expand the power options of the monitor.
Display Spec.
| Size | 10" |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.11475mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 300cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 220.32mm(H) x 123.93(V) mm |
Input
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 2 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
Input Signal
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
SDI Input Signal Formats
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut. |
Closed Caption
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| REMOTE | GPI (RJ45) |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
Options
| Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Gold Mount, Sun Hood, V-Mount |
