SWIT 21.5-inch 1000nits 4K Input Ready Monitor (BM-H215)
21.5" Full HD monitor with 4K input, HDR support, and remote web control—ideal for studio and field production.
21.5" Full HD monitor with 4K input, HDR support, and remote web control—ideal for studio and field production.

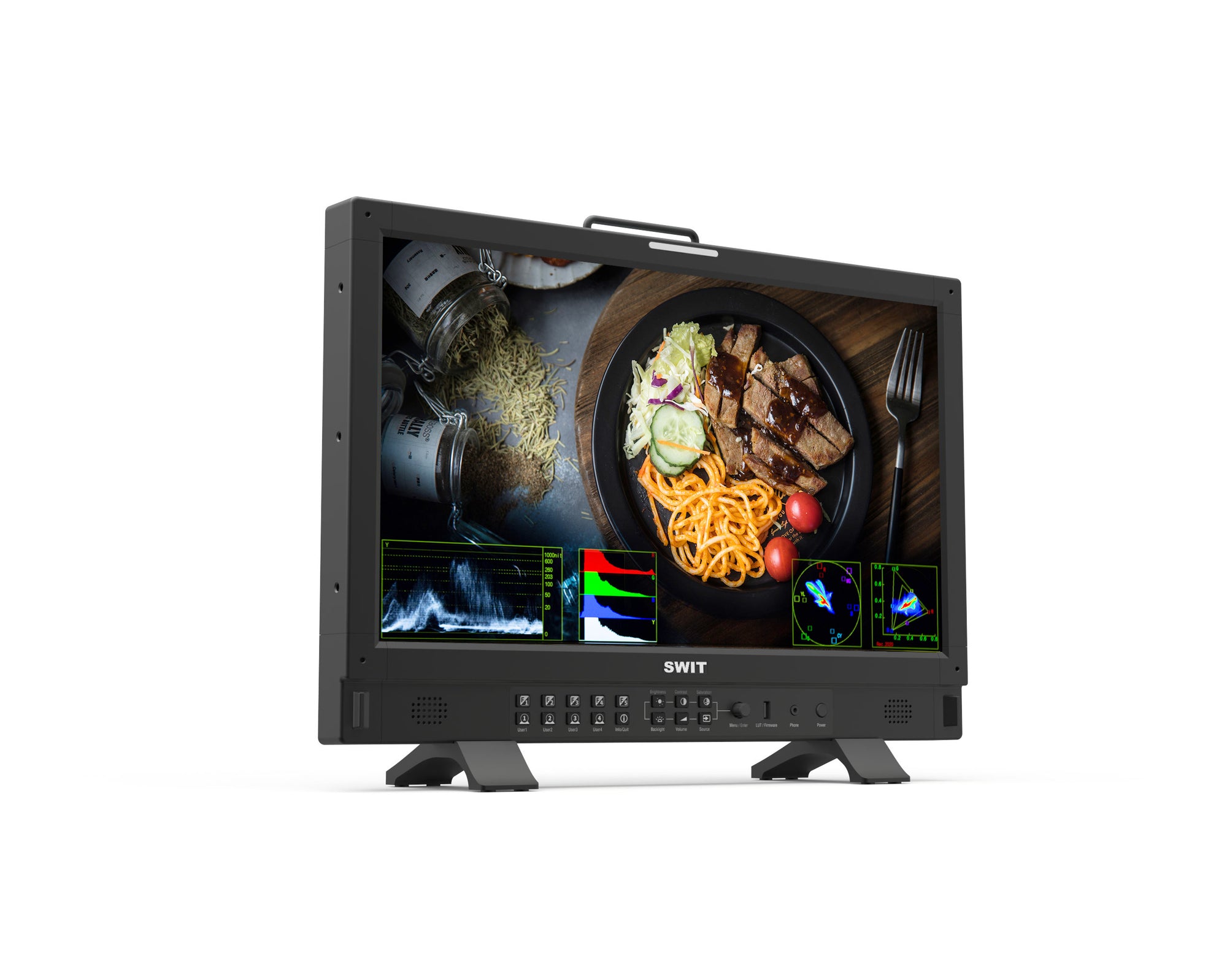

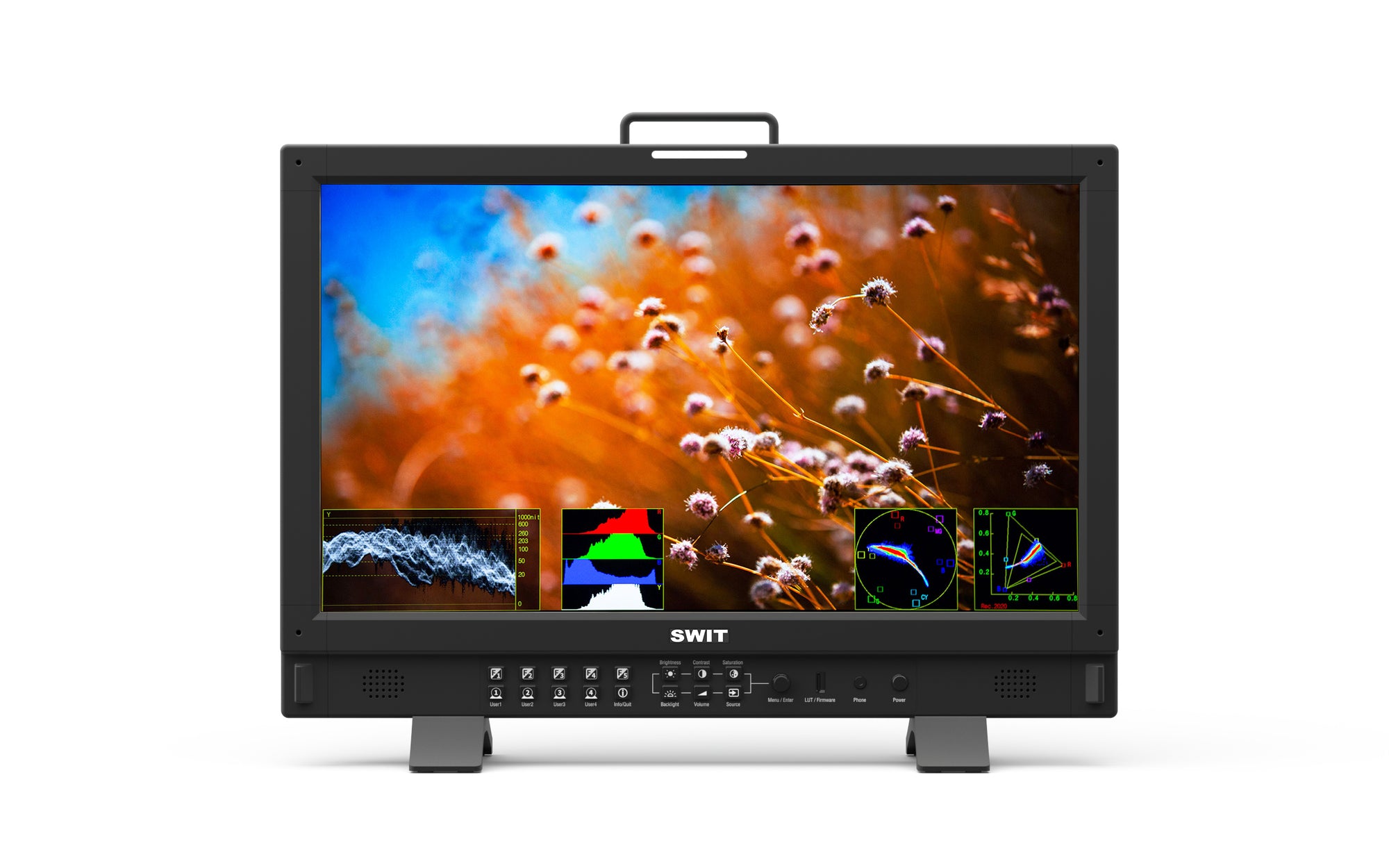

The BM-H215 is a 21.5-inch Full HD broadcast monitor designed for professional studio and field production. It supports 4K input via 12G-SDI, HDMI 2.0, and Quad-Link 3G-SDI, making it compatible with a wide range of high-resolution workflows. The monitor features a 1920×1080 resolution panel with high color accuracy and advanced image processing, ensuring precise monitoring for critical applications.
Equipped with HDR support including HLG and PQ (Dolby Vision), the BM-H215 delivers accurate tone mapping and dynamic range reproduction. It includes essential monitoring tools such as waveform, vectorscope, histogram, audio meters, and focus assist. The monitor also supports webserver remote control via Ethernet LAN, allowing users to adjust input sources, image parameters, and assign function keys directly from a browser without installing additional software.

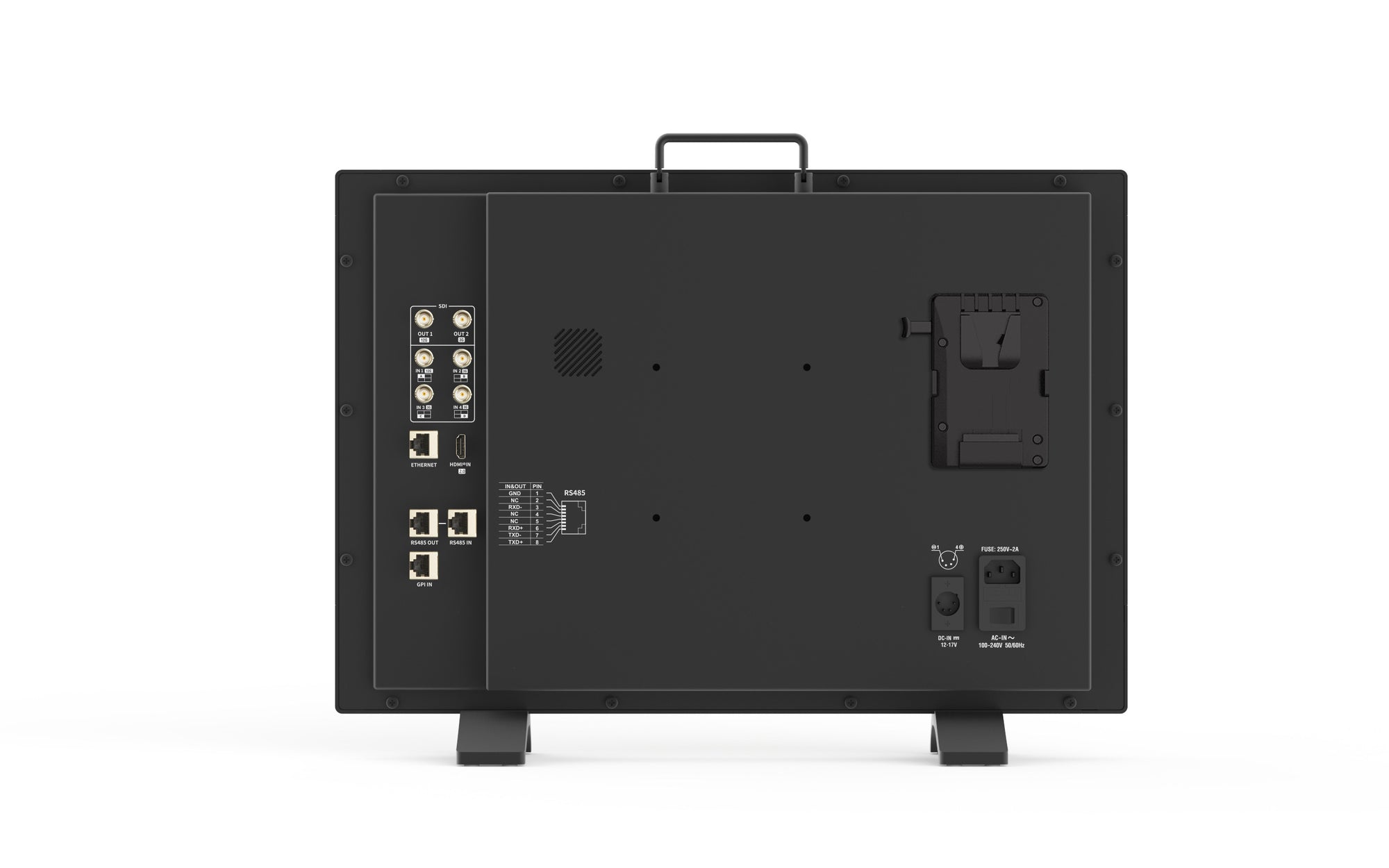

The BM-H215 is built with professional-grade durability and includes multiple safety and maintenance features. It comes with a standard V-mount battery plate, making it suitable for mobile setups, and includes a range of input/output ports for flexible integration. The unit is covered by a two-year warranty, with detailed usage and care instructions outlined in the official user manual.
Size |
21.5 inches |
Display area |
476×268mm |
Resolution |
1920×1080 |
Aspect ratio |
16:9 |
Brightness |
1000nits |
Contrast |
1000:1 |
Color depth |
10-bit |
Signal process |
18-bit |
Viewing angle |
178°(H) /178°(V) |
BNC ×1 |
12G/6G/3G/HD/SD-SDI input |
BNC ×3 |
3G/HD/SD-SDI input |
HDMI® ×1 |
HDMI® 2.0 input |
RS485 ×1 |
TSL 3.1/4.0 UMD input |
RS485 ×1 |
GPI (Tally) input |
RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
BNC ×1 |
12G/6G/3G/HD/SD-SDI loop output |
BNC×1 |
3G/HD/SD-SDI loop output |
RS485 ×1 |
TSL 3.1/4.0 UMD output |
Analog audio |
3.5mm headphone and speaker |
SDI 1 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
2048×1080i (50 / 59.94 / 60) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
720p (60 / 59.94 / 50) | |
480i (59.94), 576I (50) | |
SDI 2/3/4 |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
720p (60 / 59.94 / 50) | |
480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
720p (60 / 59.94 / 50) |
Input voltage |
DC 12V-17V, AC 100-240V, 50/60Hz |
Power consumption |
60W |
Working temperature |
0°C~+50°C |
Working humidity |
10%~90% |
Storage temperature |
-15°C~+60°C |
Storage humidity |
10%~90% |
Dimensions |
530.6×364.3×74.2mm |
Net weight (main body) |
Net 6.05kg; With package 10kg |
