Aanbieding
  • TVLogic S-55P 55" FullHD Studio wall monitor
  • TVLogic S-55P 55" FullHD Studio wall monitor
  • TVLogic S-55P 55" FullHD Studio wall monitor
TVLogic
TVL-S-55P

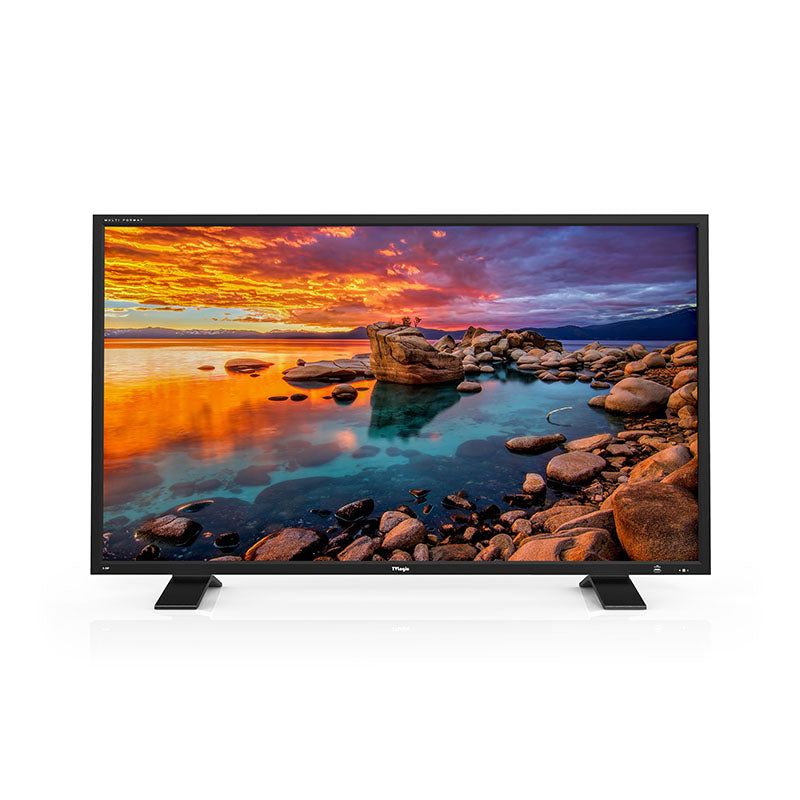

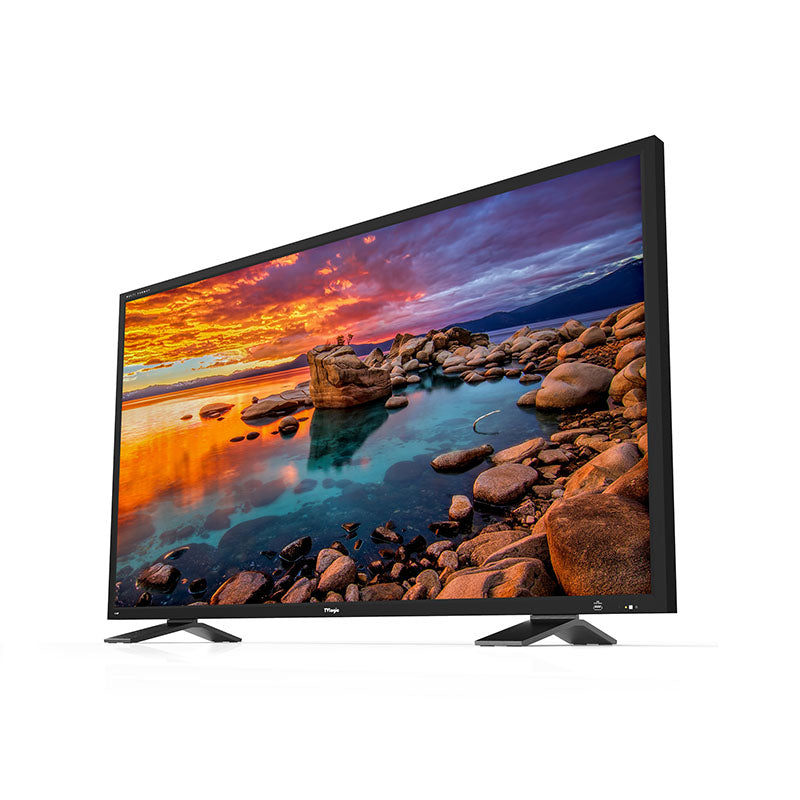

TVLogic S-55P 55" FullHD Studio wall monitor

De S-55P 55" Full HD Studio Wall Monitor met Ember+ Protocol van TVLogic is een Full HD Studio Wall Monitor met een hoge contrastverhouding en brede kijkhoek.

Levertijd opvraagbaar
  • €6.495,00 (excl. btw)
    €7.858,95 incl. btw
  • - 0%
The S-55P 55" Full HD Studio Wall Monitor with Ember+ Protocol from TVLogic is a Full HD Studio Wall monitor with a high contrast ratio and wide viewing angle. It supports various video input formats, including 3G/HD-SDI, HDMI, and DVI. The SFP module interface can be utilized for additional optional functionality. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG, and SLog3.

Display

Panel Type LCD
Display Size 55.00" / 139.7 cm
Screen Area 47.6 x 26.8" / 1209 x 680 mm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 178°
Vertical: 178°
Touchscreen No
Maximum Brightness 450 cd/m2
Contrast Ratio 4000:1
Dot Pitch 0.53 x 0.53 mm
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
HDR Compatibility Yes
Pixels Per Inch (ppi) 40 ppi
Image Controls Blue Only, Focus Assist, Frame Luminance Monitor, Screen Markers, Vectorscope, Waveform

I/O

Video 2 x BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Input
1 x DVI-I Input
2 x BNC (3G-SDI/HD-SDI/SD-SDI) Loop Output
Embedded Audio SDI
HDMI
Audio 1 x 1/8" / 3.5 mm Input
Built-In Speaker 1
Other I/O 1 x GPI (RJ45)
1 x USB 2.0 (USB Type-A)
Expansion Slots 2 x SFP Slot
Media/Memory Card Slot None
Wi-Fi None

Format Support

Video Format SDI
DCI 2K: 24/23.98
DCI 2K PsF: 24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI
1080p: 60/50/30/25/24
1080i
720p
576p
576i
480p
480i
PC Resolutions HDMI, DVI: 1600 x 1200
HDMI, DVI: 1024 x 768
HDMI, DVI: 800 x 600
HDMI, DVI: 720 x 400
Video Standard Compliance SMPTE 125M/260M/274M/296M/372M/425M
ITU -R BT.656
