Dracast
DRXLK4
Dracast X Series LED Lighting Kit 4
Unleash full-spectrum creativity with the Dracast X Series RGBWW Kit. Dynamic lighting, rugged portability, and app control in one pro-grade package.
4-Piece Studio Kit Including Accessories

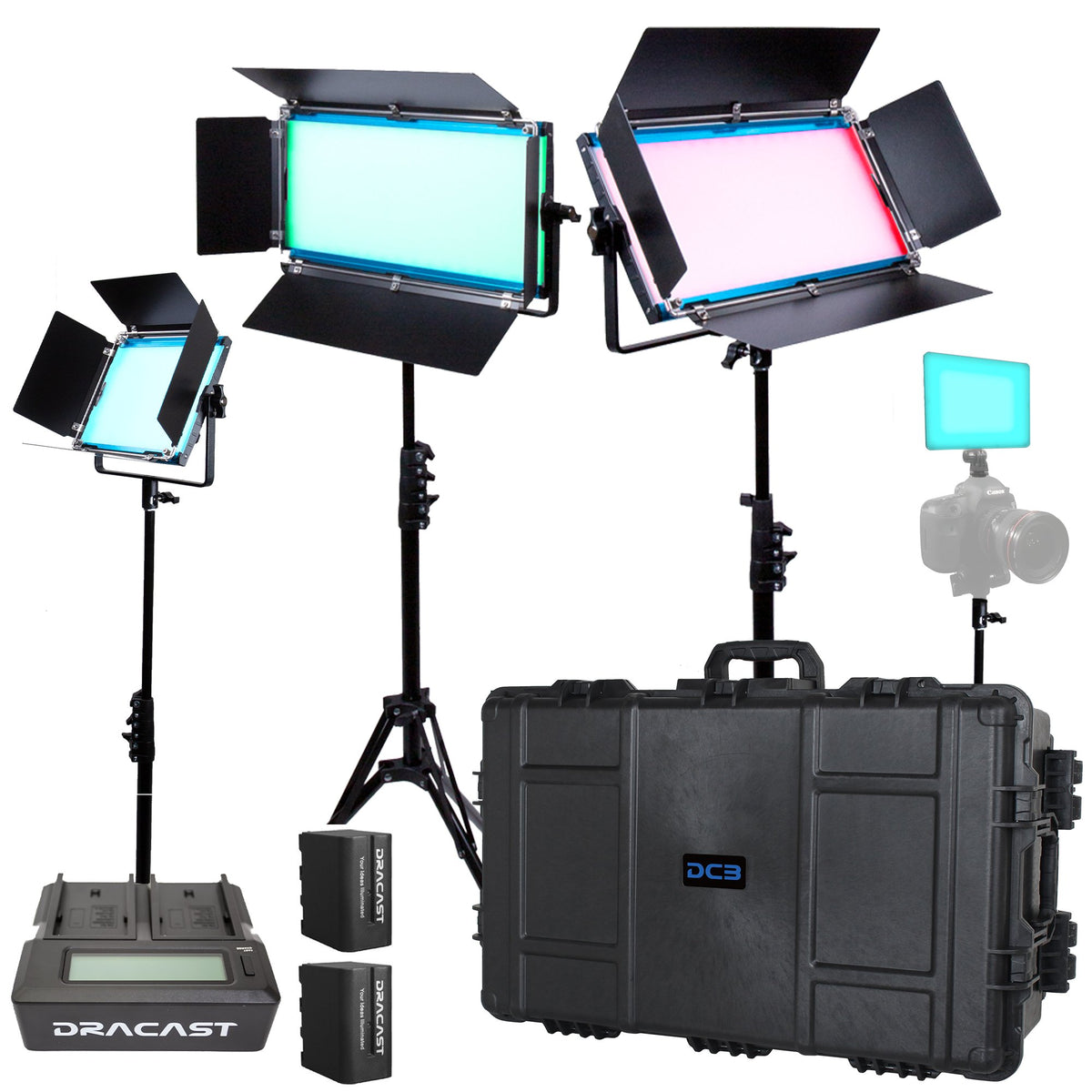

The Dracast DRXLK4 LED lighting kit includes four lights along with light stands, barndoors, batteries, and a protective case for easy transport.
RGB | Full Color Spectrum
Expand your lighting kit with the full RGB color spectrum. Millions of color options available with RGB and HSI.
Bi-Color Adjustable Color Temperature
With an adjustable RGBWW CCT range of 2800K - 8000K, it seamlessly blends with ambient lighting. 96+ CRI and TLCI ensure excellent color accuracy across the entire CCT range. Ideal for interview lighting, photography studio lighting, portrait lighting, and on-location lighting where adapting to existing light sources is crucial.
Remote Control with Dracast DRX App
With the help of the Dracast DRX App for iOS and Android, you can control multiple lights simultaneously from a distance of over 30 m. Quickly select and adjust special effects (police car, fireworks, candlelight, strobe, TV screen, etc.). Adjust brightness from 0%-100%.
Dracast Quality Including Accessories

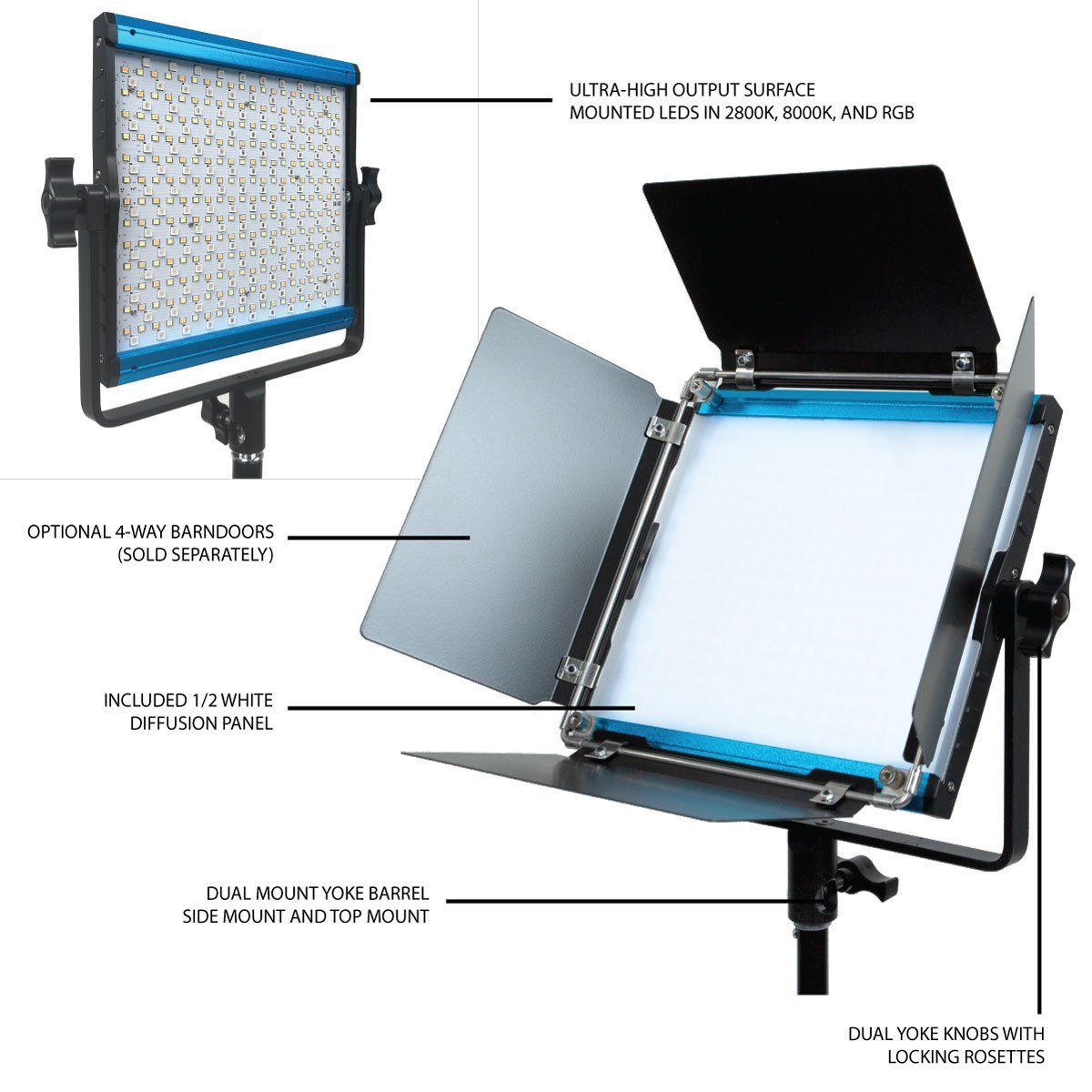

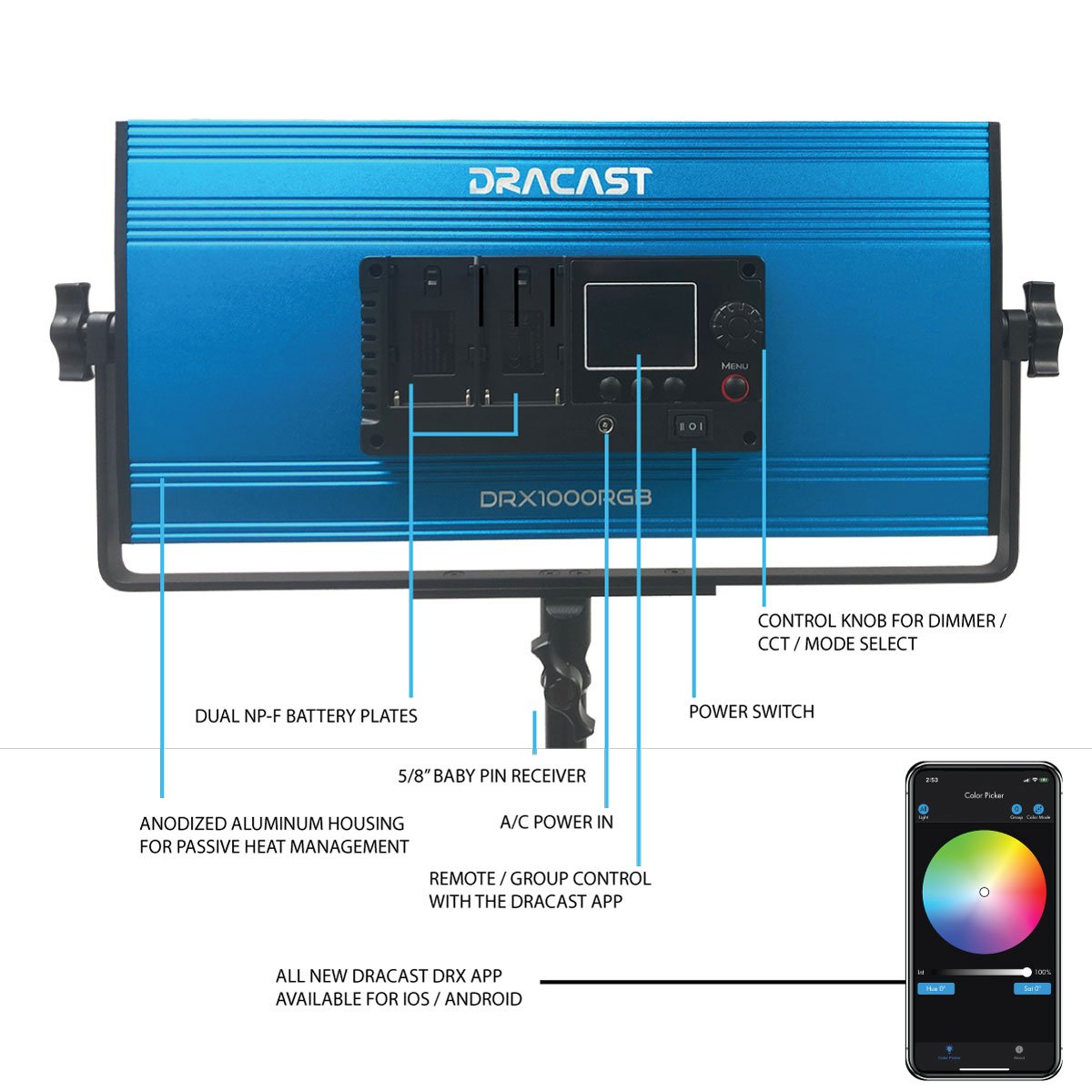

Excellent durability. Fast, manual control with the digital interface of the X Series. Includes a 5/8" baby pin adapter and a pre-installed diffusion filter for soft, even LED lighting. A protective case, light stands, batteries, and barndoors are included in the price.
Power Options
Use the X Series lights with the included AC/DC power adapter or operate them with batteries. The lights of the Dracast X Series are equipped with a dual NP-F battery plate compatible with NP-F type batteries. The lights can run for several hours on a full battery charge.

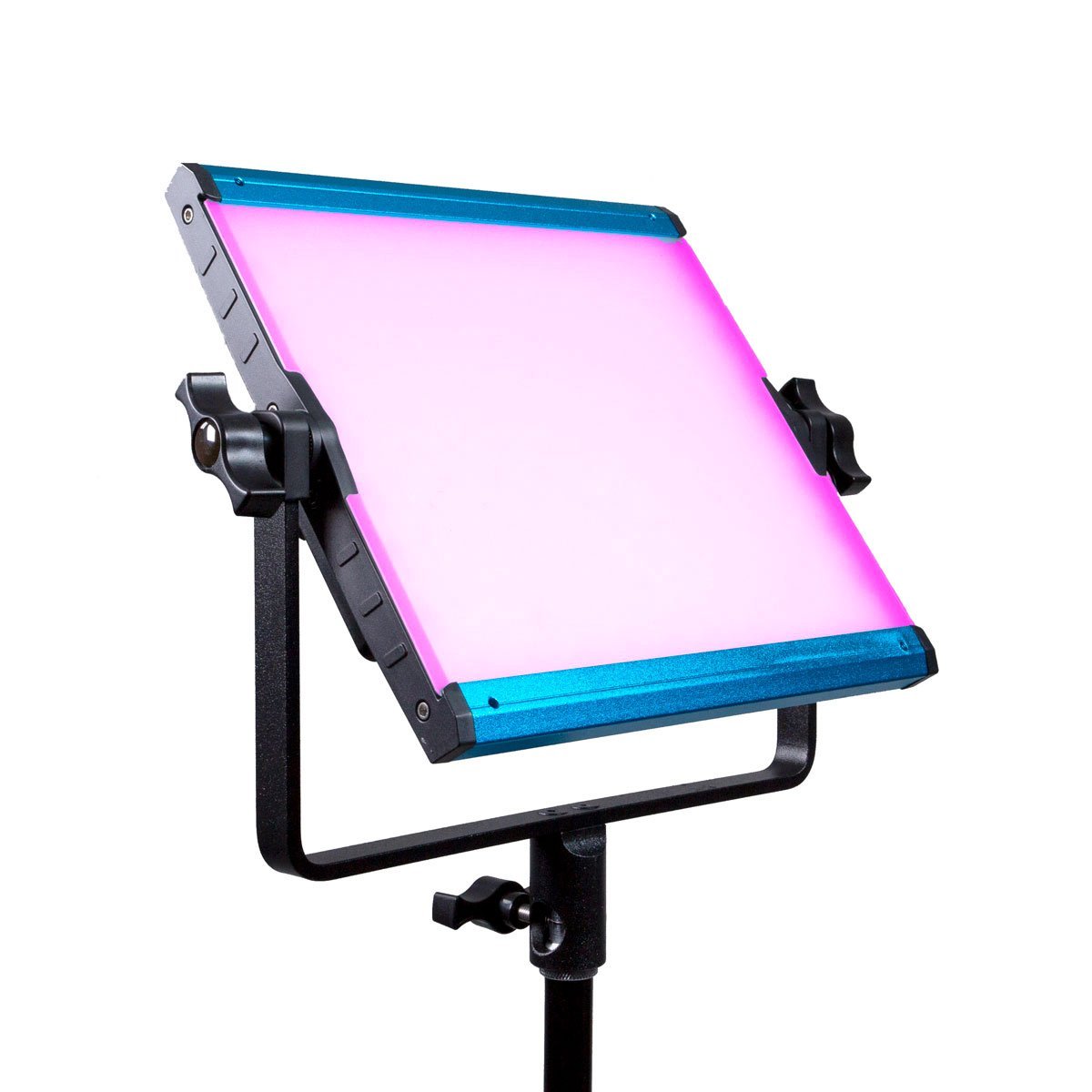

Dracast Dracast X Series LED500 RGB Specifications
Light Fixture
Item Type 1 x LED Light Panel
Included Filters Diffusion
Included Storage Case 1 x Case
Lumens Not Specified by Manufacturer
Photometrics 85 fc / 924 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer
Color Temperature 2800 to 8000K
Color Modes RGB
Color Accuracy Standard CRI 96
Cooling System Passive
Dimming Yes, Built-In Dimmer 0 to 100%
Beam Angle 100°
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Bluetooth
Mobile App Compatible Yes: Android & iOS App Name: DRX *As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Range 100' / 30.5 m
Power & I/O
Power & I/O
Inputs/Outputs 1 x Barrel / Coax Power Input
Battery Plate Type 2 x Sony L-Series / NP-F (Built-In)
Battery 2 x Rechargeable (Not Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC
Included Adapter / Cable 1 x Edison Plug to Barrel / Coax AC to DC Adapter
Inline Switch No
Power Pass-Thru No
Power Consumption 35 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1 x 5/8" Receiver (Via Yoke Mount)
Environmental
Environmental Protection None
General
Display Yes
Materials Aluminum

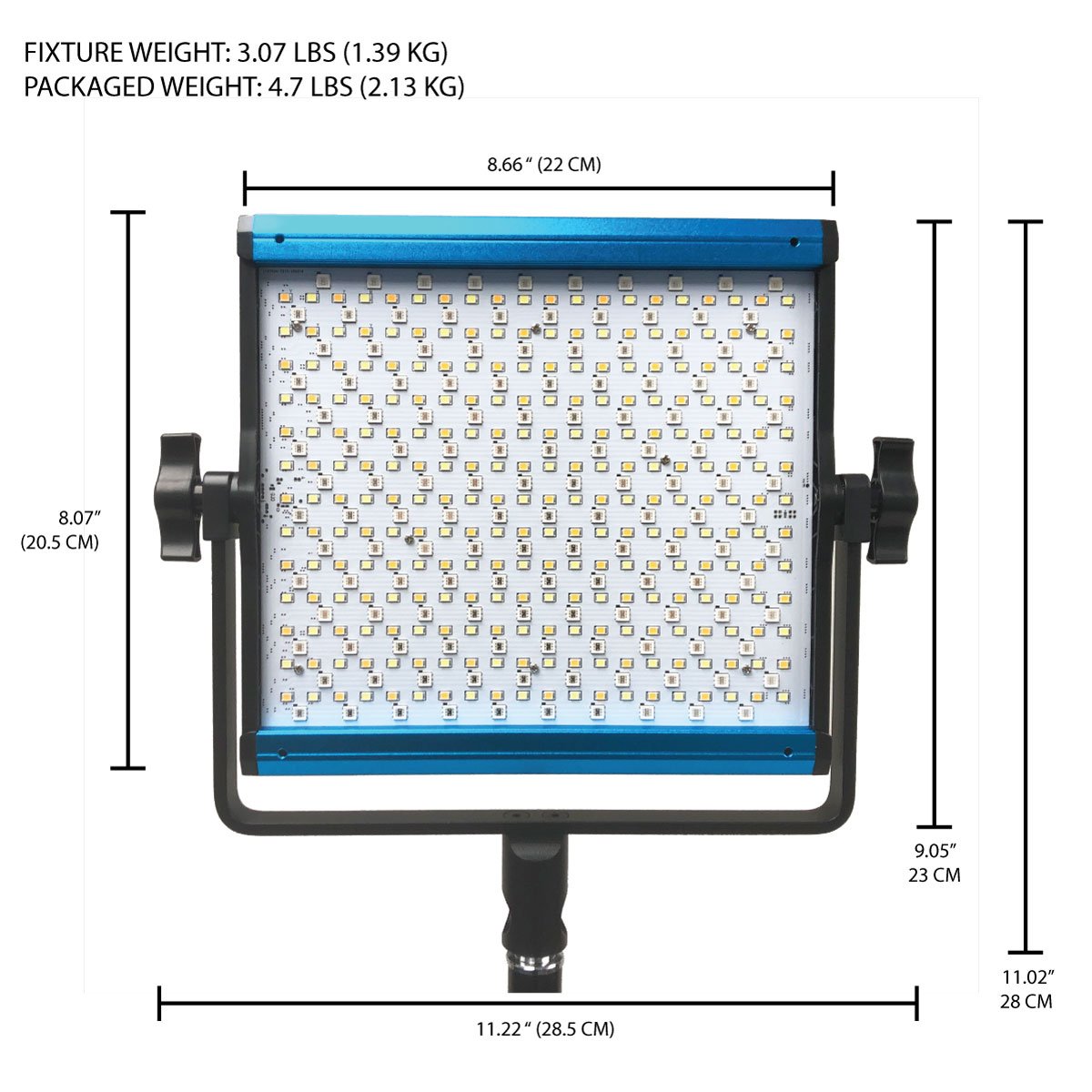

Dimensions 8 x 8 x 2" / 20.3 x 20.3 x 5.1 cm (Fixture) 11 x 11 x 2" / 27.9 x 27.9 x 5.1 cm (Fixture with Yoke)
Weight 2.2 lb / 1 kg
Packaging Info
Package Weight 4.75 lb
Box Dimensions (LxWxH) 13.7 x 13.1 x 3.9"

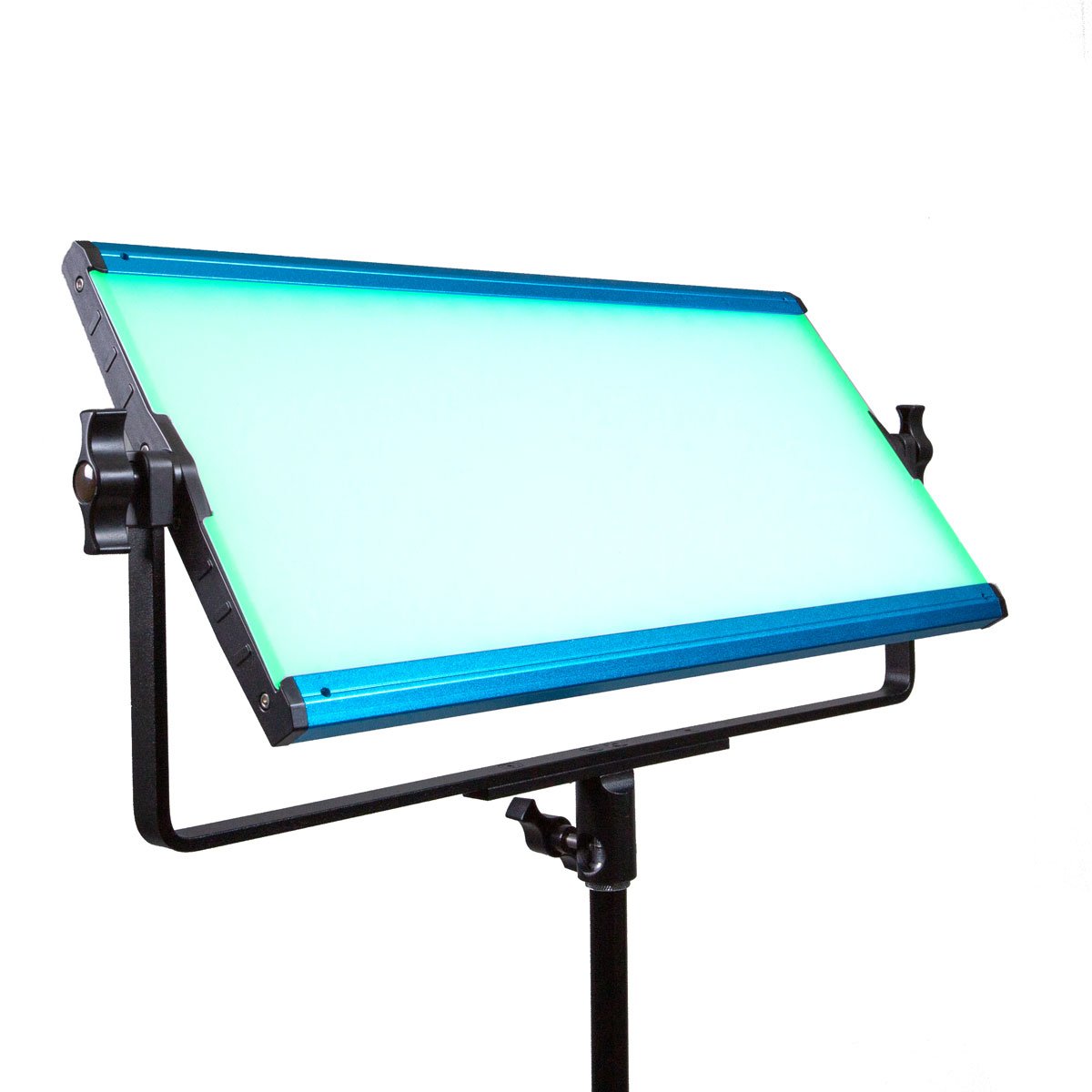

Dracast Dracast X Series LED1000 RGB Specifications
Light Fixture
Item Type 1 x LED Light Panel
Included Filters Diffusion
Included Storage Case 1 x Case
Photometrics 5600K: 127 fc / 1375 Lux at 3.3' / 1 m*
Color Temperature 2800 to 8000K
Color Modes RGB
Color Accuracy Standard CRI 96
Cooling System Passive
Dimming Yes, Built-In Dimmer 0 to 100%
Beam Angle 100°
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Wi-Fi
Mobile App Compatible Yes: Android & iOS App Name: DRX
Wireless Range 100' / 30.5 m
Power & I/O
Power & I/O
Inputs/Outputs 1 x Barrel / Coax Power Input
Battery Plate Type 2 x Sony L-Series / NP-F (Built-In)
Battery 2 x Rechargeable (Not Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC
Included Adapter / Cable 1 x Edison Plug to Barrel / Coax AC to DC Adapter
Inline Switch No
Power Pass-Thru No
Power Consumption 70 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1 x 5/8" Receiver (Via Yoke Mount)
Environmental
Environmental Protection None
General
Display Yes
Materials Aluminum
Dimensions 17 x 8.07 x 2.05" / 43.2 x 20.5 x 5.21 cm 19.5 x 10.5 x 2.05" / 49.5 x 26.7 x 5.21 cm (Fixture)
Weight 3.7 lb / 1.7 kg
Packaging Info
Package Weight 7.1 lb
Box Dimensions (LxWxH) 21 x 13.9 x 3.9"

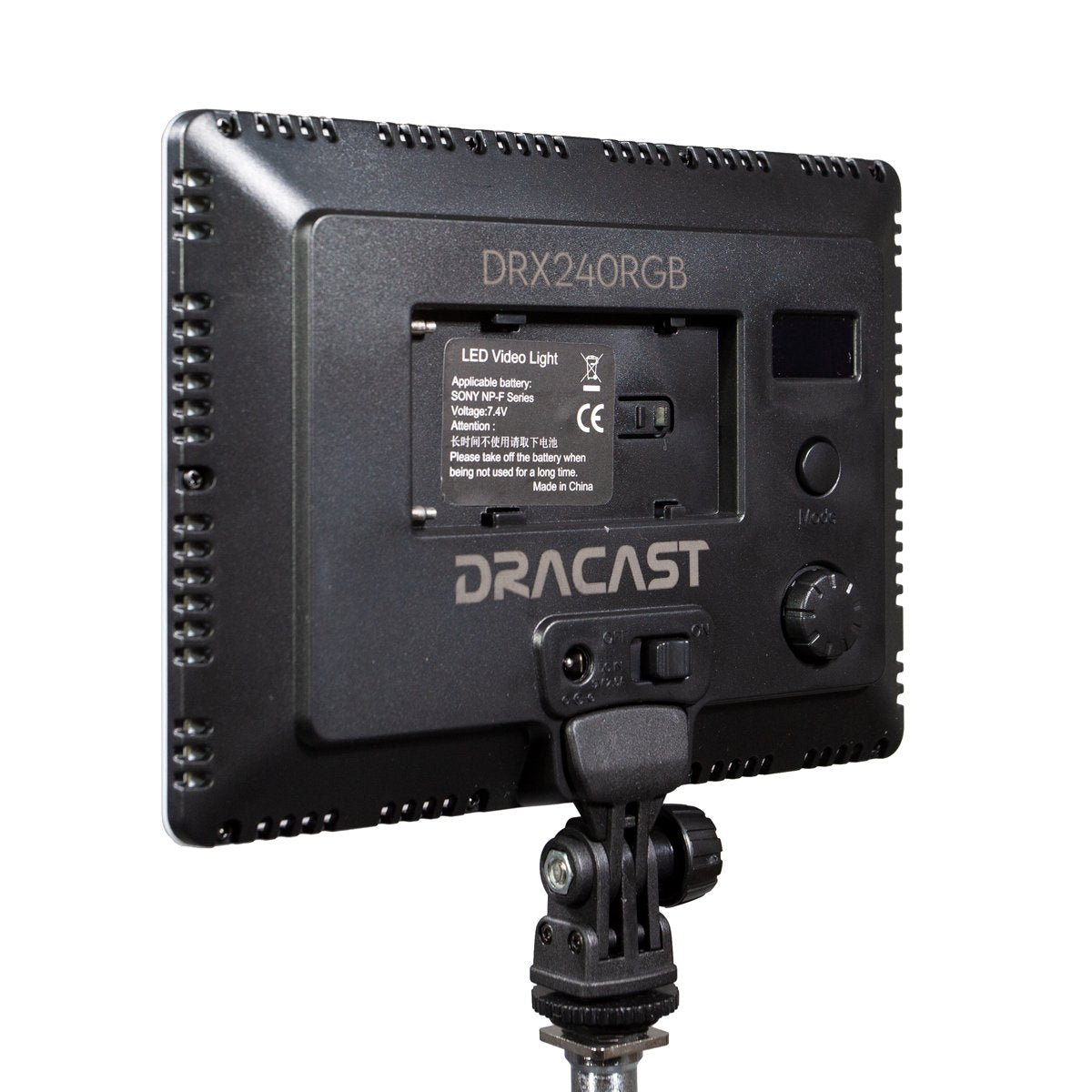

Dracast Dracast LED240RGB Specifications
Light Fixture
Item Type 1 x LED Light Panel
Included Filters Diffusion
Photometrics 39 fc / 419 Lux at 3.3' / 1 m
Color Temperature 2800 to 6500K
Color Modes RGB
Dimming Yes, Built-In Dimmer 0 to 100% (Continuous)
Beam Angle 180°
Power & I/O
Power Source AC to DC Adapter (Included) Battery (Not Included)
Inputs/Outputs 1 x Barrel / Coax Power Input
Battery Plate Type 1 x Sony L-Series / NP-F (Built-In)
Battery 1 x Sony-Type L-Series / NP-F Rechargeable (Not Included)
DC Input Power 16.8 VDC
Included Adapter / Cable 1 x Edison Plug to Barrel / Coax AC to DC Adapter
Power Consumption 15 W (Maximum)
Mounting
Mounting
General
Dimensions 6.9 x 6.8 x 1.3" / 17.5 x 17.3 x 3.3 cm
Weight 0.8 lb / 0.4 kg
Packaging Info
Package Weight 0.78 lb
Box Dimensions (LxWxH) 7 x 7 x 1.2"
Connectivity
Wireless Remote Control Type Bluetooth
Mobile App Compatible Yes: Android & iOS
- x1 Dracast X Series DRX500RGB
- x2 Dracast X Series DRX1000RGB

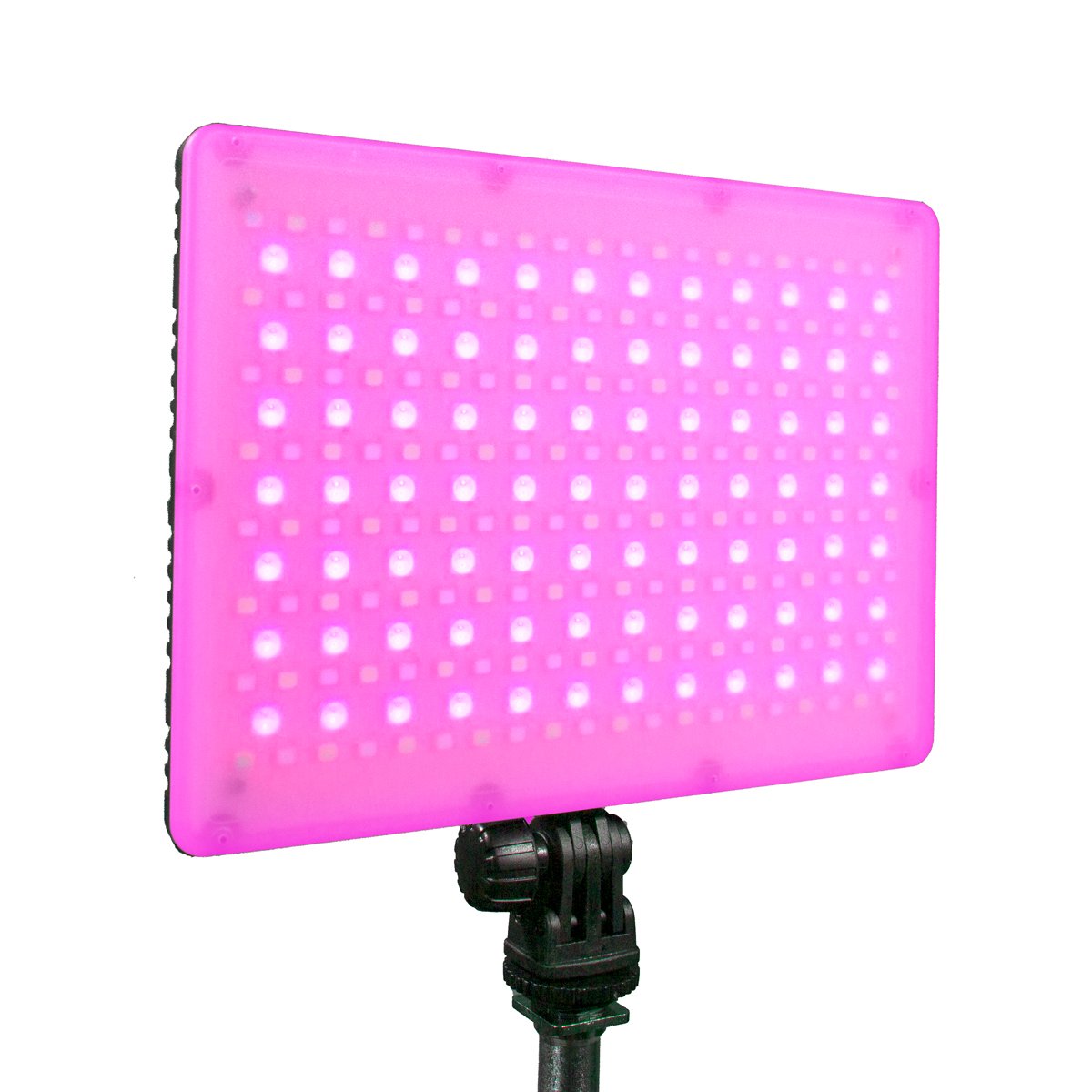

- x1 DRX240RGB On Camera Light

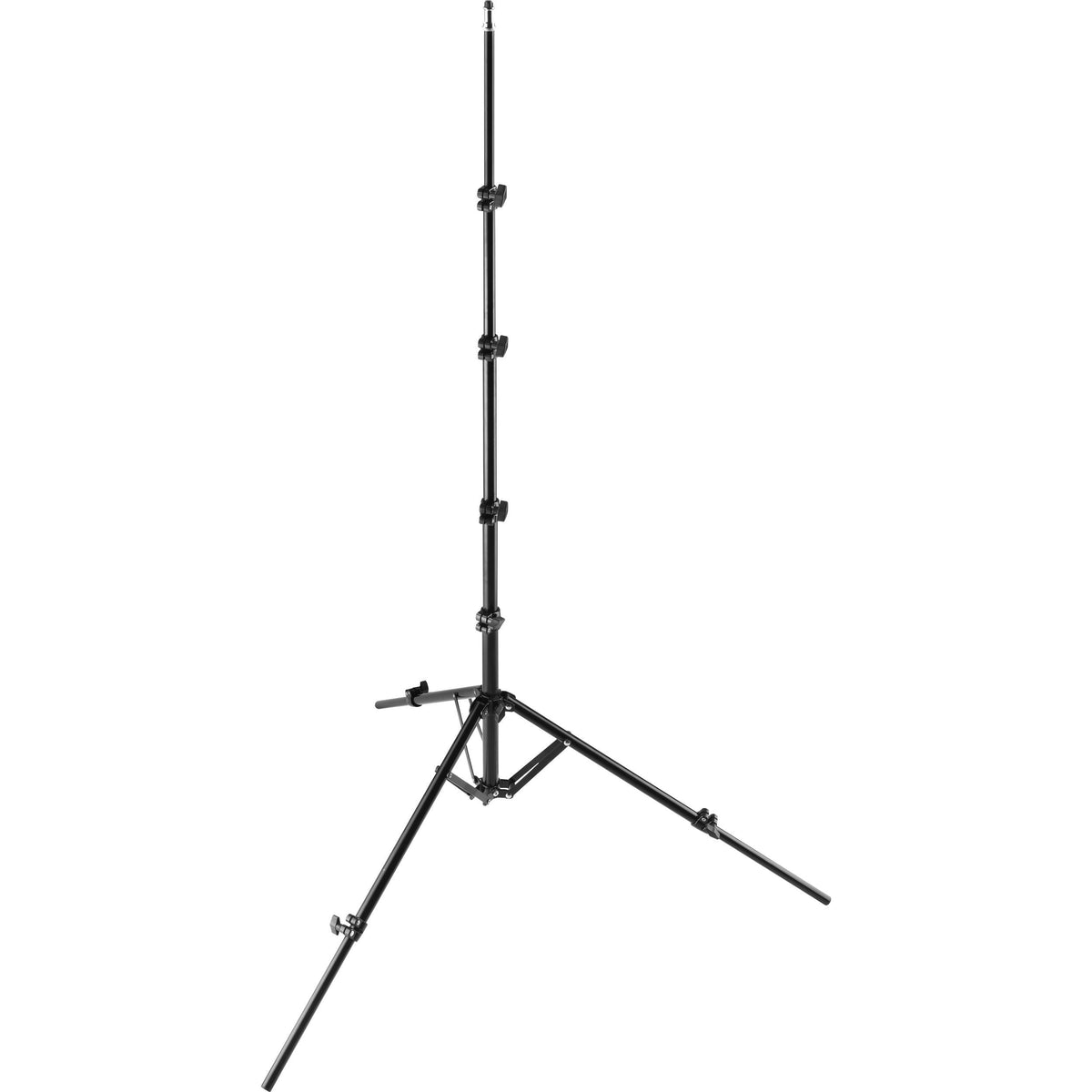

- x4 DRLSCLS Light Stands
- x1 BDDRX500 Barn doors
- x2 BDDRX1000 Barn door

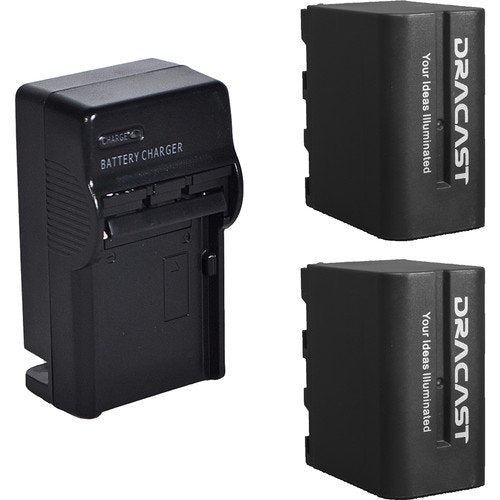

- x7 PANPF6600 Rechargeable battery

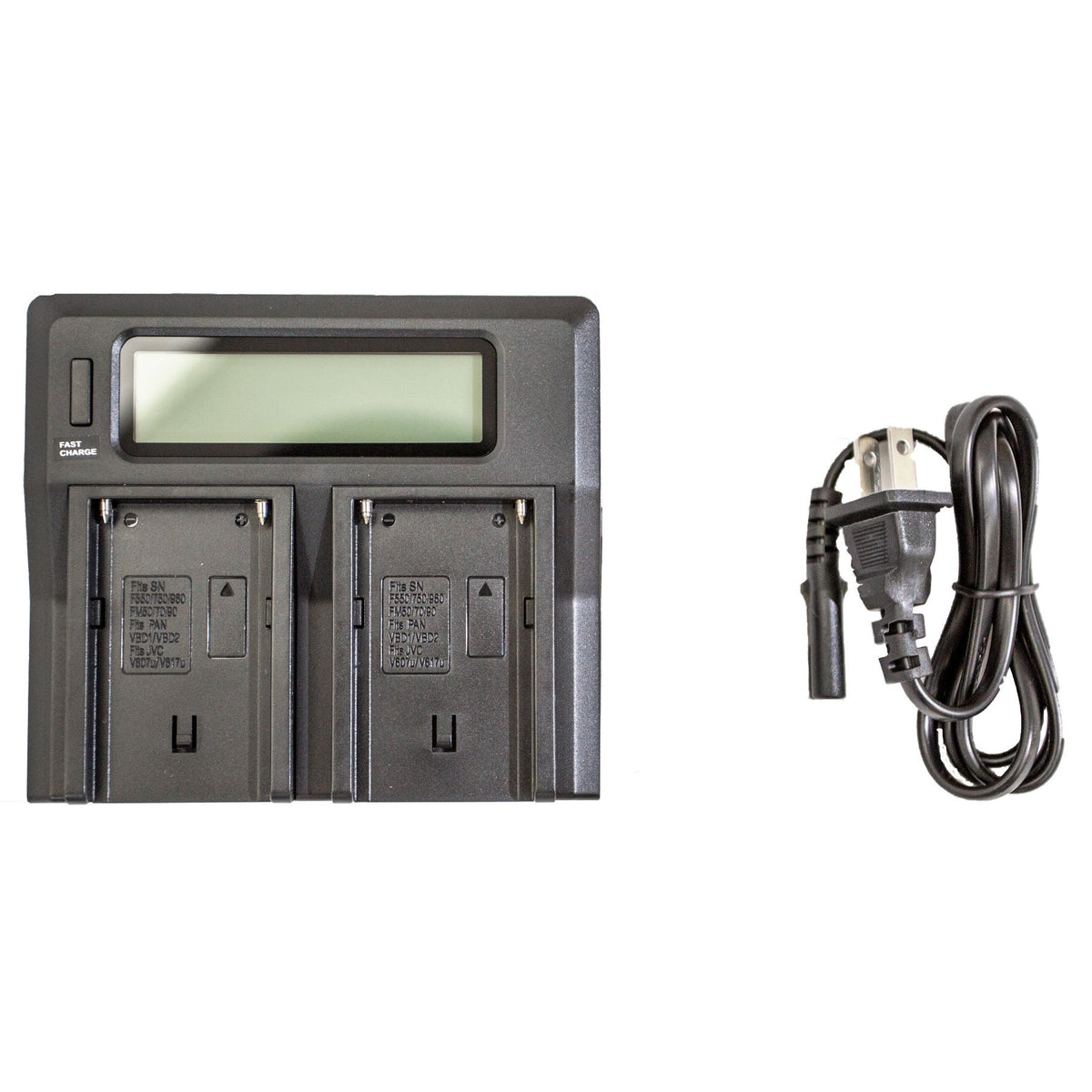

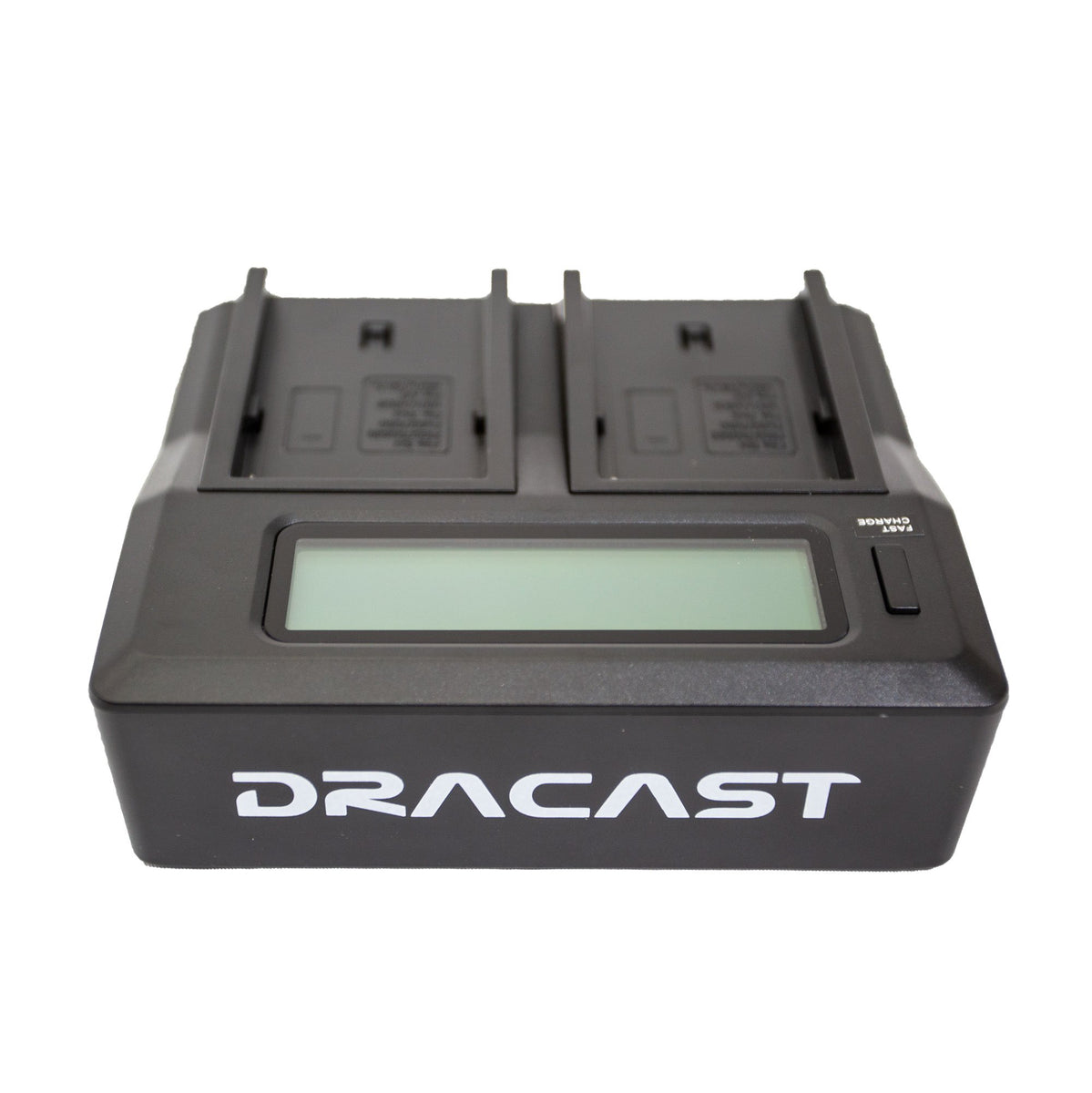

- x3 DRDDNPFBC Dual Battery Charger

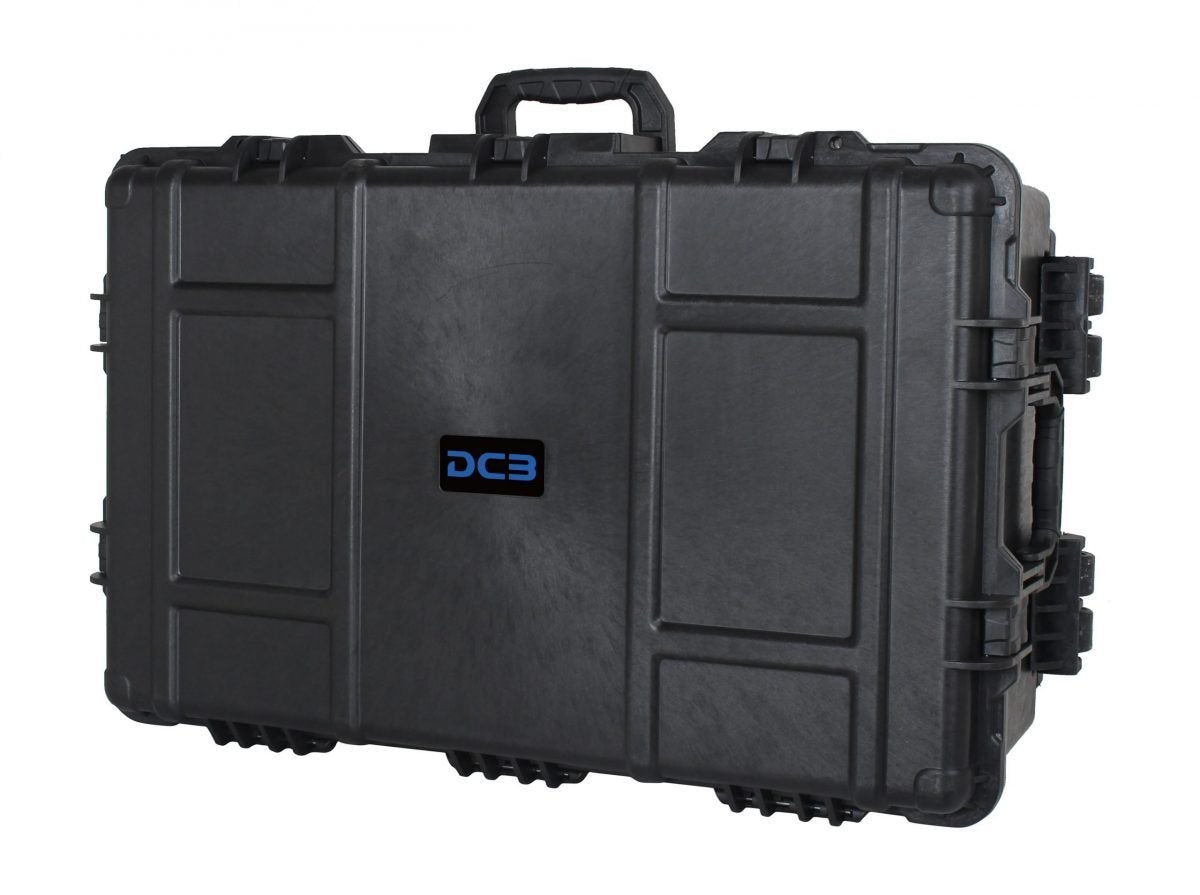

- x1 DCB 8305F Injection Molded Travel Case
Not in the Box
- DRSBX500 Soft Box (Sold separately)
- DSLR Camera (Picture for illustrative purposes)
