Datavideo PCB-1 Camera Control Box
  • Datavideo PCB-1 Camera Control Box
    Datavideo
    7000-2070

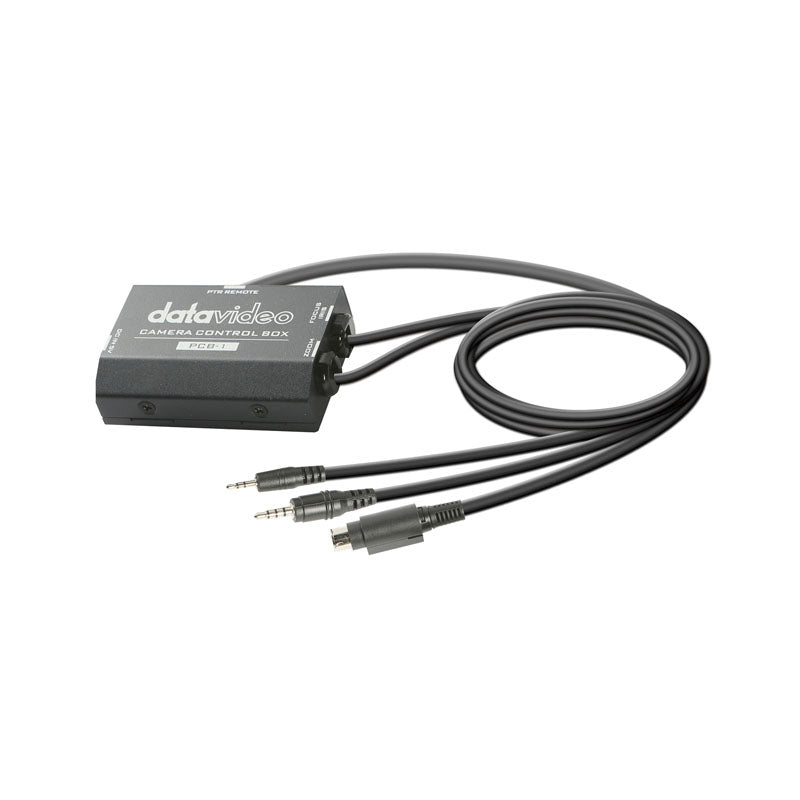

    Datavideo PCB-1 Camera Control Box

    Panasonic interface control box voor interface tussen PTR-10 en Panasonic camera's.

    1-3 werkdagen
    • €235,00 (excl. btw)
      €284,35 incl. btw
    • - 0%
    ▼
    • Default Title

    An optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic 2-ports remote cameras

    PCB-1 is a camera control box designed specifically for connecting between a PTR device and a Panasonic camcorder mounted thereon in order to allow zoom, focus and iris of the camcorder to be adjusted using the RMC-180 MARK II, the RMC-300A or an IR remote control connected behind the PTR device.

    Designed for Datavideo PTR series.

    As an optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic dual-hole remote cameras.

    Controls Panasonic two port remote camcorders

    Compatible with RMC-180 MARK II, RMC-300A and IR remote control, can control Zoom, Focus, IRIS of Panasonic camera.

    Small size design

    Low power consumption. PCB-1 can be powered from the PTR-10 MARK II series device.

    Model Number

    PCB-1

    Input Voltage

    DC 5V micro USB

    Compatible Controllers

    RMC-180 series
    RMC-300A
    IR Remote Control

    Interfaces

    One 8pin mini-din to the PTR device
    One 2.5 mm Jack Plug to the Zoom jack on the Panasonic camcorder
    One 3.5 mm Jack Plug to the Focus/Iris jack on the Panasonic camcorder

    Operating Temperature

    0 – 40°C

    Operating Humidity

    10 – 80% (non-condensing)

    Storage Temperature

    -10 – 60°C

    Storage Humidity

    5 – 80% (non-condensing)

    Weight

    135g

    Dimensions

    85.9 x 45.7 x 20.3mm (not inclusive of cables)
