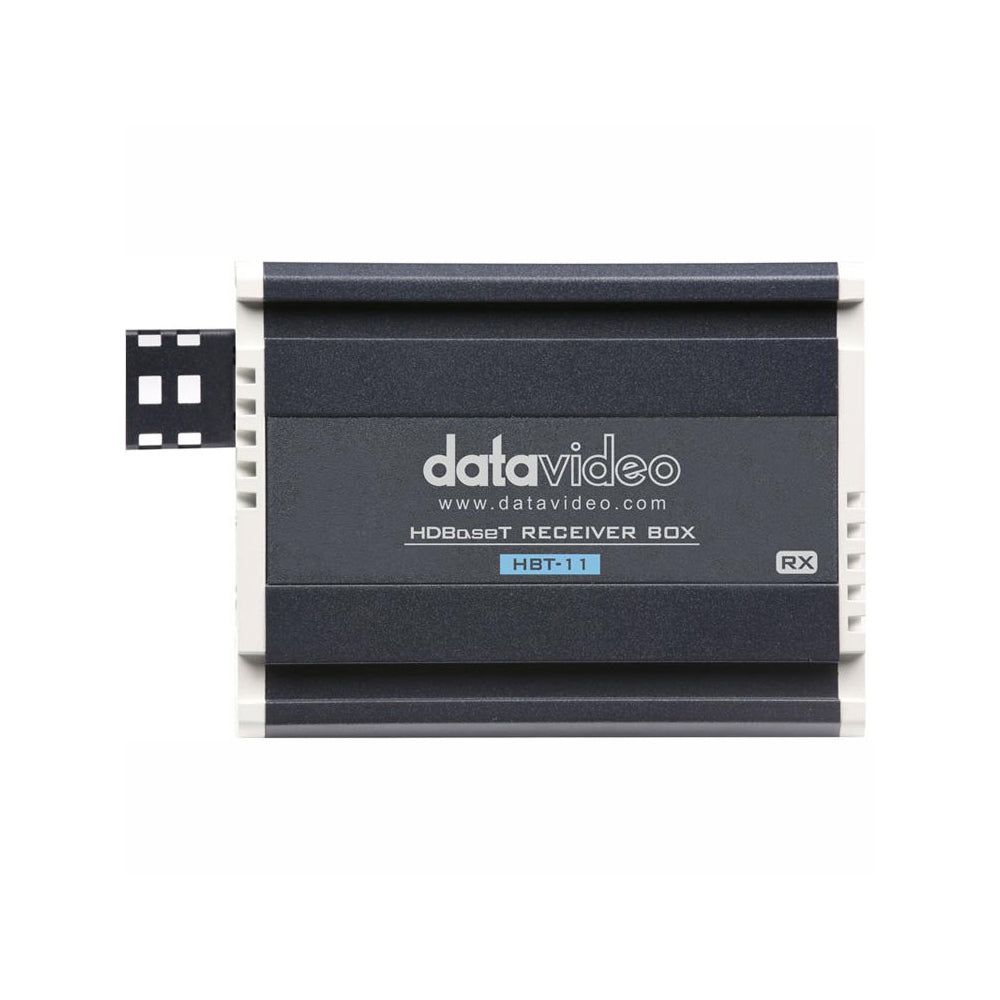

Datavideo HBT-11 HDBaseT Receiver
  • Datavideo HBT-11 HDBaseT Receiver
    Datavideo
    2202-0011

    Datavideo HBT-11 HDBaseT Receiver

    De Datavideo HBT-11 zet HDBaseT signalen om naar 4Kx2K video, audio, DVIP en RS-422/232.

    Op voorraad
    • €475,00 (excl. btw)
      €574,75 incl. btw
    • - 0%
    ▼
    • Default Title

    Single cable transmission by HDBaseT technology, up to 100m

    Transmit video, audio, DVIP Ethernet control, RS-422/232 and POE from a single Cat.5e/6/6a/7 cable. The HBT-11 provides a maximum video transmission distance of 100 meters in Full HD Mode.


    4K Transmission

    Transmit up to 4K video from HBT-10 Transmitter to HBT-11 Receiver.

    Supports DVIP/RS-422/232 Control Protocol

    The HBT-11 supports protocol enabling to be controlled via RS-422/232 or DVIP interface.
    Model Number

    HBT-11

    Video/Audio Input

    HDBaseT RJ-45 x1

    Video/Audio Output

    HDMI x1

    Supported Video Format

    3840x2160p: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50, 720p: 60/59.94/50

    Video Process

    ---

    Video bandwidth

    ---

    DVIP

    RJ-45 x1(input)

    RS-422/ RS-232

    Phoenix terminal. Pitch 3.50mm

    Power

    DC IN: DC 48V

    PoE Output

    35W

    HDBaseT Distance

    Up to 100m by Cat.6 cable

    HDMI compliance

    ---

    HDCP compliance

    ---

    Audio support

    ---

    Dimension (LxWxH)

    132 x 85 x 45 mm

    Weight

    400 g

    Operating Temp. Range

    0~40 °C

    • 1 x HBT-11 main unit
    • 1 x AC cord
    • 1 x DC 48V power adaptor
    • 1 x Phoenix connector to RJ-45
