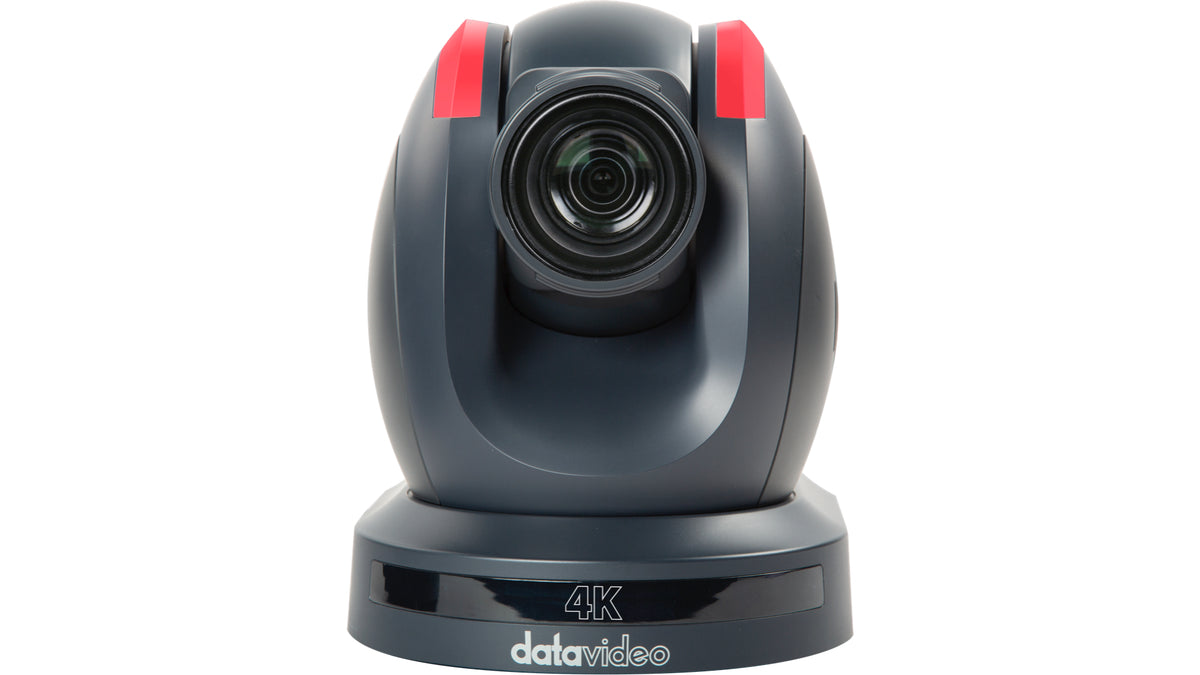

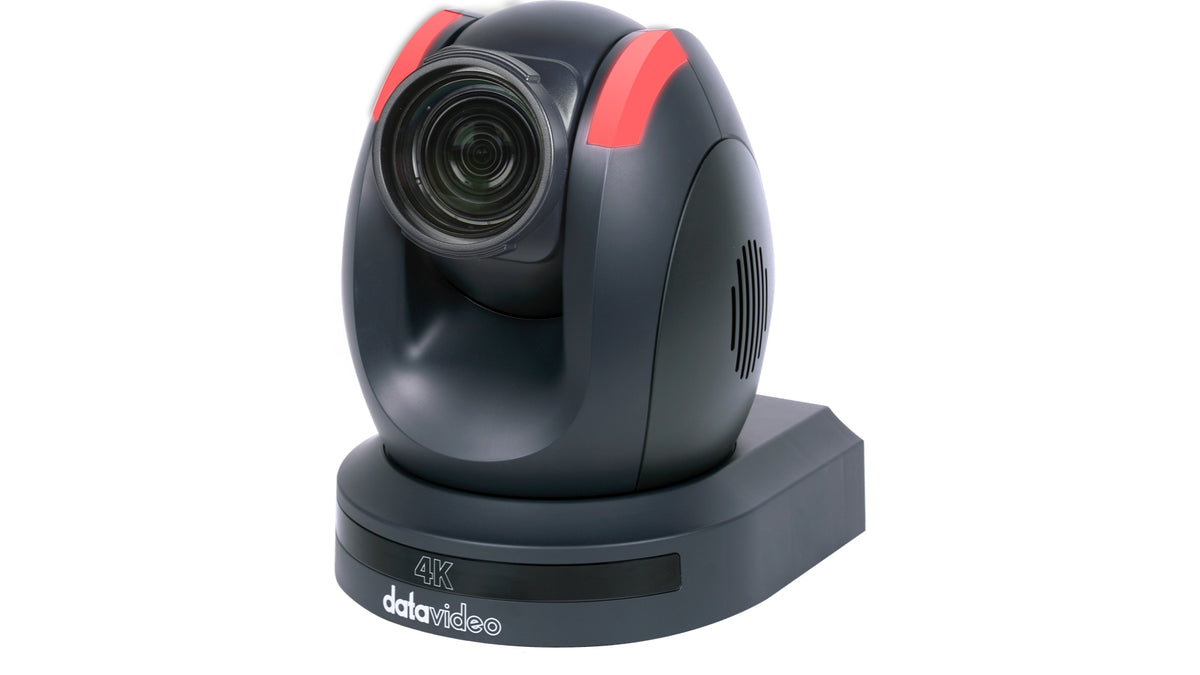

The Datavideo PTC-285 is a professional 4K auto-tracking PTZ camera designed for live production, corporate presentations, education, houses of worship, and broadcast applications. Featuring a high-quality 1/2.8" Sony CMOS sensor, the camera delivers Ultra HD video at up to 2160p50/60 while providing excellent image quality and reliable performance in a variety of lighting conditions. The integrated 12x optical zoom lens allows operators to capture detailed close-ups as well as wider scene coverage with ease.
Built-in AI auto-tracking technology enables the camera to automatically follow a selected subject without requiring constant operator intervention. Users can quickly switch between full-body, half-body, and close-up framing, while advanced tracking functions help maintain accurate subject positioning. Custom tracking capabilities allow a specific individual to be designated as the tracking target, minimizing interference from other people or moving objects within the scene.
The PTC-285 supports simultaneous HDMI 2.0, 3G-SDI, and IP video outputs, making it suitable for a wide range of production workflows. Dual-stream functionality enables direct streaming to multiple destinations, while support for RTSP and RTMPS protocols simplifies integration with streaming platforms and cloud-based services.
For system integration and remote operation, the camera supports RS-422, Datavideo DVIP, VISCA over IP, ONVIF Profile S, and integrated NDI functionality. Operators can control camera movement, presets, image settings, and monitoring through Datavideo hardware controllers, web-based interfaces, or the PTZ View Assist application.
Advanced image processing technologies, including 3D noise reduction, help maintain image clarity in low-light environments. Intelligent PTZ speed adaptation and an S-shaped motion curve provide smooth and natural camera movements, enhancing the viewing experience during live productions. Power over Ethernet (PoE) support further simplifies installation by allowing power, control, video, and network connectivity to be delivered through a single Ethernet cable.
Model Number
PTC-285
Video format/Resolution
HDMI:
2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2
SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
Sony 1/2.8" CMOS
Effective Pixels (approx.)
8.51Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
12x Optical Zoom, 16x Digital Zoom
Effective Zoom Ratio
12x
Gamma Control
N/A
Iris Control
Auto / Manual
Digital Noise Reductions
3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control
Yes
HDR/WDR
N/A
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning / Tilting Range
Pan: 300°
Tilt: +90° to -15°
Panning / Tilting Speed
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset
255
Focal Length
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide)
80°
Image Compensation
Back light compensation

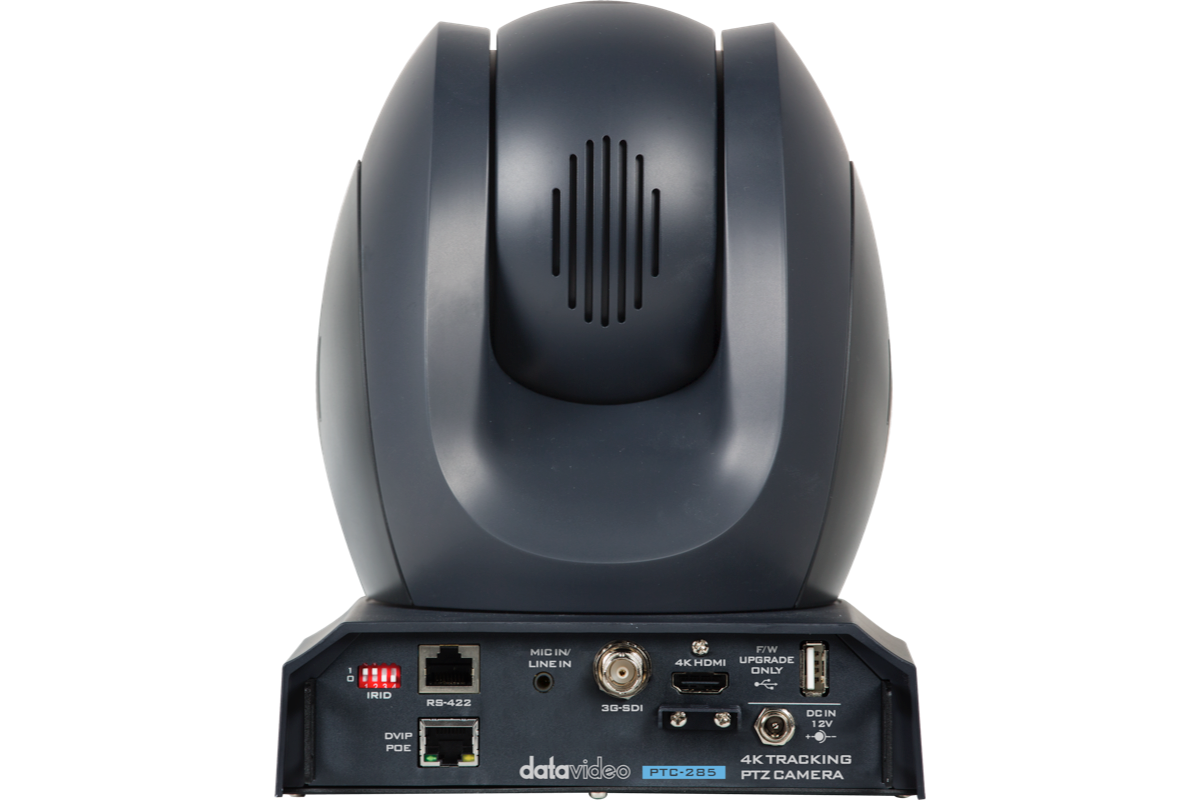

Video Output
HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 (PoE) x1
Audio Input
3.5 mm x1 (mic in/line in)
switch from Web UI
Tally LED
Yes
Lens Filter
N/A
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP, ONVIF, NDI
Remote Control Interface
IR
Web GUI
RS-422/RS-232
DVIP
NDI
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC, G711
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
----
Streaming Protocols
RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
First Stream Supported Resolution
3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution
720x480
640x360
480x270
320x240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
PoE+
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-2P
RMC-180 series/
RMC-300 series/
PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Black/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.6 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 21W
