Professional Pan/Tilt head for any camera up to 4kg. Providing HDMI/SDI & HDBaseT connectivity. Controlled by Datavideo's DVIP, VISCA or IR, Pan: 340 °/Tilt ± 45°, 50 Presets can be stored. UHD/4K
Datavideo's PTR-15T is a 4K 12G-SDI HDBaseT robotic pan tilt head with FreeD functionality.
It features an efficient driving system for smooth, precise pan and tilt movements. Compatible with most broadcast-grade cameras, it allows remote control of camera functions like pan, tilt, zoom, and aperture.
With HDBaseT connectivity, the PTR-15T simplifies setups by transmitting 4K video, audio, control signals, and power over a single Ethernet cable, reducing clutter and extending connection distances. However, it's important to note that the PTR-15T can only be used in conjunction with the HBT-18, ensuring optimal performance and connectivity.
The PTR-15T also includes a built-in FreeD virtual tracking feature, using computer vision to track subjects accurately.
Control options include IR, VISCA protocol, Datavideo RMC-180 MARK II, RMC-300A, HS-1600T series, and compatibility with serial and Ethernet (DVIP) connections.

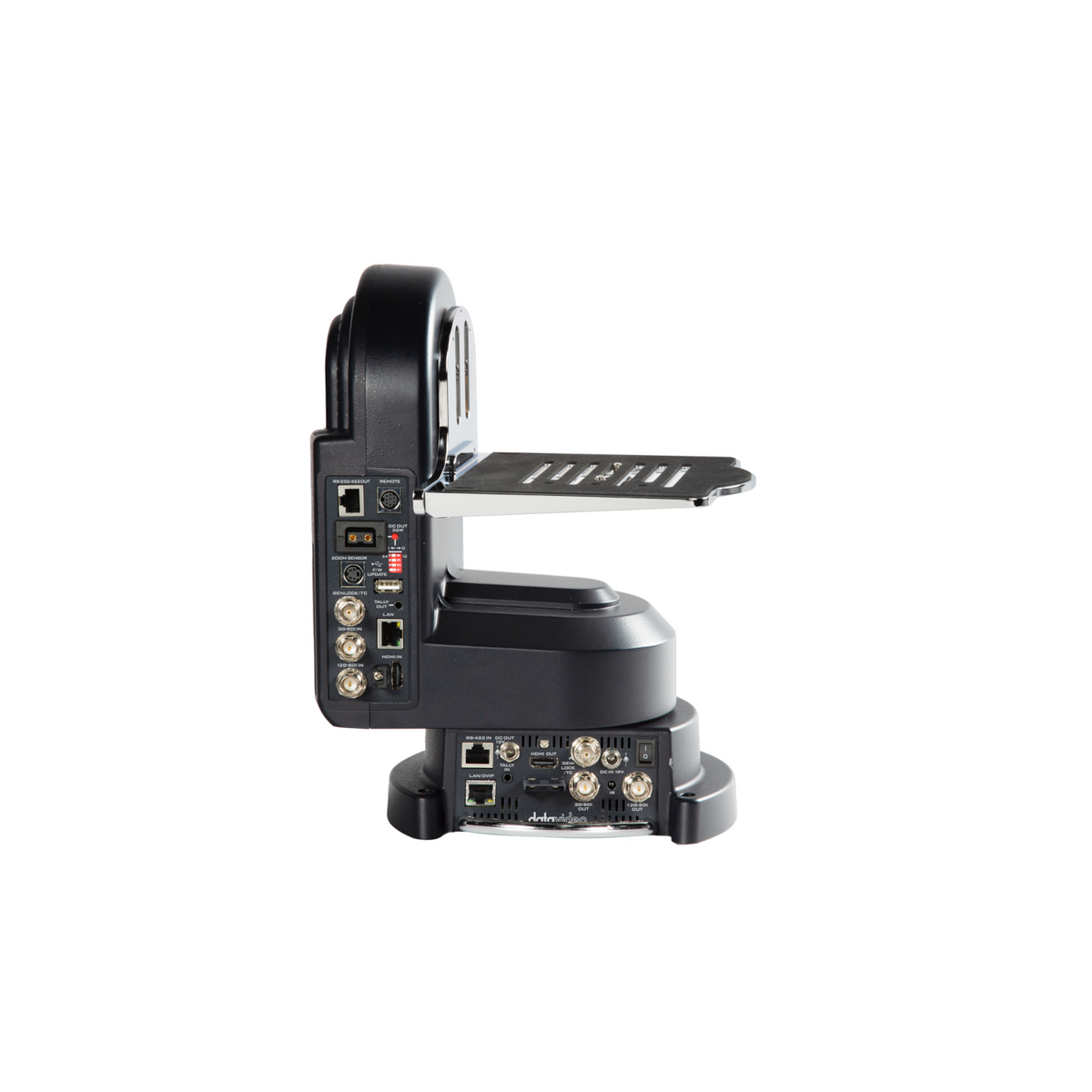

The PTR-15T boasts an extensive range of signal interfaces for seamless integration with the remote head.
These interfaces encompass SDI, HDMI, RS-232, RS-422, DVIP, HDBaseT, Tally, and LANC, providing diverse connectivity options.
With PTR-15T, transitioning from conventional camcorder cameras to remote-controlled PTZ becomes a cost-effective solution. The system empowers a single operator to efficiently manage multi-camera remote operations.
Benefit from PTR-15T's LanC control, which seamlessly integrates with a diverse selection of professional video camcorders. This compatibility empowers you to choose the optimal camcorders that align with your specific requirements.
PTR-15T accomodates a range of control options, including Serial ports, Ethernet, and LanC. Tailored to your requirements, it seamlessly supports Datavideo's RMC-180 MARK II and RMC-300A will fulfill your control needs.
Engineered from robust aluminum alloy, PTR-15 features a super-strong design, providing a sturdy foundation for your camera setup. This construction ensures dependable support for cameras weighing up to 4 kilograms.
In addition to the standard RS-232/422 control, the PTR-15T provides robust IP-based control, keeping up with the modern trend of IP-based systems. This technology migrates the camera control protocols and technical parameter adjustments used in high-end broadcast studios to an open IP environment. This transformation breaks away from the previous limitations of exclusive one-to-one control, enabling the free switching of different cameras and achieving precise adjustments of camera parameters such as aperture, shutter, red/blue gain, inflection point, and more. This advancement allows on-site camera operations to enter an unprecedented era of convenience.
Datavideo's PTR-15T robotic pan tilt head combines advanced pan-tilt technology with AR/VR systems. It interfaces via RS-422 to transmit pan, tilt, and zoom data to the TVS-3000 Virtual Studio Production System, ensuring seamless collaboration.
For different cameras and lenses, it supports lens tracking data acquisition via ZEK-1 or ZEK-2 sensors, enabling lens zoom control and motor tracking synchronization. The RS-422 output provides 8-bit precision Free-D protocol tracking data, compatible with most virtual systems.
It offers precise pan (±340 degrees) and tilt (±45 degrees) control with adjustable motion trajectories and speeds, achieving high precision. Built on Datavideo's DVIP protocol, it's compatible with TCP/IP network protocols, supporting third-party device control.
You can choose the RMC-300A IP control panel with a 5-inch UI touchscreen or the RMC-180 MARK II serial control panel for dual-system control, enhancing security and reliability.
ZEK-1 is the solution to your free running Zoom cameras.
PTR-15T can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position.
Compatible with cameras via zoom moving ring.
HDMI 2.0 x 1
12G-SDI x 1
3G-SDI x 1
RJ45 x 1 (HDBaseT)
2160p 60/59.94/50
2160p 30/29.97/25
1080p 60/59.94/50
1080p 30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
RMC-180 MARK II
RMC-300A
RMC-300C
SHOWCAST 100
VISCA Protocol Controller IP Control
IR remote
YES
YES
Pan: 340°
Tilt: ±45°
Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Pan/Tilt position 199
1,200M by RS422
100M by DVIP
Sony VISCA
DVIP
RS-422
HDBaseT
4 KG Max
RS-232
RS-422
IP Control
BX-Lens
LanC
DC 14V~ 20V, 90W
DC 24/12V, 36W Max
0~40 C°
10~80%
-10~60C°
5~80%
3.7 kg
241 x 191 x 300 mm
ZEK-1
ZEK-2
PCB-1
WM-10
WM-11
CM-10
HBT-18
PTR-15T Main Unit x 1
DC 19V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw x 2
1/4” to 3/8” screw adaptor x 1
