Full HD Pan/Tilt camera with 1/2.8 inch CMOS sensor 20x Opt. Zoom, 10xDig. Zoom H.264/H.265 encoding for streamingSupports RTSP, RTMP protocols & autotracking silhouet with HDBaseT
Discover the PTC-145T, a PTZ camera blending stunning Full HD resolution with advanced HDBaseT technology for long-distance, high-quality video transmission. Equipped with a 1/2.8” CMOS sensor, it offers superb image quality, 20x optical zoom, and 8x digital zoom.
This camera supports HDMI, 3G-SDI, and streaming outputs, alongside HDBaseT for versatile connectivity. It features line-in and 3.5mm microphone inputs for superior audio, and one-click AI Tracking for smooth operation without a dedicated operator.

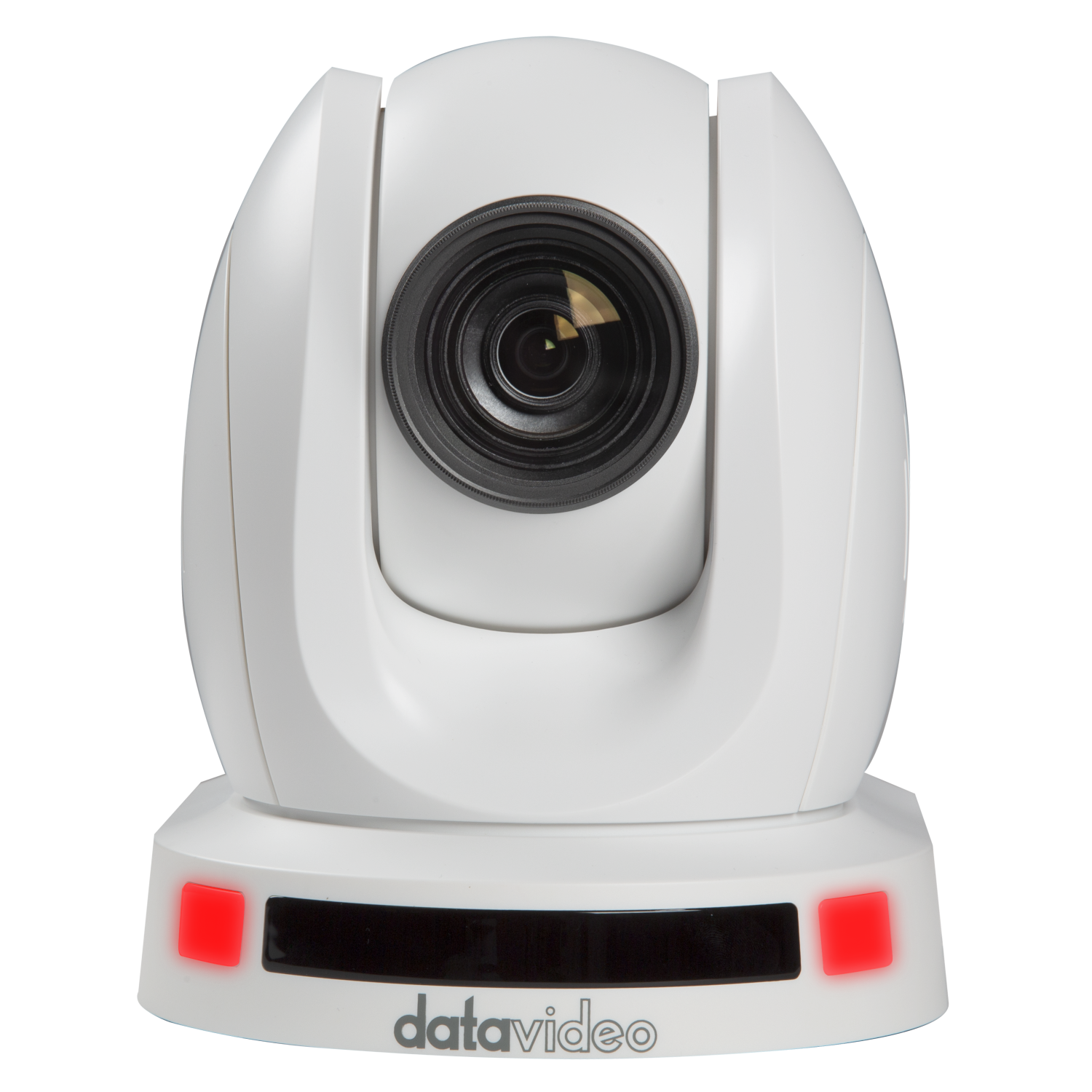

Available in dark blue or white, the PTC-145T is a stylish addition to any setting, perfect for those seeking both visual and technological excellence.
HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.
Note: Seperate CAT 6 cable needs to be connected to the DVIP/LAN connection for access to web UI.
The PTC-145T's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.
The PTC-145T supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.
You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.
In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, SHOWCAST 100, etc.
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
1/2.8 inch high quality HD CMOS sensor
2.07 Mega pixels
≥50dB
0.5 Lux @ (F1.8, AGC ON)
1/30s ~ 1/10000s
20x Optical Zoom, 8x Digital Zoom
N/A
Auto / Manual
3D
English/Simplified Chinese/Traditional Chinese
Auto, Indoor, Outdoor, Manual, One Push
Yes
N/A
Yes
Auto / Manual
Pan: 340° , Tilt: +90° to -30°
Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
255 Positions
f = 5.05mm (wide) to 91.49 mm (tele)
F1.8(Wide) ～ F2.9(Tele)
60°
Backlight Compensation
HDBaseT (PoE) x1
RJ-45 x1
3.5mm Line in
Dual color (Red, Green)
M52.0 x 0.75 Thread with UV Protection
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP, ONVIF
IR
Web GUI
RS-422 /RS-232 (RJ45)
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
H.264/H.265/MJPEG
AAC, G711
96Kbps, 128Kbps, 256Kbps
10/100/1000M (RJ45)
RTSP, RTMP(S), ONVIF, SRT(caller & listener), Multicast
1920x1080
1280x720
1024x576
960x540
640x480
640x360
720x480
640x480
640x360
320x240
32Kbps ~ 50Mbps (Single Stream)
VBR, CBR
50Hz: 1-50fps
60Hz: 1-60fps
IEEE 802.3af
Via Web UI
Yes
HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP
1/4-20 UNC
WM-1/ WM-10/ WM-11
Dark Blue/White
156 x 184 x 186 mm
1.6 kg
0~40 °C
DC 12V 14W
1 x PTC-145T Unit
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x Safety cable
