SWIT 92+92Wh Dividable V-mount Battery Pack (S-8192S)

184Wh dividable V-mount battery with D-tap and LED indicators. Air-transport safe and ideal for high-power cine and ENG gear.

1-3 werkdagen
  • €449,00 (excl. btw)
    €543,29 incl. btw
  • - 0%

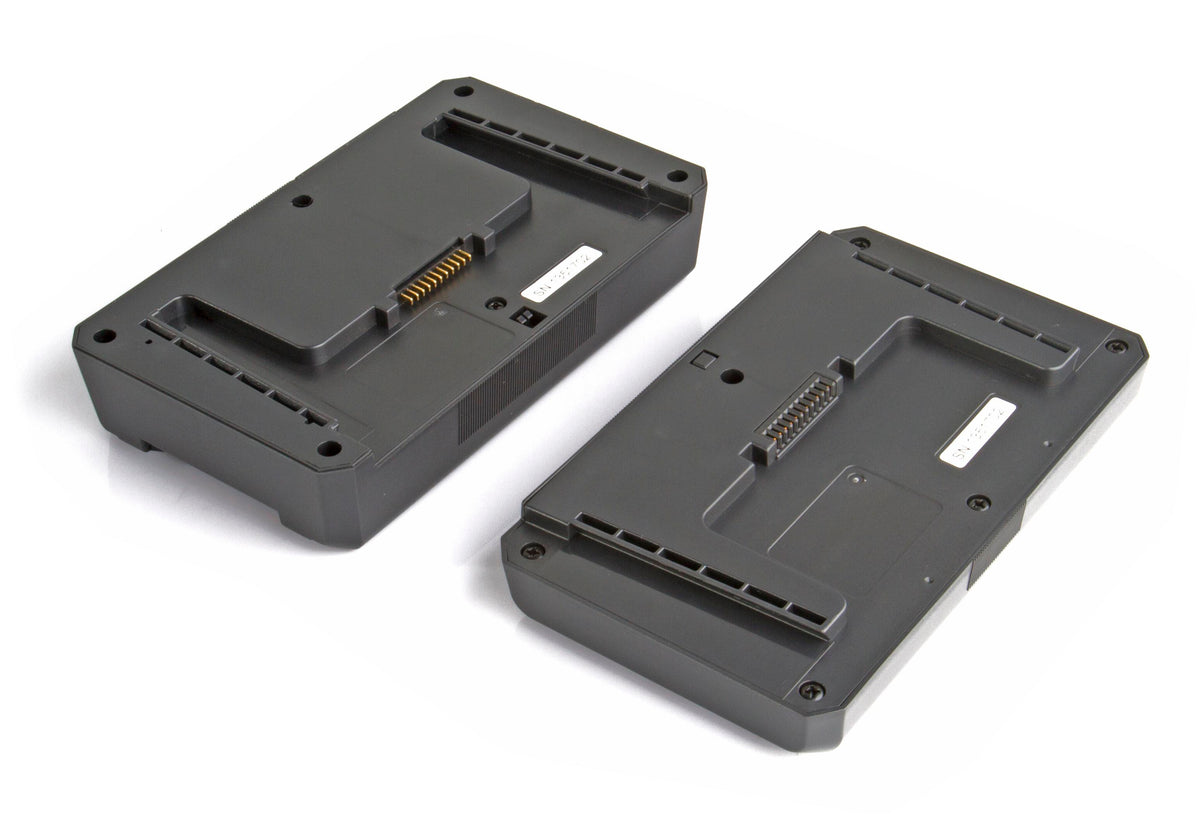

The S-8192S is a patented dividable V-mount battery pack designed to deliver high-capacity power while remaining compliant with IATA air transport regulations. It features a unique two-part design, each half containing 92Wh of capacity, allowing it to be transported safely by air. When assembled, the battery provides a total of 184Wh (12.8Ah) at 14.4V, making it ideal for powering ENG cameras, monitors, wireless systems, and on-camera lights. The battery includes a D-tap output socket (14.4V, max 100W/8A) for accessory power and a 4-level LED indicator for quick capacity checks. Built with 20 premium 18650 cells and a high-quality fiberglass V-wedge mount, the S-8192S ensures reliable performance and secure mounting in demanding production environments. It operates in temperatures as low as -20°C, making it a rugged and travel-ready solution for global filmmakers.

Nominal Voltage

14.4V

Capacity

92+92Wh/6.4+6.4Ah

Max output power

In total:100W

Electrodes:100W,8A
D-tap:100W,8A

Mount Type

V-mount

Charging Temperature

0-40°C
      Discharging Temperature -20°C-50°C(Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 1.27kg; With package 1.4kg

Dimensions

168×101×60mm
