SWIT 270Wh High Load V-mount Battery Pack (S-8183S+)

270Wh V-mount battery with 250W high-load output, 6A fast charging, and D-tap. Built for cine cameras and power-hungry gear.

1-3 werkdagen
  • €529,00 (excl. btw)
    €640,09 incl. btw
  • - 0%

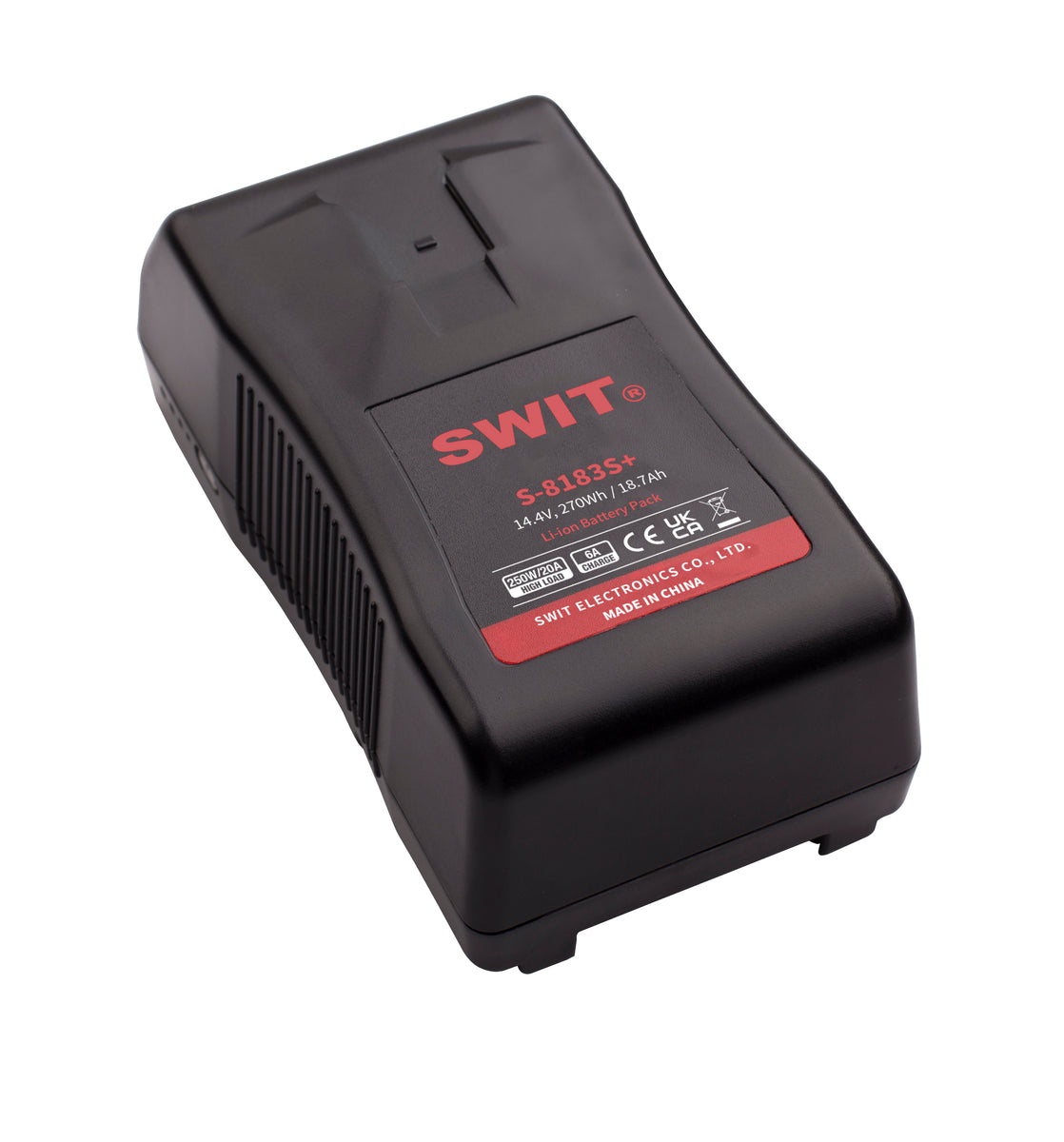

The S-8183S+ is a robust 270Wh V-mount Li-ion battery engineered for high-load cine and broadcast applications. Built with premium high-load cells, it delivers a powerful 250W/20A constant output, making it ideal for power-intensive gear such as ARRI ALEXA, RED cameras, high-output LED lights, and wireless systems. The battery supports 6A super-fast charging, significantly reducing downtime on set.

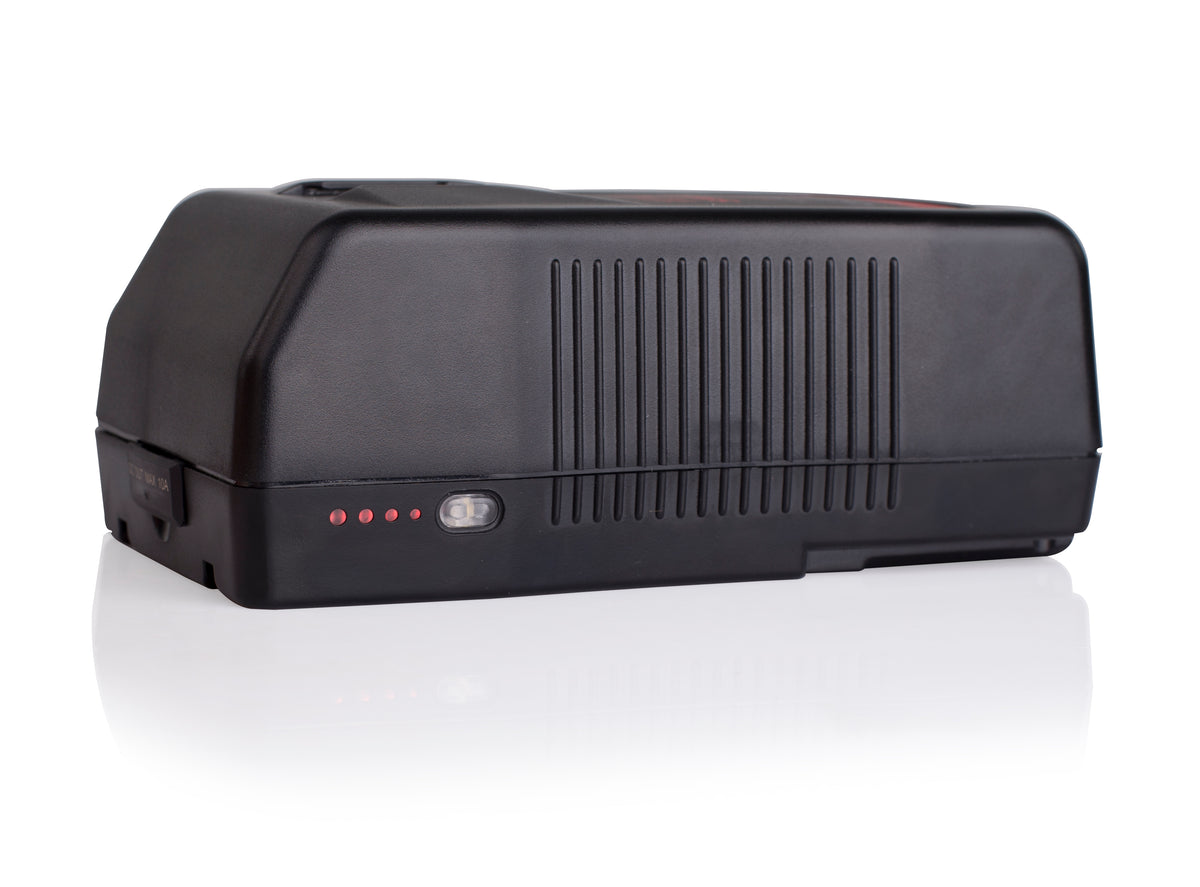

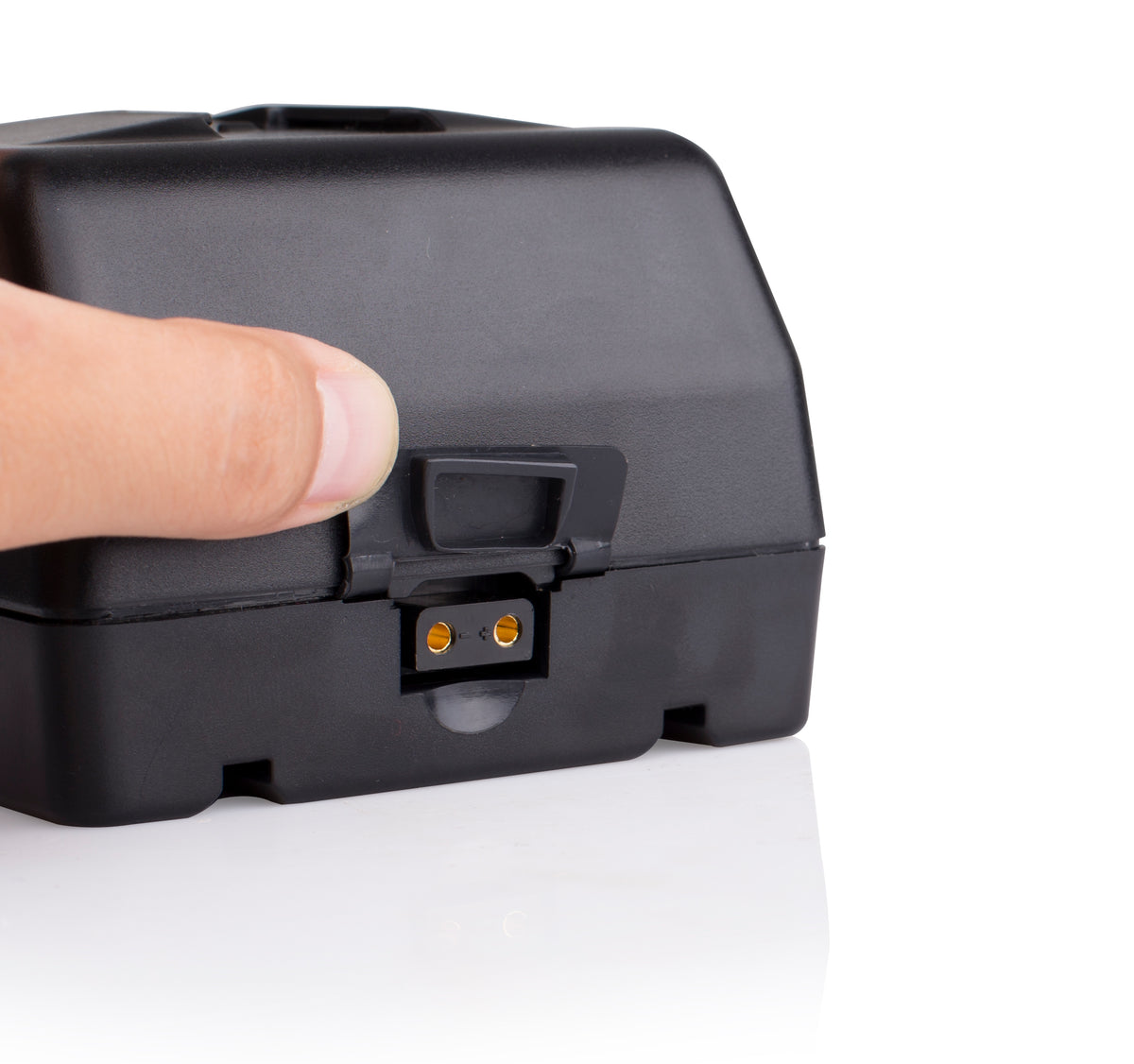

It features a 14.4V nominal voltage and includes a D-tap DC output socket for powering accessories. A 4-level LED indicator provides real-time battery status, and the unit is equipped with multiple circuit protections to ensure safe and stable operation. With its rugged construction and high-capacity performance, the S-8183S+ is a reliable power solution for demanding production environments.

Nominal Voltage

14.4V

Capacity

 270Wh/18.75Ah

Max output power

In total:250W
Electrodes:250W,20A
D-tap:120W,10A

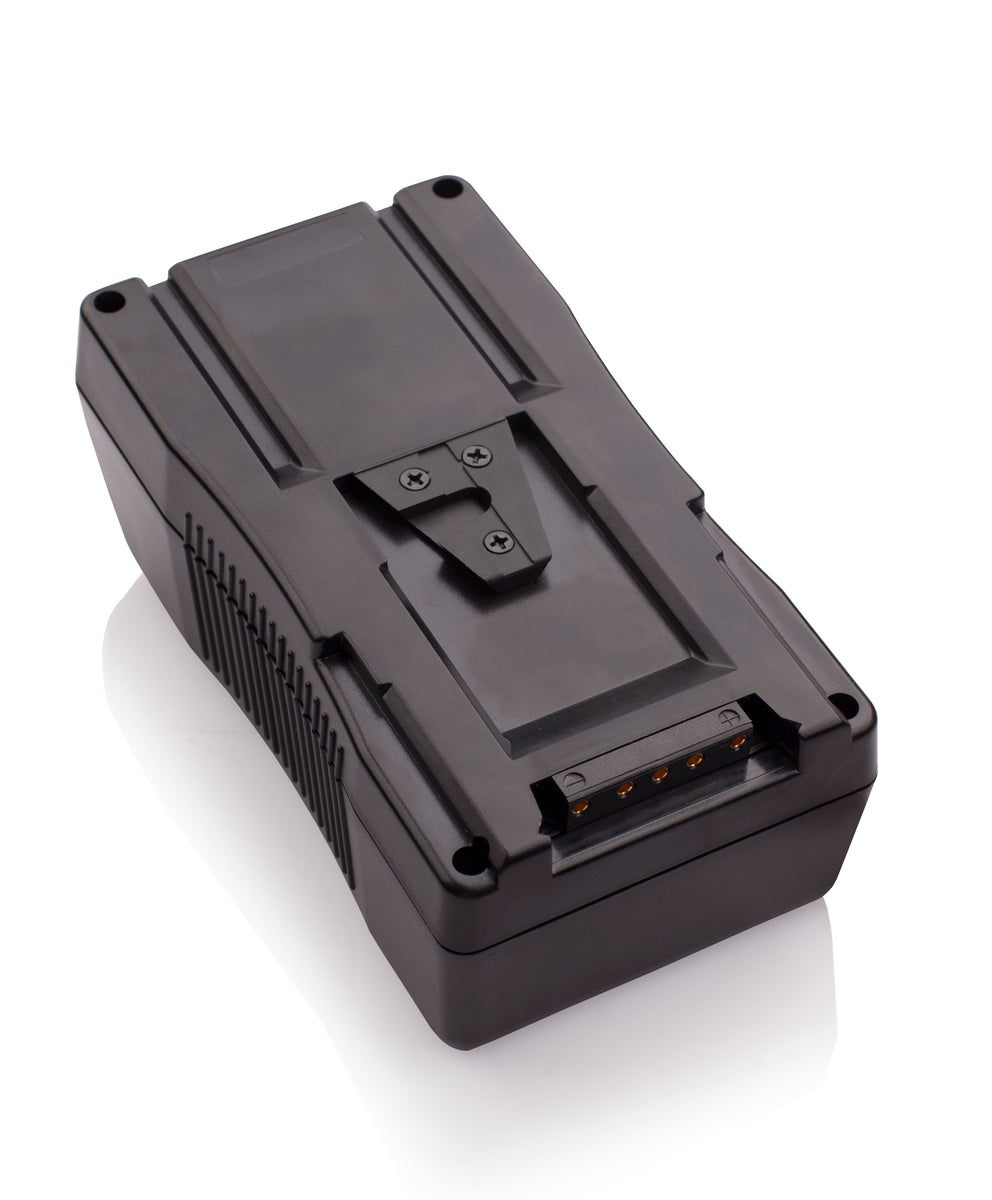

Mount Type

V-mount

Charging Temperature

 0-40°C
     Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 1.3kg; With package 1.45kg

Dimensions

 165×90×66mm
