SWIT 2-ch V-mount Fast Charger (S-3822S)
2-channel V-mount charger with 3A fast charging and 4-pin XLR DC output. Compact, portable, and ideal for studio or field use.
2-channel V-mount charger with 3A fast charging and 4-pin XLR DC output. Compact, portable, and ideal for studio or field use.

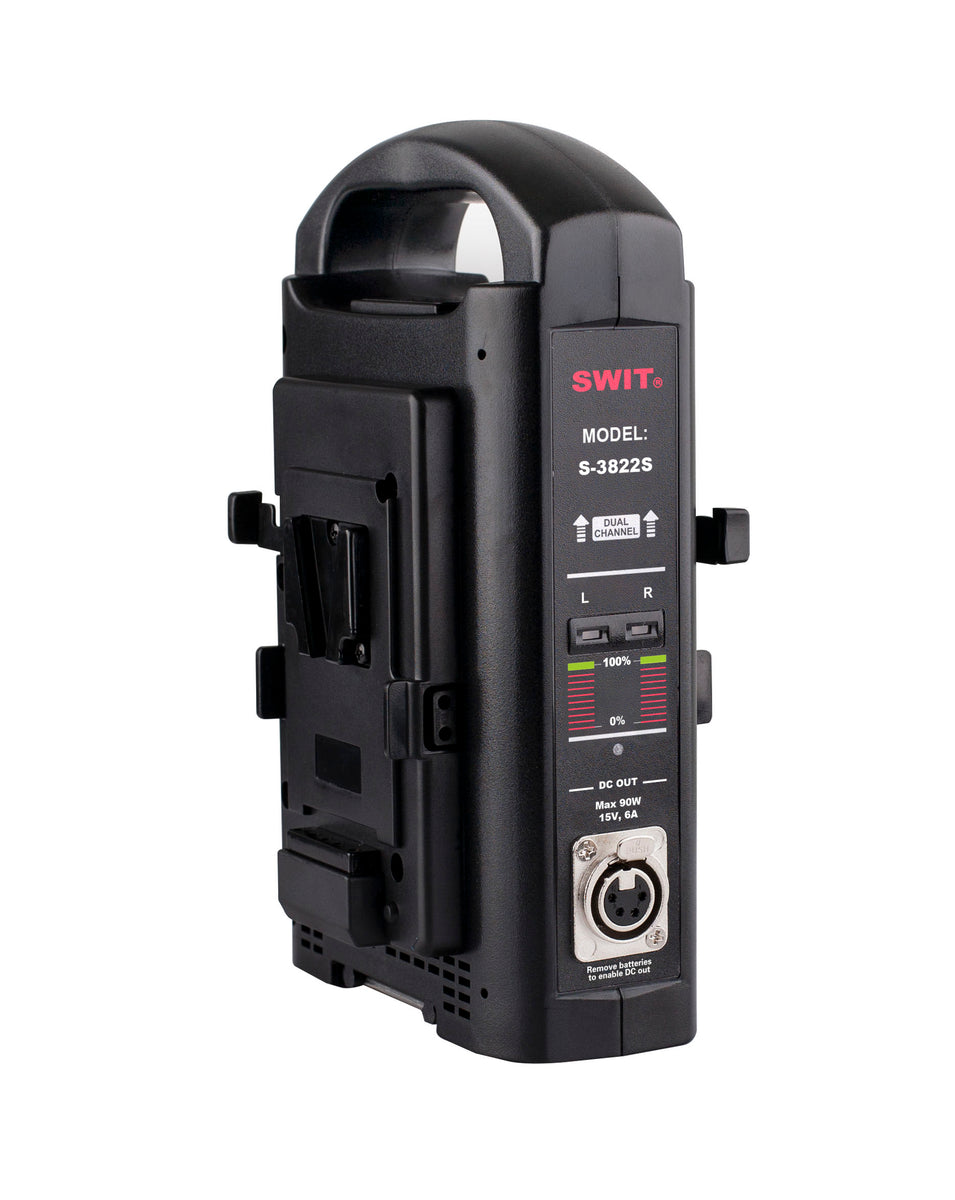

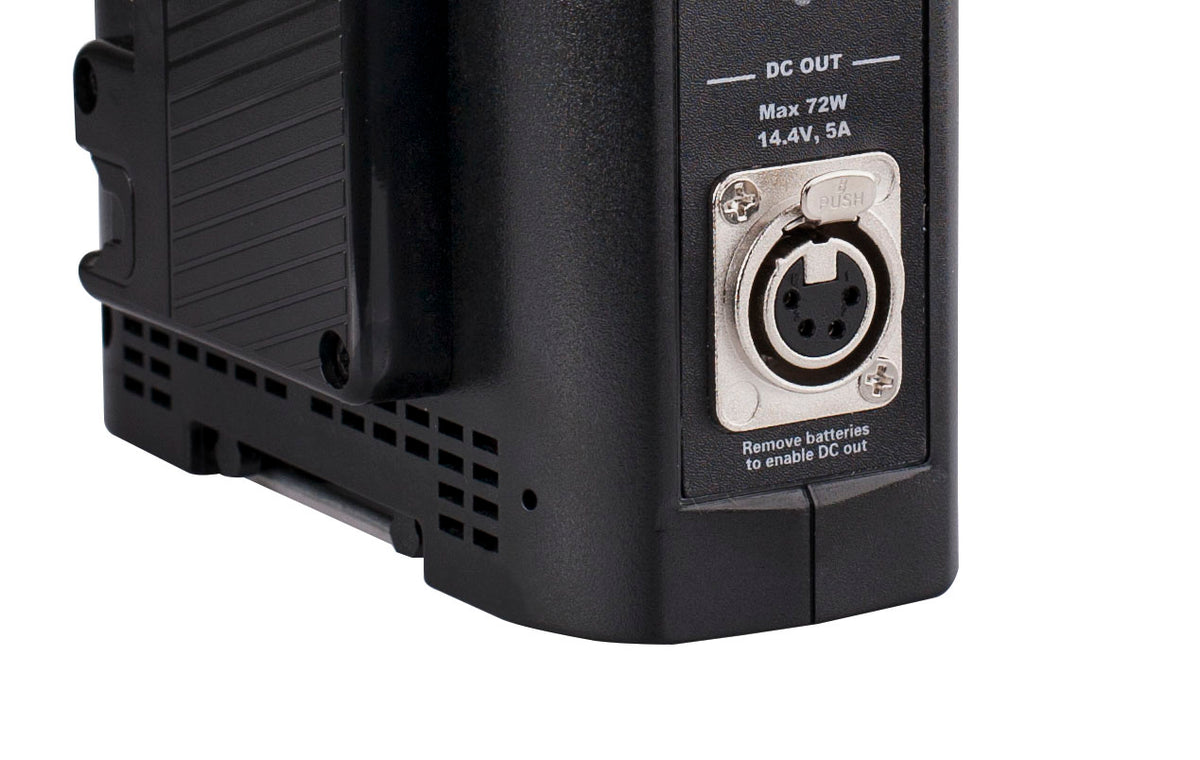

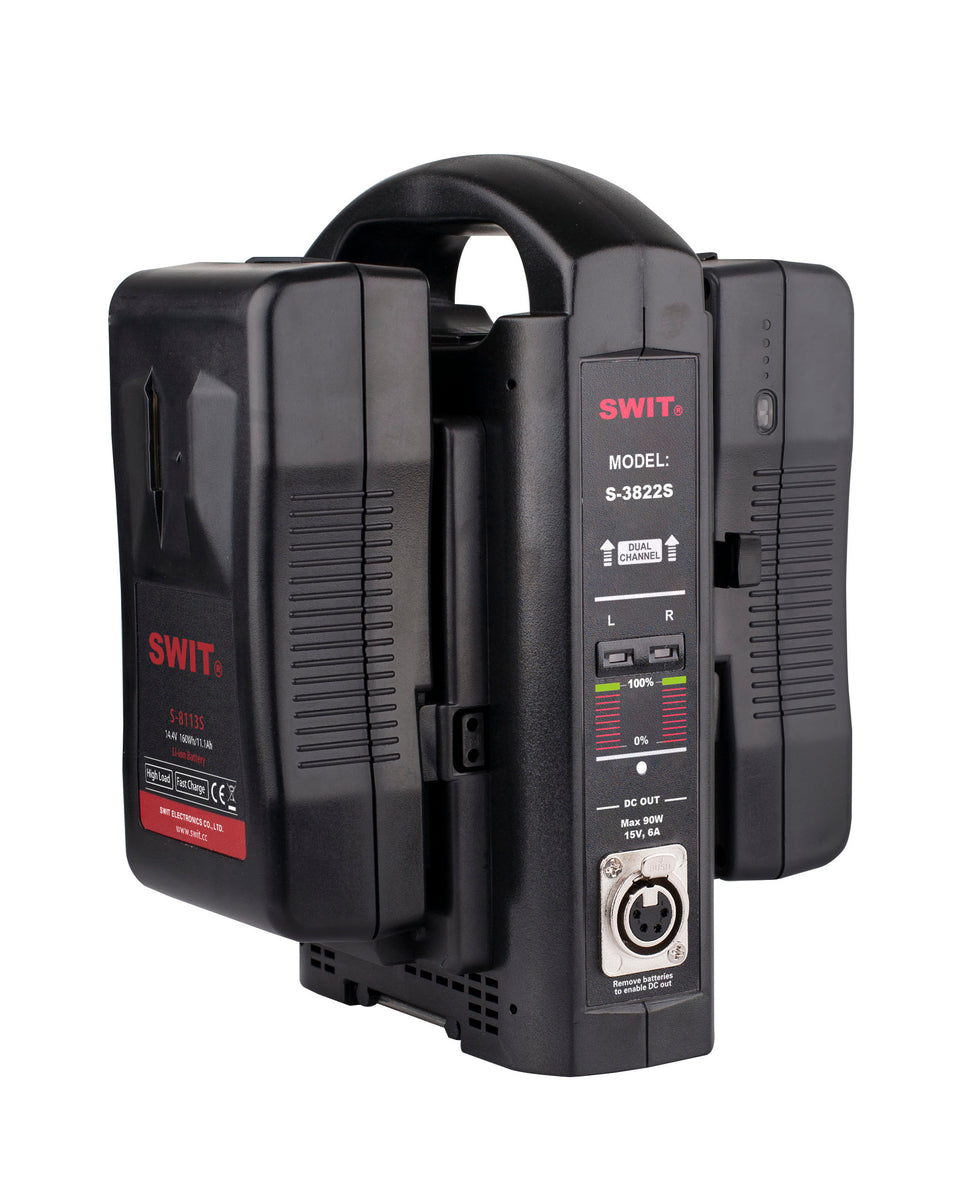

The S-3822S is a compact and efficient 2-channel V-mount battery charger designed for professional video production environments. It supports simultaneous charging of two V-mount batteries at a fast 3A current per channel, significantly reducing downtime on set. The charger also features an AC-to-DC adaptor function, providing 4-pin XLR DC output for powering cameras or other equipment directly from mains power—ideal for studio or field use.

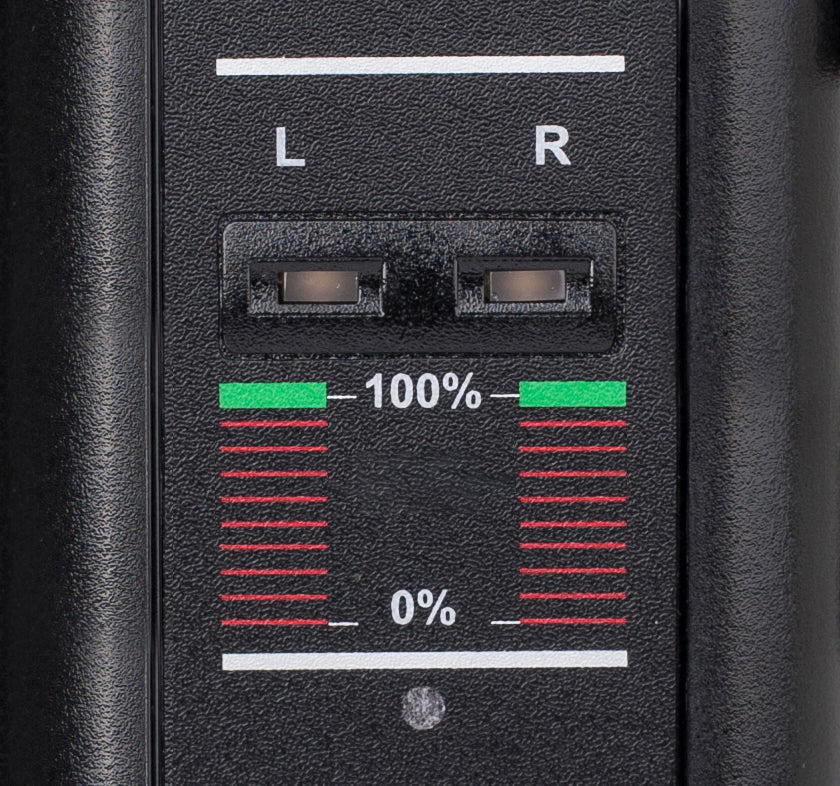

LED indicators above each channel clearly display charging status, and the lightweight, portable design makes it easy to transport between locations. The S-3822S is built for reliability and convenience, offering both charging and power supply capabilities in a single unit. Note: the charger does not support simultaneous battery charging and DC output operation.
|
Input |
100~240VA, 50/60Hz |
|
Power consumption |
Max 136W |
|
Charging output |
DC 16.8V, 3A×2-ch |
|
Adapting output |
DC 15V, 6A |
|
Operating temperature |
-20°C-50°C |
|
Working humidity |
10%~90% |
|
Dimensions (without battery mount) |
228×140×60mm |
| Dimensions (with battery mount) |
228×140×102mm |
|
Net weight |
Net 1.0kg; With package 1.45kg |
