SWIT
S-8110S

SWIT 146Wh V-mount Battery Pack (S-8110S)

146Wh V-mount battery with D-tap output and LED indicators. Powers ENG cameras and accessories with secure mounting and smart protection.

1-3 werkdagen
  • €279,00 (excl. btw)
    €337,59 incl. btw
  • - 0%

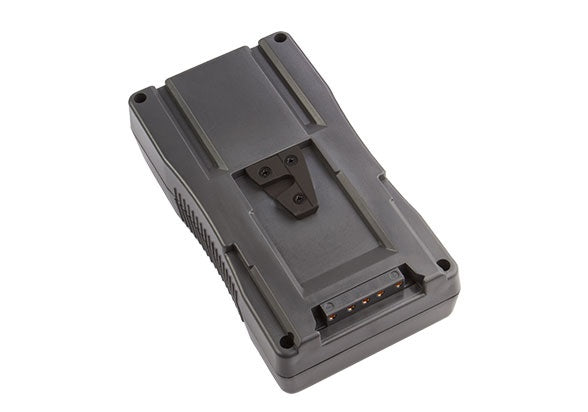

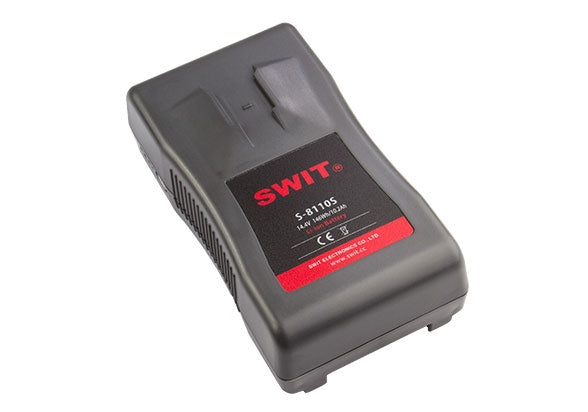

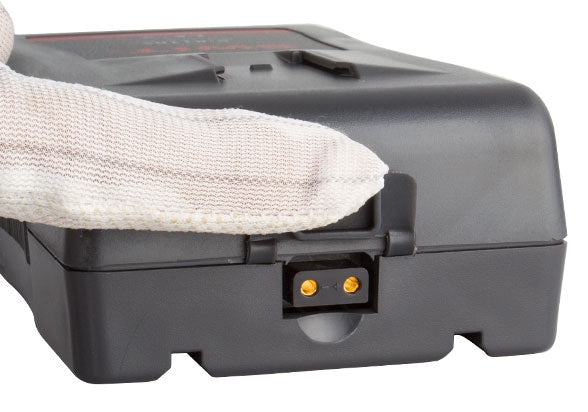

The S-8110S is a professional-grade 146Wh (10.2Ah) V-mount Li-ion battery designed for ENG and broadcast cameras. Built with 16 high-performance 18650 cells, it delivers a nominal voltage of 14.4V and supports a runtime of approximately 4 hours on a typical 30W camera. The battery features a durable fiberglass V-wedge for secure mounting and includes a D-tap DC output socket (14.4V, max 120W/10A) for powering accessories such as on-camera lights, monitors, or wireless transmitters.

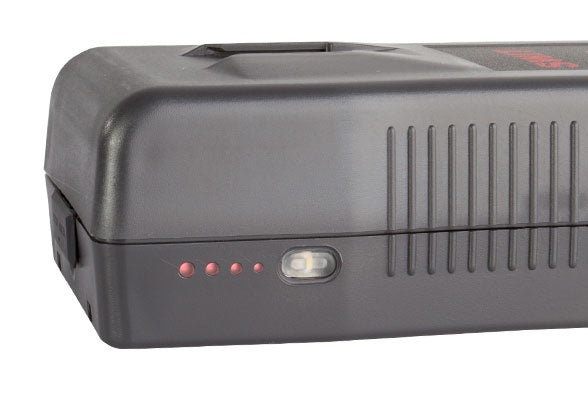

A 4-level LED indicator on the side provides a quick visual check of remaining capacity. The S-8110S is equipped with intelligent circuit protections to guard against overcharge, over-discharge, and short circuits, ensuring safe and reliable operation in demanding production environments.

Nominal Voltage

14.4V

Capacity

 146Wh/10.2Ah

Max output power

In total:150W
Electrodes:150W,12A
D-tap:120W,10A

Mount Type

V-mount

Charging Temperature

 0-40°C
      Discharging Temperature -20°C-50°C（Capacity and Max Load may decrease when operating below 0°）

Net weight

Net 940g; With package 1kg

Dimensions

 165×90×51mm
