146Wh square V-mount battery with 200W high load, dual D-tap, USB, and OLED runtime display. Built for cine cameras and compact rigs.

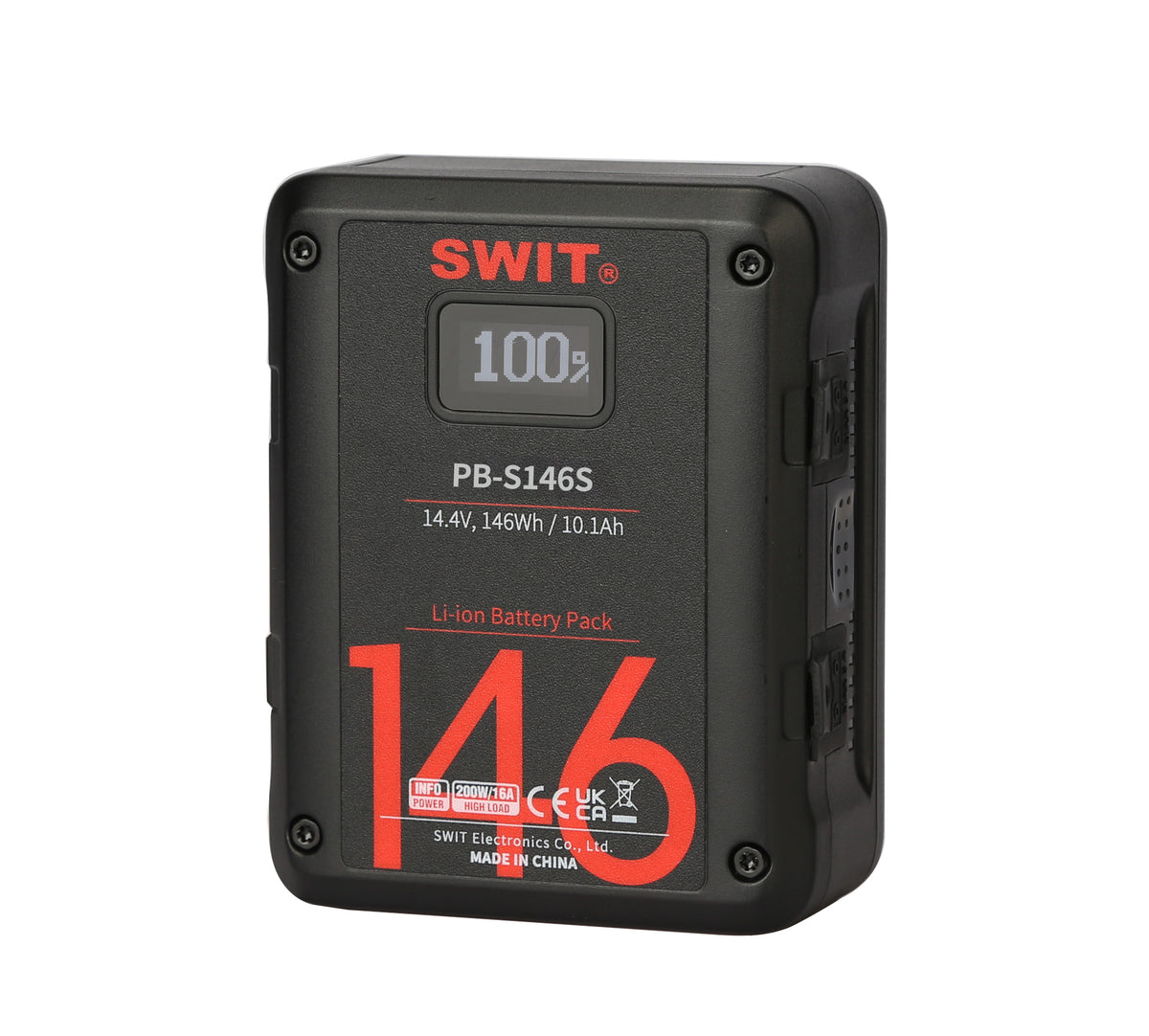

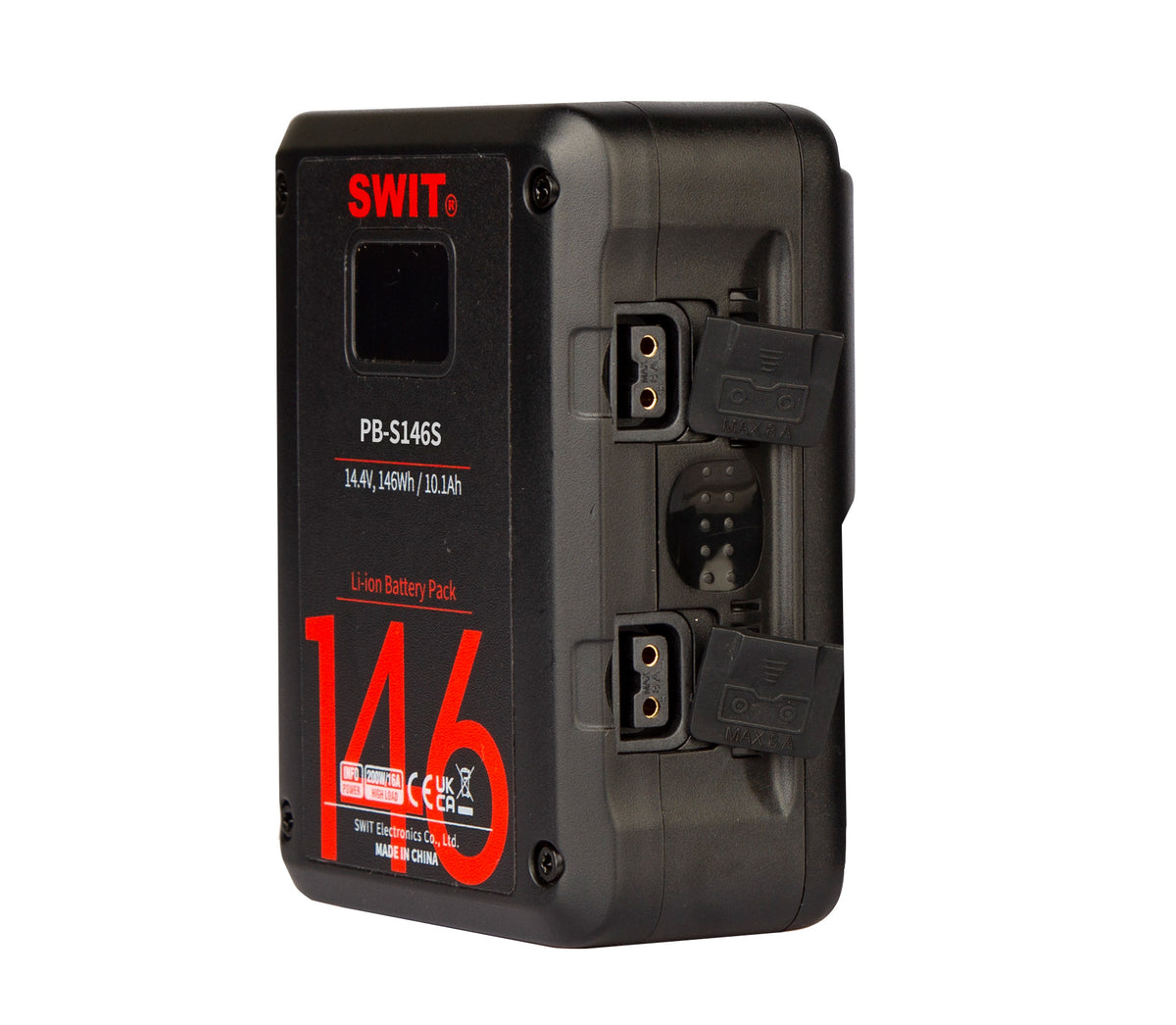

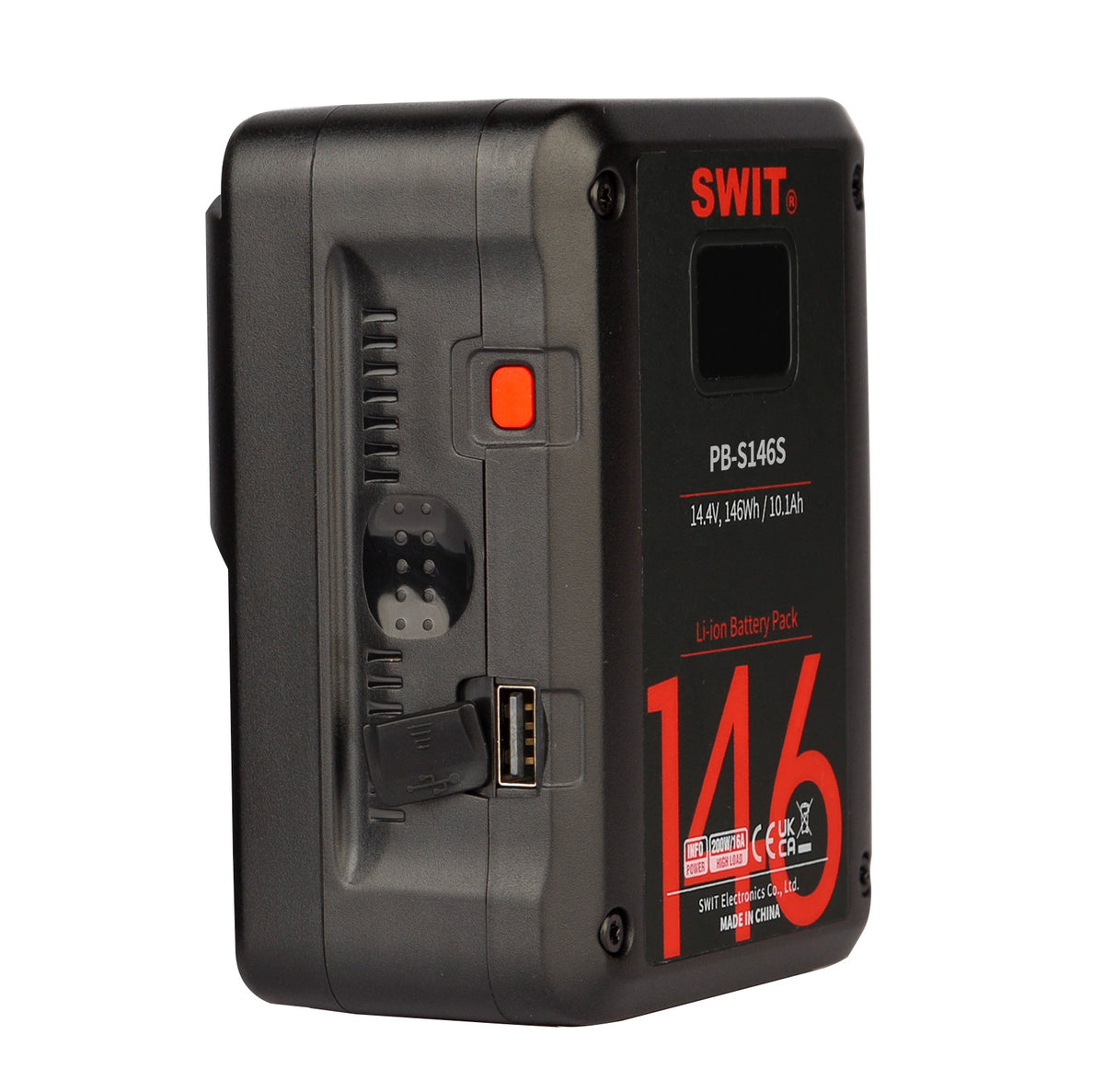

The PB-S146S is a compact, square-shaped 146Wh V-mount battery engineered for cine cameras and high-demand production gear. With a 10.1Ah capacity and a constant load rating of 200W/16A, it delivers reliable power for professional setups including ARRI, RED, and other high-draw systems. The battery features two D-tap output sockets (combined 120W/10A), both of which also support charging input, and a 5V/2A USB output for powering mobile accessories.
An integrated OLED display provides real-time readouts of remaining runtime, power percentage, and battery cycle data, compatible with both SONY and RED camera systems. Built-in circuit protections ensure safe operation, and the square form factor makes it ideal for compact rigs and balanced mounting. The PB-S146S is a rugged, high-performance solution for field production and digital cinema workflows.
|
Battery plate |
V-mount |
|
Nominal voltage |
14.4V |
|
Capacity |
146Wh, 10.1Ah |
|
Max output |
In total: 200W |
|
Electrodes: 200W,16A |
|
| USB:10W, 5V/2A | |
| D-tap: 120W / 10A | |
|
Dimension |
121×95×59mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C(Capacity and Max Load may decrease when operating below 0°) |
|
Net weight |
Net 0.878kg; With package 0.9kg |
|
Max charging current |
5A |
|
D-TAP socket number |
2 |
|
USB socket number |
1 |
