SWIT 220Wh Multi-sockets Square Digital Battery Pack (PB-S220S)
220Wh V-mount battery with 4× D-tap, USB output, OLED runtime display, and 6A fast charging—built for cine-camera power demands.
220Wh V-mount battery with 4× D-tap, USB output, OLED runtime display, and 6A fast charging—built for cine-camera power demands.

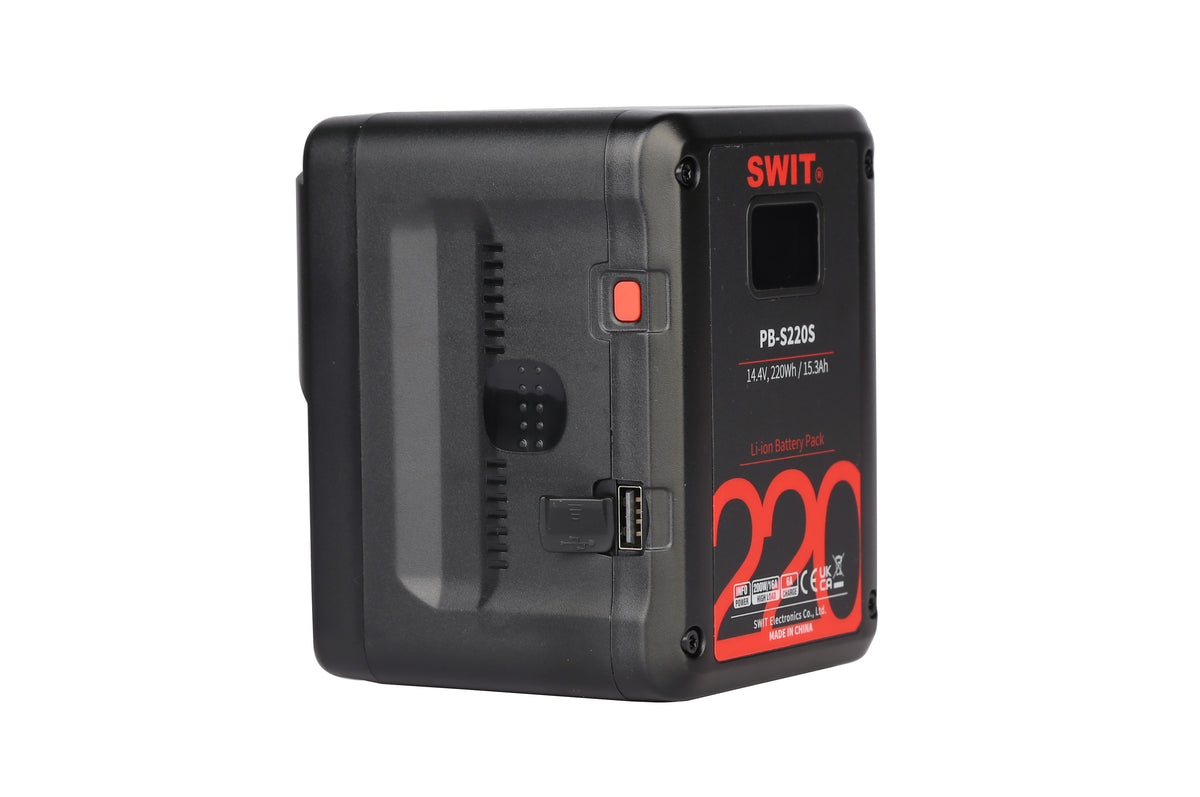

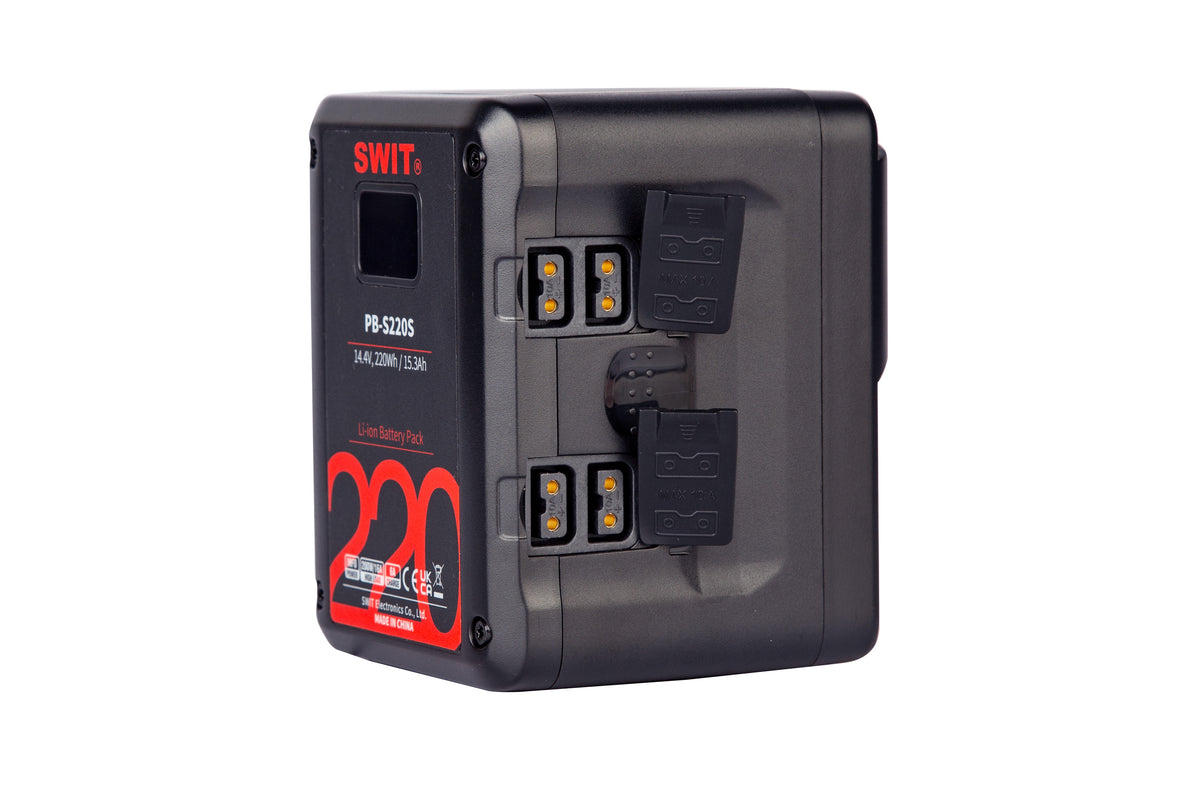

The PB-S220S is a high-performance 220Wh square digital battery pack designed for demanding cine-camera applications. Engineered to deliver a constant load of at least 200W at 16A, it ensures stable and reliable power for high-end production gear. Its compact square shape fits perfectly with cine-style setups, while four D-tap output sockets and one USB 5V/2A port allow simultaneous powering of multiple accessories such as monitors, wireless transmitters, and lights. All four D-tap ports support charging input, enabling flexible recharging options including 6A super-fast charging.

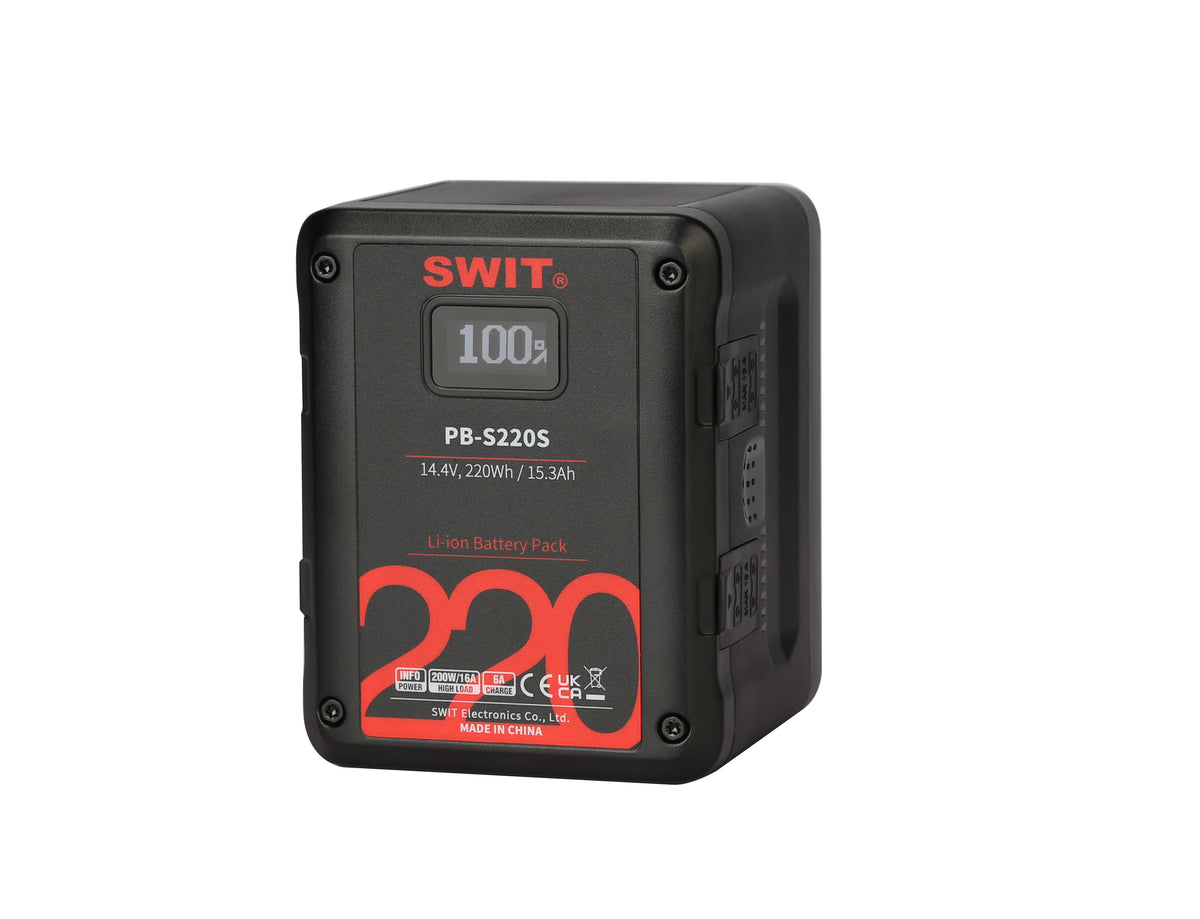

An integrated OLED display provides precise readouts of remaining runtime, power percentage, and battery cycle status, compatible with both SONY and RED systems. Built-in multiple circuit protections safeguard against overcharge, over-discharge, overcurrent, and short circuits, ensuring long-term durability and safety. The PB-S220S is the ideal power solution for professional cinematographers who require robust, multi-device support in a compact and intelligent form factor.
|
Model |
PB-S220S |
|
Battery plate |

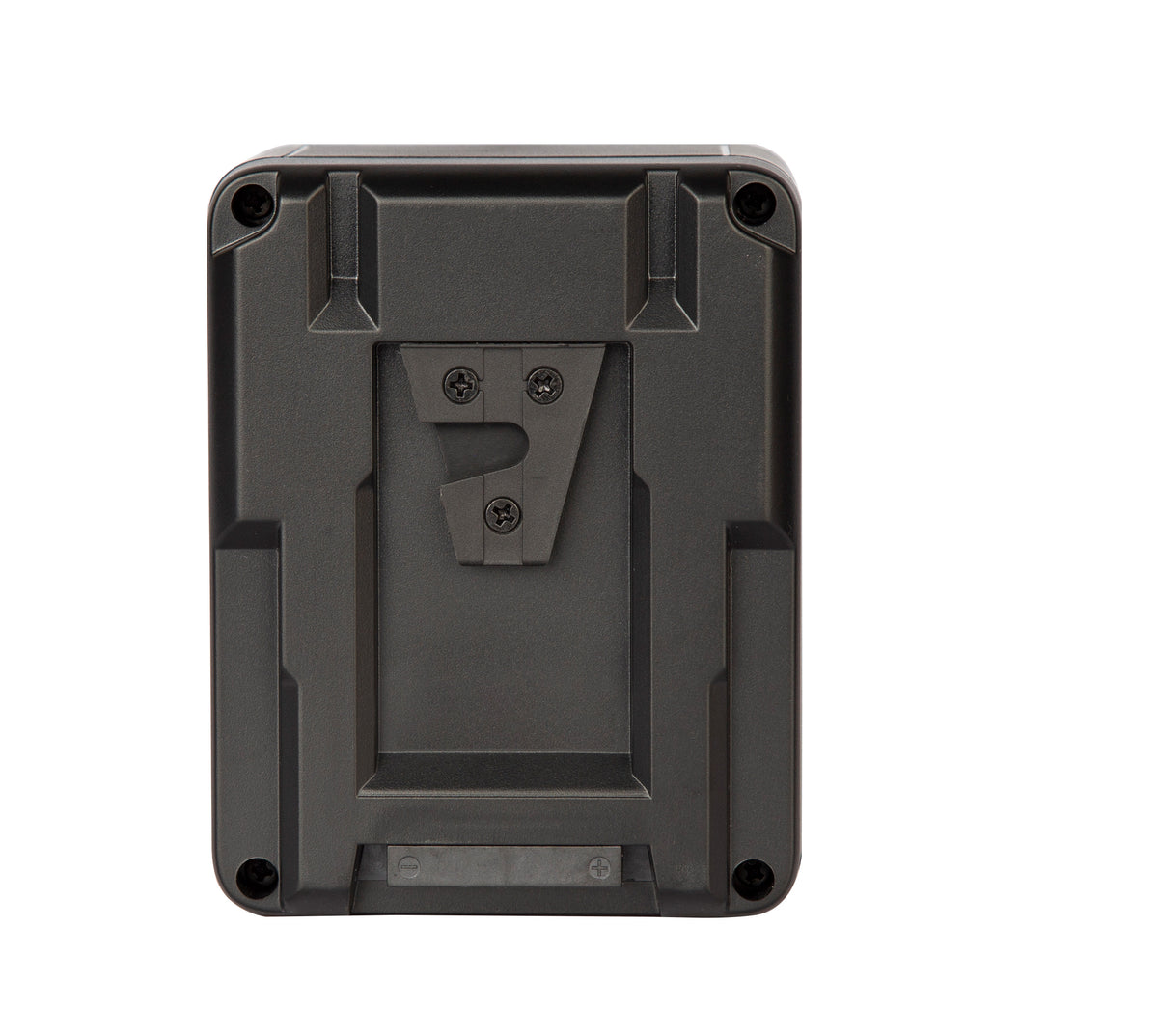

V-mount |
|
Nominal voltage |
14.4V |
|
Capacity |
220Wh,15.3Ah |
|
Max output |
In total: 200W |
|
Electrodes: 200W,16A |
|
| USB:10W, 5V/2A | |
| D-tap: 120W / 10A | |
|
Dimension |
121×95×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C(Capacity and Max Load may decrease when operating below 0°) |
|
Net weight |
Net 1.44kg; With package 1.55kg |
|
Max charging current |
6A |
|
D-TAP socket number |
4 |
|
USB socket number |
1 |
