Met de NANO HUB kunt u verschillende apparatuur van stroom voorzien met één hub die u via verschillende ingangen kunt voeden. Gebruik 14,8V-batterijen of D-Tap-opladers als ingang, 14,8V/12V/7.4V/USB-A/USB-C-uitgangen werken tegelijkertijd.

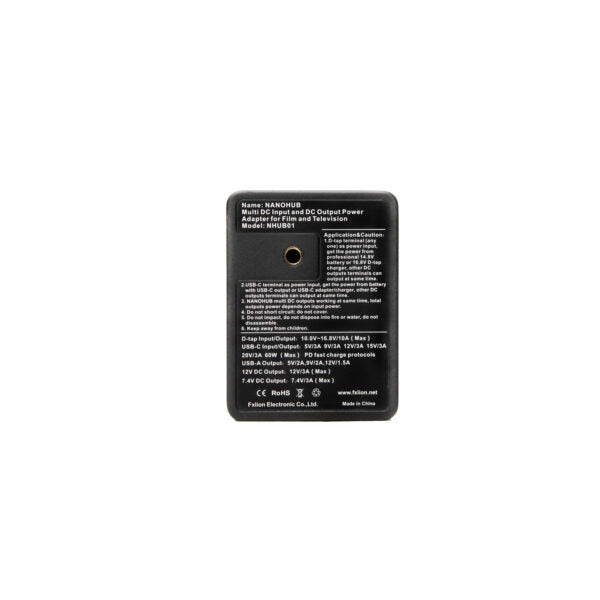

The NANO HUB allows powering different equipment with one hub that you can power from different Inputs. Use 14.8V batteries or D-Tap chargers as input, 14.8V/12V/7.4V/USB-A /USB-C outputs are working at same time.
If you use a USB-C adapter as input, 14.8V/12V/7.4V/USB-A outputs working at same time. The USB-C Output has a built in PD fast charge protocol and will give you a power output of max. 60 Watts. You can charge your Apple MacBook Pro or any USB-C compatible devices with the NANO-HUB
The adapter is designed with a 1/4 screw hole, by using a standard hot-shoe, it can be fixed in any position. For further information, please refer to the specifications.
D-Tap Input: 10.0V~16.8V/10A (input by battery or D-tap charger)
D-Tap Output: 10.0V~16.8V/10A
USB-C PD Input/Output: 5V/3A, 9V/3A, 12V/3A,15V/3A, 20V/3A, 60W
USB-A Output: 5V/2A, 9V/2A, 12V/1.5A
12V DC Output: 12V/3A
7.4V DC Output: 7.4V/3A
Indicator: blue belt indicator on, NANO-HUB is working
Dimensions: 84(L)mm×63(W)mm×23(H)mm
Weight: 210g
Working Temperature: -20℃～+70 ℃
1 x NANO-HUB
1 x AN-BL45 – D-Tap to 2.1Pin cable
1 x Soft Bag
