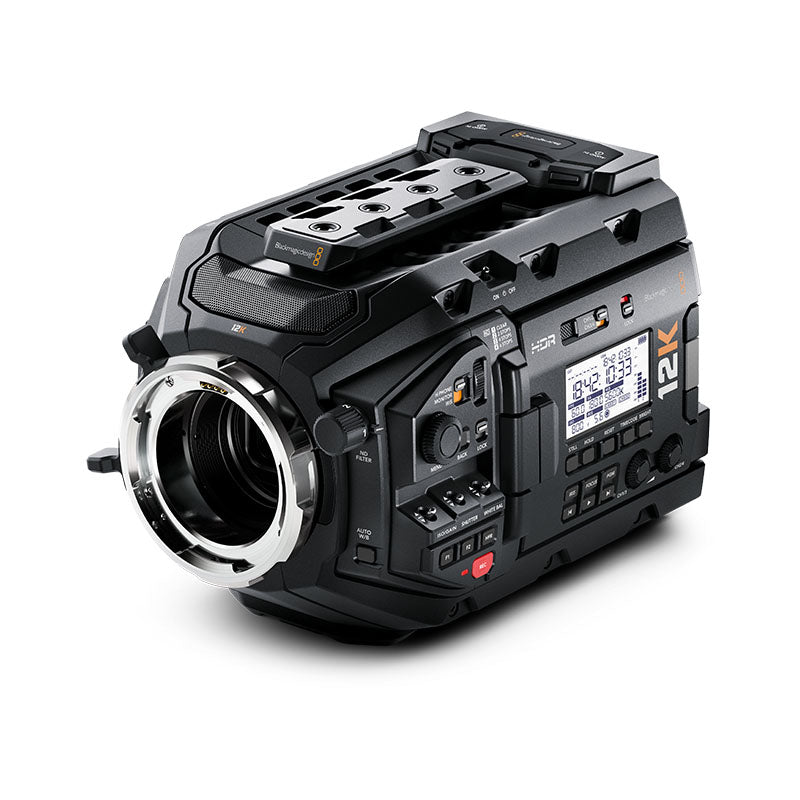

Blackmagic URSA Mini Pro 12K OLPF Side Angle PL Mount

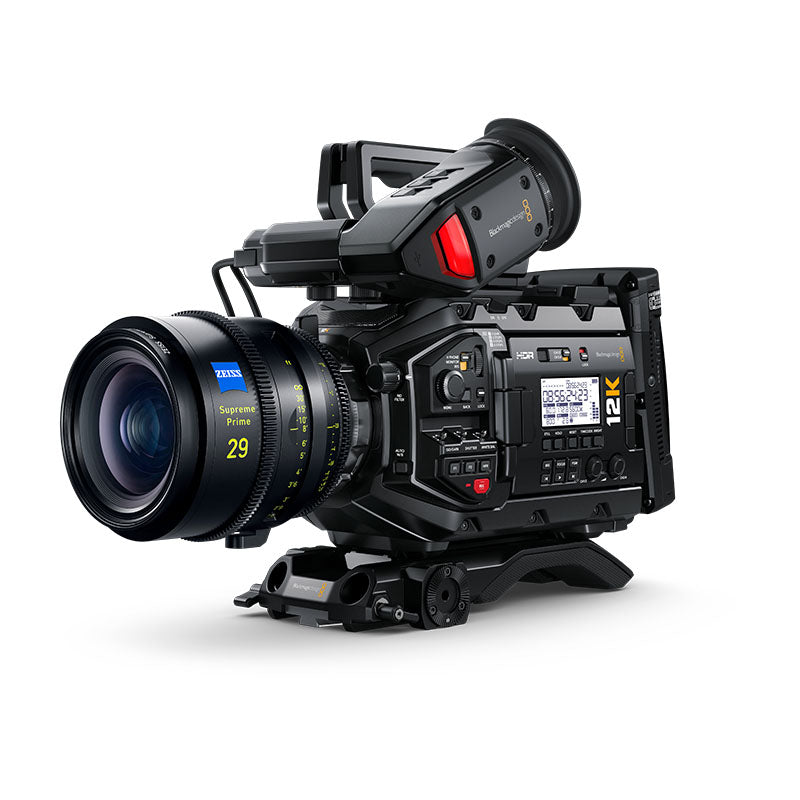

Blackmagic URSA Mini Pro 12K OLPF

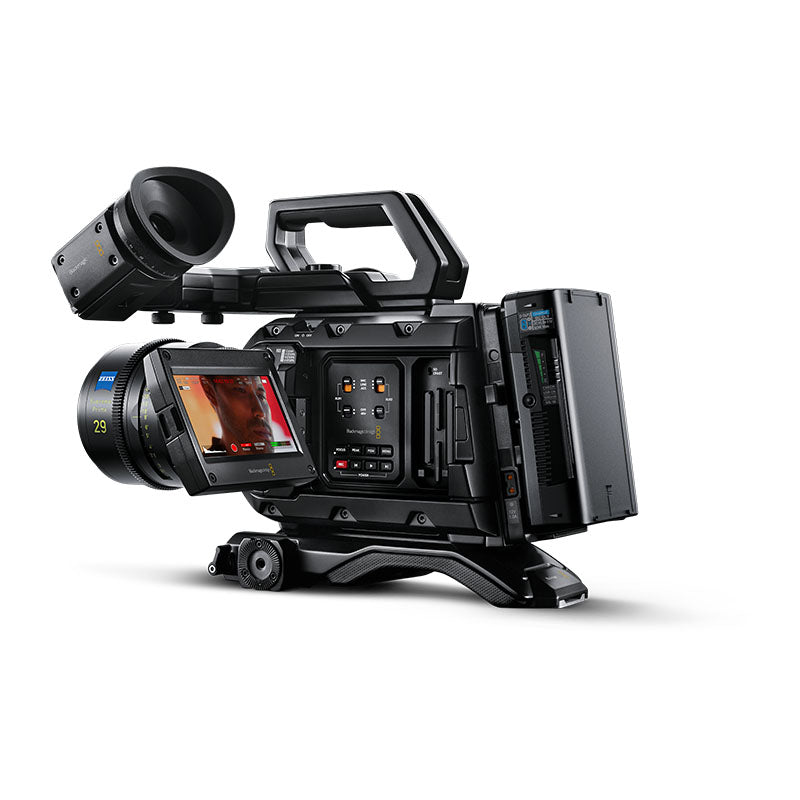

Blackmagic URSA Mini Pro 12K OLPF Rear Angle
Blackmagic URSA Mini Pro 12K OLPF Side Angle PL Mount
Blackmagic URSA Mini Pro 12K OLPF
Blackmagic URSA Mini Pro 12K OLPF Rear Angle
BlackMagic Design
CINEURSAMUPRO12KOLPF

Blackmagic URSA Mini Pro 12K OLPF

A next generation digital film camera that combines a revolutionary 12K Super 35 sensor with an integrated optical low pass filter, delivering extreme resolution, cinematic color science and outstanding performance for feature films, broadcast and virtual production.

1-3 werkdagen
  • €4.945,50 (excl. btw)
    €5.984,06 incl. btw
  • €5.495,00
  • - 0%
This high end digital film camera is designed for productions that demand the highest possible image fidelity while maintaining the robust ergonomics of a traditional cinema body. At its core is a Super 35 sensor with a native resolution of 12 288 by 6 480 pixels, capturing an impressive 80 megapixels per frame. With 14 stops of dynamic range and the latest Blackmagic color science, it delivers smooth highlight roll off, deep shadow detail and highly accurate color reproduction suitable for premium cinema and episodic work.
The integrated optical low pass filter is specifically tuned for the extreme resolution of the sensor, significantly reducing moiré and aliasing artifacts. This makes the camera particularly well suited for virtual production, large scale LED volumes and visual effects heavy workflows, where clean edges and stable textures are essential. The sensor architecture is optimized for multi resolution capture, allowing seamless in sensor scaling to 8K and 4K without cropping or altering the field of view. Oversampling from 12K results in exceptionally clean lower resolution images with enhanced sharpness and reduced noise.
Recording is handled in Blackmagic RAW, a highly efficient 12 bit codec designed to preserve full sensor data while keeping file sizes practical. This enables smooth post production workflows, including the ability to edit 12K material on modern workstations while retaining full control over exposure, white balance and gamma. A wide range of frame rates is supported, including up to 60 frames per second in 12K, 120 frames per second in 8K and up to 240 frames per second in 4K Super 16 mode.
The camera is built for professional set use, featuring a user interchangeable lens mount with a PL mount supplied as standard, plus optional EF and F mounts. Built in IR ND filters with four positions allow fast exposure control while maintaining color accuracy. Recording options include dual CFast 2.0 and SD UHS II card slots, as well as direct recording to external SSDs via the integrated SuperSpeed USB C connection. Professional 12G SDI connectivity, balanced XLR audio inputs and a highly accurate internal timecode generator ensure seamless integration into demanding production environments. DaVinci Resolve Studio is included, providing a complete end to end post production solution.

Camera Features

Effective Sensor Size

27.03mm x 14.25mm (Super35)

Lens Mount

PL mount included. Interchangeable with optional EF and F lens mounts.

Lens Control

12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.

Dynamic Range

14 Stops

Shooting Resolutions

12,288 x 6480 (12K DCI)
11,520 x 6480 (12K 16:9)
12,288 x 5112 (12K 2.4:1)
7680 x 6408 (12K anamorphic)

8192 x 4320 (8K DCI)
7680 x 4320 (8K 16:9)
8192 x 3408 (8K 2.4:1)
5120 x 4272 (8K anamorphic)

6144 x 3240 (6K Super16)
4096 x 2160 (4K Super16)

4096 x 2160 (4K DCI)
3840 x 2160 (4K 16:9)
4096 x 1704 (4K 2.4:1)
2560 x 2136 (4K anamorphic)

Frame Rates

Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

High Speed Frame Rates

12K 17:9 full sensor up to 60 fps
12K 2.4:1 up to 75 fps
8K DCI full sensor up to 120 fps
4K DCI full sensor up to 120 fps
8K 2.4:1 and 4K 2.4:1 up to 160 fps

6K Super 16 up to 120 fps
4K Super 16 up to 240 fps

Built in ND Filters

Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.

Focus

Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

4 inch

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Total Video Inputs

1 x 12G-SDI

Total Video Outputs

1 x 12G-SDI, 1 x 3G-SDI Monitoring.

SDI Rates

1.5G, 3G, 6G, 12G.

Analog Audio Inputs

2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack, supports iPhone microphone for talkback.

Reference Inputs

Tri-Sync/Black Burst/Timecode.

Remote Control

1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

Computer Interface

1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.

1 x USB Type-C for software updates.

Blackmagic URSA Mini Pro 12K OLPF

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1

SDI Audio Sampling

48 kHz and 24 bit

Media

Media

2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media.

Alternative Media

1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder.

Supported Codecs

Codecs

Blackmagic RAW Constant Bitrate 5:1
Blackmagic RAW Constant Bitrate 8:1
Blackmagic RAW Constant Bitrate 12:1
Blackmagic RAW Constant Bitrate 18:1
Blackmagic RAW Constant Quality Q0
Blackmagic RAW Constant Quality Q1
Blackmagic RAW Constant Quality Q3
Blackmagic RAW Constant Quality Q5

Control

External Control

Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control.

Talkback and Tally

Talkback

SDI Channels 15/16 and iPhone headset.

Live Tally Indicator

Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.

Storage Features

Storage Type

2 x CFast 2.0
2 x SD UHS-II cards
1 x high speed USB-C expansion port for external media.

Storage Rates

12K Full Sensor - 12,288 x 6480
at 24 frames per second.

Blackmagic RAW 5:1 - 578 MB/s
Blackmagic RAW 8:1 - 361 MB/s
Blackmagic RAW 12:1 - 241 MB/s
Blackmagic RAW 18:1 - 160 MB/s
Blackmagic RAW Q0 - 289 to 1,156 MB/s
Blackmagic RAW Q1 - 241 to 963 MB/s
Blackmagic RAW Q3 - 145 to 722 MB/s
Blackmagic RAW Q5 - 97 to 413 MB/s

8K Full Sensor - 8192 x 4320
at 24 frames per second.

Blackmagic RAW 5:1 - 257 MB/s
Blackmagic RAW 8:1 - 161 MB/s
Blackmagic RAW 12:1 - 107 MB/s
Blackmagic RAW 18:1 - 71 MB/s
Blackmagic RAW Q0 - 257 to 642 MB/s
Blackmagic RAW Q1 - 214 to 428 MB/s
Blackmagic RAW Q3 - 107 to 321 MB/s
Blackmagic RAW Q5 - 81 to 257 MB/s

6K Super 16 - 6144 x 3240
at 24 frames per second.

Blackmagic RAW 5:1 - 146 MB/s
Blackmagic RAW 8:1 - 91 MB/s
Blackmagic RAW 12:1 - 61 MB/s
Blackmagic RAW 18:1 - 40 MB/s
Blackmagic RAW Q0 - 73 to 291 MB/s
Blackmagic RAW Q1 - 61 to 242 MB/s
Blackmagic RAW Q3 - 37 to 182 MB/s
Blackmagic RAW Q5 - 25 to 104 MB/s

4K Full Sensor - 4096 x 2160
at 24 frames per second.

Blackmagic RAW 5:1 - 161 MB/s
Blackmagic RAW 8:1 - 107 MB/s
Blackmagic RAW 12:1 - 80 MB/s
Blackmagic RAW 18:1 - 53 MB/s
Blackmagic RAW Q0 - 161 to 268 MB/s
Blackmagic RAW Q1 - 107 to 214 MB/s
Blackmagic RAW Q3 - 81 to 179 MB/s
Blackmagic RAW Q5 - 54 to 161 MB/s

4K Super 16 - 4096 x 2160
at 240 frames per second.

Blackmagic RAW 5:1 - 648 MB/s
Blackmagic RAW 8:1 - 405 MB/s
Blackmagic RAW 12:1 - 271 MB/s
Blackmagic RAW 18:1 - 180 MB/s
Blackmagic RAW Q0 - 648 to 1,618 MB/s
Blackmagic RAW Q1 - 540 to 1,079 MB/s
Blackmagic RAW Q3 - 271 to 810 MB/s
Blackmagic RAW Q5 - 203 to 648 MB/s

Recording Formats

Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.

Actual storage rates are dependent on image subject matter.

Software

Software Included

Blackmagic OS

DaVinci Resolve Studio for Mac and Windows including activation key

Blackmagic Camera Setup

Blackmagic RAW Player

Blackmagic RAW QuickLook Plugin

Blackmagic RAW SDK

Blackmagic RAW Speed Test

Operating Systems

Mac icon

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows Icon

Windows 10 and 11.

Power Requirements

Power Supply

1 x External 12V power supply. 12 pin Molex connector for rear battery plate.

External Power Input

1 x 4 pin XLR port for external power or battery use.

1 x 12 pin Molex connector on rear battery plate.

Custom V-mount battery plate with D-tap +12V regulated output from camera.

Power

Rear camera mount compatible with industry standard V-mount or gold mount battery plates.

Accessories

Optional Accessories

URSA Mini Pro PL, EF and F Mounts

URSA Mini Pro Shim Kit

URSA Mini Shoulder Kit including top handle and extender arm

URSA Viewfinder

URSA Studio Viewfinder

URSA Mini Recorder

URSA VLock Battery Plate

URSA Gold Battery Plate

URSA Mini Mic Mount

URSA Mini Top Handle

URSA Handgrip

Blackmagic Camera Fiber Converter

Physical Specifications

Blackmagic URSA Mini Pro 12K OLPF

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 45°C (-4° to 113°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic URSA Mini Pro 12K OLPF Body

Turret dust cap

PL lens mount

Power supply

DaVinci Resolve Studio activation key

Warranty

1 Year Limited Manufacturer’s Warranty.

  • Blackmagic URSA Mini Pro 12K OLPF Body
  • Turret dust cap
  • PL lens mount
  • Power supply
  • DaVinci Resolve Studio activation key
