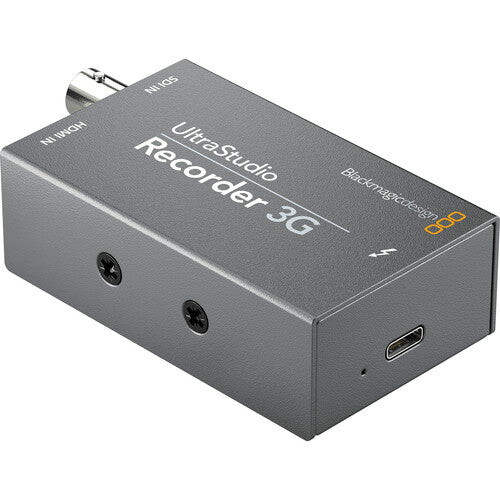

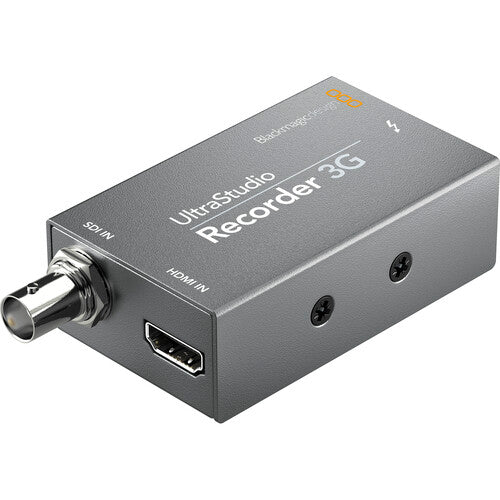

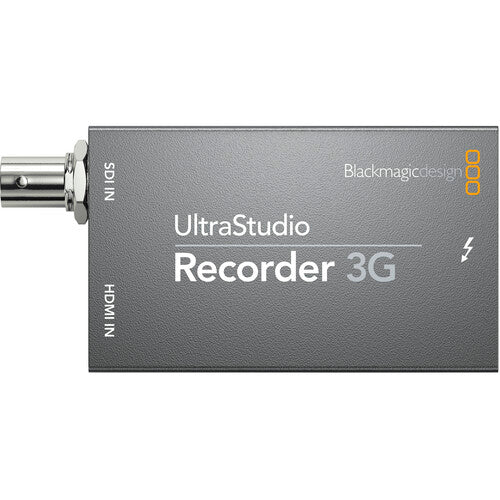

BlackMagic Design UltraStudio Recorder 3G

De Blackmagic Design UltraStudio Mini Recorder is zo compact dat ie zelfs in je zak past. De recorder bevat SDI, HDMI en Thunderbolt verbindingen.

Op voorraad
  • €135,00 (excl. btw)
    €163,35 incl. btw
  • - 0%
Krijg 's werelds kleinste SDI- en HDMI-video-opname in zakformaat voor uw Thunderbolt 3-laptop of desktopcomputer! De UltraStudio Recorder 3G biedt de beste kwaliteit 10 bit ongecomprimeerde en gecomprimeerde video-opname die compatibel is met alle populaire videosoftware.

Blackmagic Design UltraStudio Mini Recorder Specs

SDI Video Input

1x 10-bit SD/HD switchable

HDMI Video Input

1x HDMI type A connector

SDI Audio Input

8 channels embedded in SD and HD

HDMI Audio Input

8 channels embedded in SD and HD

Computer Interface


SD Format Support

625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC

HD Format Support

720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60

SDI Compliance

SMPTE 259M and SMPTE 292M

SDI Metadata Support

VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning



Television standard sample rate of 48 kHz at 24 bit

Color Precision


Color Space

REC 601, REC 709

HDMI Configuration

HDMI automatically configures to connected display

HDMI Resolution

Pixel for pixel HD resolution input to connected device

HDMI Color Precision


Multiple Rate Support

SDI and HDMI are switchable between standard definition and high definition

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources
Always confirm copyright ownership before capture or distribution of content

Colorspace Conversion

Hardware based real time

HD Down Conversion

Software based down conversion during video playback

Real Time Effects

Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer 6 internal effects

Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation

Requires computer with a Thunderbolt port

System Compatibility

Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later
(If you encounter incompatibility issues with updated versions of OS X, please download the newest driver for the recorder from http://www.blackmagicdesign.com/support.)
