Avonic
AV-CAP100

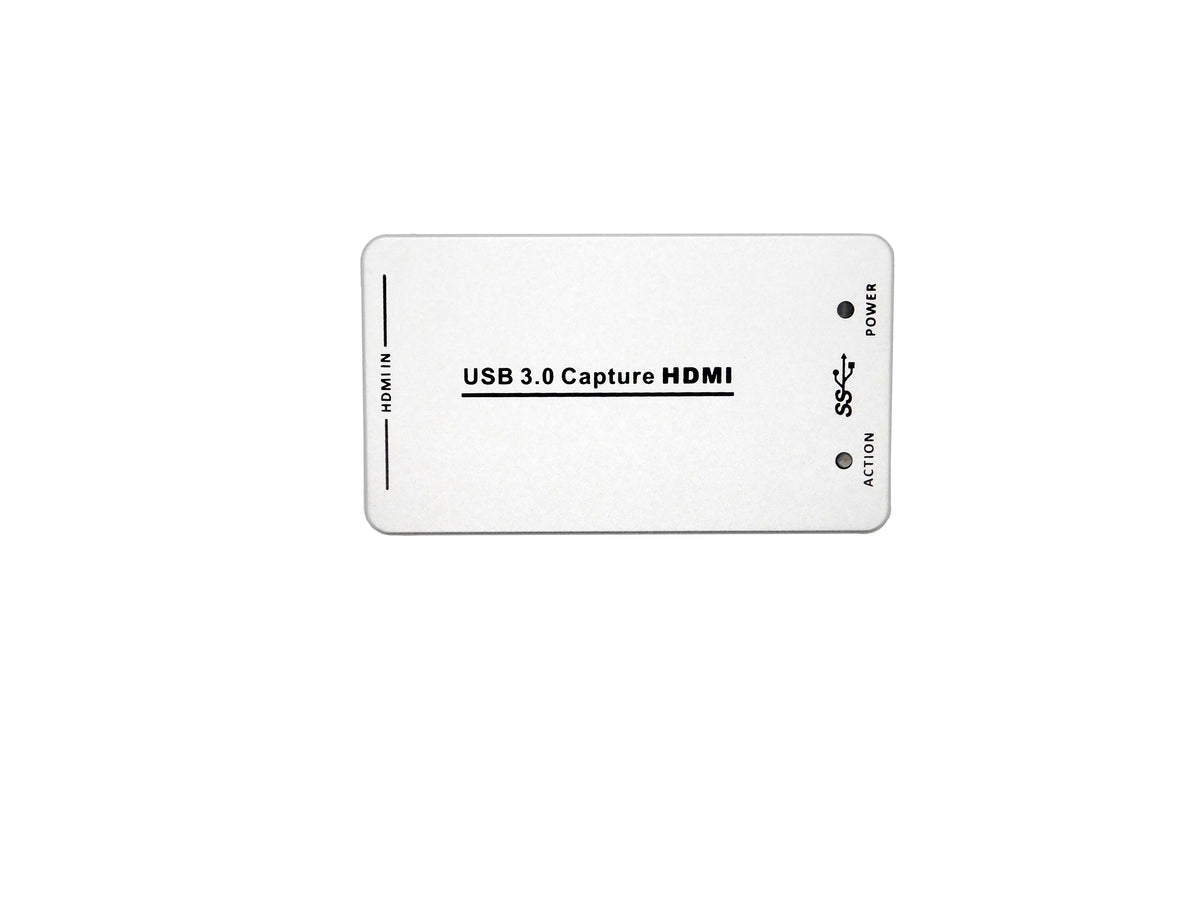

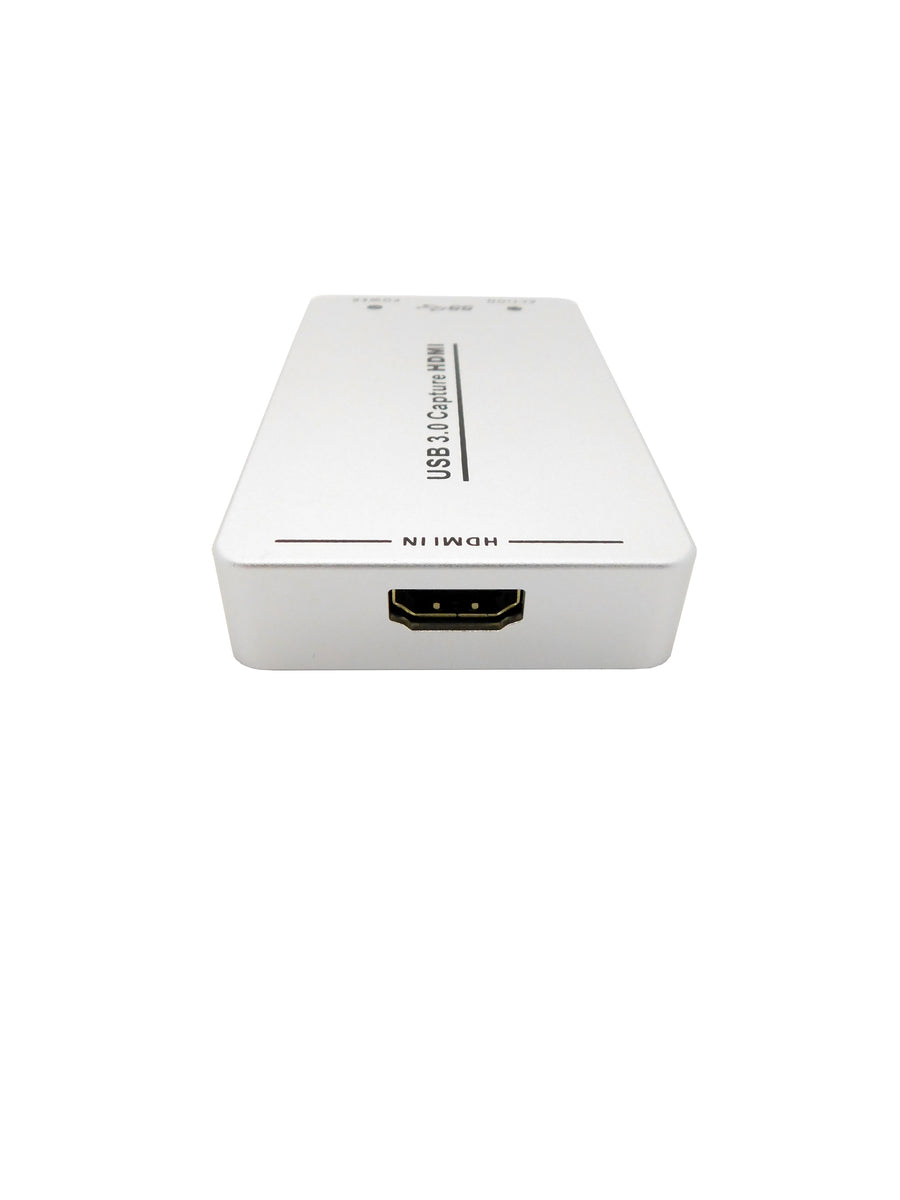

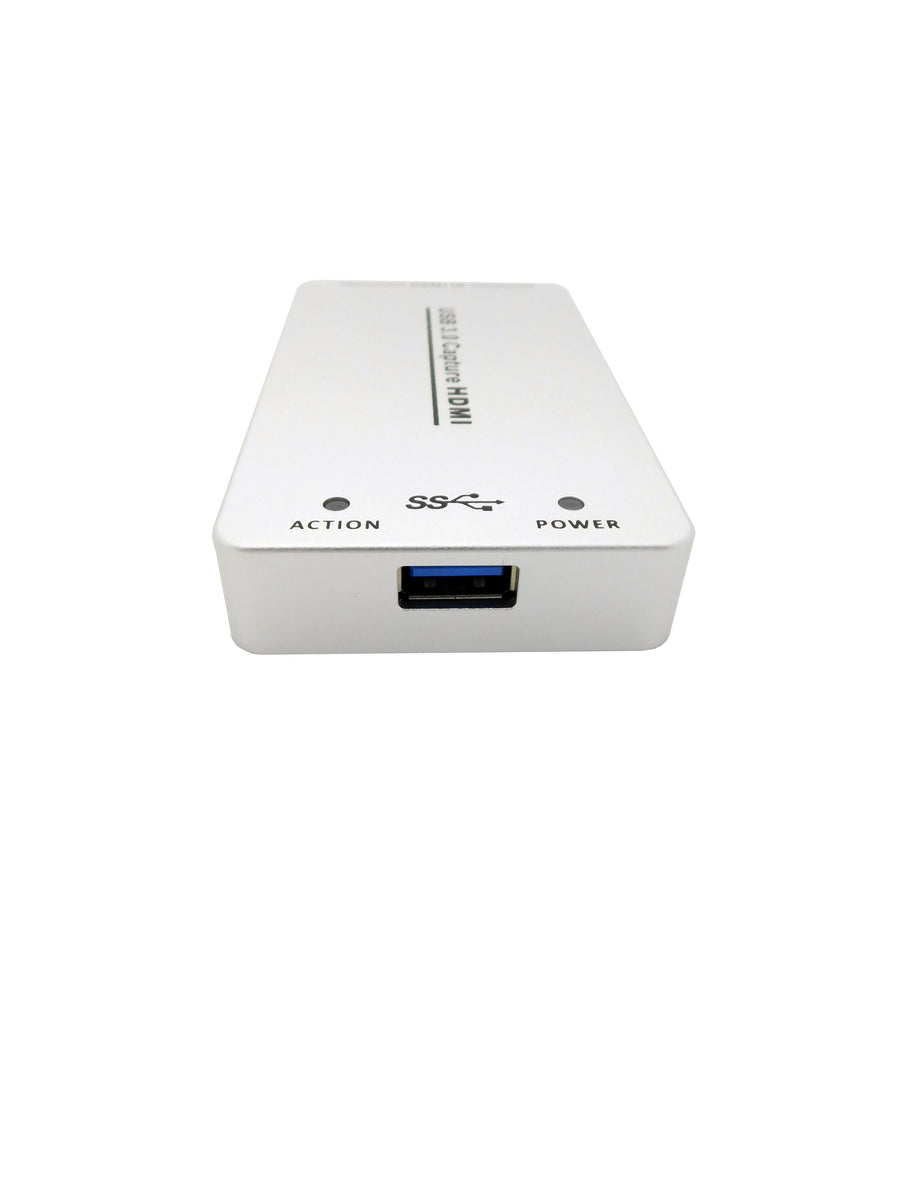

Avonic HDMI Capture Device

The Avonic CAP100 converts HDMI to USB 3.0 in 1080p60—perfect for plug-and-play streaming, recording, or conferencing.

1-3 werkdagen
  • €199,00 (excl. btw)
    €240,79 incl. btw
  • - 0%

The Avonic CAP100 is a high-performance HDMI to USB 3.0 capture device designed for seamless integration into professional AV workflows. Capable of capturing uncompressed Full HD video at 1080p60 with embedded audio, the CAP100 transforms any HDMI source into a plug-and-play USB 3.0 video input. It is fully compliant with UVC and UAC standards, allowing it to be recognized instantly by Windows, macOS, and Linux systems without the need for additional drivers. This makes it an ideal solution for high-quality streaming, recording, or video conferencing setups where reliability and ease of use are essential. Whether used with PTZ cameras, media players, or laptops, the CAP100 ensures low-latency, high-fidelity video capture in a compact and durable form factor.

Product specifications

Input HDMI

HDMI Input Formats 480i,480p,576i,576p,720p50,720p60,1080i50,1080i60, 1080p24/25/30/50/60

Output USB3.0, *300-350MB/s (USB2.0, *40MB/s for lower resolutions and frame rates)

Output Formats 640x480 / 720x480 / 720x576 / 768x576 / 800x600 / 1024x768/ 1280x720 / 1280x800 / 1280x960 / 1280x1024 / 1368x768 / 1440x900 / 1600x1200/ 1680x1050/ 1920x1080/ 1920x1200/ 640x360/ 856x480 /960x540/ 1024x576

Frame Rate 25/29.97/30/50/59.94/60 fps

Audio and Video capture standards of UVC and UAC

OS Windows 7, Windows Server 2008 R2, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)

Software compatibility Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows),VLC Windows, OS X, Linux, QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, S X) , Potplayer (Windows) and etc. Development interface compatibility, DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux), OS X (QuickTime)



General specifications

Input voltage DC5V (USB)

Power consumption <= 2.5W

Power supply 0-50 °C

Power connector USB3.0 type A

Operating temperature 0°C ~ 50°C

Storage temperature -20°C ~ 70°C

Operating humidity 20% ~ 90%

Color Silver

Dimensions product 9.8 x 5.6 x 1.6 cm

Weight product 0.110 kg

Dimensions box 15 x 10 x 5 cm

Weight box 0.230 kg

Included USB 3.0 cable (Type A to Type B)

CAP-100

USB 3.0 cable (type A to type B)
