Avonic CON100

The Avonic CM-CON100 offers precise PTZ control for up to 255 cameras—compact, reliable, and protocol-flexible for any AV setup.

1-3 werkdagen
  • €599,00 (excl. btw)
    €724,79 incl. btw
  • - 0%
▼
  • Default Title

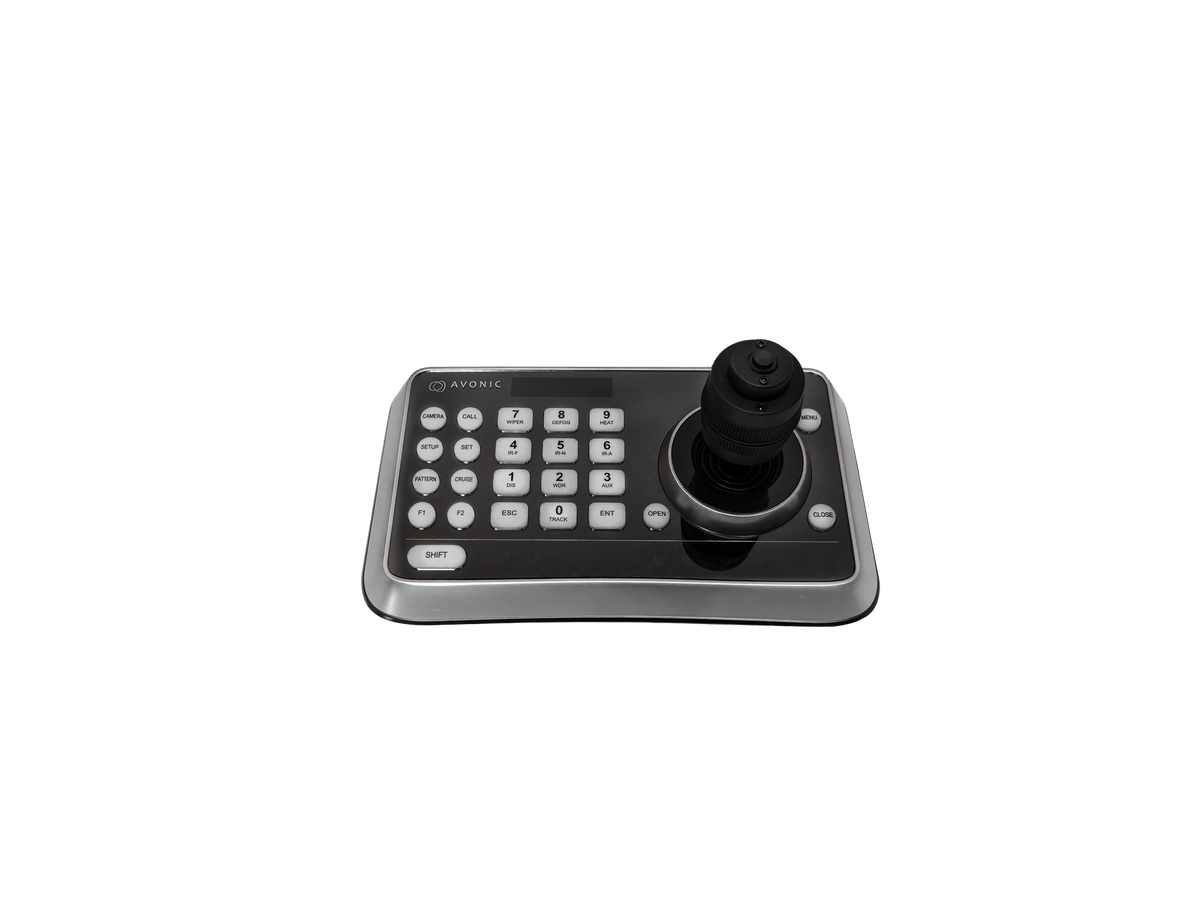

The Avonic CM-CON100 is a compact and intuitive PTZ camera controller designed for precise and reliable control of up to 255 cameras and 255 presets. Supporting industry-standard protocols including VISCA, Pelco-D, and Pelco-P, the CON100 offers seamless integration with a wide range of PTZ camera systems. It features a multi-directional joystick for smooth pan, tilt, zoom, and focus control, along with a numeric keypad, function buttons, and an OLED display for real-time feedback. The controller connects via RS232 or RS485, with support for daisy-chain or bus topologies, and includes built-in tools for joystick calibration, preset management, and OSD menu access. With its user-friendly interface and robust build, the CM-CON100 is ideal for fixed installations in education, corporate, and broadcast environments where dependable camera control is essential.

Controller

Interface RS-485 & RS-232 Input voltage DC12V

Baud rates 2400BPS, 4800BPS, 9600BPS, 19200BPS, 38400BPS

Protocol PELCO-D, PELCO-P, VISCA

Number of cameras UP TO 255

Number of presets 255

Joystick 4-AXIS: PAN/TILT/ZOOM/FOCUS

Display OLED

Key Backlight Modes LIGHT SENSOR, ON, OFF

Security PIN CODE; ADMIN & USER

Speed settings HIGH, MIDDLE, LOW

Adjustment functions PAN/TILT, ZOOM, FOCUS



General Specifications

Input voltage DC12V

Power consumption < 2W

Power supply 12V0.5A

Power connector EIAJ-3 - PHILMORE 275 PLUG

Operating temperature 0°C ~ +40°C

Storage temperature -20°C ~+50°C

Operating humidity ≤90% (NONCONDENSATION)

Color Black

Dimensions product 20 X 12 X 10.3 CM

Weight product 0.5 KG

Dimensions box WxHxD 24 X 16.5 X 13.5 CM

Weight box 0.5 KG

Included CM-CON100, PSU
