Avonic
AV-CM73-IP-W
Avonic CM73 PTZ Camera
The Avonic CM73 delivers Full HD clarity and 30x zoom—perfect for capturing every detail in large-scale AV environments.
The Avonic CM73 is the most powerful model in the CM70 series, purpose-built for professional AV installations that demand long-range precision and uncompromising image quality. Featuring a 30x optical zoom lens, the CM73 excels in capturing detailed visuals from extended distances, making it ideal for large venues such as auditoriums, lecture halls, and houses of worship. It delivers pristine Full HD 1080p60 video, powered by a high signal-to-noise ratio CMOS sensor that ensures exceptional performance even in low-light conditions. The CM73 supports simultaneous HDMI, 3G-SDI, USB 2.0, and IP streaming outputs, offering maximum flexibility for hybrid AV environments. With ultra-low latency over IP, SRT streaming, color matrix control, and tally light support, the CM73 is engineered for seamless integration and broadcast-grade reliability. Its compatibility with a wide range of mounting solutions and validation with leading AV brands ensures effortless deployment and dependable operation in any fixed installation.
Camera
Resolution Up to 1080p60
Video Systems 1920x1080/1280x720p60/ 50/ 30/ 25/ 59.94/ 29.97
Sensor 1/3” CMOS, 2.12mp, 16:9
Shutter Auto, Manual, 1/25 ~1/10000
Scanning mode Progressive, Interlaced (not over IP)
Zoom/Aperture/Focal lenght 30x optical/ F1.8-F11/ 4.3-129.0 mm
Minimal Illumination 0.05 LUX
White Balance Auto, Manual, OnePush, 2400K-7100K in steps of 100K
Backlight Compensation supported
Digital Noise Reduction 2D & 3D DNR
Signal Noise Ratio >55 dB
Horizontal FOV wide ~ tele 64.14° ~ 2.55°
Vertical FOV wide ~tele 38.01° ~ 1.48°
Horizontal rotation -170° ~ +170°
Vertical rotation -30° ~ +90°
Pan speed range 1.7 ~ 120°/s
Tilt speed range 1.7 ~ 70°/s
H&V image flip supported
Number of presets 255
Preset accuracy 0.1
IP features
Video coding standard H.265 / H.264 / MJPEG
H.265 Profiles main
H.264 Profiles main, base, high
Main stream resolution 1920x1080 / 1280x720
Main stream max frame rate 60fps
Main stream bitrate 64 ~ 40960 Kbps
Sub stream resolution 320x180 / 320x240 / 640x360 / 1280x720 / 1920x1080
Sub stream max frame rate 30fps
Sub stream bitrate 64 ~ 40960 Kbps
Video bitrate type Variable, Fixed
Support protocols RTSP, RTMP,ONVIF, SRT, Multicast, Unicast
Audio standard AAC / mp3 / G.711A
Audio bitrate 32, 64, 96, 128 Kbps
Audio sample rate 16, 32, 44.1, 48 Khz
Audio line in balanced audio line in via 5-way Phoenix connector.

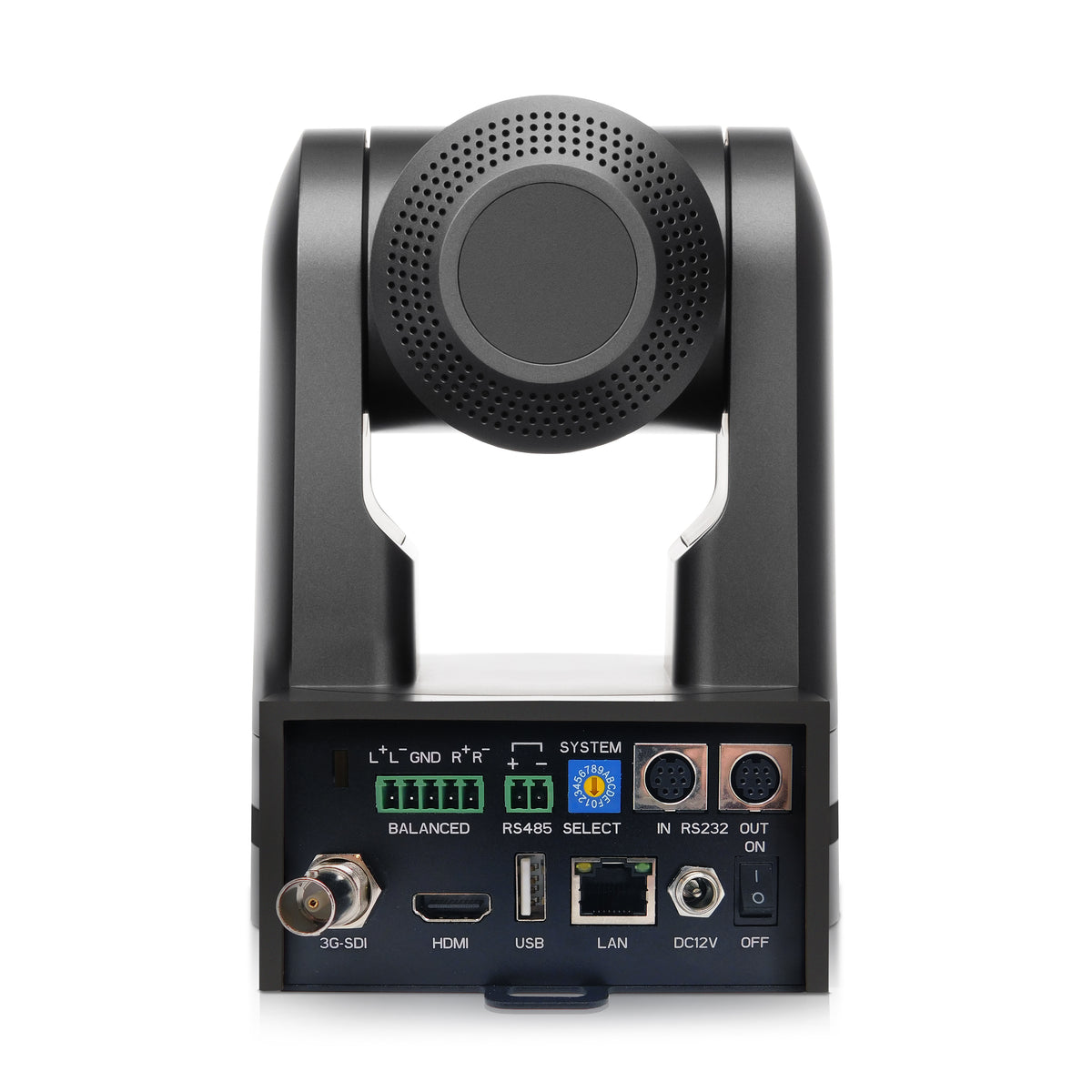

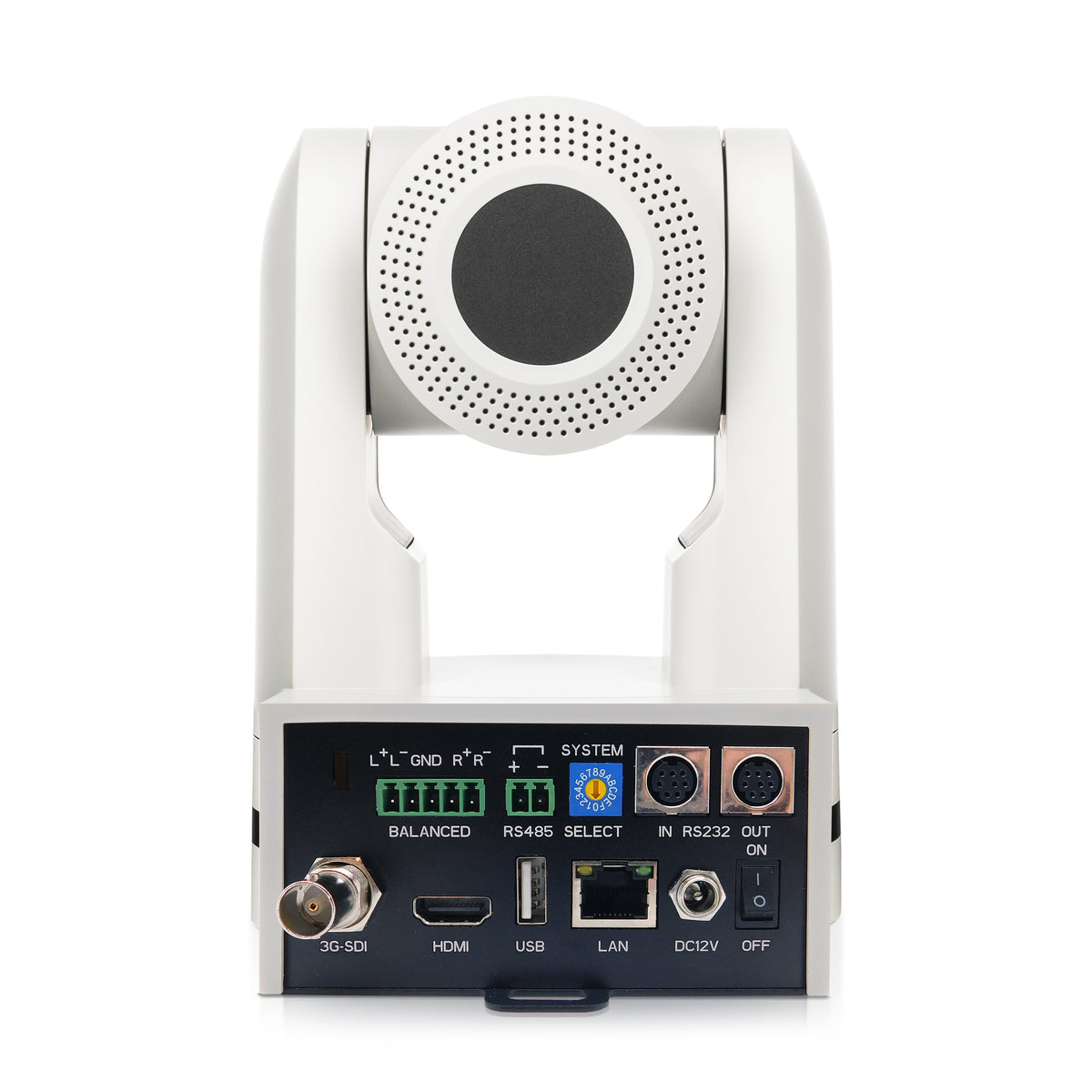

Input / Output Interface
HDMI output 1.4
SDI output 3G-SDI, SMPTE 425M level A, 10-bit YCbCr 4:2:2
USB Output USB 2.0 (max. 1080p30)
Network interface RJ45 100 Mbit
Control UVC, IR Remote, IP, Serial
Serial communication RS232 mini DIN-8, RS485 2pin Phoenix
Serial control protocol VISCA over Serial, PELCO-P, PELCO-D
IP control protocol VISCA OVER IP, ONVIF, HTTP API
General Specifications
Input voltage 12V
PoE PoE 12W (802.3af)
Power consumption 12W
Power supply 12V2A
Power connector EIAJ-4 - Philmore 255 plug
Operating temperature -5°C ~ 40°C
Storage temperature -20°C ~ 60°C
Operating humidity 20% ~ 95% non-condensing
Bottom fastening screw thread 1/4" 20 UNC
Color Black, White
Dimensions product wxhxd 133 x 180 x 153 mm. excl. connectors
Weight product 1.6 kgs
Dimensions box 26 x 24 x 24 cm
Weight box 2.4 kg
Included power adapter, remote control, RS232 cable, RS485 2-way Phoenix connector,
Balanced Audio Line-In 5-way Phoenix connector
Versions

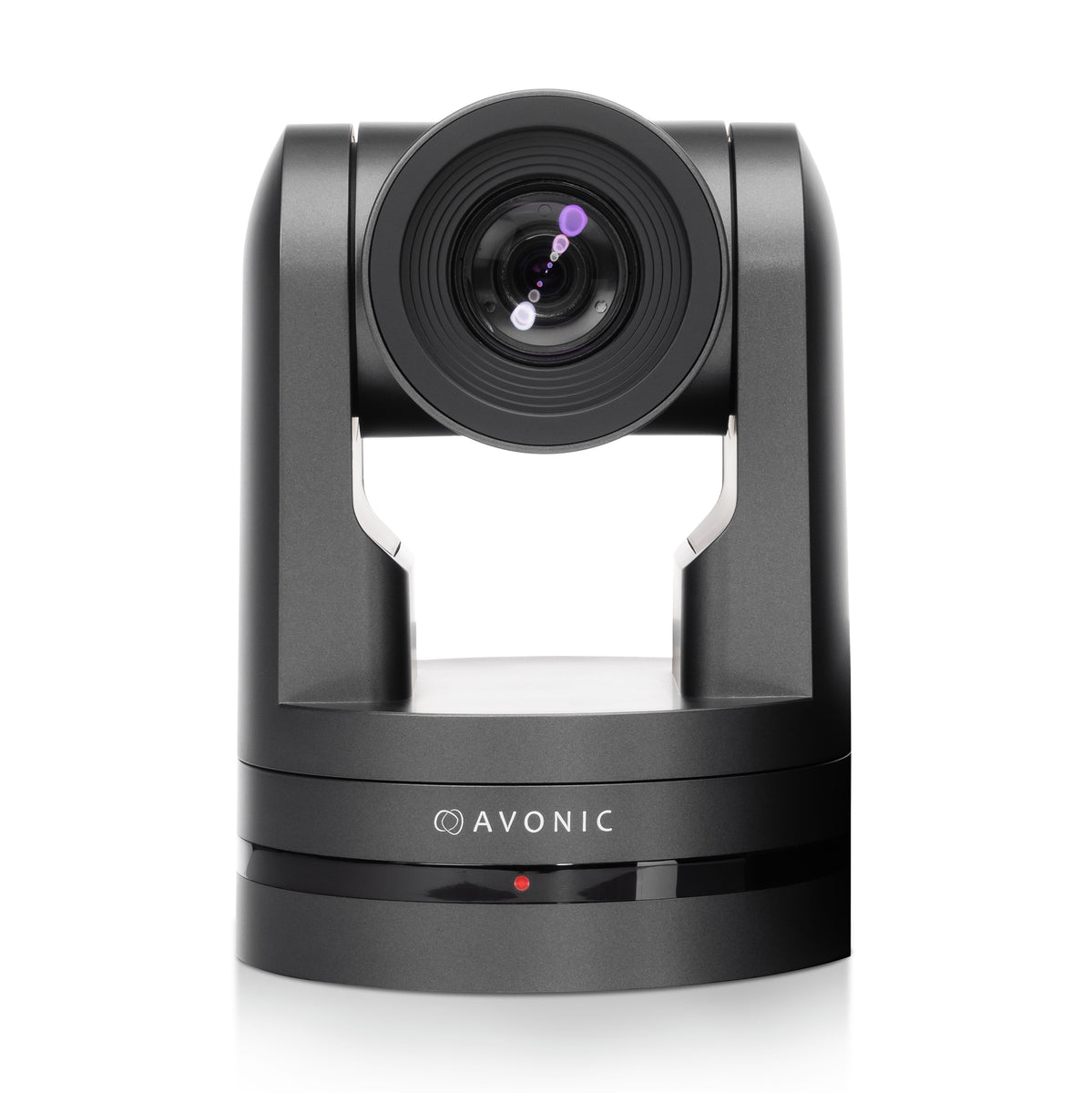

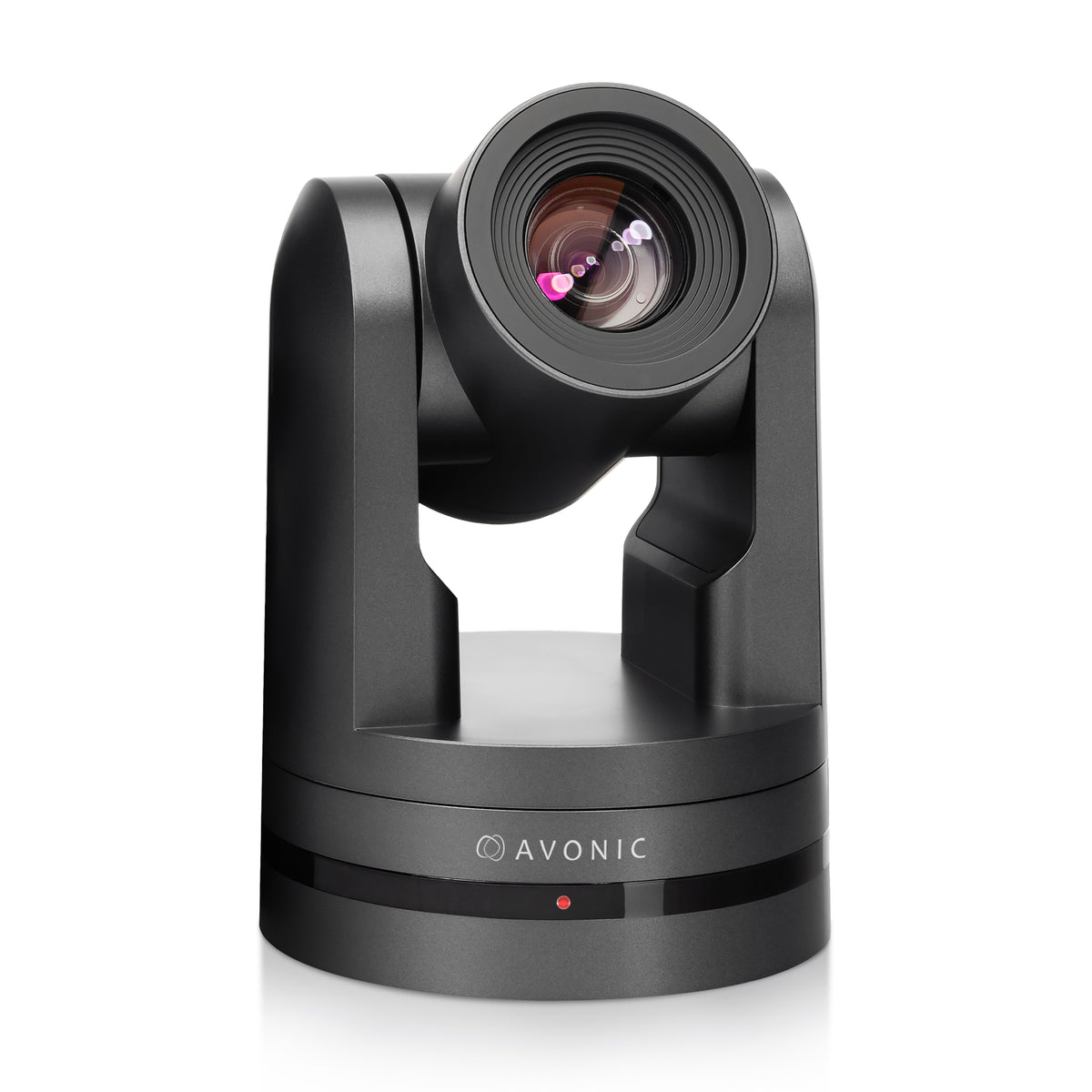

Black CM73-IP-B

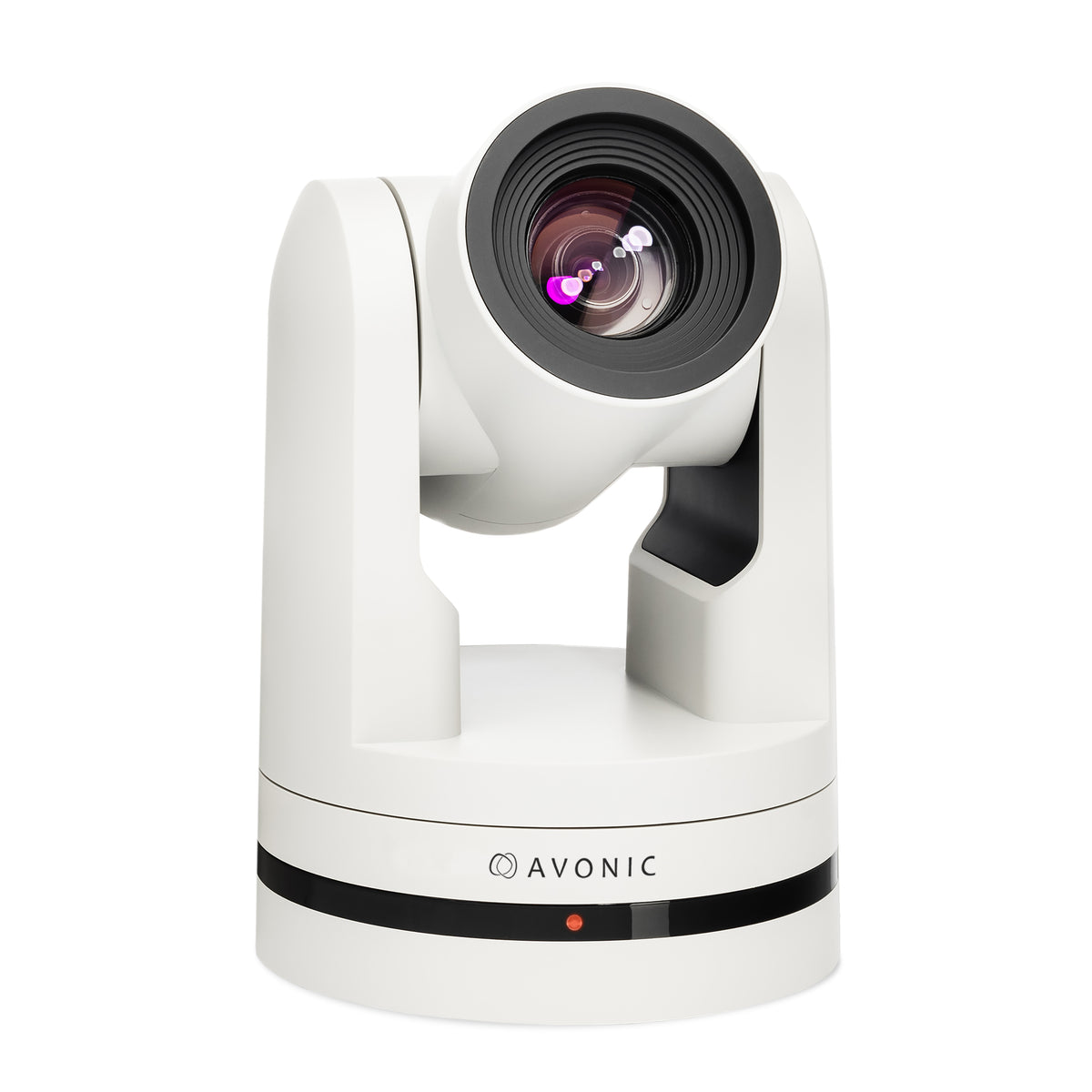

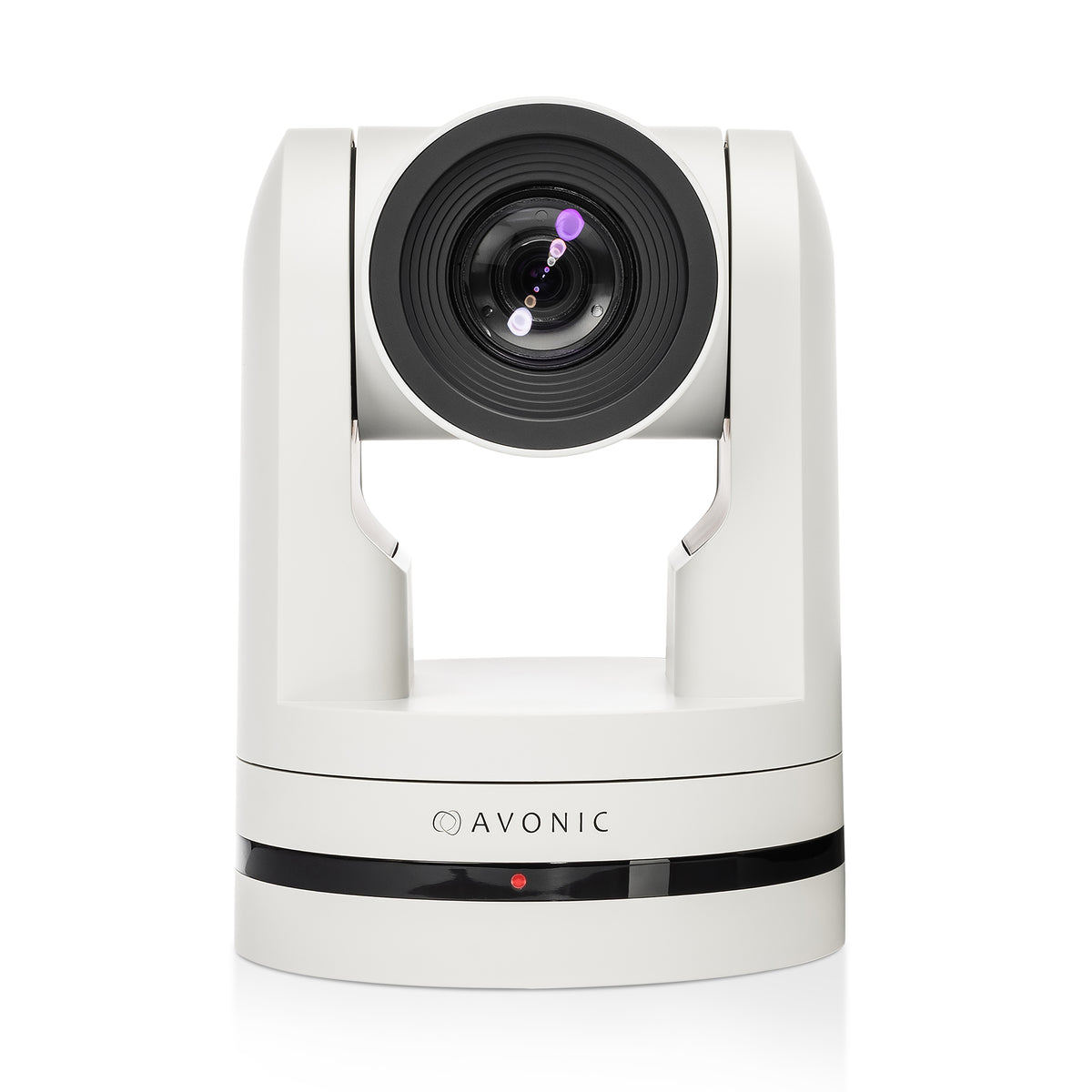

White CM73-IP-W
Compliance
Markings CE, FCC, cULus (see pictures below)
Medical EN-IEC 60601-1-2 (2015) certified (class A, home- and professional healthcare
environment)
Power adapter
Remote control
RS232 cable
RS485 2-way Phoenix connector
Balanced Audio Line-In 5-way Phoenix connector
