Avonic
AV-CM93-NDI-W

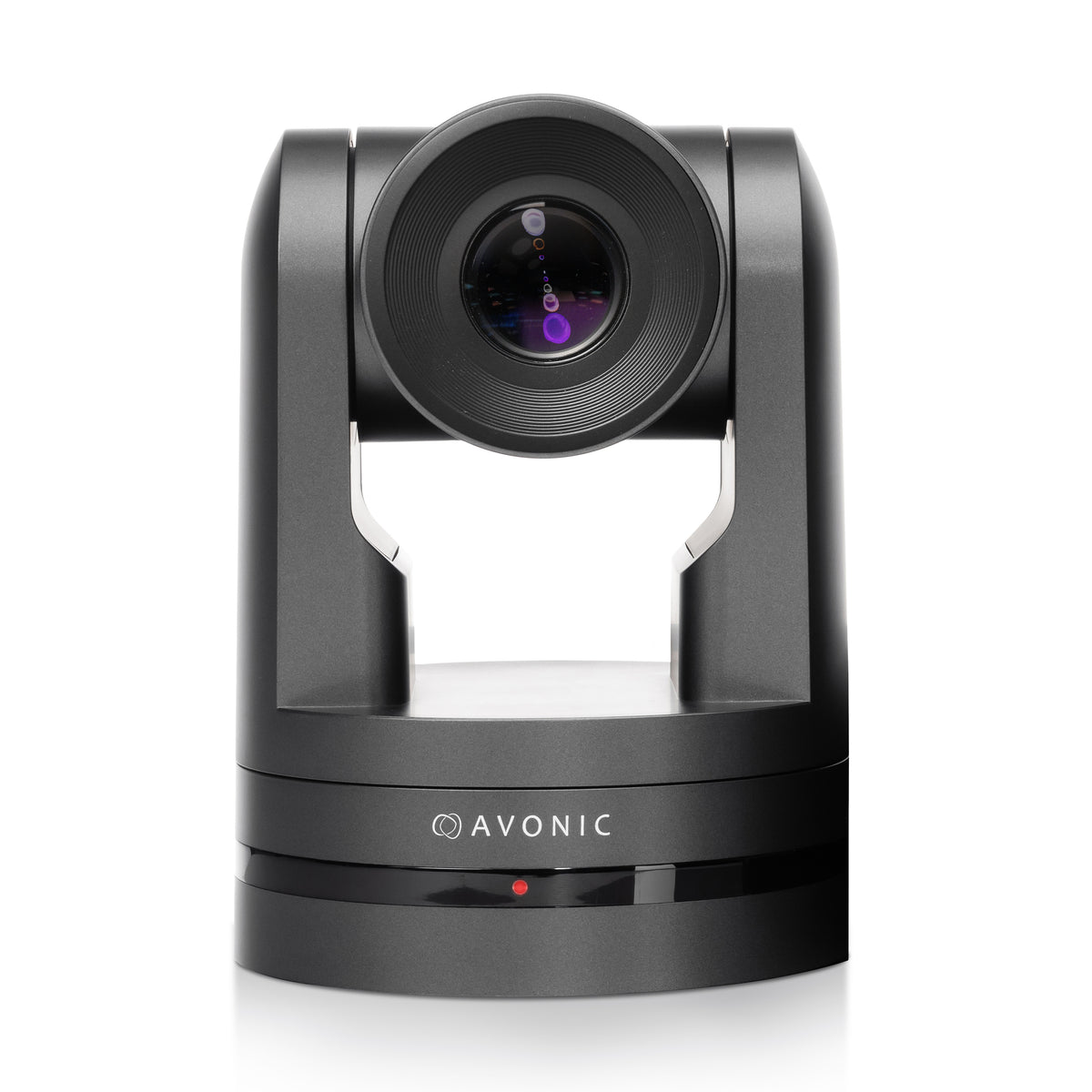

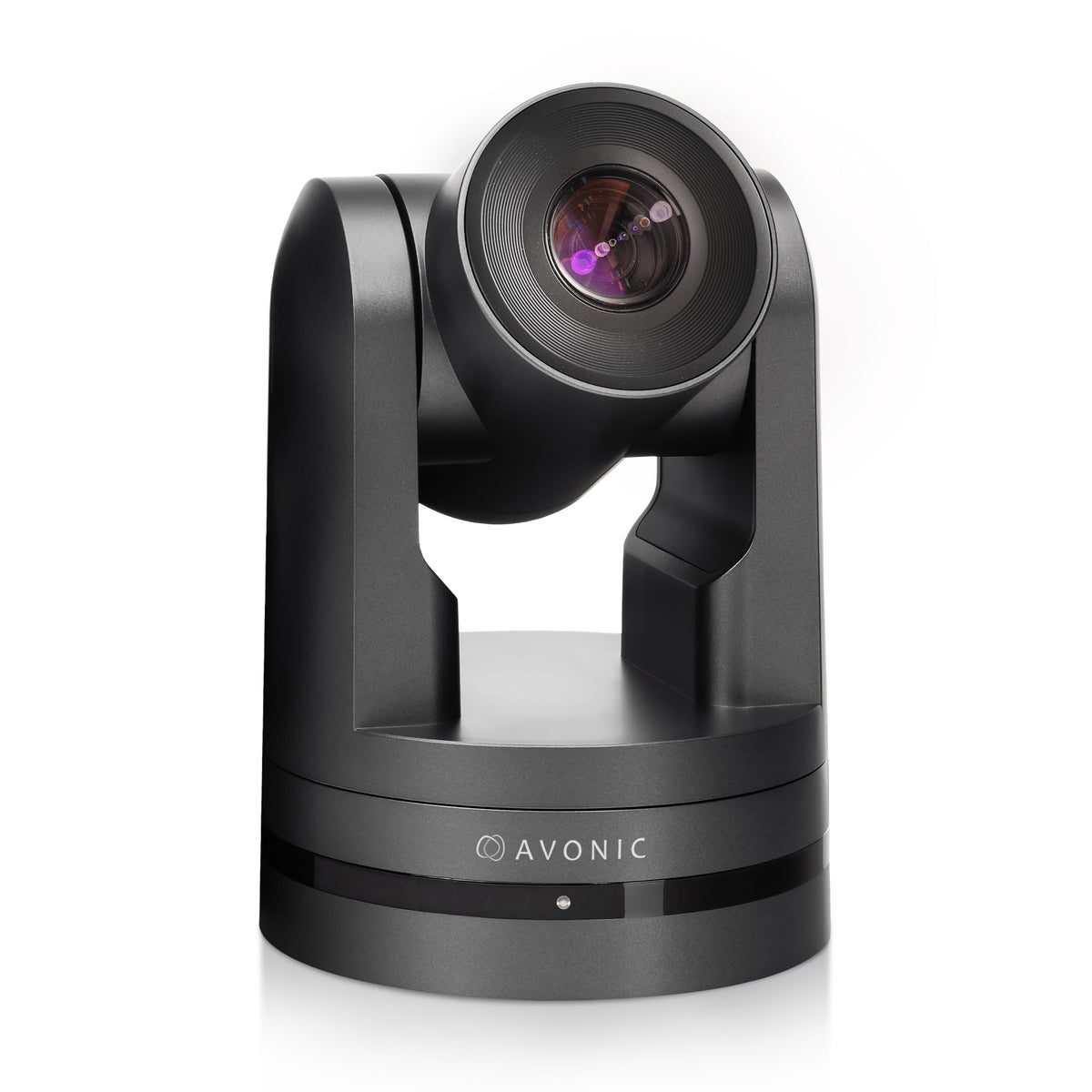

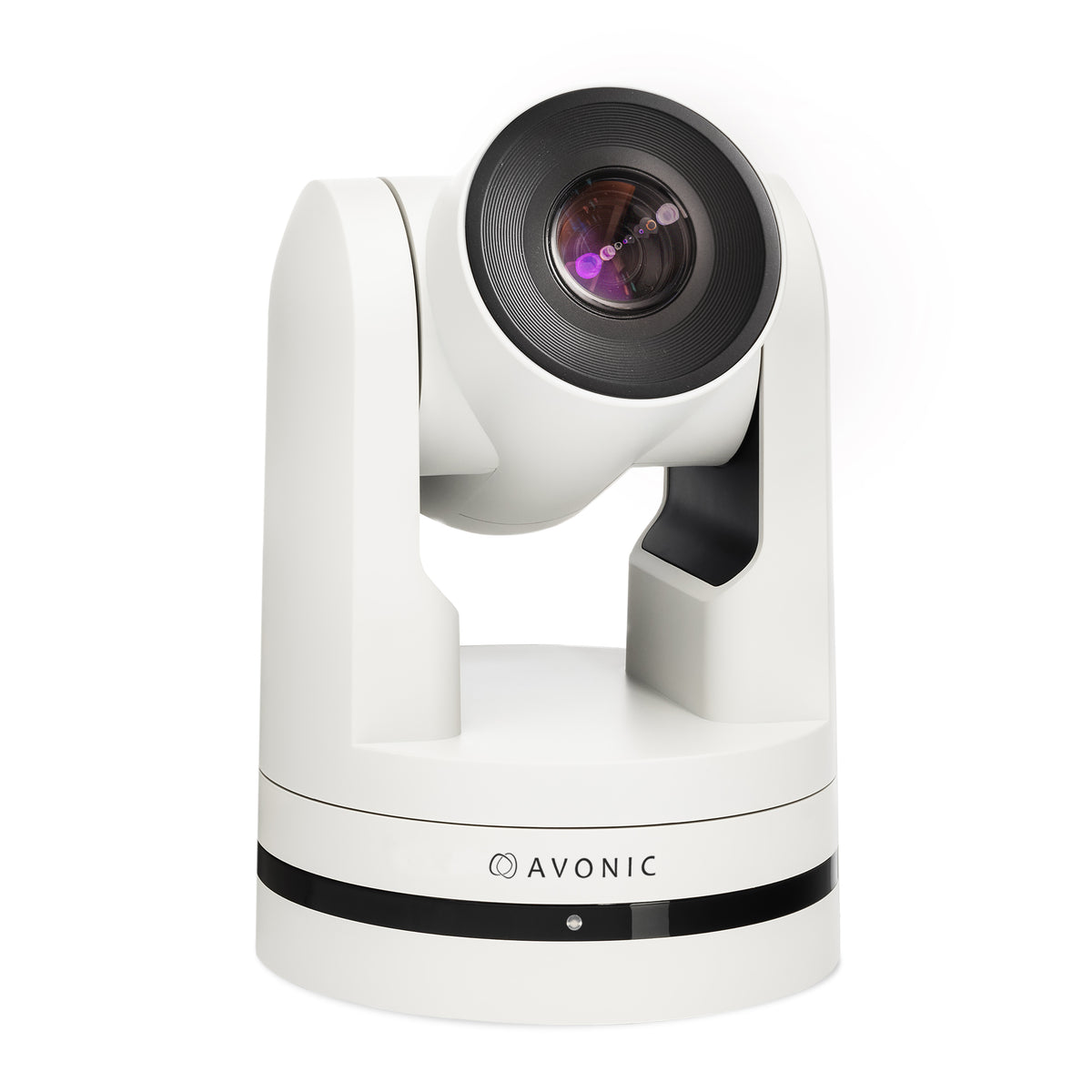

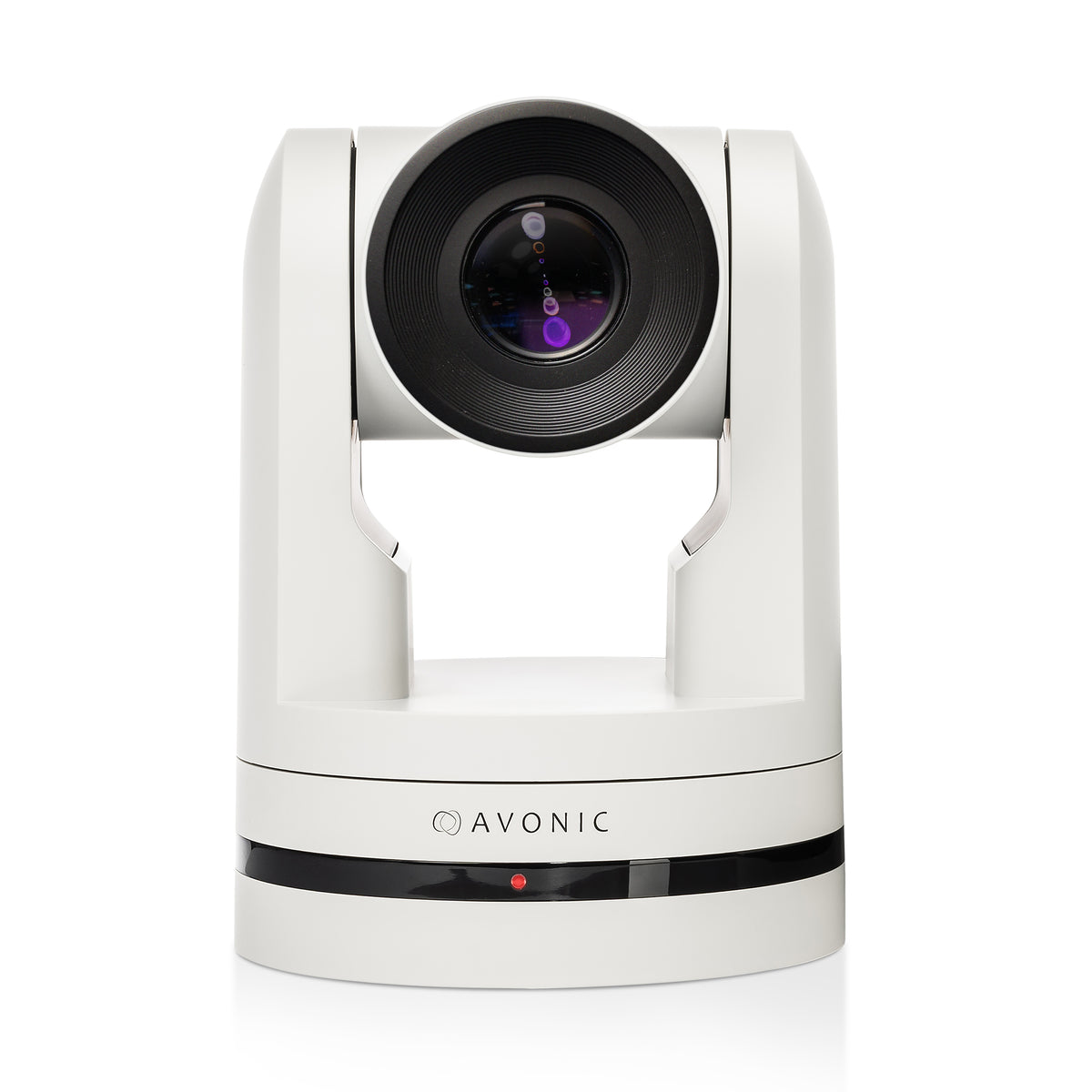

Avonic CM93 PTZ Camera NDI
The Avonic CM93-NDI delivers 4K60 video, 30x zoom, and NDI®|HX for seamless IP production in any professional AV setup
The Avonic CM93-NDI is a cutting-edge 4K60 PTZ camera that combines broadcast-quality imaging with the power of NDI®|HX2 and NDI®|HX3 for seamless IP-based video production. Designed for fixed installations in high-demand environments such as conference centers, lecture halls, and live event venues, the CM93-NDI delivers ultra-low latency 4K video at 60 frames per second with 30x optical zoom in 4K and up to 50x in Full HD. It features simultaneous HDMI 2.0, 3G-SDI, USB 2.0, and IP streaming outputs, offering unmatched flexibility across AV workflows. The camera’s high-performance Sony CMOS sensor with HDR support ensures exceptional image quality even in challenging lighting conditions. With advanced presenter and conference tracking modes, hybrid tracking zones, and customizable zoom and boundary settings, the CM93-NDI adapts intelligently to dynamic environments. Its NDI integration allows for simplified cabling, remote control, and real-time switching, making it a future-ready solution for any IP-based AV infrastructure.
Camera
Resolution Up to 4K60
Video Systems HDMI 2160p60, 2160p59, 2160p50, 2160p30, 2160p25, 1080p60, 1080p59,1080p50, 1080i60, 1080i59, 1080i50, 1080p30, 1080p29, 1080p25, 720p60, 720p59, 720p50
Video Systems SDI 1080p60, 1080p59, 1080p50, 1080i60,1080i59, 1080i50, 1080p30, 1080p29, 1080p25, 720p60, 720p59, 720p50
Sensor Sony 1/1.8”,8.42MP, 16:9 High SNR CMOS Sensor
Shutter Auto/ Manual 1/60th ~ 1/10000th
Scanning mode Progressive/ Interlace
Zoom/Aperture/Focal length 30x zoom (4k)*, 50x zoom (HD)* / F1.6 ~ F11/ 7mm ~ 172mm (+/-5%)
Minimal Illumination 0.05LUX @F1.6
White Balance Auto, Manual, One Push, Manual 2400 ~7100K in 100K steps
Backlight Compensation Supported
Digital Noise Reduction Supported
Signal Noise Ratio >50 dB
Horizontal FOV 59.2° - 2.5°
Vertical FOV 34.6° - 1.4°
Horizontal rotation +/- 170°
Vertical rotation 120° (30° down, 90° up)
Pan speed range 0.15° ~ 120° p/sec
Tilt speed range 0.15° ~ 70° p/sec
H&V image flip Supported
Number of presets 255 with 0.1° accuracy
Control UVC, IR Remote, IP, Serial
Control protocol PELCO (Serial), VISCA (Serial/ IP), HTTP API (IP)
IP Features
Video coding standard H.265 / H.264 / MJPEG
H.265 Profiles Main
H.264 Profiles Base, Main, High
Main stream resolution 3840x2160/ 1920x1080/ 1280x720
Main stream max framerate 60fps
Main stream bitrate 64 ~ 81920 Kbps
Sub stream resolution 1920x1080/ 720x480/ 640x480/ 640x360/ 320x240
Sub stream max framerate 30fps max
Sub stream bitrate 64 ~ 5120 Kbps
Video bitrate type CBR, VBR
Supported protocols RTSP, RTMP, ONVIF, SRT, Multicast, Unicast
Audio standard AAC
Audio bitrate 32, 64, 96, 128 Kbps
Audio sample rate 48Khz
Audio line in Balanced audio by 5-way Phoenix connector

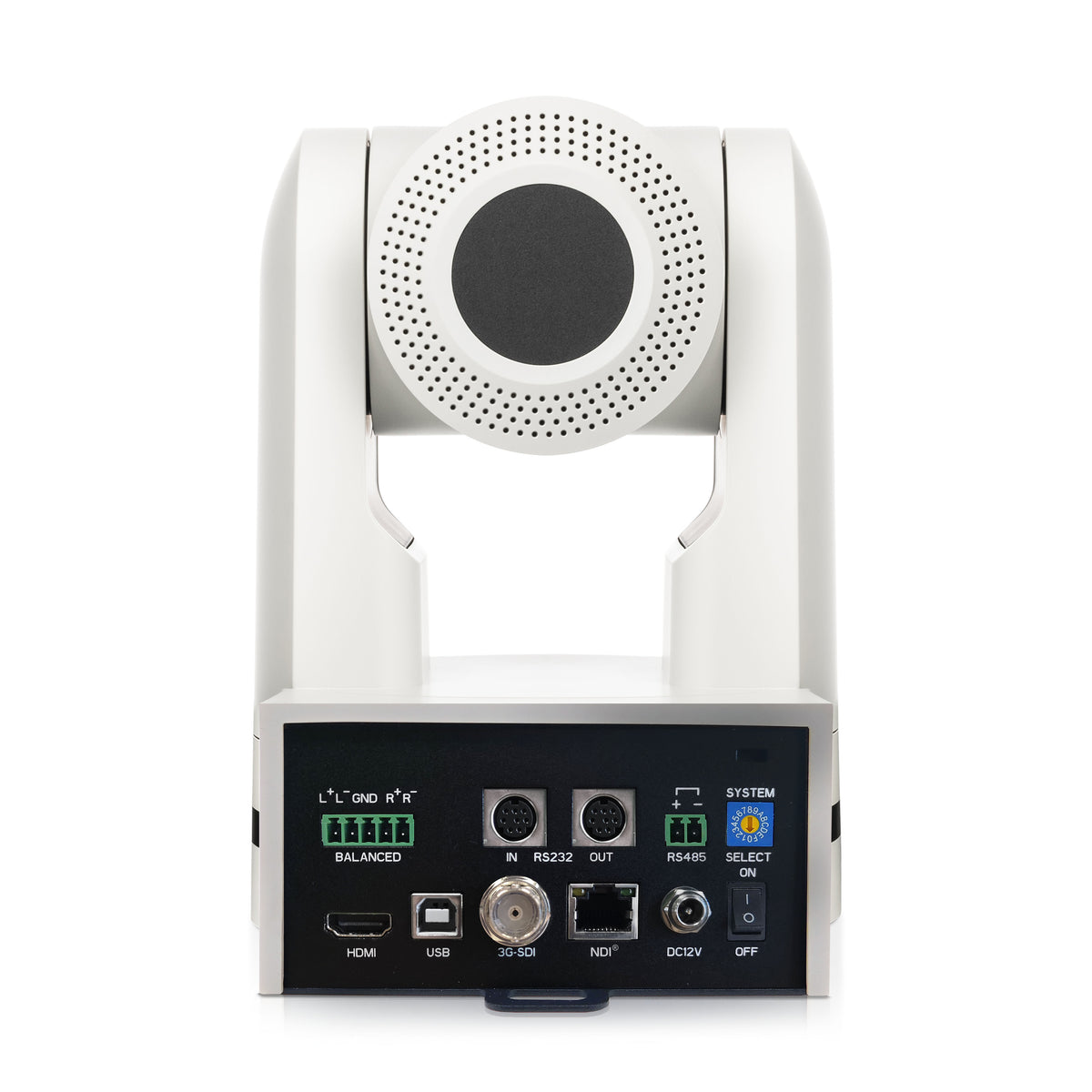

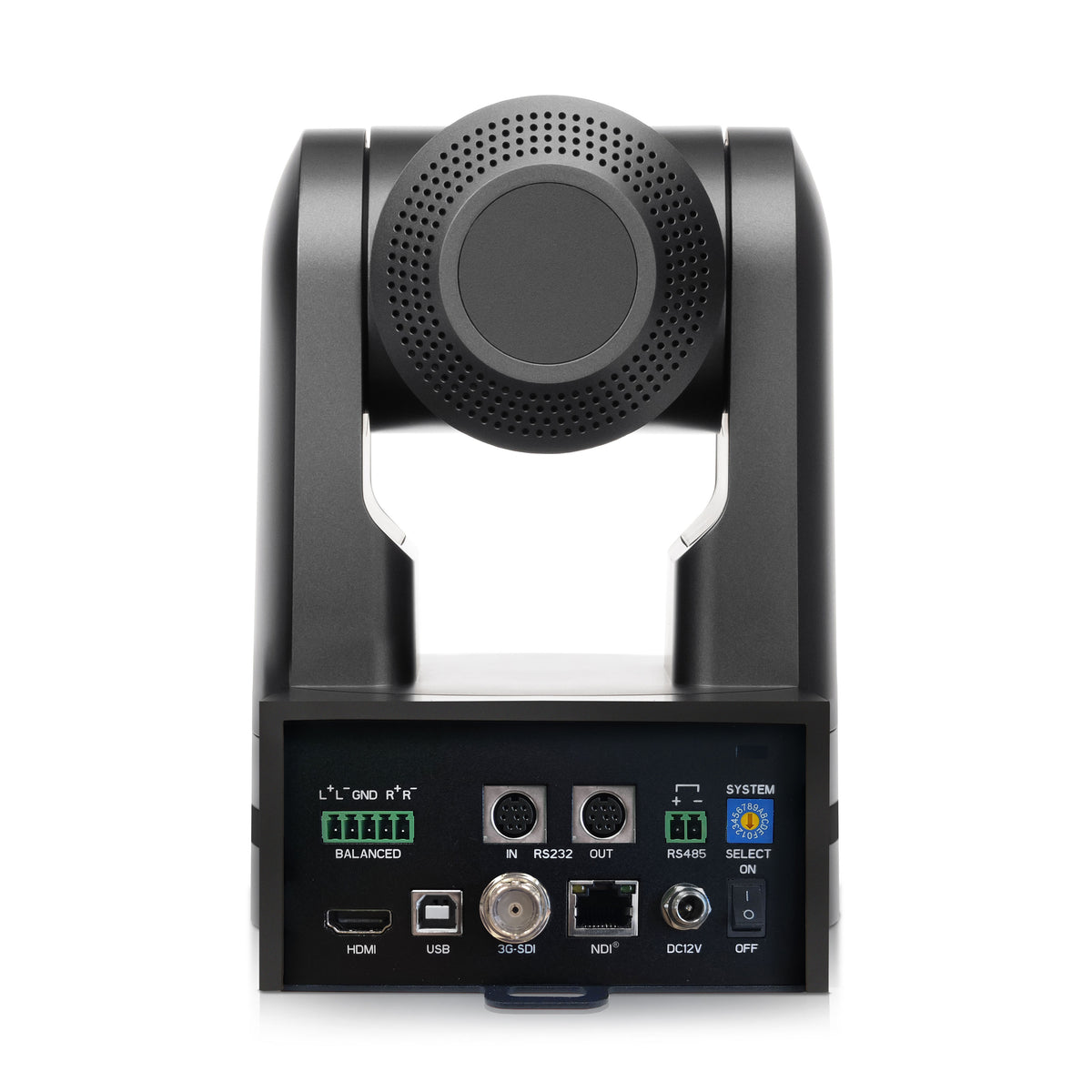

Input / Output Interface
HDMI output HDMI 2.0 up to 4K60-
SDI output 3G-SDI, 1080p60 max.
USB Output USB2.0 Type B, 2160p30 max.
Network interface RJ45 1 Gb.
Serial interface RS232 mini DIN-8, RS485 2-pin phoenix
General Specifications
Input Voltage 12V
PoE PoE 802.3AT (PoE+) at 18 watt
Power consumption 18W
Power supply 12V2A
Power connector EIAJ-4 - Philmore 255 plug
Operating temperature -5°C ~ 35°C
Storage temperature -20°C ~ 60°C
Operating humidity 20% ~ 95% non-condensing
Bottom fastening screw thread 1/4” 20 UNC
Features SRT and Tally Light
Color Black, White
Dimensions product wxhxd 300 x 235 x 300mm
Weight product 2.5 kg
Dimensions box 30 x 30 x 24 cm
Weight box 3.4 kg
Included Power adapter, Remote control, RS232 cable, RS485 2-way Phoenix connector, Line-In 5-way Phoenix connector
CM93-NDI
NDI standard NDI®|HX 2 & NDI®|HX 3
PTZ control over NDI Enable via WebGUI
License required features
Feature Tracking
Tracking distance 2 - 15 meters **
License SKU AV-LC90-1
License type Life-time License
Power adapter
Remote control
RS232 cable
RS485 2-way Phoenix connector
Line-In 5-way Phoenix connector
