Avonic
AV-CM32-IP-W

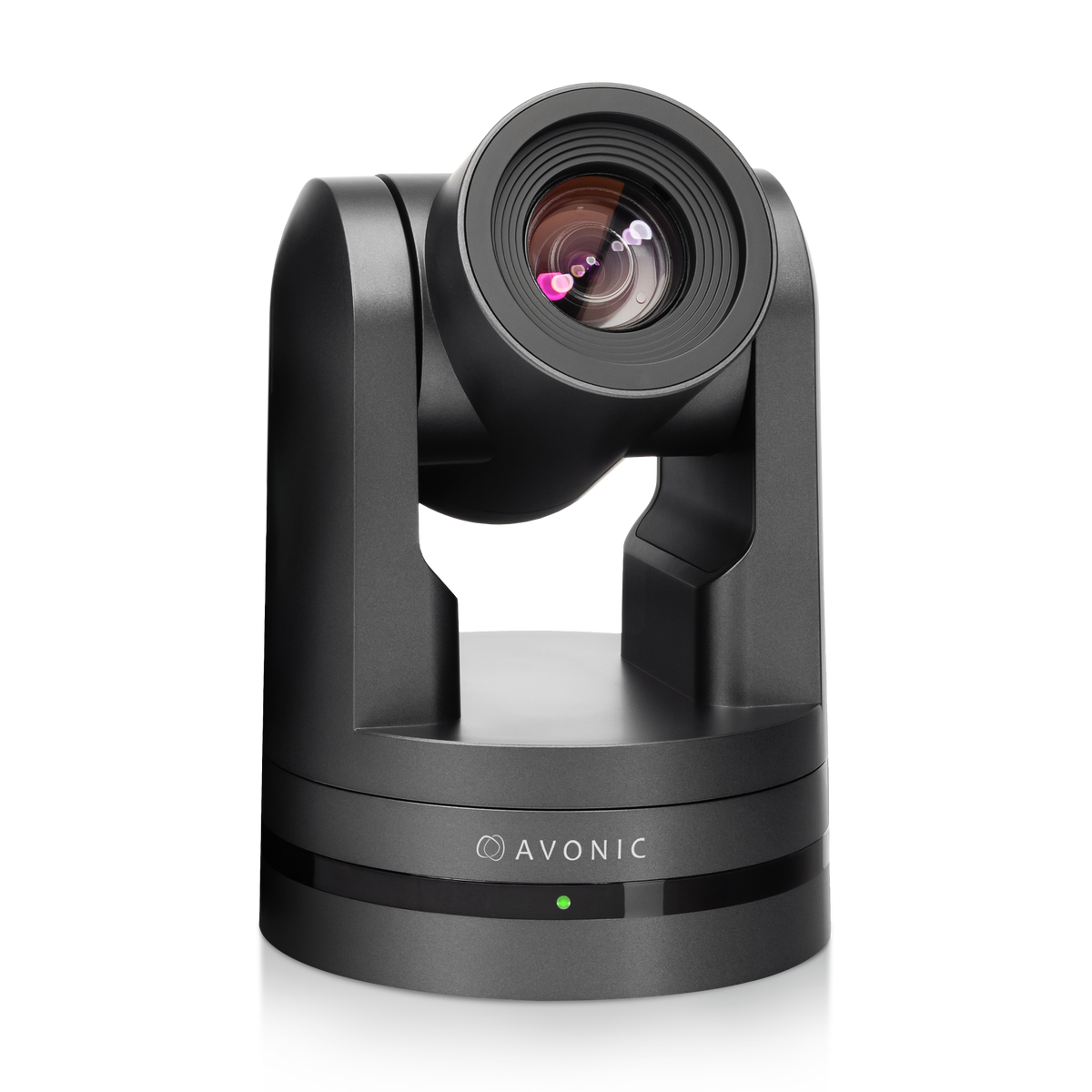

Avonic CM32 PTZ Camera
Capture every detail with the Avonic CM32 — a 4K PTZ camera built for speed, clarity, and seamless AV integration.
CM32
The CM32 is Avonic’s essential 4K PTZ camera, designed for high-quality video capture in fixed installations such as classrooms, meeting rooms, and houses of worship. It offers sharp 4K resolution, smooth PTZ control, tracking, and easy integration into AV systems. Focused on simplicity and strong core performance, the CM32 is ideal for everyday applications, built with the quality Avonic is known for.
4K sensor
The CM32’s 4K sensor delivers impressive clarity, also when outputting in Full HD. Enhanced detail and sharpness make every frame stand out. It captures crisp, detailed visuals that elevate any presentation or stream. Optimized for low-light settings, it performs reliably under any circumstance.
High Pan Tilt speed
The CM32 features impressive pan and tilt speeds, making it ideal for fast-paced, demanding environments. Whether tracking a presenter across a stage or covering rapid transitions, it moves quickly and smoothly with precision. Its responsive motion control ensures critical moments are always captured in real time. Built for speed and reliability, the CM32 performs flawlessly when timing is everything.
Tracking Features
Hybrid Tracking
Merge free-motion tracking with focused zones for enhanced control.
Target Zones: Assign fixed positions like whiteboards for stable, intentional shots.
Automatic Return: The camera resumes tracking as soon as the presenter leaves the zone.
Personalized Framing: Choose zoom levels and set pan/tilt boundaries to suit your scene.
Presenter Tracking
With CM93 Presenter Mode, the camera fluidly tracks speakers to keep your audience engaged.
Zoom Choices: Tailor your view with close-up, mid-shot, or wide framing.
Pan/Tilt Customization: Set limits so the camera stays fixed on the stage area.
Auto Repositioning: When the presenter steps away, the camera resets to a designated preset.
Camera
Resolution Up to 4K30
Video Systems HDMI output 4k30, 4k25, 1080p60/59.94/50/30/29.97/25, 7020p60/59.94/50, 4k30, 4k25, 1080p60/59.94/50/30/29.97/25, 7020p60/59.94/50
Sensor Sony 1/2.8”,8.42MP, 16:9 High SNR CMOS Sensor
Shutter Auto/ Manual 1/60th ~ 1/10000th
Scanning mode Progressive
Zoom/Aperture/Focal length 20x zoom*/ F1.8 ~ F11/ 4.1mm ~ 43mm (+/-5%)
Minimal Illumination 0.5 LUX @F1.8
White Balance Auto, Manual, One Push, Manual 2400 ~ 7100K in 100k steps
Backlight Compensation Supported
Digital Noise Reduction Supported
Signal Noise Ratio >50 dB
Horizontal FOV 68.5° ~ 4.0°
Vertical FOV 40.5° ~ 2.0°
Horizontal rotation +/- 170°
Vertical rotation 120° (30° down, 90° up)
Pan speed range 0.15° ~ 120° p/s
Tilt speed range 0.15° ~ 70° p/s
H&V image flip supported
Number of presets 255 with 0.1 accuracy
Control UVC, IR Remote, IP
Control protocol VISCA over IP

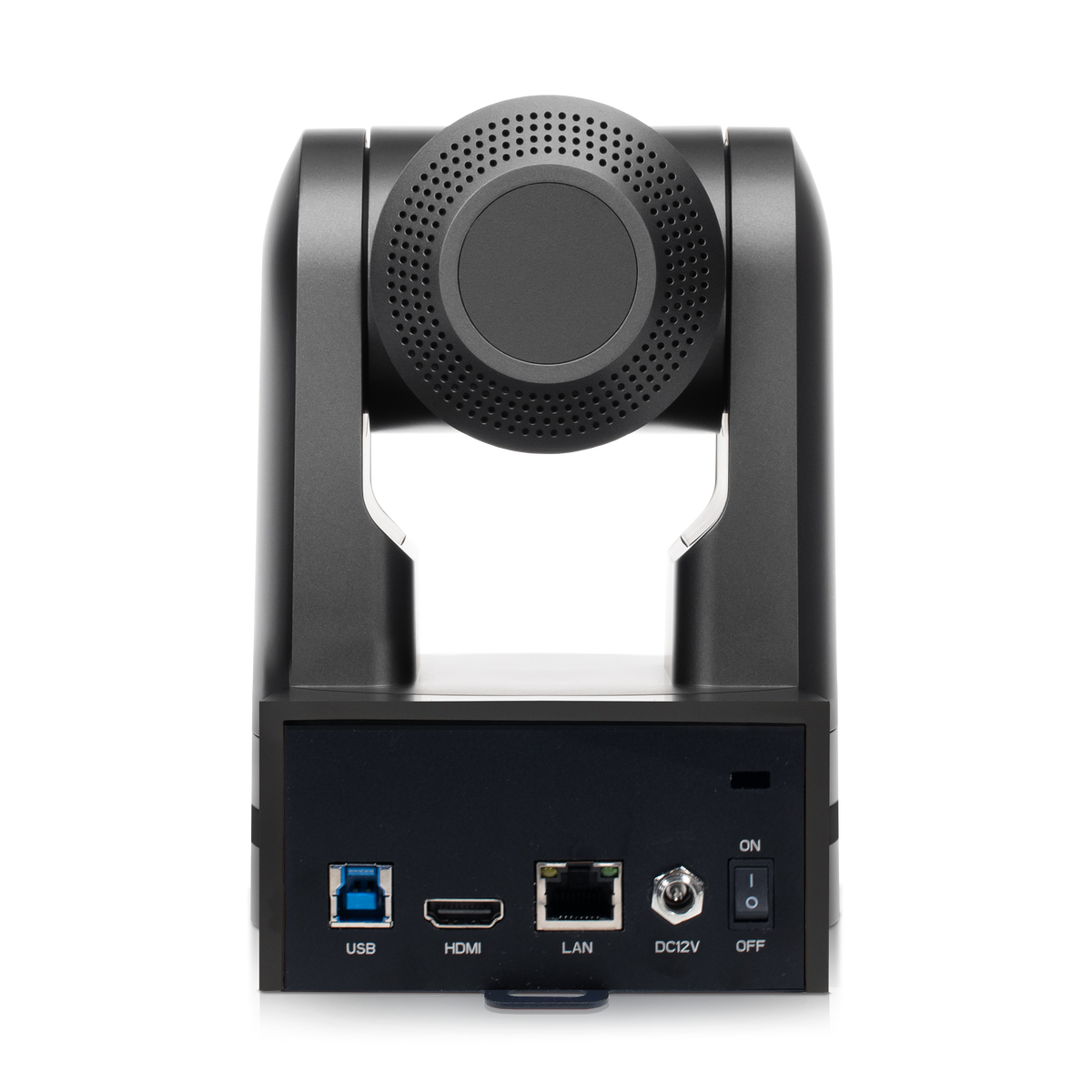

Input / Output Interface
HDMI output HDMI up to 4K30
USB Output USB2.0 Type B, 2160p30 max.
Network interface RJ45 100 mbit.
General specifications
Input voltage 12V
PoE PoE 802.3AT (PoE) at 15 watt
Power consumption 15W
Power supply 12V2A
Power connector EIAJ-4 - Philmore 255 plug
Operating temperature -5°C ~ 35°C
Storage temperature -20°C ~ 60°C
Operating humidity 20% ~ 95% non-condensing
Bottom fastening screw thread 1/4” 20 UNC

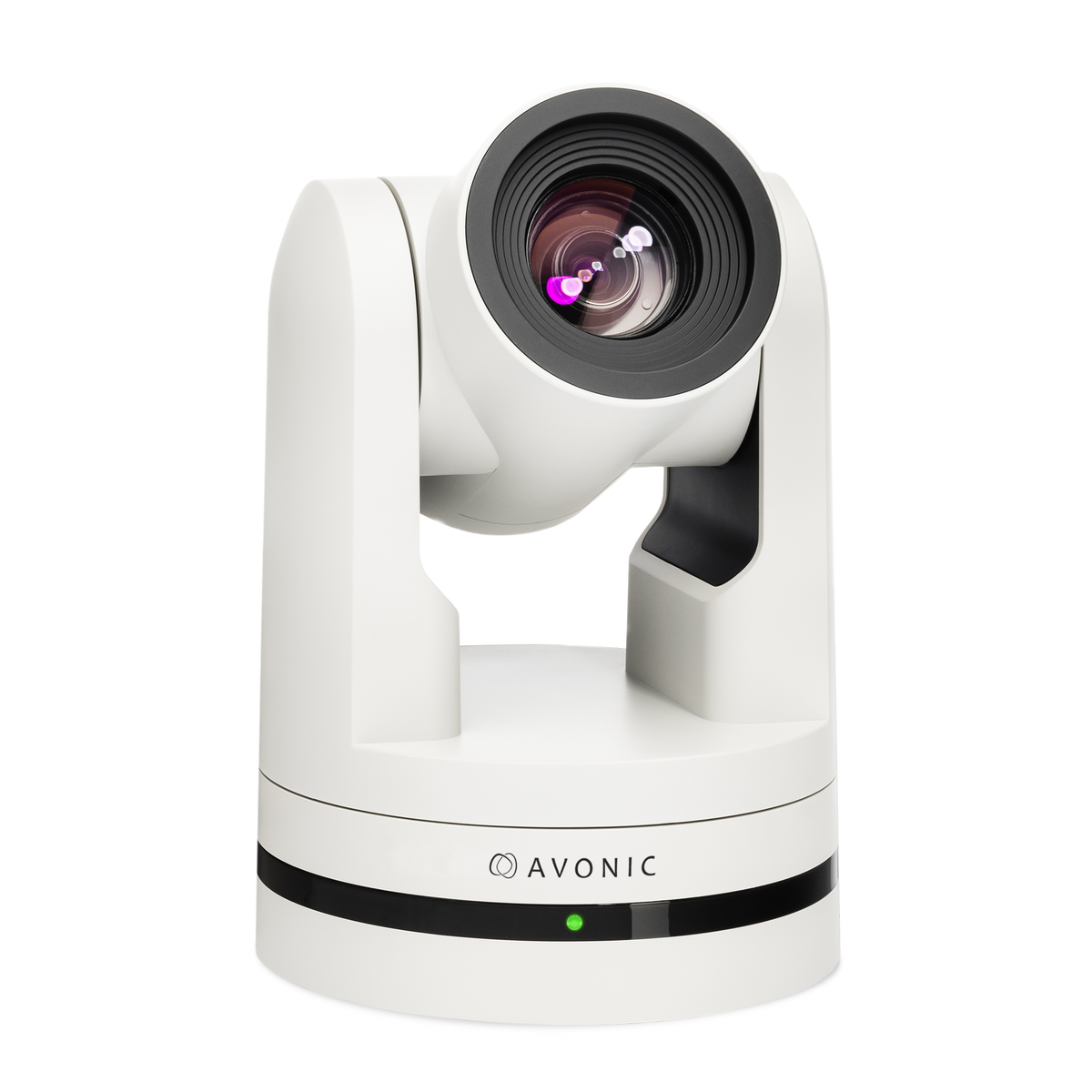

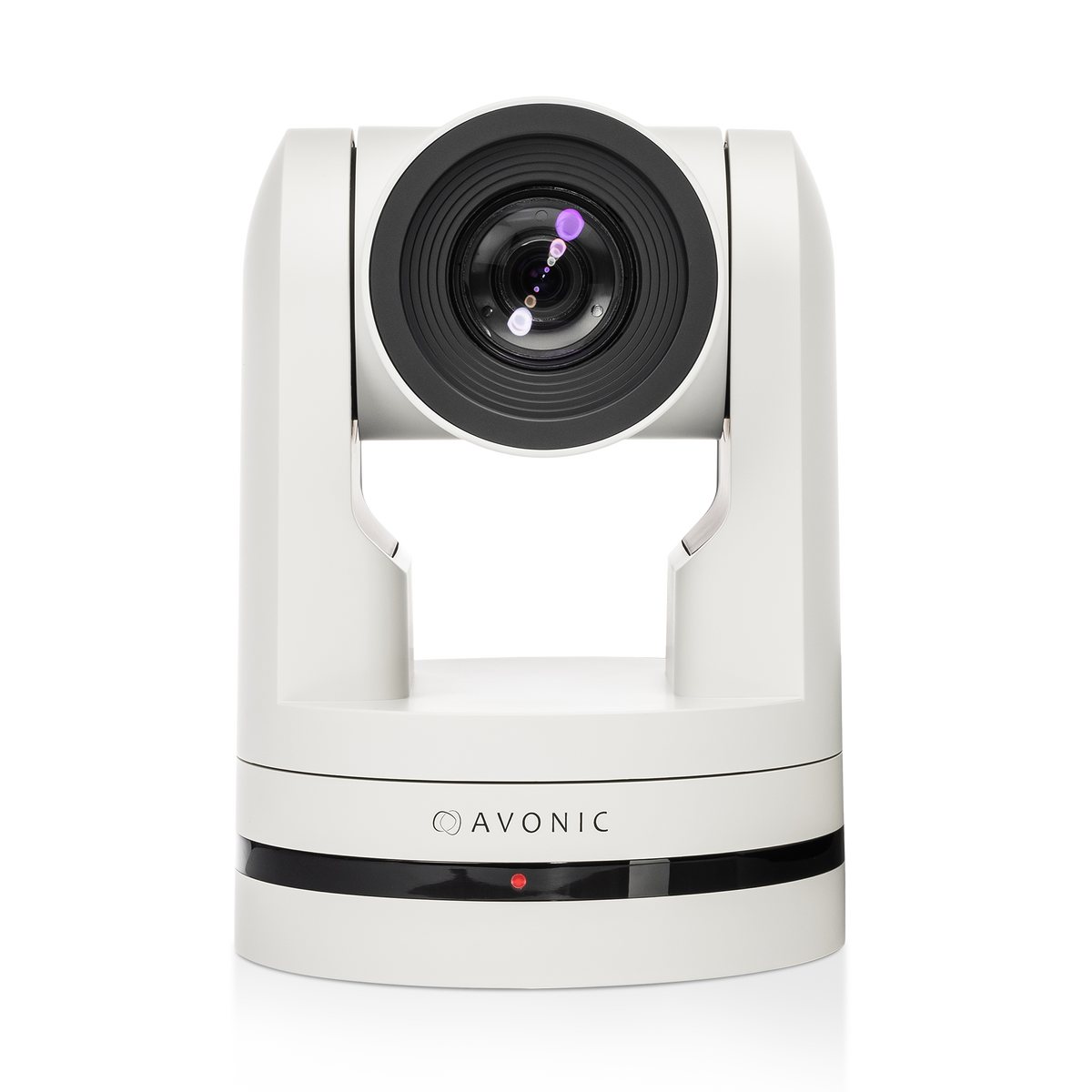

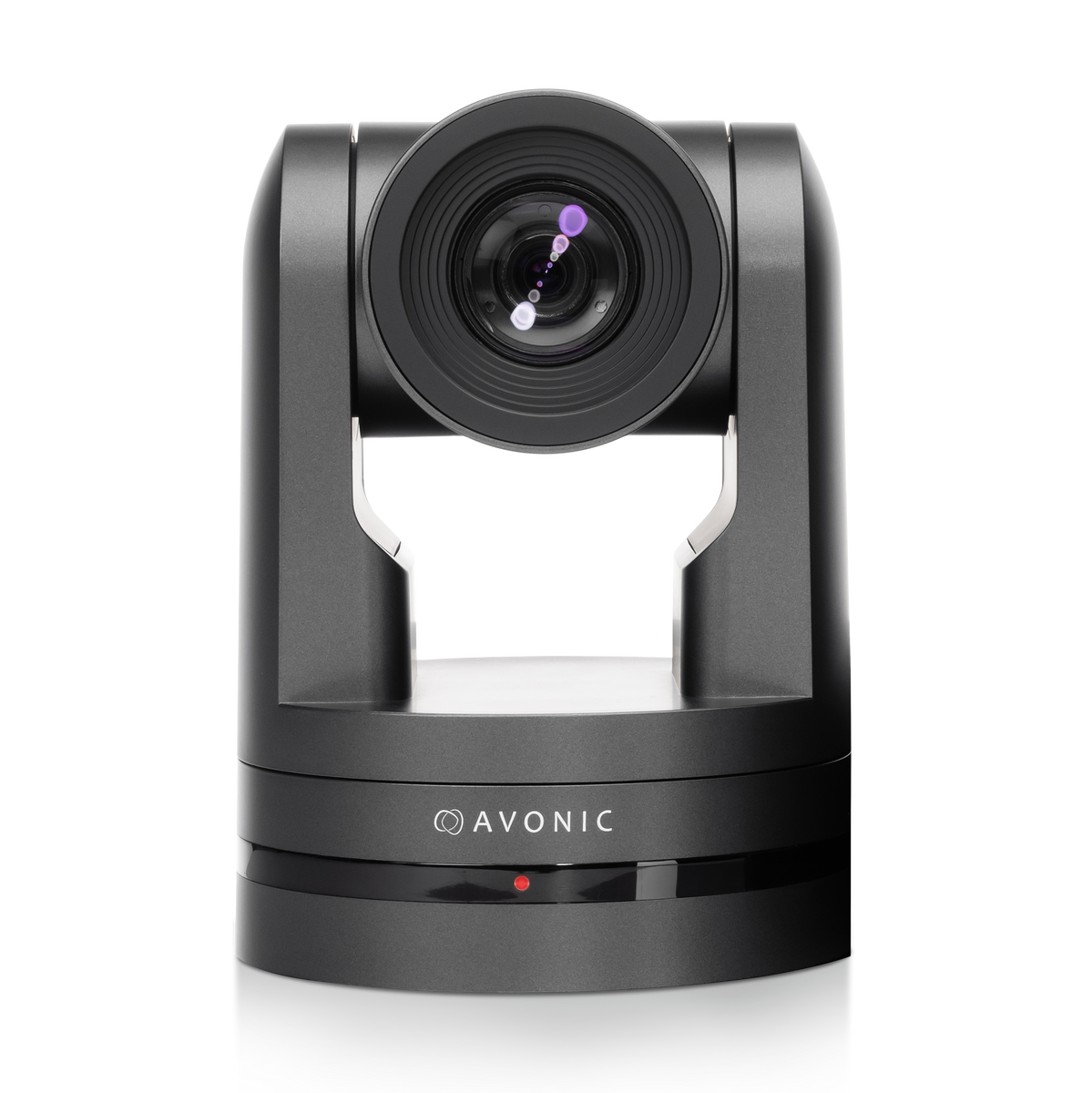

Color Black, White
Dimensions product wxhxd 133 x 180 x 153 mm. excl. connectors
Weight product 1.6 kgs
Dimensions box 26 x 24 x 24 cm
Included power adapter, remote control, USB cable
Included Features Hybrid Tracking, Presenter Tracking
IP Features
Video coding standard H.265 / H.264 / MJPEG
H.265 Profiles main
H.264 Profiles base, main, high
Main stream resolution 3840x2160 / 1920x1080 / 1280x720
Main stream max framerate 30fps
Main stream bitrate 64 ~ 40960 Kbps
Sub stream resolution 1920x1080/ 1280x720 / 720x480/ 640x480/ 640x360/ 320x240 / 320x180
Sub stream max framerate 30fps max
Sub stream bitrate 64 ~ 40960 Kbps
Video bitrate type CBR, VBR
Supported protocols RTSP, RTMP, ONVIF, Multicast, Unicas
Power adapter
Remote control
USB cable
