Green-Go
GGO-MCXD

Green-Go 32 channels desktop station

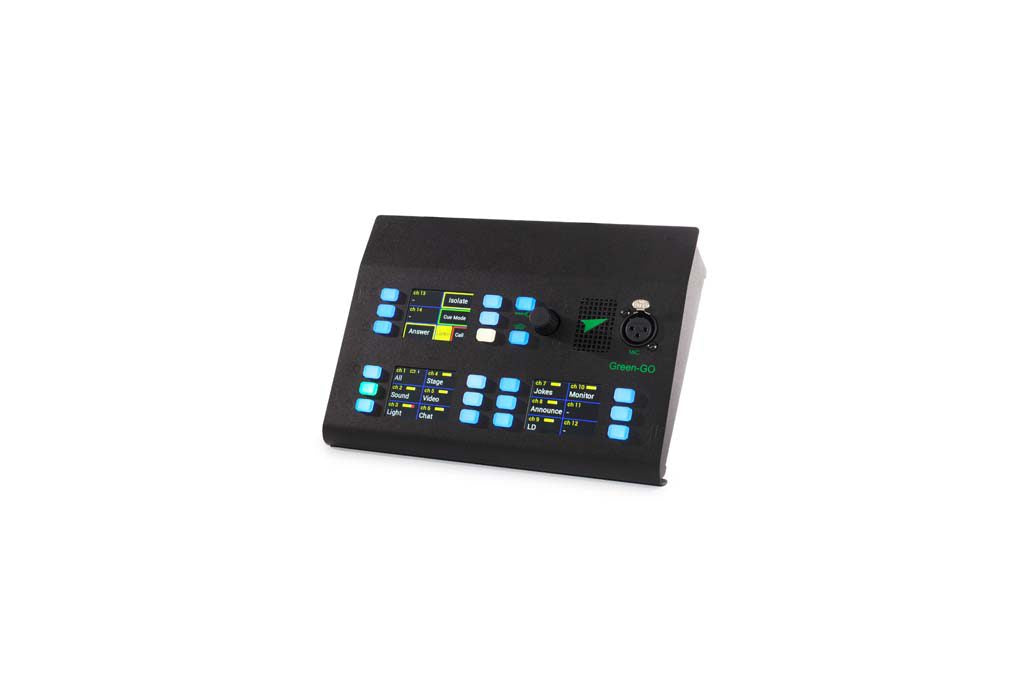

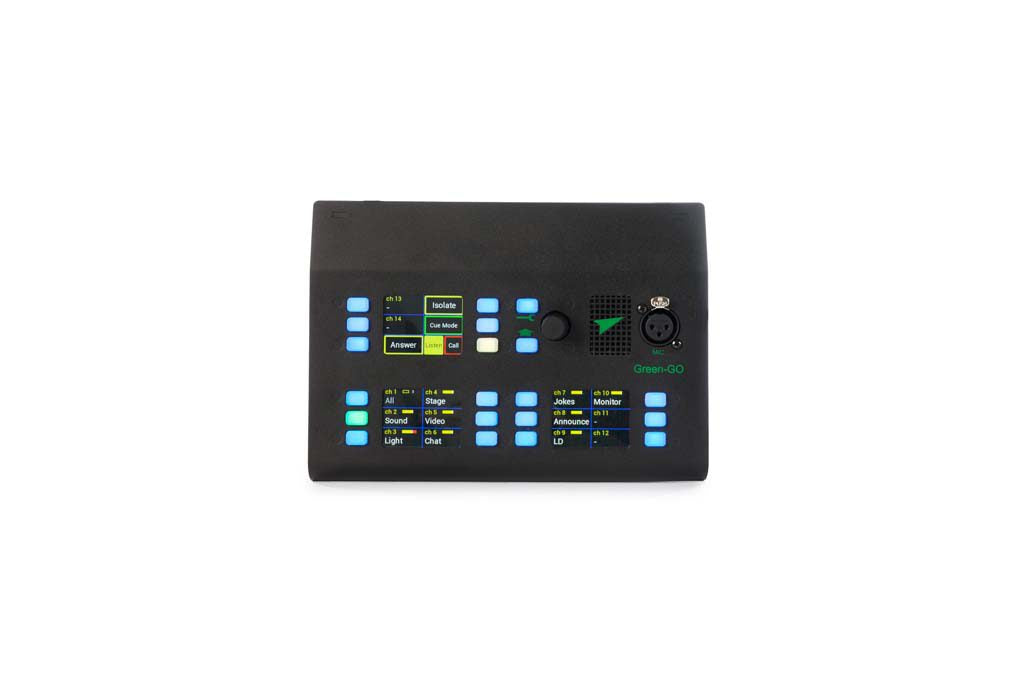

Green-GO MCXD: A PoE-powered multi-channel desk station with 32-channel access, TFT touchscreens, GPIO integration, and scalable expansion. Designed for precision, flexibility, and seamless communication in professional intercom networks.

4-7 werkdagen
  • €2.670,00 (excl. btw)
    €3.230,70 incl. btw
  • - 0%

The Green-GO MCXD Multi-Channel Desk Station is a powerful and flexible intercom solution designed for professional communication networks. Engineered for precision and speed, it provides direct access to up to 32 separate users or groups through individual multicolour push-buttons, each assignable for tailored workflows. Three high-resolution colour TFT touchscreens display channel names, volume levels, and status indicators, while adjacent push-buttons enable intuitive control of essential functions such as Talk, Listen, Call, or Cue.

Built for versatility, the MCXD integrates a robust 2-watt internal loudspeaker and offers connectivity for a gooseneck microphone via a front-mounted XLR connector, as well as headset options for clear audio in demanding environments. The rear panel features two Neutrik EtherCON LAN ports with an internal 100Mbit switch, ensuring seamless network integration without the need for a central matrix. Additional GPIO ports (2 in, 2 out) allow external triggers and control, while line-in and line-out connections enable routing of external audio sources or outputs to loudspeakers for enhanced flexibility.

Power is supplied via PoE (IEEE 802.3af-2003) or an optional 12V DC input, making installation simple and efficient. All intercom routing data, system preferences, and configurations are stored locally, and advanced customization is available through the free Green-GO Control software. For large-scale setups, the MCXD can be expanded with up to nine Multi-Channel Desk or Rack Extensions, creating a scalable solution for complex productions.

Compact yet feature-rich, the MCXD is the ultimate command station for broadcast, live events, and any environment where reliable, real-time communication is critical.

Dimensions: 220 × 160 × 45 mm

Weight: 1.11 kg

Power: PoE (802.3af) or optional 12V DC

Interfaces: 2 × RJ45 EtherCON, GPIO Sub-D9, Line In/Out, Headset, XLR microphone input

Controls: 3 TFT colour touchscreens, 20 multicolour backlit buttons, 1 encoder knob

Audio: Built-in 2W speaker, external loudspeaker support via Line Out

Expandability: Up to 9 extension units (Rack or Desk)
