Green-Go
GGO-MCXEXT

Green-GO 24 channels extension for MCX

Expand your MCX rack with the MCXEXT, adding twenty‑four instantly accessible channels with colour TFT touchscreens, robust EtherCon networking and local configuration storage for reliable, scalable intercom control.

1-3 werkdagen
  • €2.307,00 (excl. btw)
    €2.791,47 incl. btw
  • - 0%

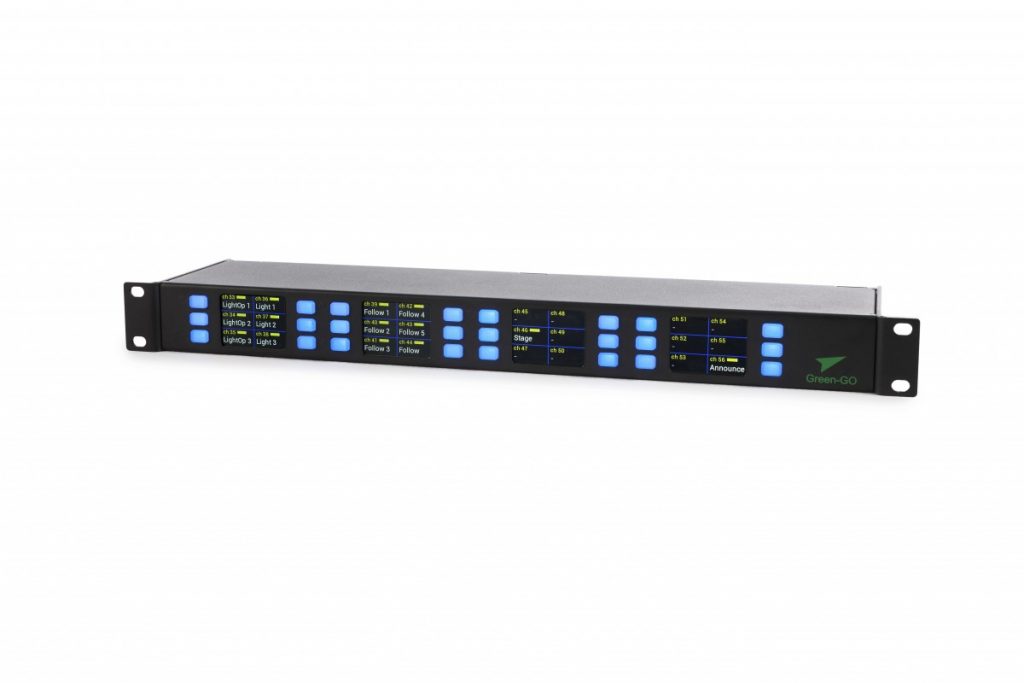

The Green‑GO MCXEXT is a dedicated rack extension for the MCX Multi‑Channel Rack Station, engineered to add direct access to twenty‑four additional users or groups through individually assignable multicolour push‑buttons. Four colour TFT touchscreens present channel names, volume and status with exceptional clarity, while per‑channel controls enable Talk, Listen, Call and Cue with immediate precision. Designed to operate as a slave to the MCX, the MCXEXT scales effortlessly for demanding productions by allowing up to nine extensions to be daisy‑chained to a single MCX, delivering a clean, expandable path to large multi‑channel workflows. Integration is robust and straightforward thanks to two EtherCon LAN sockets with an internal 100 MBit switch and a reliable DC power input. Intercom routing, system setup and user preferences are stored in local memory to safeguard configurations, and complete projects can be built and maintained with the free Green‑GO Control software.

Channels & control

24 programmable channels, assignable to users or groups

Per‑channel functions: Talk, Listen, Call, Cue

4 × colour TFT touchscreens (2.2″) for status/labels/levels

24 × multicolour backlit push‑buttons (one per channel)

Displays

Size: 2.2″ per screen

Resolution: 240 × 320 pixels

Active area per screen: ~33 × 44 mm (H × W)

Networking

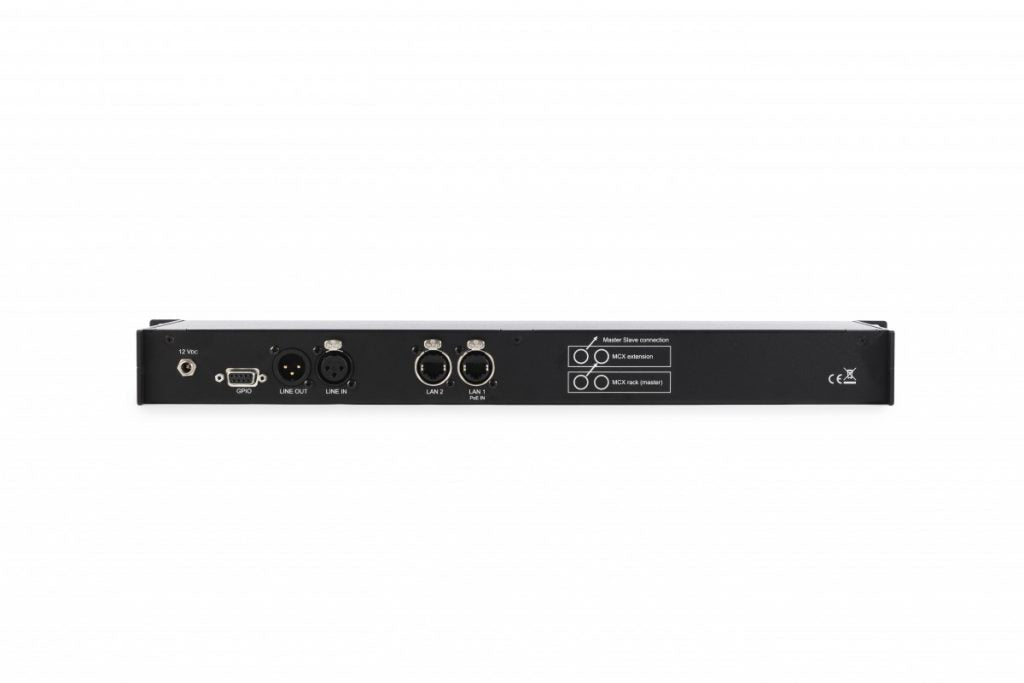

2 × Neutrik RJ45 EtherCON ports (10/100 Mb, integrated switch)

Intercom data routed over Ethernet; audio presented via the connected MCX Rack Station

Configuration and preferences stored locally on the device

Power

External 12 V DC via barrel connector (no PoE)

Consumption: ~5 W typical, 6.5 W max

Mechanical

Form factor: 19″, 1U rack‑mount

Dimensions (H × W × D): 44 × 483 × 110 mm

Weight: 1.67 kg

Environmental

Operating temperature: 0 °C to +55 °C

1 × Green‑GO MCXEXT rack extension

1 × Universal 12 V DC power supply with plug adapters (CEE7/16, NEMA‑1, BS‑1363, AS‑3112)

1 × Printed quickstart guide
