Skaarhoj Wave Board
  • Skaarhoj Wave Board
    Skaarhoj
    WAVE-BOARD-V2B

    Skaarhoj Wave Board

    The Skaarhoj Wave Board is a versatile control panel designed for professional broadcast and live production environments. It features customizable buttons, OLED displays, and a joystick for intuitive control and seamless integration with multiple devices, enhancing functionality and efficiency.

    4-7 werkdagen
    • €2.895,00 (excl. btw)
      €3.502,95 incl. btw
    • €3.018,00
    • - 4%
    ▼
    • Default Title

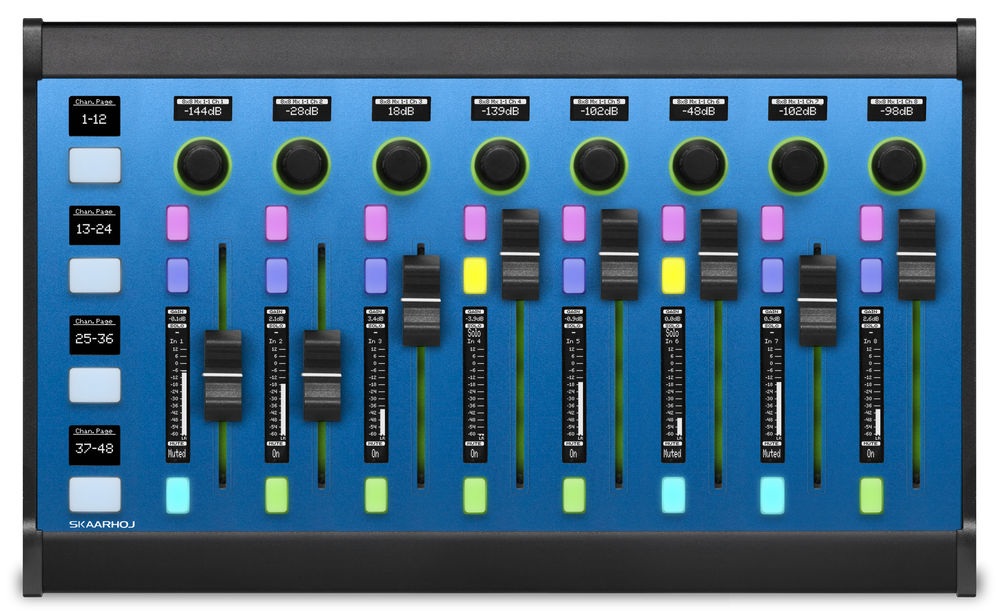

    A cutting-edge networked fader bank designed to seamlessly control audio processors, mixers, DSPs, audio software, and a variety of other applications requiring tactile faders, such as lighting control and camera shading. This innovative controller features eight unique SKAARHOJ channel strips, each equipped with a vibrant OLED level meter display, smooth motorized fader, precise encoder, and dedicated 2-way buttons. Additionally, four versatile 4-way buttons enable users to easily toggle through layers or menus and fire snapshots, delivering unmatched flexibility and convenience.

    Benefits

    • Provides critical tactile control over audio in visual live production environments.
    • Universal compatibility with devices like Direct Out Prodigy.MP, Digico, Allen-Heath, AMPP Audio Mixer, and more.
    • Supports audio management on video devices such as ATEM, TriCaster, and vMix setups.
    • Each fader comes with 3 knobs, a vertical display, and a wide-screen OLED for precise control.

    Features

    • Extensive list of supported devices
    • Advanced ergonomics
    • Versatile connectivity via IP
    • Durable build quality
    • 8 Motorised faders
    • 8 assignable backlit encoders
    • OLED display for each channel showing live metering (if supported)
    • Three 2-way buttons for each channel strip
    • Four 4-way buttons
    • Widescreen OLED displays for each button and knob
    • Universal control of multiple 3rd party devices
    • User customization with Reactor Web UI
    • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • Designed and made in Denmark
    • Time tested – adopted by professionals worldwide
    Hardware Specifications
    Component Highlights 60mm motorized faders
    Buttons Elastomer Four-Way Button (x4); Elastomer Two-Way Button (x24)
    Encoders Encoder (x8)
    Analog Components Motorized Fader 60mm (x8)
    Programmable OLED Tiles 32x24 pixels (x16); 64x48 pixels (x4); 88x32 pixels (x8); 256x32 pixels (x8); 32x32 pixels (x8); 176x32 pixels (x8)
    Other OLED Display Tile (x40)
    Connectivity
    Networking 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    Power Supply 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
    Service Port Micro USB for setting manual IP
    Peripherals USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.
    Software
    Platform Blue Pill (Reactor, Device Cores, skaarOS Linux)
    Licenses Full Reactor and Device Core licenses included
    Physical and Shipping
    Product Weight 1574 g
    Shipping Box Weight 2380 g
    Country of Origin Denmark
    EAN Code 5714074002796

    (This Product)

    12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive

    Getting Started Guide
