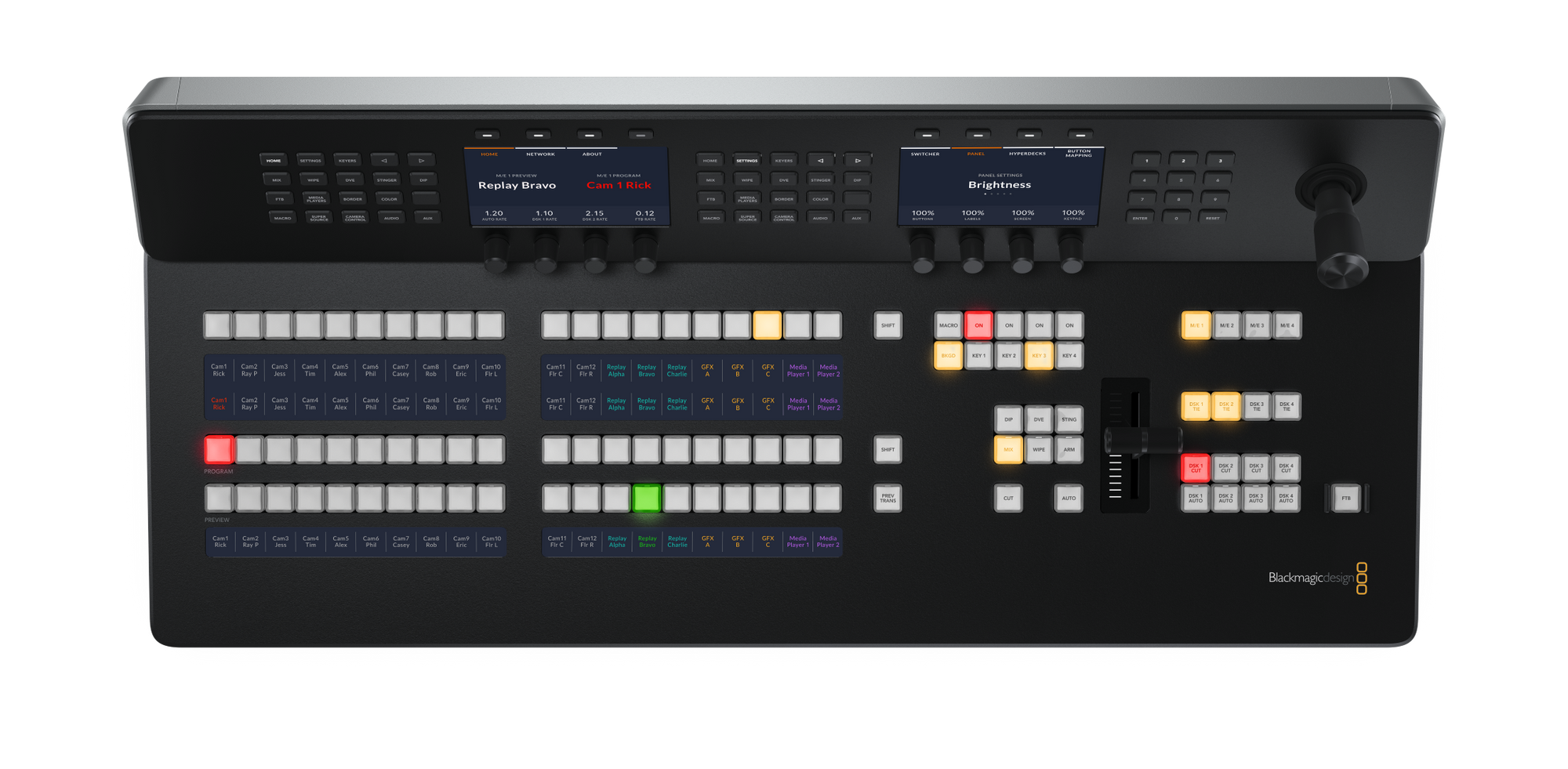

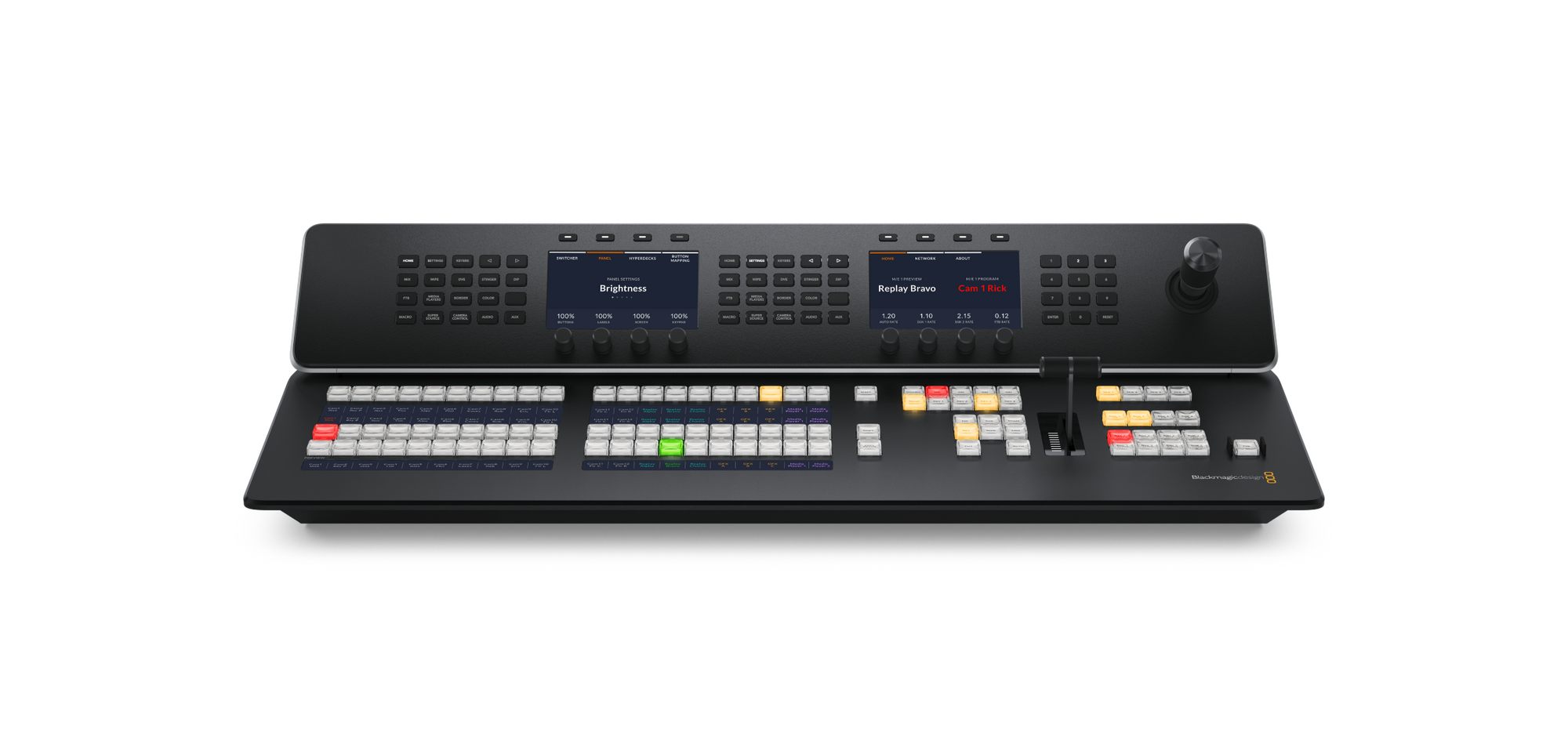

The Blackmagic ATEM 1 M/E Advanced Panel 20 is a versatile and powerful hardware control panel designed for professional live production. This panel features 20 input buttons, each with customizable colors and input labels, providing a highly intuitive and efficient workflow. It includes two system control LCDs that offer clear and detailed feedback, enhancing the user experience. The panel is equipped with buttons for controlling four upstream keyers, four downstream keyers, and four M/E rows, allowing for complex and dynamic live productions. Additionally, the joystick enables precise DVE positioning, while the professional T-bar fader ensures smooth transitions. The ATEM 1 M/E Advanced Panel 20 integrates seamlessly with ATEM switchers, offering a tactile and efficient interface that significantly speeds up the switching process. This panel is ideal for broadcasters and live event producers who require a reliable and versatile control solution for both large and small productions.
Connections
Ethernet
4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.
Software Updates
1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows
1
Direct Cross Points
20
Shifted Cross Points
40
Crosspoint Button Type
Tri-Color LED
Preview Transition
1
Transition Rate Displays
Via main menu
LCD Menu Displays
2
Menu Control
2 x 20 buttons
Dedicated Macro Buttons
1 x 20
Transport Control Buttons
8
Destination Bus
1
Source Select Bus
1
Fader Bar
1
3 Axis Joystick
1
Numeric Keypad
1
Software
Software Applications
ATEM Software Control Panel.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Input Voltage
2 x Internal 100 - 240V AC.
Redundant Power
Yes
Power Usage
75W
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 95% non-condensing
ATEM 1 M/E Advanced Panel 20
Welcome wallet with QR code for software download
