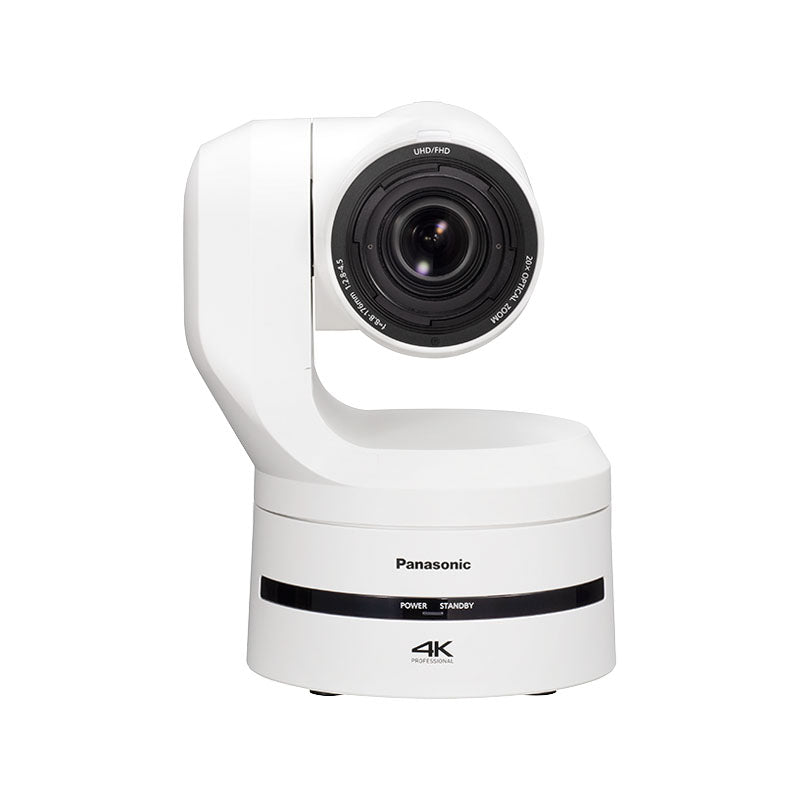

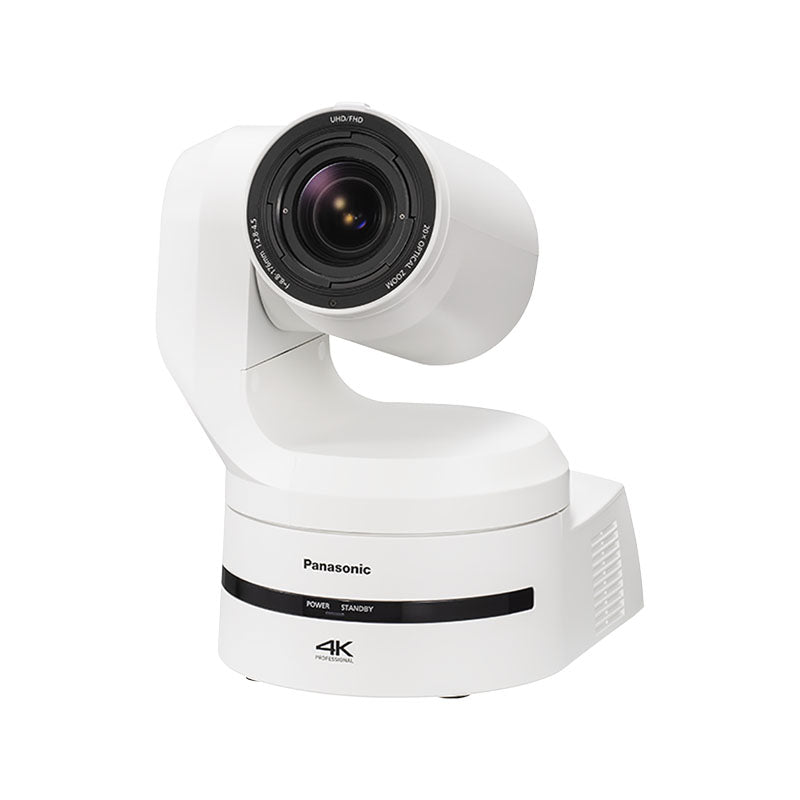

General |
Power Requirements |
12 V DC ± 10% (10.8 V to 13.2 V) |
PoE++ |
IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)*1
(Software authentication (LLDP) is supported). |
Current Consumption |
5.0A (XLR IN connector), 1.5A (PoE++ power supply) |
Ambient Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Ambient Operating Humidity |
20 % to 90 % (no condensation) |
Storage Temperature |
–20 °C to 50 °C (–4 °F to 122 °F) |
Mass |
Approx. 4.6 kg (10.14 lbs) (excluding mount bracket) |
Dimensions (W x H x D) |
213 mm x 277 mm x 240 mm (8.39 inches x 10.91 inches x 9.45 inches)
(excluding protrusions, ceiling mount bracket) |
Finish |
AW‑UE160W: Pearl white
AW‑UE160K: Black |
Controller Supported |
AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ |
Camera Unit |
Imaging Sensors |
1-type (1") (Effective size) 4K MOSx1 |
Effective Pixels |
Approx. 9,620,000 pixels |
Lens |
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches),
35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
Zoom |
• Optical zoom: 20x
• i.Zoom
• Digital zoom |
Conversion Lens |
Not supported |
Angle of View Range |
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
Optical Filter |
Through, 1/4, 1/16, 1/64*2, (Through is used as “Night mode”) |
Focus |
Switching between auto and manual |
Focus Distance |
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft) |
Color Separation Optical System |
1MOS |
Standard Sensitivity |
F11 / 2,000 lx, F14 (Normal) / 2,000 lx (Low light) |
S/N |
60 dB or more |
Horizontal Resolution |
1,600 TV lines Typ (Center area, UHD Mode, Wide) |
Gain Selection |
Auto, 0 dB to 36 dB*3 |
Frame Mix |
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 |
Electronic Shutter Speed |
60p/59.94p/59.94i |
1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
50p/50i |
1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
29.97p |
1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
25p |
1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
23.98p |
1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
59.94p/120 fps |
1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
50p/100fps |
1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
Synchro Scan |
60p/59.94p/59.94i |
60.00 Hz to 7200 Hz |
50p/50i |
50.00 Hz to 7200 Hz |
29.97p |
30.00 Hz to 7200 Hz |
25p |
25.00 Hz to 7200 Hz |
23.98p |
24.00 Hz to 7200 Hz |
59.94p/120 fps |
120.00 Hz to 7200 Hz |
50p/100fps |
100.00 Hz to 7200 Hz |
Gamma |
HD / NORMAL / CINEMA1 / CINEMA2*5
MASTER GAMMA (0.15~0.75)
R GAMMA (-75~+75)
B GAMMA (-75~+75) |
White Balance |
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast*6
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value) |
Chroma Amount Variability |
OFF, –100 % to 40 % |
Scene File |
Scene1 to 8 |
Output Format
(UHD/FHD SDI) |
4K |
2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
HD |
1080/119.88p*7*8, 1080/100p*7*8, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
Output Format
(HDMI) |
4K |
2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
HD |
1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p |
Output Format
(Fiber (video only)) |
4K |
2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
HD |
1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
Output Format
(ST 2110*9) |
HD |
1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p |
Synchronization System |
|
Internal/External synchronization (BBS/Tri-level sync) |

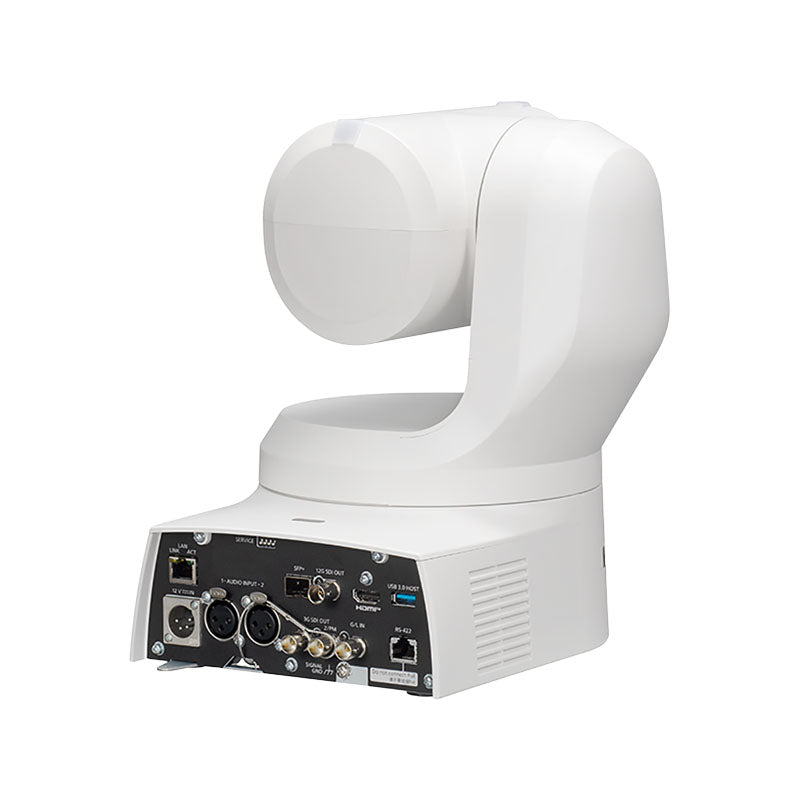

Input |
Input Connector |
DC IN |
DC 12 V IN |
G/L IN (BNC) |
BBS (Black Burst Sync), tri-level sync supported |
AUDIO INPUT 1/2 |
XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP)
AAC compatibility (compatible with IP only)
XLR 3-pin female balanced input: 2ch
• During MIC input
Input level: –50 dBu or -60 dBu/-40 dBu (0 dB=1 V/Pa, 1 kHz)
Phantom power compatible, Supply voltage: 47 V±2 V
Input impedance: Approx. 10kΩ
• During LINE input
Input level: 0 dBu (or +4 dBu/-20 dBu)
Input impedance: Approx. 10kΩ
• Input volume variable range: -40 dB to 0 dB to +20 dB (1 dB step)
• Embedded audio output level: -12 dBFS/-18 dBFS/-20 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24 bit (SDI/HDMI), 16bit (IP) |
Output |
Video Output |
HDMI |
HDMI 2.0 standard
4:2:2/10bit*10*11 |
12G-SDI OUT |
SMPTE2082‑1/SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*12 |
3G-SDI OUT1 |
SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*12 |
3G-SDI OUT2/PM |
SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*12 |
SFP+ |
SFP+ compliant (Single Fiber)*13 |
USB |
USB3.0 HOST 5G mobile router (with USB tethering support)*14 |
Input/Output |
Input/Output Connector |
LAN |
LAN connector for IP control (RJ‑45) |
RS-422 |
CONTROL IN RS-422A (RJ‑45) |
SFP+ (ST 2110*9) |
Compatible protocol:
• ST 2110-10/-20/-21/-30
• PTP ST2059-2
• NMOS IS-04/IS-05
Number of outputs: Video x3 (Main line, Crop, Monitor), Audio x2
Number of inputs: Video x1 (RETURN)
Video format: FHD*15 |
Pan-tilt Head Unit |
Pan-tilt Head Control |
IP connecting cable |
• With PoE++ ethernet hub
LAN cable*16 (category 5e or above, straight cable) up to 100 m
• Without PoE++ ethernet hub
LAN cable*16 (category 5e or above, straight cable) up to 100 m*17 |
AW protocol connecting cable |
LAN cable*16 (category 5e or above, straight cable) up to 1000 m |
Installation Method |
Stand-alone (Desktop) or suspended (Hanging)*18 |
Pan/tilt Operation Speed |
Speed range |
0.08 °/s to 180°/s (Normal mode)*19 |
Maximum speed |
Normal mode: 60°/s
Fast1 mode: 90°/s
Fast2 mode: 180°/s |
Panning Range |
±175° |
Tilting range |
–30° to 210°*19 |
Quietness |
NC35 or less*20 |
Supported Operating Systems and Web Browsers |
Supported Operating Systems and Web Browsers |
Windows |
Windows®10
Microsoft Edge
Google Chrome |
Mac |
macOS 10.13 / Safari 13
macOS 10.14 / Safari 13
macOS 10.15 / Safari 13
macOS 10.15 / Google Chrome |
iPhone/iPad/ iPod touch |
iOS
Safari
iPadOS |
Android |
Android OS
Google Chrome |
IP Streaming |
Image Streaming Mode |
JPEG (MJPEG), H.264, H.265, NDI|HX Ver.2, High Bandwidth NDI*21*22 |
Image Resolution |
3840x2160, 1920x1080, 1280x720, 640x360 |
Image Transmission Setting (JPEG) |
Frame Rate: Maximum 30 fps*23*24
Image quality (Fine / Normal) |
Image Transmission Setting (H.264) |
Transmission Type |
Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port |
Transmission mode |
CBR, VBR |
Frame Rate |
[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
Max Bit Rate |
2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps |
Image Transmission Setting (H.265) |
Transmission Type |
Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port |
Transmission mode |
CBR, VBR |
Frame Rate |
[60Hz] 30fps / 60fps
[50Hz] 25fps / 50fps |
Max Bit Rate |
2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps |
Audio Compression Type |
AAC-LC, 48 kHz / 16 bit / 2ch |
Supported Protocol |
Network Protocol: |
ICMP, ARP, GARP, MLD |
Transmission Protocol |
TCP/IP, UDP/IP |
Application Protocol |
IPv4 : HTTP、HTTPS、DNS、NTP、DHCPv6、MDNS、SNMP、802.1X
IPv6 : HTTP、HTTPS、DNS、NTP、DHCPv4、MDNS、SNMP、802.1X |
Video Streaming Protocol |
RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI|HX ver.2,
high bandwidth NDI |
External Device Cooperation Protocol |
FreeD, TSL5.0, SNMP |
NDI® Support |
NDI® Support |
NDI®(High Bandwidth NDI®, NDI®|HX Ver.2)*21*22 |
Output Format
(High bandwidth NDI) |
4K |
2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p |
HD |
1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p*25 |
Image Resolution
(NDI®|HX Ver.2) |
1920x1080, 1280x720*26 |
Image Streaming Setting |
High Bandwidth NDI® |
Transmission Type: TCP/UDP
Unicast/Multicast
Bit rate: Max 250 Mbps |
NDI®|HX Ver.2 |
Transmission Type: TCP/UDP
Unicast/Multicast
Frame rate:
[60Hz] 5fps / 15fps / 30fps / 60fps
[50Hz] 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate:
512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps /4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
Audio Compression Type |
High Bandwidth NDI® |
AAC, 48 kHz, 2 ch |
NDI®|HX Ver.2 |
AAC-LC, 48 kHz,16 bit, 2 ch |
ST 2110*9 |
Supported Format |
ST 2110 |
10/20/21/30 |
PTP |
ST2059-2 |
NMOS |
IS-04/IS-05 |
Number of Outputs (TX) |
Video |
3 channels (Full x 1, MONI x 1, Crop x 1) |
Audio |
2 channels |
Auxiliary data |
No output |
Number of Inputs (RX) |
Video |
1 channel (RETURN)*27 |
Audio |
No input |
Auxiliary data |
No input |
Output Format |
Video format |
Full x1, MONI x1, Crop x1, all the same format
1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p |
Audio specifications MIC1/2 |
PCM / 48kHz / 24bit / 1ch x2 |
Input Format |
Video format |
Full x1, MONI x1, Crop x1, all the same format
1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p |
New Features |
HDR/SDR |
HLG/BT.2020 compatible,SDR/BT.709 compatible |
Cropping |
Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available |
F Number Display |
Displayed on the AW-RP150 and AW-RP60 sides |
NDI |
High Bandwidth NDI,NDI|HX Ver.2 included as standard*28 |
IP Menu Display |
Supported*29 |
VR (FreeD)
(IP/RS422) |
Supported |
Power LED |
ON/OFF control |
Tripod Screw Penetration Measures |
Yes |
Image Stabilization |
OIS 2-axis + Hybrid method of roll direction correction
MENU switching: select between OFF/OIS/Hybrid (Stable)/Hybrid (Pan/Tilt) |
Privacy Mode |
The lens surface faces downward when standing by (ON/OFF) |
Yellow Tally |
Supported |
PTP |
Supported |
5G Mobile Router
(with USB tethering support) |
Compatible with recommended products only |
WFM Display |
Output with video superimposed from 3G/SDI OUTPUT2 |
Return Video Output |
Output return video input from ST 2110*9, NDI via SDI_OUT2 |
Horizontal Level Gauge |
ON/OFF control in OSD MENU |
Optional Accessories |
Wireless Remote Controller |
AW‑RM50AG (Size "AA" dry battery x2, obtained separately) |
