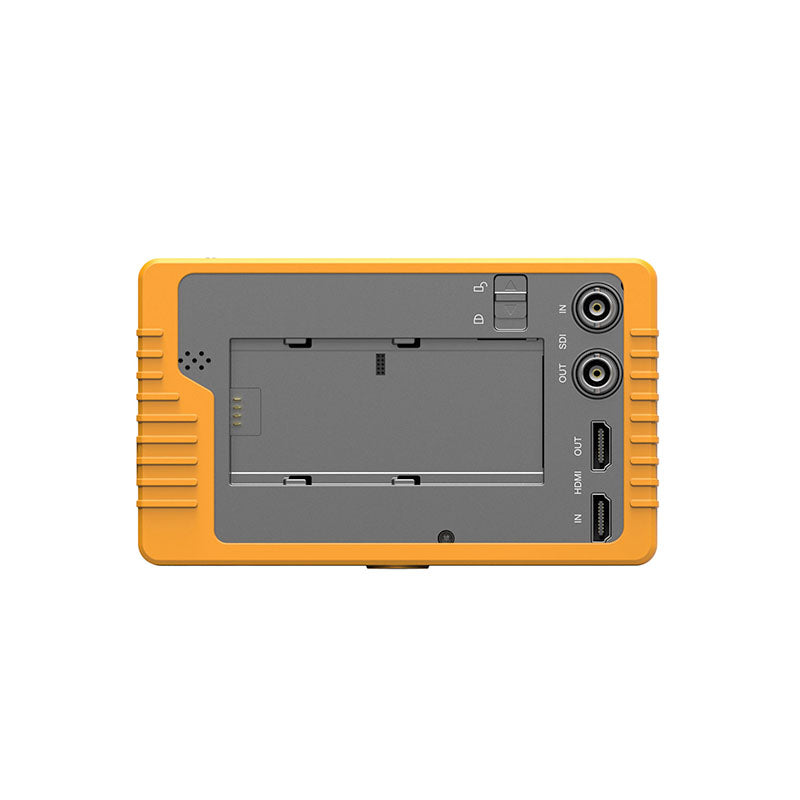

Compact maar toch volledig uitgerust, de Q5 5,5-inch Full HD-monitor op de camera van Lilliput is ontworpen om vrijwel elke productie aan te kunnen. Het 1920 x 1080 LCD-scherm bevat 401 pixels per inch voor een naadloze weergave van Full HD-signalen. HDMI- en SDI-ingangen aan de achterkant zijn compatibel met DSLR's, spiegelloze camera's en professionele camcorders.

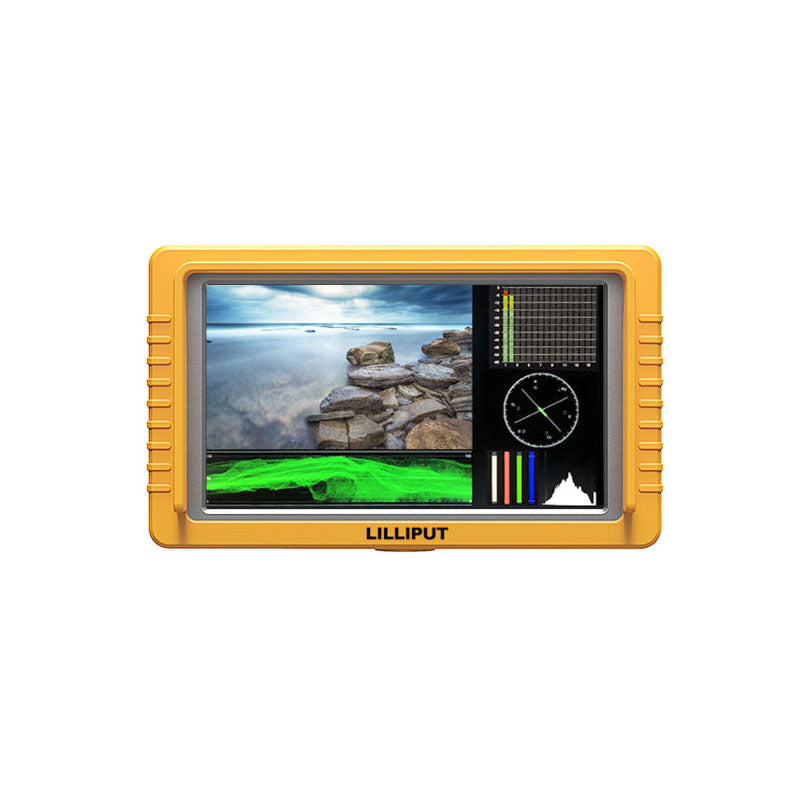

Q5 is a professional camera-top monitor specifically for photography, which features 5.5″ 1920×1080 FullHD native resolution screen with fine picture quality and good color reduction. It’s interfaces support SDI and HDMI signals inputs and loop outputs; And also supports SDI/HDMI signal cross conversion.For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards. Aluminum main body with silicon rubber case, which effectively improves monitor durability.
| Display | |
| Size | 5.5” |
| Resolution | 1920 x 1080 |
| Brightness | 500cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 160°/160°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Video Loop Output (SDI / HDMI cross conversion) | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤12W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series and LP-E6 |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 154.5x90x20mm / 157.5x93x23mm (with case) |
| Weight | 320g / 340g (with case) |
