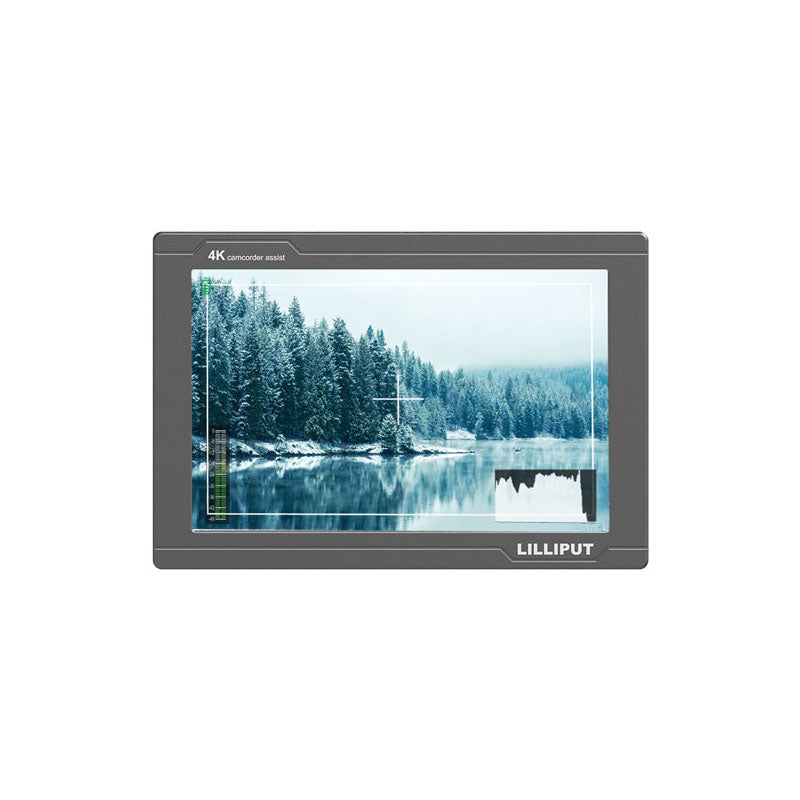

Compact, nice and professional on-camera monitor matches with FHD/4K camcorder and DSLR camera. The 7 inch 1920×1200 Full HD native resolution screen features with fine picture quality and good color reproduction. The SDI ports support 3G-SDI signal input and loop output, HDMI ports support up to 4094×2160 4K signal input and loop output. For the advanced camera auxiliary functions, such like peaking filter, audio lever meter and others, all are under professional equipment or software testing and calibration, parameters accurate, and comply with industrial standards. Aluminum housing design, which effectively improves monitor durability. This is so-called a better camera assist.
Display |
Size |
7” |
Resolution |
1920 x 1200 |
Brightness |
500cd/m² |
Aspect ratio |
16:10 |
Contrast |
1000:1 |
Viewing Angle |
170°/170°(H/V) |
Video Input |
SDI |
1×3G |
HDMI |
1×HDMI 1.4 |
Video Loop Output |
SDI |
1×3G |
HDMI |
1×HDMI 1.4 |
Supported In / Out Formats |
SDI |
720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
HDMI |
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160p 24/25/30 |
Audio In/Out (48kHz PCM Audio) |
SDI |
12ch 48kHz 24-bit |
HDMI |
2ch 24-bit |
Ear Jack |
3.5mm – 2ch 48kHz 24-bit |
Built-in Speakers |
1 |
Power |
Operating power |
≤12W |
DC In |
DC 7-24V |
Compatible batteries |
NP-F Series |
Input voltage (battery) |
7.2V nominal |
Environment |
Operating Temperature |
0℃~50℃ |
Storage Temperature |
-20℃~60℃ |
Other |
Dimension(LWD) |
182×124×22mm |
Weight |
405g |
