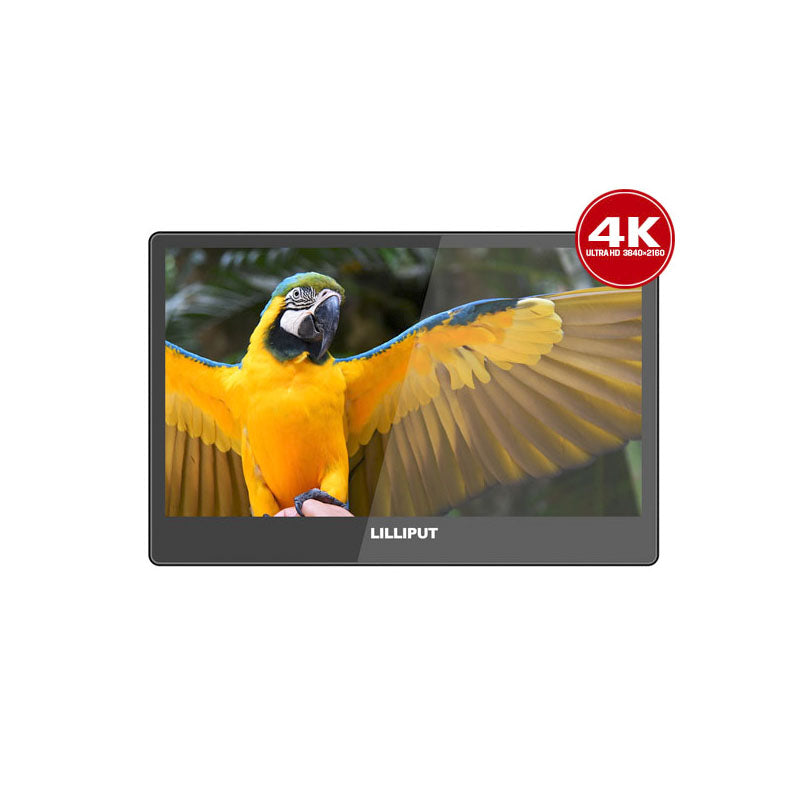

  • Lilliput A12 12.5 inch 4K broadcast monitor

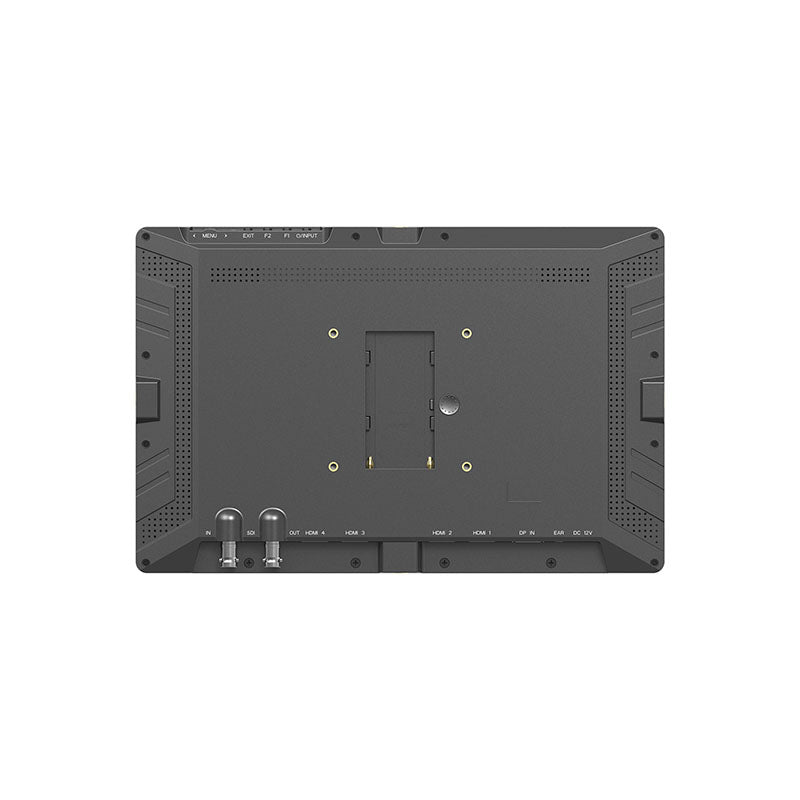

  • Lilliput A12 12.5 inch 4K broadcast monitor Back

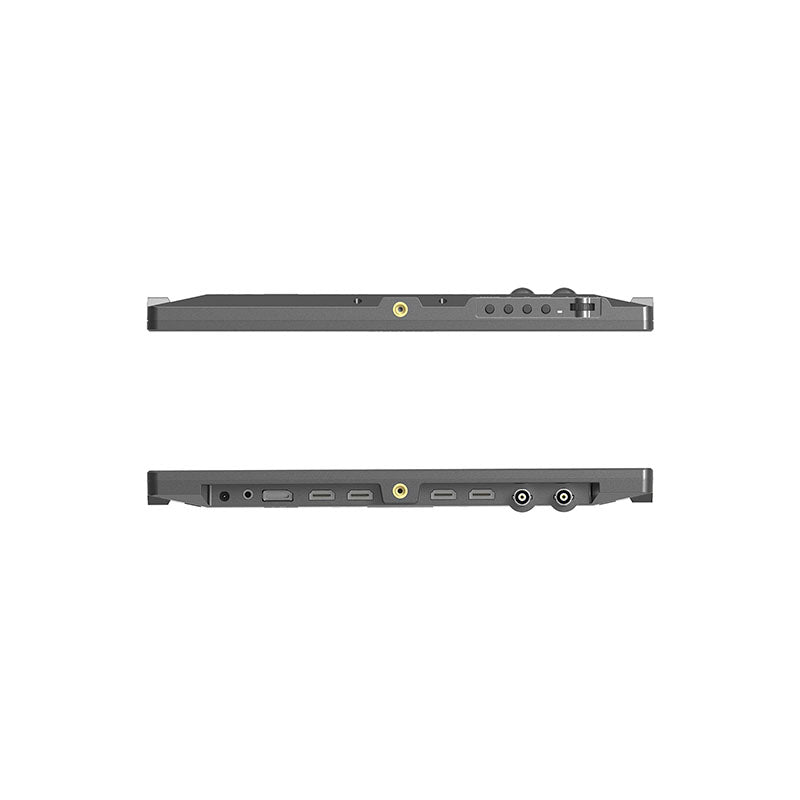

  • Lilliput A12 12.5 inch 4K broadcast monitor Connections
Lilliput
A12

Lilliput A12 12.5 inch 4K broadcast monitor

De A12 van Lilliput is een 12,5-inch SDI- HDMI monitor met 4K resolutie en mogelijkheid voor Quadview..

Levertijd opvraagbaar
  • €539,00 (excl. btw)
    €652,19 incl. btw
  • - 0%

A12 is a broadcast director monitor, which developed specifically for FHD/4K/8K cameras, switchers and other signal transmission devices. Features 3840×2160 Ultra-HD native resolution screen with fine picture quality and good color reduction. It’s interfaces support 3G-SDI and 4×4K HDMI signals input and display; And also supports Quad views splitting from differnet input signals simultaneously, which providing a efficient solution for applications in muliti-camera monitoring. A12 is available for Multiple installation and usage methods, for instance, stand-alone and VESA mounts; and widely applied in studio, filming, live events, micro-film production and other various applications.

Display
Size 12.5”
Resolution 3840×2160
Brightness 400cd/m²
Aspect ratio 16:9
Contrast 1500:1
Viewing Angle 170°/170°(H/V)
Video Input
SDI 1×3G
HDMI 1×HDMI 2.0, 3xHDMI 1.4
Display-port 1×DP 1.2
Video Loop Output
SDI 1×3G
Supported In / Out Formats
SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Display-port 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
SDI 12ch 48kHz 24-bit
HDMI 2ch 24-bit
Ear Jack 3.5mm
Built-in Speakers 1
Power
Operating power ≤16.8W
DC In DC 7-20V
Compatible batteries NP-F Series
Input voltage (battery) 7.2V nominal
Environment
Operating Temperature 0℃~60℃
Storage Temperature -20℃~60℃
Other
Dimension(LWD) 297.6×195×21.8mm
Weight 960g
