  • JVC RM-LP100E Remote Control-Panel for JVC PTZ and IP Camcorders
  • JVC RM-LP100E Remote Control-Panel for JVC PTZ and IP Camcorders
JVC
RM-LP100E

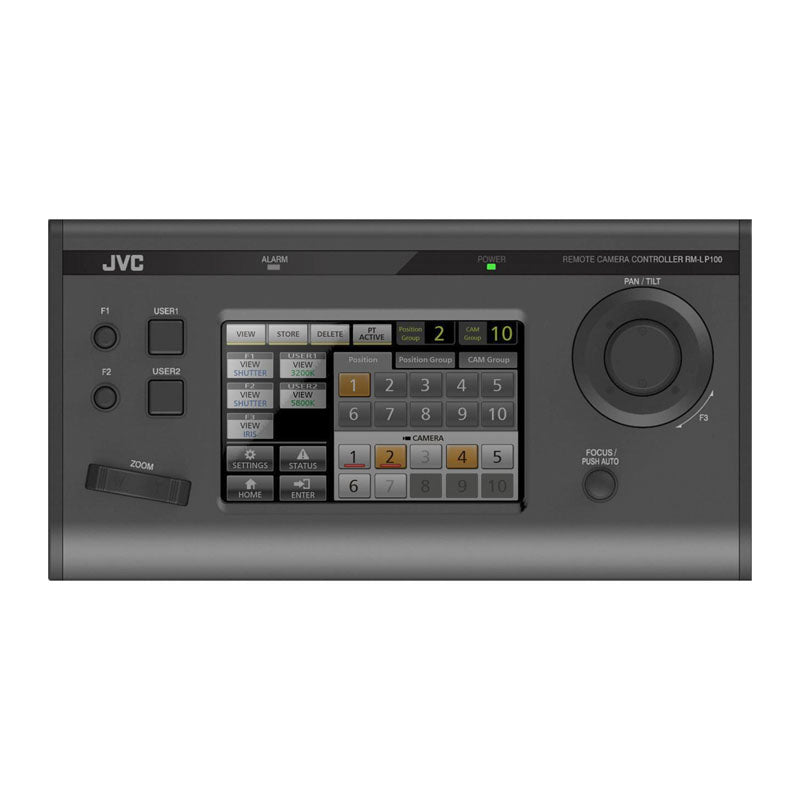

JVC RM-LP100E Remote Control-Panel for JVC PTZ and IP Camcorders

Deze geavanceerde controller maakt verbinding met uw netwerk en biedt volledige IP-controle van zowel PTZ, als camcorders met IP mogelijkheden, binnen uw lokale netwerk, of waar ook ter wereld via internet.

1-3 werkdagen
  • $1,550.00 (excl. btw)
    $1,875.50 incl. btw
  • $1,884.00
  • - 18%

This advanced controller connects to your network and provides complete IP control of cameras in your facility or anywhere in the world through the internet.

Features

  • Tally input (d-sub)
  • IP control of up to 100 cameras
  • Heavy duty joystick for precise pan and tilt control
  • 7-inch (diagonal) touch screen for PTZ and CCU functions
  • Professional zoom rocker for smooth, variable speed zoom control
  • IP Controller for JVC IP PTZ and IP Camcorders
  • User assignable function keys
  • Focus dial with push-auto function
Control Support for
Camera Type:
KY-PZ200WE/BE, KY-PZ200NWE/NBE
Camera Type:
KY-PZ400BE/WE, KY-PZ400NBE/NWE
Camera Type:
KY-PZ510WE/BE, KY-PZ510NBE/NWE
Camera Type:
KY-PZ100BE/WE
Camera Type:
GY-HC550E, GY-HC500E
Camera Type:
GY-HM660
Camera Type:
GY-HM850 E(CHE) Lens function only with JVC original supported Fujinon Lens *
Camera Type:
GY-HM890 E(CHE) Lens function only with JVC original supported Fujinon Lens *
Camera Type:
GY-HM250E/ESB
Camera Type:
GY-HM200E
Max Control of X Cameras:
100 Unit (s)
Controlled Operations
PAN
YES *
TILT
YES *
SPEED PAN/TILIT
YES *
ZOOM
YES *
FOCUS
YES *
Focus / Push Auto
YES *
AE Level
YES
Shutter
YES
GAIN
YES
IRIS
YES *
Detail
YES
Master Black
YES (Not on KY-PZ100)
Exposure
YES (only on KY-PZ100)
White Balance
YES
AWB TRIGGER
YES
White Paint
YES
Black Paint
NO
Trigger Streaming
YES
Trigger Record
YES
Preset Position (store/delete)
YES (only on KY-PZ100)
Position Call (Cam/Group)
YES (only on KY-PZ100)
Camera´s Menu Control call
YES

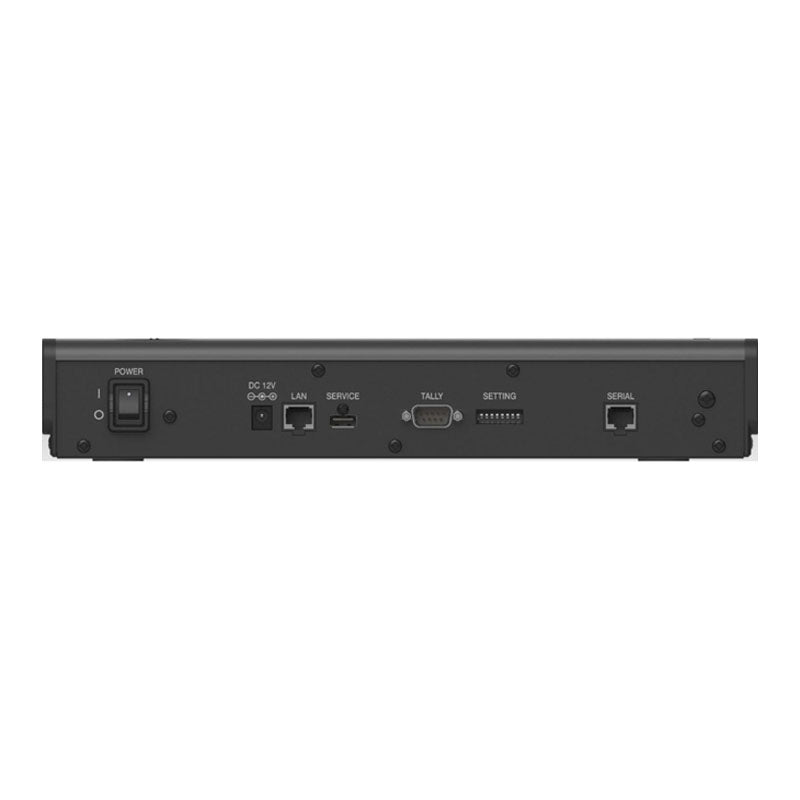

IN-OUT´s Connections
GPI
D-SUB 9 TALLY IN
Ethernet
RJ 45
RS232
not in use
RS485/422
not in use
USB
Service Terminal
Power and Environment Information
Power
DC12 Volt via AC/DC Adapter
Power consumption
0.6A
Operation Temperature in Celsius
0 degree to 40 degree
Storage Temperature in Celsius
-20 degree to 50 degree
Mechanical Informations
Dimension
W:350mm - H:110mm - D:182mm
Weight
2.1 Kg
