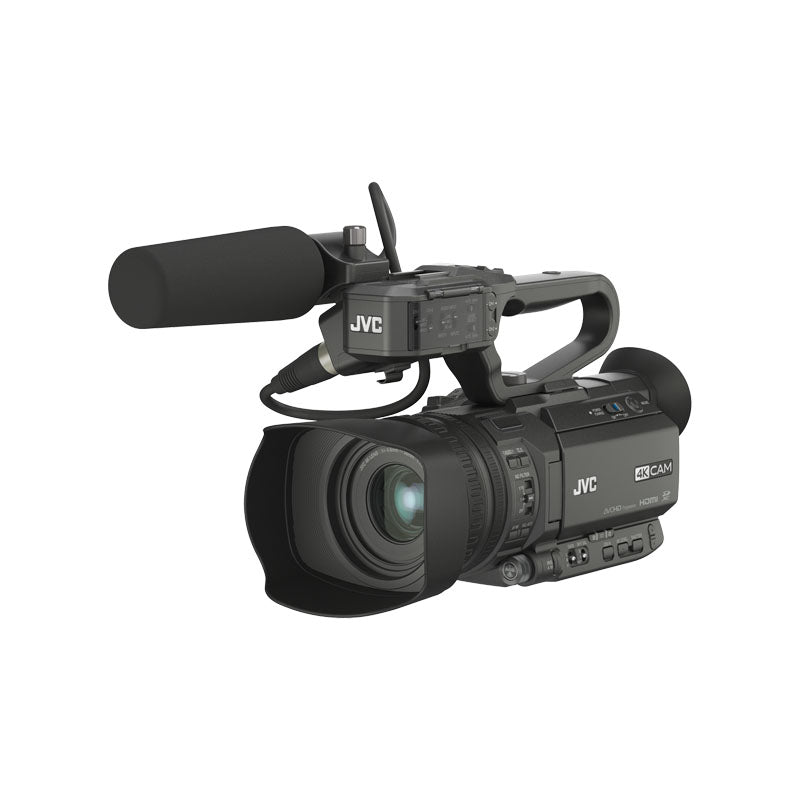

  • JVC GY-HM250ESB

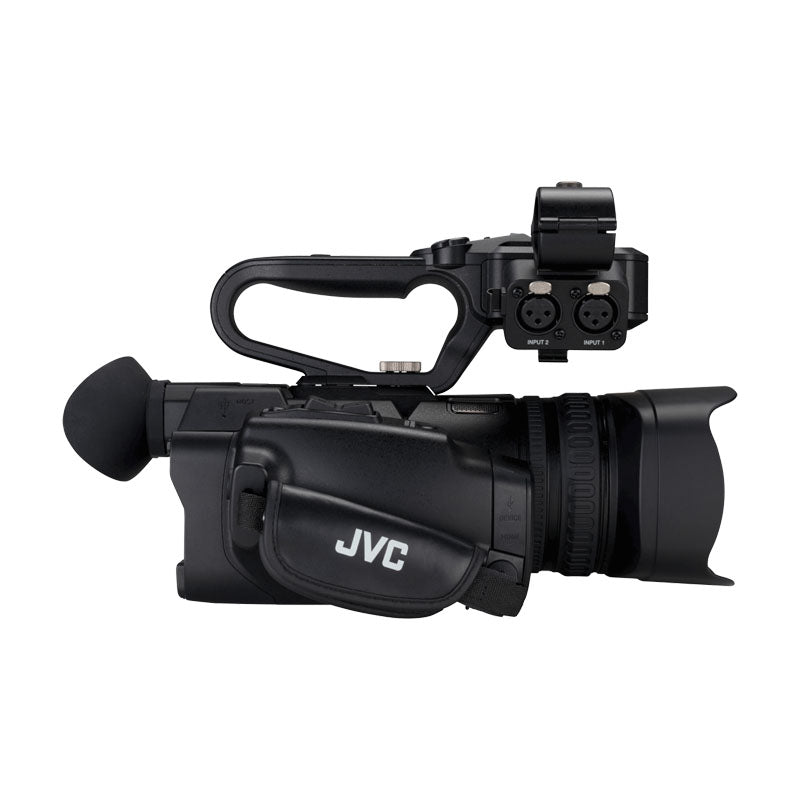

  • JVC GY-HM250ESB Side

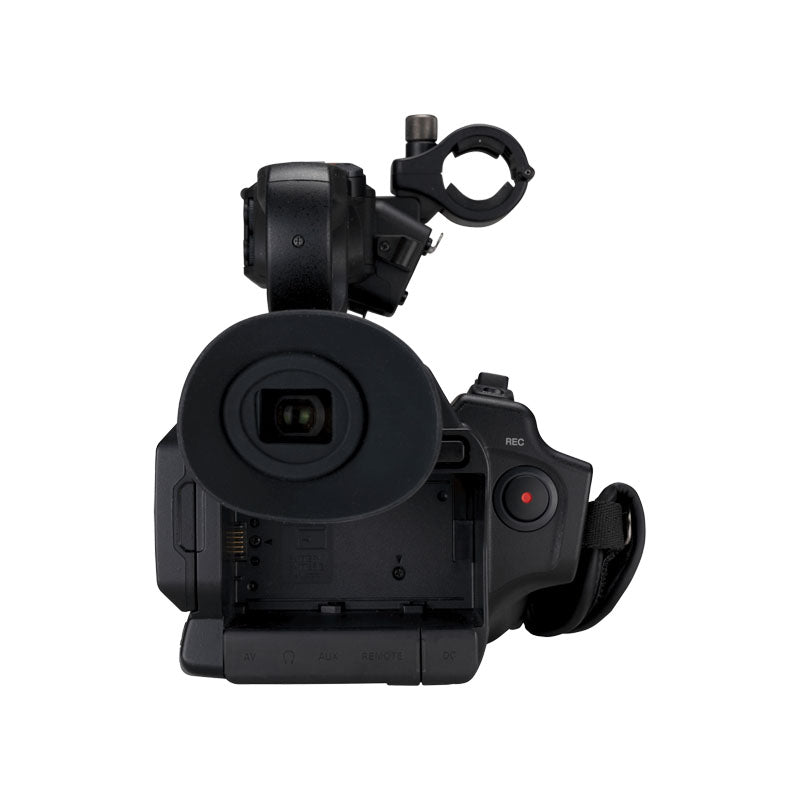

  • JVC GY-HM250ESB Back

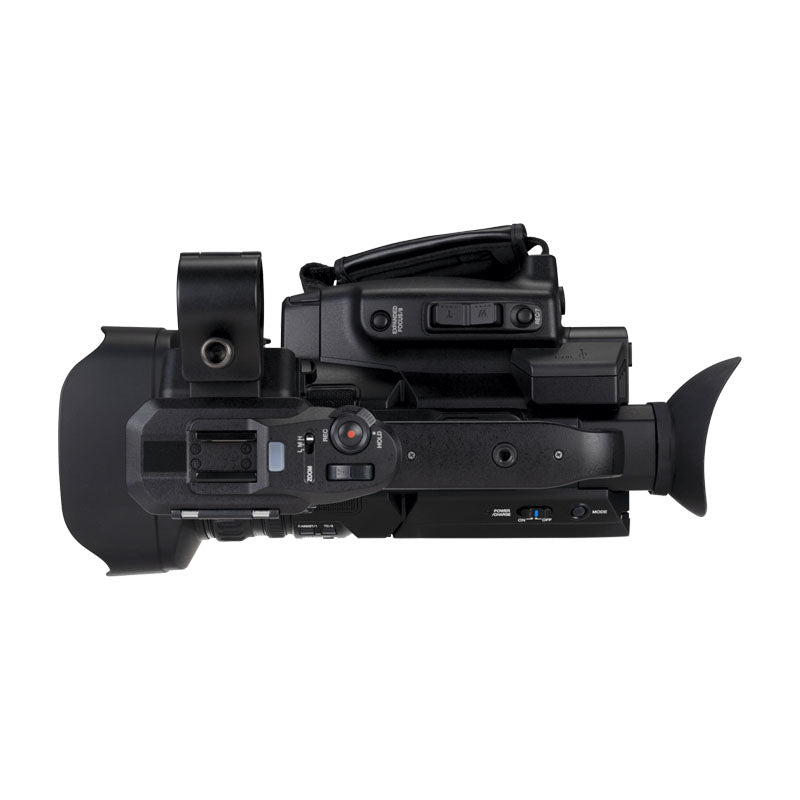

  • JVC GY-HM250ESB Top
JVC
GY-HM250ESB

JVC GY-HM250ESB UHD 4K Camcorder met FHD Live Streaming & Sports Overlay

De JVC GY-HM250ESB is een professionele camera met een 12x optische zoom lens welke verbluffende 4K Ultra HD beelden schiet. Daarnaast kan de camera Full HD live streamen naar het web en is de camera perfect voor sport events.

Levertijd opvraagbaar
  • $2,537.00 (excl. btw)
    $3,069.77 incl. btw
  • $2,884.00
  • - 12%
The GY-HM250ESB is an innovative camcorder that produces professional quality coverage of sporting events and broadcasts, complete with a full screen graphic overlay. Shoot a game with browser-updatable score graphics and be ready for the post-game interview with professional broadcast banners. Then stream live with your logo on the footage, or display a score overlay and game clock, all without requiring an external switcher or CG.

Full HD 4:2:2 recording at 50Mbps

The ability to record H.264 4:2:2 24-60p at 50Mbps makes this an ideal camera for broadcasting and production houses alike. The colour accuracy of 4:2:2 enables the camera to deliver exceptional colour resolution even when images are in sharp contrast to the background. This is particularly useful when strong colours are in contrast to bright backgrounds, or in green screen usage.

Advanced IP network communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your programme with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

Score overlays and customisation for live streaming and recorded video

Designed for enhanced single-camera production, the camera offers lower-third score overlays for recorded or streamed HD video output without an external CG or production switcher. The camera comes with graphics pre-installed for a variety of sports, including football, American football, basketball, baseball, hockey and more. The overlays are controlled using a browser-equipped device such as a tablet or smartphone, and JVC’s software utility lets customers upload team logos. The camera is perfect for streaming the game live to your fans or for playback analysis in the dressing room, especially for teams on a budget.

Custom full screen overlays and slide shows

Add up to 50 full screen custom graphics (PNG or JPG format) from an SD card to the camera and store them in its memory for live streaming or recording in HD mode. Overlays and slides are a perfect way to advertise your sponsors either as banners during the game, or full screen at halftime. It’s also a great way to introduce the team members via a pre-game slideshow. Place a watermark anywhere on the screen, even while doing lower-third score overlays.

Info
Camera Front-End Specifications
Image Sensor (inch)
1/2,3 Inch CMOS
Number of Sensors
1
Mega Pixels
12,4
Gain in dB
0 to 36
Shutter speed
1/4 to 1/10000
White Balance modes
FAW, AWA, 3200K, 5600K, Manual
Color Matrix adjustment
Yes
Wide Dynamic Range Mode (WDR)
Yes
User selected function buttons
Yes, 13 (9 Buttons 4 Cross shaped)
User Customizes Menu
Yes
Optical Specifications
Lens mount
Internal
Optical Zoom X times
12
Dynamic Zoom x times
24
Lens F Number
1.2 to 3.5
Lens ratio from / to
4.67mm to 56.04mm
Lens ratio equivalent to 35mm
29.6mm to 355mm
Auto Focus
Yes
Special Auto Focus Features
Area Focus, Near/Far Modes, Face
Optical Image stabilization
Yes
Filter Diameter in mm
62mm
Build in ND Filters
2 Filters: 1/4, 1/16
Recording Formats
Media
SDHC/SDXC
Media Class
4K/70 Mbps,HD and below Class 10
4K/150Mbps UHS1-U3 (no UHS-2)
Recording slots
2
Encoder
H.264
File Format MOV
Yes
File Format AVCHD
Yes
Video Codec MPEG4 AVC/H264 4K/HD
Yes
Video Codec AVCHD
Yes
Recording specials
4:2:2 HD Record (H.264,50Mbps)
Simultaneous recording on 2 cards
Yes
Simultaneous recording in 2 modes
Yes
Recording Resolution Formats

Resolution 3840 x 2160
Yes, 29,97p/25p/23.98p
Resolution 1920 x 1080
Yes, 60p/50p/30p/25p/24p/1080i60/i50
Resolution 1440 x 1080
Yes, 60i/50i
Resolution 1280 x720
Yes, 60p/50/30p/25p/24p
Resolution 720 x 576
Yes, 50i
Resolution 960 x 540
Yes, 30p/25p/24p
Resolution 480 x 270
Yes, 30p/25p/24p
High Speed Recording
Yes
High Speed Recording Modes
1920x1080 QuickTime (MPEG-4, AVC/H.264)
120fps/100fps
Recording Data rate 1
150 Mbps (UHD)
Recording Data rate 2
70 Mbps (UHD)
Recording Data rate 3
8,17,24,28 Mbps (AVCHD)
Recording Data rate 4
35 Mbps (UHQ)
Recording Data rate 5
50 Mbps (XHQ/YUV422)
Recording Data rate 6
8 Mbps (SD)
Recording Data rate 7
9,8,5,3,1.2,0.8,0.3,0.2 (WEB)
SD Recording
Yes
Interval Recording
Yes
Pre Rec (retro) recording
Yes, 5 sec. (4K)
5,10,15 sec. (HD/SD)
Clip Trimming
Yes
Audio Channels
2
Audio Recording modes
LPCM 2ch, 48 kHz/16 bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
IP Section of the Product
IP Main Connection
USB A Host
IP Connection supports
Ethernet, WIFI - and LTE USB Adapters
IP Features Live-Streaming
Yes
IP Features Remote
Yes, Via Web-Browser (no apps needed)
IP Features FTP
Yes, Different protocols
IP Features Meta-Data
Yes, Local and Remote editing and data exchange
Live-Streaming Bitrates
1920 x 1080 (59.94i/50i) Audio AAC 128 k 12/8/5/3 Mbps
1280 x 720 (59.94p/50p) Audio AAC 128 k 12/8/5/3 Mbps
1280 x 720 (29.97p/25p) Audio AAC 128 k 8/5/3/1.5 Mbps
720 x 480 (59.94i) 720 x 576 (50i) Audio AAC 128 k/64 k 8/5/3/1.5/0.8/0.3 Mbps
640 x 360 (29.97p/25p) Audio AAC 128 k/64k 3/1.5/0.8/0.3 Mbps
Live-Streaming Protocols
RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIX,Facebook Live paring
Live-Streaming Single cast
Yes
Live-Streaming Multicast
Yes
Live-Streaming reconnect
Yes
Live-Streaming and simultaneous REC
Yes
Live-Streaming Pre-sets of destinations
4
FTP Protocol formats
FTP / SFTP / FTPS
FTP upload during REC
Yes
FTP servers presets
4
Meta-Data presets of servers
4
Note for all kind of USB Adapters
The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder).
Please select the device which you are going to use:
WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Recommendation for WIFI USB Adapters (EU only)
Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work.
The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.
WIFI Dongle 1
Sitecom WLA.1001
WIFI Dongle 2
EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 3
ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 4
D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 5
EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 6
D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 7
TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
WIFI Dongle 8
Wideland (over Amazon) ACWIFI DEWIFIC001A
Recommendation for Ethernet adapters

Ethernet Dongle 1
EDIMAX EU-4208
Ethernet Dongle 2
Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 3
Hamlet HNU2GTX
Ethernet Dongle 4
D-LINK DUB-E100 (rev C1)
Recommendation for 3G/4G (LTE) Adapters
Dear Customer, for the most countries we have a recommendation of adapters, please download our info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
LTE Specials 1
Universal LTE dongle
Huawei E8372LTE Wingle
so far works with Telekom/O2/Vodafon , others not tested yet.
Special Features
Overlay for Sports
Yes
Overlay for Broadcast-News
Yes
Fix Templates
Yes, 1. TYPE1: Field hockey, wrestling and others, with overlay
2. TYPE2: Volleyball and others, overlay with no clock
3. Basketball
4. Baseball
5. American Football
Self Modify Templates via SDP Generator
Yes, For Sports and News
Text support
Yes
Logo support
Yes
Watermark
Yes, Free Position
Full Screen Graphics
Yes, PNG or JPG Files Max 50 Images
LIVE Logo
Yes, Self design
Overlay output selection
Yes, REC
LIVE out
Stream
External Scoreboard support via IP
Yes, Scorebot
IN-OUT´s Connections
OUT HDSDI
Yes, 3G HDSDI
OUT HDSDI Format max.
1080/60p,50p 8 Bit 4:2:2 EE
OUT HDMI
Yes
OUT HDMI Format max.
2160/30p,25p,24p 8 bit 4:2:2 EE
1080/60p,50p 8 bit 4:2:2 EE
OUT AV
Yes, 3.5mm mini jack
OUT Audio Line
Yes, 1 times 3.5mm mini jack
OUT Audio Headphone
Yes, 1 times 3.5mm mini jack
IN Audio XLR MIC/LINE
Yes, 2 times supports LINE and MIC Level with +48V
IN Audio AUX
Yes, 1 times 3.5mm mini jack
Build in Microphones
Yes, Stereo MIC
Wired remote IN
Yes, serial LANC 2.5mm mini jack
USB HOST
Yes
USB Data Exchange (Storage)
Yes
EVF and LCD
Operation Panel Type
LCD
Operation Panel Resolution
920K
Operation Panel Size diagonal in inch
3.5
Electronic Viewfinder (EVF) Type
LCOS
Electronic Viewfinder (EVF) Resolution
1,56M
Electronic Viewfinder (EVF) Size diagonal in inch
0.24
Power and Enviroment Spec´s
Power AC
Yes, DV12V(AC Adapter)
Power DC
Yes, 12 Volt, Battery 7,4V
Battery types
SSL-JVC50 / SSL-JVC75 IDX
Power consumption
Approximate 7,9W with VF in 4K REC mode, default settings
Operation Temperature in Celsius degrees
0 to 40
Storage Temperature in Celsius degrees
-20 to 50
Operation Humidity in %
30 to 80
Storage Humidity under %
85
Mechanical Informations
Weight in kg
1,6 include battery
Measurements (WxHxD) in mm
W 149 x H 191 x D 307
Handle removable
Yes
Battery
Yes, 1 SSL-JVC50
AC/DC adapter
Yes
Handle unit
Yes, with Professional Audio XLR support
Instructions
Yes
